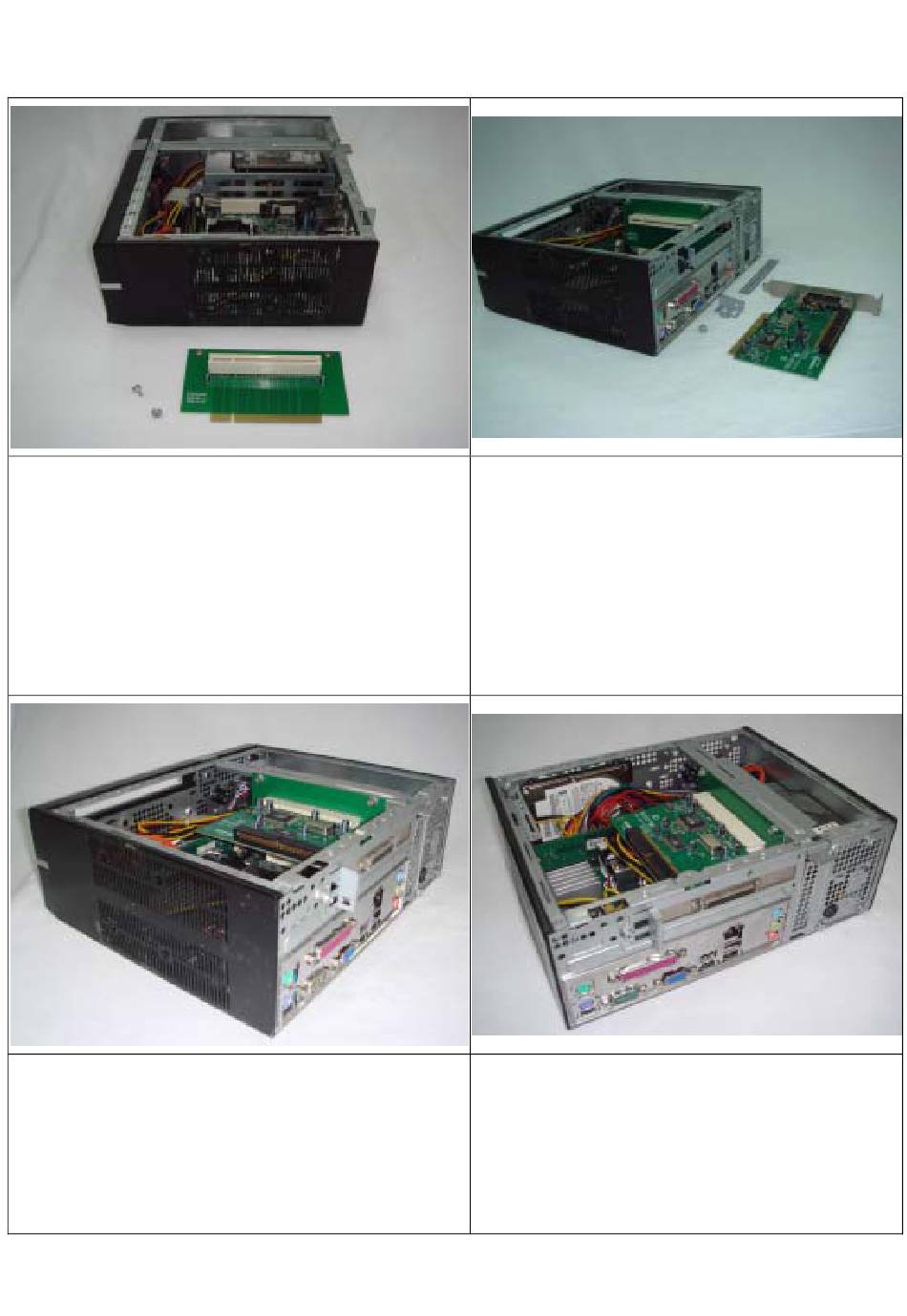

(1) With Riser Card Expansion system integration, -
The Slim ODD+2.5"HDD Bay and/or 3.5" HDD Bay are no
longer installable due to space limitation in the smaller
dimensioned Mini-ITX Chassis.
(3) Insert your Expansion Card horizontally into the PCI Slot of
the Riser Card.
Fit back the Card Holder Bracket on the Rear Panel and, -
Use 1 pc of 6-32*L6 Hexagon Head Screw secure the Card
Holder Bracket on the Rear Panel.
NU-0528i/NU-0548i Mini-ITX Chassis
RISER CARD & FRONT 2.5" HDD ASSEMBLY
(2) To install the Riser Card, -
Break off and remove the 'Punched-but-not-perforated'
Slot Cover (For Standard PCI Card) from the Rear Panel,
Unscrew and take out the Card Holder Bracket.
Insert the Riser Card into the Motherboard's PCI Slot and,
Use 2 pcs of 6-32*L6 Hexagon Head Screws to secure the
Riser Card on the Center Bar.
(4) With Riser Card expansion system integration, -
1 pc of 2.5" HDD is installable on the inner side of the Steel
Front Panel.
Note: This installation of the 2.5" HDD would obstruct and
invalidate the Card Reader integration.
Advertisement
Summary of Contents for Jou Jye NU-0528i
- Page 1 NU-0528i/NU-0548i Mini-ITX Chassis RISER CARD & FRONT 2.5” HDD ASSEMBLY (1) With Riser Card Expansion system integration, - (2) To install the Riser Card, - The Slim ODD+2.5”HDD Bay and/or 3.5” HDD Bay are no Break off and remove the ‘Punched-but-not-perforated’...
- Page 2 (6) Use 2 pcs of 6-32*L4 Flat Head Screws to secure the (5) To install the 2.5” HDD on the inner side of the Steel Front Panel – 2.5" HDD Fixture Bracket onto the Chassis Frame First, dismantle the Front Panel from the Chassis Frame. (Blocking and covering the Slim ODD’s Inlet).
- Page 3 (9) Use 4 pcs of M3*0.5*L8 Hexagon Head Screws included with EMI Clips to secure the 2.5" HDD on the Front Steel Panel from the front to complete the installation.
