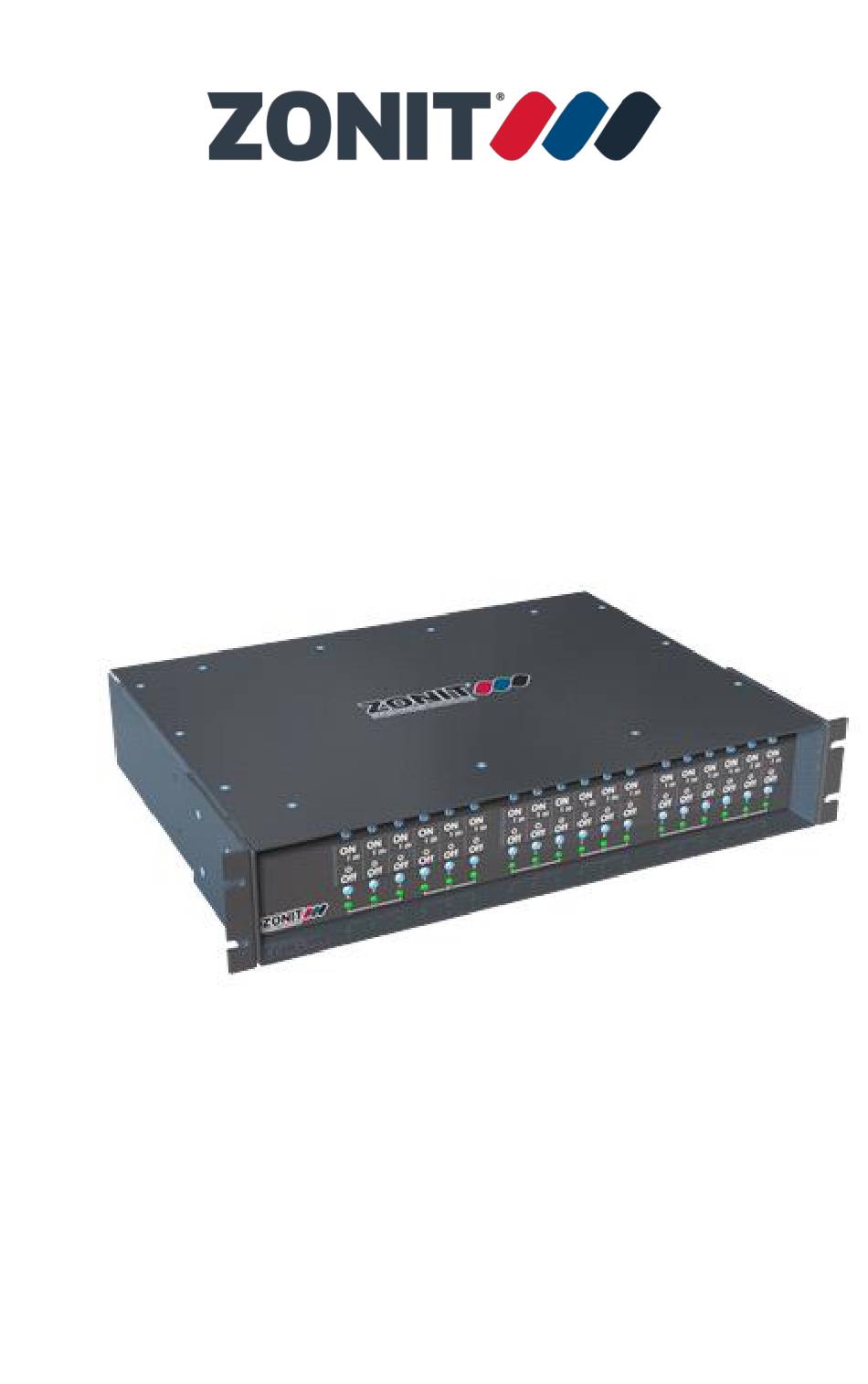

- Page 1 Zonit Power Distribution System Z-PDS™ User Guide Version 2.3 - October 2019...
- Page 2 Table of Contents Version 2.3 - October 2019...
-
Page 3: Table Of Contents
Overview Cautions and Warnings Specifications Common Z-PDS Models Installation Pre-Installation Considerations Shipped Items List Mounting Z-PDS Mounting Electrical Connection & Power-Up Option 1: Connect via supplied plugs Option 2: Connect via hard-wire module Electrical Connection of Output Loads Operation Output Circuit Configurations Line to Neutral Voltage Line to Line Voltage Three Phase Wye... -
Page 4: Overview

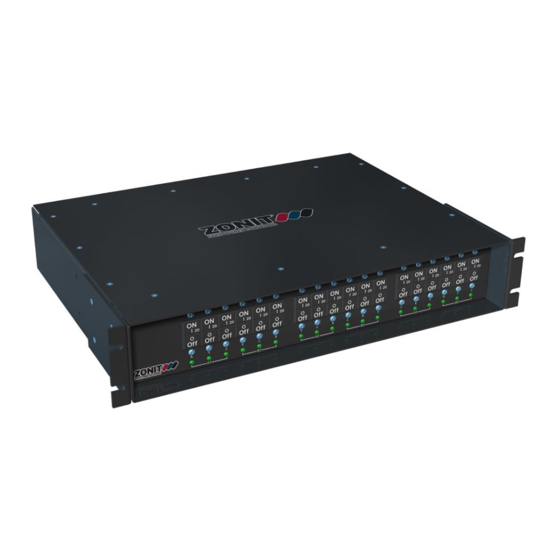

A wide variety of standard and custom plug adapters for the Z-PDS system are available from Zonit. The Z-PDS system is the logical evolution of power distribution in the data center. By moving three phase power to the rack and... -
Page 5: Cautions And Warnings
Cautions and Warnings Please read the instructions thoroughly as damage can occur to people or equipment if the product is not handled correctly during installation, operation, servicing, maintenance, and decommissioning. The symbols below are used to highlight danger indications, warnings or notices. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 6: Specifications
Specifications ZPDS- ZPDS- ZPDS- ZPDS- ZPDS-208V30A- ZPDS-208V30A- 208V60A- 208V60A- 480V60A- 480V60A-HW- L21-4L21-20 L21-4L21-20-CR HW-6L21-20 HW-4L21-30 HW-4L22-30 6L22-20 Electrical Rated Input Voltage 208V 208V 480V 480V 208V 208V [3ø Wye] Input Rated Max. Amp [Amp] Rated Input 50-60 50-60 50-60 50-60 50-60 50-60 Frequency... -
Page 7: Common Z-Pds Models
Common Z-PDS Models Output Voltage Input Output Model Circuit Rating Connection Receptacle Breakers Rating ZPDS-208V30A- 208V L21-30P L21-4L21-20 ZPDS-208V30A- 208V L21-30P L21-4L21-20-CR (120V) (5-20 Duplex) ZPDS-208V60A- 208V Hard Wire HW-6L21-20 ZPDS-208V60A- 208V Hard Wire HW-4L21-30 ZPDS-480V60A- 480V Hard Wire HW-6L22-20 ZPDS-480V60A- 480V Hard Wire... -
Page 8: Installation
Installation Pre-Installation Considerations Prior to deployment of the Z-PDS, the following site considerations should be reviewed to ensure the Z-PDS will function properly in its intended application. Shipped Items List: (1) Z-PDS w/ standard attached A-B labeled input 10 ft. power cords (2) Rack Mount Brackets (8) Bracket Mounting Screws... -
Page 9: Mounting
Mounting CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury. Z-PDS Mounting 1. Remove all items from the shipping box and confirm all pieces in the “Shipped Items List” are present and are not damaged. -
Page 10: Electrical Connection & Power-Up
Electrical Connection and Power-up DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Note: This operation must be performed by a qualified technician or electrician in accordance with your local electrical safety code. Installation Option 1: Connect via supplied input plugs 1. -
Page 11: Option 2: Connect Via Hard-Wire Module
Installation Option 2: Connect inputs via hard-wire module Insure that the supplied hardwire enclosure modules and the connections described below are in compliance with your local electrical safety codes. Remove the cover plates of the hardwire enclosure modules. Install the bushings in the input feed end by punching the appropriate knockout size and installing the correct bushing for your input cord diameter. -
Page 12: Electrical Connection Of Output Loads
Electrical Connection of output loads Insure that the input load plugs and cords used are in compliance with your local electrical safety codes and appropriate for the intended application. De-energize the Z-PDS output receptacle to be plugged into via the front panel circuit breakers that control it. Follow all applicable safety regulations. -
Page 13: Output Circuit Configurations
Output Branch Circuit Configurations Note: Examples are implemented via Zonit plug adapters where needed. -
Page 14: Controls
Controls DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Individual Branch Circuit Output Control Circuit Breakers Individual Power Phase Circuit Breakers Connectivity Status LED Front Panel Leg Front Panel Phase Indicators Designation Designation... -
Page 15: Maintenance
Maintenance There is no required maintenance schedule for the Z-PDS; however, toggling on/off all the output circuit breakers to ensure all the LEDs illuminate during general maintenance windows or when the Z-PDS is not in use will help ensure all output branch circuits are working correctly. -
Page 16: Warranty
Warranty The Z-PDS made by Zonit Structured Solutions, LLC in the U.S.A. is warranted to be free of defects in materials and workmanship for a period of 3 years from date of purchase. If the product becomes defective during the warranty period, we will elect to either repair or replace it free of charge. - Page 17 RIGHTS AND REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL ZONIT STRUCTURED SOLUTIONS LLC BE LIABLE, WHETHER IN CONTRACT, UNDER ANY WARRANTY, IN TORT (INCLUDING NEGLIGENCE), IN STRICT LIABILITY OR OTHERWISE, FOR...
-
Page 18: Waste Electrical & Electronic Equipment (Weee)
Waste Electrical and Electronic Equipment (WEEE) Within the European Union this symbol indicates that this product should not be disposed in household waste. It should be deposited at an appropriate facility to enable recovery and recycling. For information on how to recycle this product, please check with the reseller that sold you this product to determine proper waste disposal procedures. - Page 19 See our website at www.zonit.com for the latest version of manuals. Zonit Structured Solutions LLC 1790 30th Street, Suite 140 Boulder, Colorado 80301...
