Summary of Contents for BOX15 Stroke TV Lift 1000

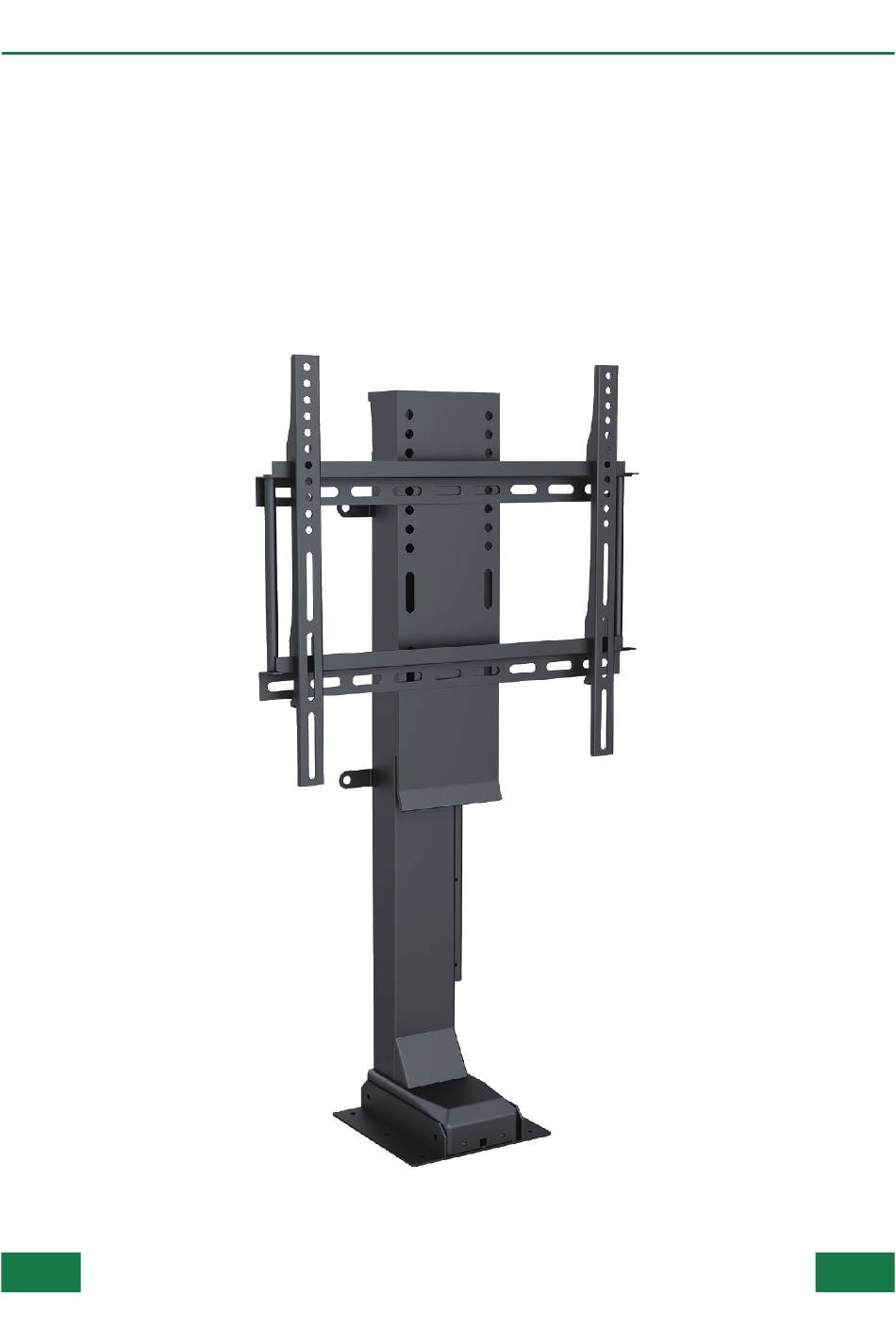

- Page 1 TV Lift Electric height adjustable TV Lift ASSEMBLY INSTRUCTIONS / OPERATING MANUAL...
-
Page 2: Warning Information
WARNING / INFORMATION The following safety instructions safeguard the user from accidents and help to prevent damaging the TV Lift. Keep the remote control away from children. Keep children and pets away from the TV Lift. Keep all electrical components away from liquids (including rain). ... - Page 3 TOOLS / CONTENT Phillips screw driver Allen Key, No. 4 or power drill, Z1 to Z3 Wrench, size 13 (Tools are not part of the kit) No. Component QTY. No. Component QTY. (batteries not included – Lift column Remote control needs 2 AAA-batteries) Bracket for TV holder Power cord...
-
Page 4: Montage
MONTAGE 1. Remove the packaging and check all components for completeness according to list of content on page 3. The TV Lift is delivered partially pre-assembled. Already mounted fasteners are not listed again. Due to shipping reasons, one only has to attach the TV-holder. Because of the size and then weight of the TV Lift, two people should do the assembly. - Page 5 7. Align then TV mounting strips with your TV and attach your TV centrally with the mounting strips. Use the included mounting material and leveler 8. Attach the TV holder to the bracket Here for use 4 of the M8x16 round-head socket screws and 4 of the self-locking nuts Make sure you attach the self-locking...
-
Page 6: Troubleshooting
OPERATING You can operate the TV Lift by using the remote control or the pushbutton. The pushbutton supersedes the remote control. You can operate the TV Lift by pushing and on the remote control or by pushing „UP/DOWN“ on the pushbutton. •... -
Page 7: Technical Specifications
RESET. TECHNICAL SPECIFICATIONS Stroke TV Lift 650: 650 mm / retracted 570 mm, fully extended 1.220 mm Stroke TV Lift 1000: 1000 mm / retracted 810 mm, fully extended 1.810 mm Stroke speed: 30 mm/s load-free Duty cycle: 10 % (approx. -
Page 8: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimensions not binding Dimensions not binding...
