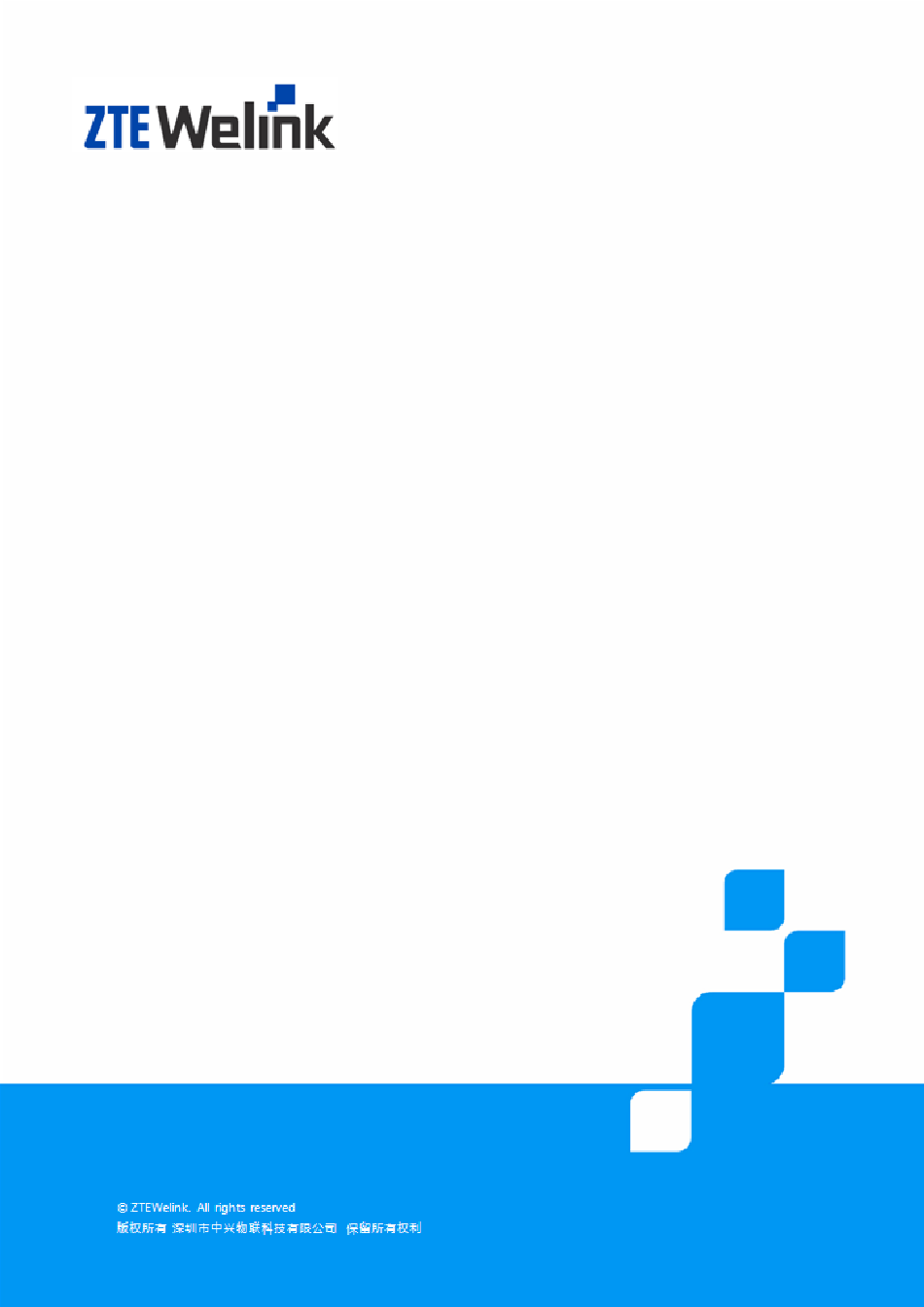

- Page 1 Hardware Development Guide of Module Product Hardware Development Guide of Module Product Product Model No: ZM8620 Document Version: 2.0 Release Date: 2013-03-20 All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
- Page 2 By accepting this certain document of Shenzhen ZTEWelink Technology CORPORATION (hereinafter referred to as “ZTEWelink”) you agree to the following terms. If you do not agree to the following terms, please notice that you are not allowed to use this document.
- Page 3 Revised by Revised on Reason for Revision V1.0 Luo Pingbo 2013-02-22 First published Delete the part of PCM, and change the header, V2.0 2012-03-20 front cover, legal information and footer. All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
-
Page 4: Table Of Contents
Feature of Interface Power Level ...................... 12 4.3.1 Feature of Digital Power Level Signal................... 12 Power Interface ..........................12 4.4.1 Description of Power PINs ......................12 4.4.2 Requirement of Power Supply ...................... 13 All Rights reserved, No Spreading abroad without Permission of ZTEWelink... - Page 5 Technical Specification of LTE Mode Radio Frequency ..............20 6.3.1 Test Environment in which Transmission Indices are Obtained ............ 20 6.3.2 Maximum Transmission Power ..................... 20 6.3.3 Receiving Sensitivity........................20 6.3.4 Spurious Specification ........................21 ANTENNA ..............................24 All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
- Page 6 Technical Parameter for the Main Antenna Test Base ..............24 Proposal on Layout of Product in Terminal Product ................24 Antenna Size and Placement ......................24 Diversity Antenna Design ........................24 DEBUGGING ENVIRONMENT AND METHOD ..................25 All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
- Page 7 Table 6-1 Maximum Transmission Power ......................18 Table 6-2 Receiving Sensitivity Reference Table ..................... 18 Table 6-3 General Requirement of Receiver Spurious Emission ..............19 Table 6-4 Additional Spurious Emission Requirement ..................19 All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
-
Page 9: About This Document
ZM8620 module product. 1.2 Purpose This document provides the design and development fundamentals for the users of ZM8620. By reading this document, the user can have an overall knowledge of this product, and a clear understanding of the technical parameters of this product. With this document, the user can use ZM8620 successfully fulfill the wireless communication function development of the mobile terminal products such as Tablet, Notepad etc. -
Page 10: Product Overview
Figure 2-1 Product Material Object Picture 2.1 Product Technical Parameter The major features of ZM8620 can be described from the aspects of mechanic feature, base band, radio frequency, technical standard and environment feature. Table 2-1 is a list of the major technical parameters and features supported by ZM8620. - Page 11 UMTS2100: ≤-106.7 dBm UMTS1900: ≤-104.7 dBm UMTS850: ≤-104.7 dBm UMTS900: ≤-103.7 dBm UMTS1700: ≤-106.7 dBm Receiving sensitivity LTE 2600: ≤-92dBm(20 MHz) LTE 2100: ≤-94dBm(20 MHz) LTE1900: ≤-92dBm(20 MHz) LTE1700: ≤-94dBm(20 MHz) All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
- Page 12 -10 to 60 ° C Environment Storage Temperature -40 to 85 ° C Humidity 5%~ 95% NDIS Voice Video Call Application USSD Phonebook NETWORK LOCK Optional SIM READER Language Online Update All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
-
Page 13: Function Overview
USB signal, SIM card signal, radio frequency switch control signal, power on and overall system resetting signal, power supply and ground. At the same time, ZM8620 has the main antenna interface and diversity antenna interface, and GPS antenna interface. -
Page 14: Mechanic Feature
Full-Mini- Half-Mini- Dual-Use Dual Head-to-Head Socket Only Socket Only Socket Socket Card Type Connector Connector Connector Connector Connector Full-Mini Full-Mini with bottom-side keep outs Half-Mini Half-Mini with bottom-side keep outs All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 15: Antenna Interface
(there is “AUX” flag on the PCB), and one is GPS antenna, as shown in Figure 3-2. The radio frequency bases adopted by the antenna interface are all HRS company U.FL-R-SMT (10), as shown in Figure 3-3. All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 16: Thermal Design
LTE standard is very high, if it is impossible to ensure ZM8620 ambient temperature is lower than 60 ° C, the rise of the overall system temperature will lead to the decline of ZM8620 performance, and even it cannot operate normally. In order to... -
Page 17: Pin Description
Hardware Development Guide of Module Product (c) Lay ZM8620 and its heat dissipating chip out on the active heat dissipating channel of the main board. Place ZM8620 on the side with a relatively lower temperature. (d) Do not place ZM8620 near components with relatively heat a large generation, such as CPU, and south bridge. -
Page 18: Pin Description
Table 4-2 PIN Interface Definition Protocol signal Signal definition number name WAKE# PCI_WAKE 3.3Vaux VDD_3V3 COEX1 PCI_SPI_MISO COEX2 PCI_SPI_MOSI 1.5V KPD_PWR_N CLKREQ# PCI_SPI_CLK UIM_PWR USIM_POWER UIM_DATA USIM_DATA REFCLK- PCI_SPI_CS_N UIM_CLK USIM_CLK REFCLK+ SLIC_RST0 All Rights reserved, No Spreading abroad without Permission of ZTEWelink... - Page 19 SMB_DATA UART_CTS PETp0 BQ_CHG USB_D- USB_DM USB_D+ USB_DP +3.3Vaux VDD_3V3 +3.3Vaux VDD_3V3 LED_WWAN# LED_PWR LED_WLAN# PCI_UART_RX Reserved PCI_PCM_CLK LED_WPAN# PCI_UART_TX Reserved PCI_PCM_DIN +1.5V VBAT Reserved PCI_PCM_DOUT Reserved PCI_PCM_SYNC +3.3Vaux VDD_3V3 All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
-
Page 20: Working Condition
Note: 1. the high/low PWL of input voltage should comply with the range in the table. 2. The high/low PWL of external interface signal should match the interface PWL of ZM8620. 3. In VDD_PX, X=1 or 2, indicating the attribute of P1 group PIN or P2 group PIN. -
Page 21: Requirement Of Power Supply
4.5.1 Description of PINs ZM8620 module baseband processor integrates the (U) SIM card interface, and supports to automatically detect 3.0V/1.8V (U) SIM cards. And the module can support SIM hot-swap function. The signals on SIM card interface is as shown in Figure 4-2. -
Page 22: Usb2.0 Interface
TX and RX FIFOs (512 bytes for each). For the normal UART application, and the default baud rate is 115200bps. 4.8 Power-on/Power-off & Reset Signal The power-on process of ZM8620 module is: Pull the POWER_ON PIN high that trig power_on All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 23: Wake# Signal
No.: 1) is an output signal, active low level or low fall edge. This signal is a reserved signal for ZM8620 to wake up the system host. ZM8620 pulls up the power level to VDD_3V3 internally by the 10Kohm resistance. It is recommended to connect the 47ohm resistance to the GPIO PIN on the main chip (If this GPIO PIN is on the system side, it can wake up the host). -
Page 24: Electric Feature
GSM and WCMA mode when there is data service. Table 5-2 Working Current Mode Status Average Remark With no service IDLE mode With data transmission GPRS/EDGE mode WCDMA With no service IDLE mode With data transmission HSPA mode All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 25: Power-On/Power-Off Flow
The POWER_ON is low in the beginning. Once there gives POWER_ON a high RISE EDGE more than 1.2V, the ZM8620 MODULE will be Power-on. That is the Power-on flow. If there gives POWER_ON a low LEVEL, the POWER_ON signal becomes low; the ZM8620 MODULE will be Power-off. -
Page 26: Technical Specification For Umts Mode Radio Frequency
NOTE 3: For the UE which supports both Band Ⅲ and Band Ⅸ operating frequencies, the reference sensitivity level of -114.5 dBm DPCH_Ec<REFSENS> shall apply for Band Ⅸ . The corresponding <REFIOR> is -104.2 dBm 6.1.4 Spurious Specification Spurious emission meets 3GPP TS 34.121 protocol requirement. All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 27: Technical Specification Of Gsm Mode Radio Frequency
± 2dB 6.2.3 Receiving Sensitivity GSM 1900/1800/900/850MHz receiving sensitivity meets 3GPP TS 34.121 protocol requirement. Under the specification that BER does not exceed 2.24, it meets the requirement smaller than -102dBm. All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 28: Technical Specification Of Lte Mode Radio Frequency
-102.7 -99.7 -93.2 -101.7 -98.7 -92.2 -104.7 -101.7 -100 -95.2 -103.2 -100.2 -100 -93.2 -102.2 -99.2 -94.2 -100 -95.2 -100 -101.7 -98.7 -99.2 … -102.2 -99.2 -100 -95.2 -100 -95.2 All Rights reserved, No Spreading abroad without Permission of ZTEWelink... -
Page 29: Spurious Specification
Bandwidth Band Protected band Level (dBm) Comment (MHz) (MHz) E-UTRA Band 1, 3, 7, 8, 9, 11, 34, 38, 40 FDL_low FDL_high Frequency range Frequency range 1884.5 1919.6 Note ,Note All Rights reserved, No Spreading abroad without Permission of ZTEWelink... - Page 30 Note E-UTRA Band 1, 9, 11, FDL_low FDL_high Frequency range 1884.5 1919.6 Note Frequency range 1884.5 1915.7 Note E-UTRA Band 2, 4, 5, 10, 12, 13, 14, 17 FDL_low FDL_high All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
- Page 31 To meet these requirements some restriction will be needed for either the working band or protected band Requirements are specified in terms of E-UTRA sub-bands For non synchronised TDD operation to meet these requirements some restriction will be needed for All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
-
Page 32: Antenna
7.2 Proposal on Layout of Product in Terminal Product In the layout of notebooks, it is necessary to ensure ZM8620 is not placed close to the switch power supply, and high-speed signal line, and protection well the layout of these interference sources. -
Page 33: Debugging Environment And Method
PCI Express Mini Card USB Port Interface Module Switching Computer board board host Power supply adapter Figure 8-1 The diagram for the switching board All Rights reserved, No Spreading abroad without Permission of ZTEWelink...
