Summary of Contents for Make Noise XOH
- Page 2 Table of Contents Limited Warranty Installation /Overview Panel Controls and Inputs/Outputs...
-
Page 3: Limited Warranty
Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply. During the warranty period, any defective products will be repaired or replaced, at the option of Make Noise, on a return-to-Make Noise basis with the customer paying the transit cost to Make Noise. - Page 4 Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
- Page 5 Overview XOH (miX Out Headphone) is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. We designed it to work well within our forthcoming stereophonic modular systems which feature our stereo modules such as the QPAS, X-PAN, Morphagene, Erbe Verb and Mimeophon.

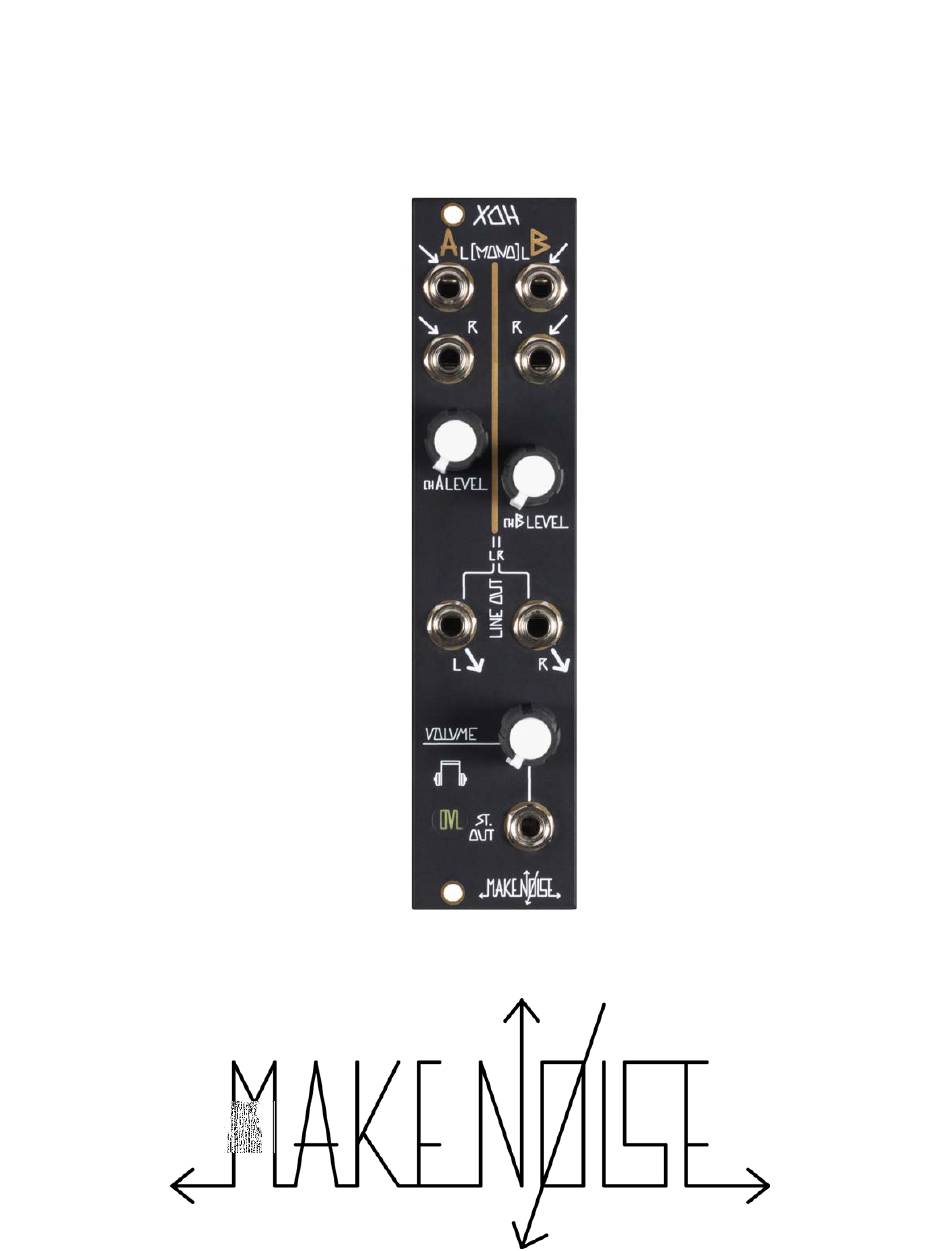

- Page 6 Panel Controls XOH Panel Controls and Inputs/Outputs 1. ChA Left Input. Expects modular level (~10V peak-to-peak) signal. 2. ChA Right Input. Normalled to ChA Left Input. Expects modular level (~10V peak-to-peak) signal. 3. ChA Level Control. 4. ChB Left Input. Expects modular level (~10V peak-to-peak) signal.
