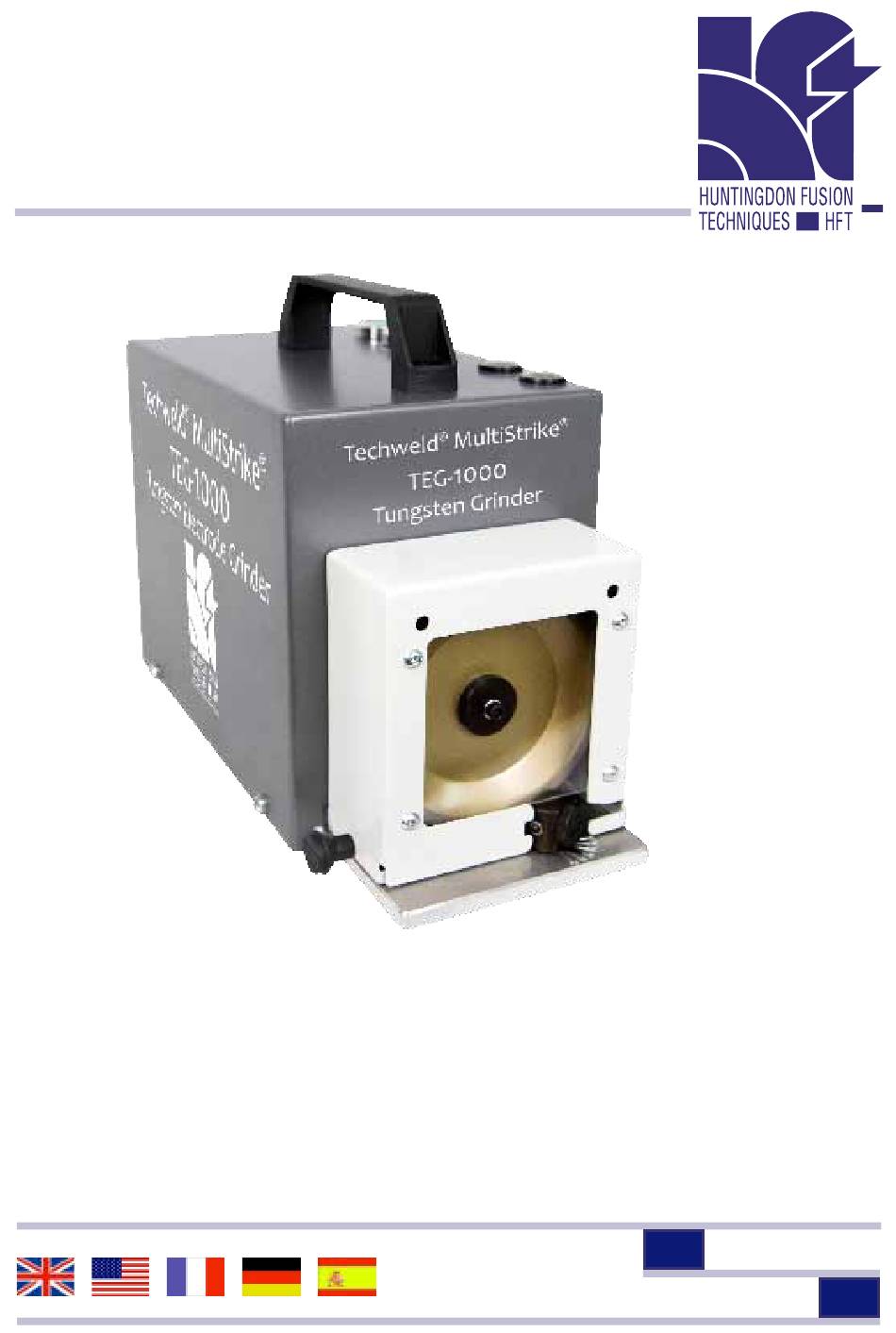

USER INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the Techweld MultiStrike TEG-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Huntingdon Fusion Techniques Techweld MultiStrike TEG-1000

Page 2: Table Of Contents
INDEX PAGE 2 Index ..............Warning (general safety notice) ......... Introduction ............Instructions for use ..........Replacing the wheel ..........Hints and tips ............Troubleshooting ..........Grinding of short tungstens ........Use of TEG-1000 without extraction system ... TEG-1000 safety notice ........General safety warnings ........
Page 3: Warning (General Safety Notice)
WARNING PAGE 3 Although the TEG-1000 has a perspex safety shield through which the grinding process can be safely observed, Huntingdon Fusion Techniques HFT strongly advises every user of a Tungsten Electrode ® Grinding machine to wear safety goggles and ear protection when grinding.
Page 4: Introduction
Huntingdon Fusion Techniques HFT has a wide experience of the ® performance of different tungsten electrode types. So, if you want...
Page 5: Instructions For Use
INsTRUCTIONs fOR UsE PAGE 5 it is important that every operator should read these instructions before they are allowed to use the TEG-1000 Tungsten Electrode Grinder. The parts are all named in the diagram on pages 10 and 11, so you can familiarise yourself with the individual items.
Page 6: Replacing The Wheel
REPlACING ThE WhEEl ON THE PAGE 6 TEG-1000 GRINDER IMPORTANT sAfETY NOTE: Please make sure the TEG-1000 Grinder is unplugged before replacing the wheel. To perform this operation you will require the following tools: 1 x 6mm Allen key. 1 x 4mm Allen key. 1.
Page 7: Hints And Tips
hINTs AND TIPs PAGE 7 The table below shows some recommended grinding angles and times to sharpen each tungsten. By observing these guidelines, wear of the diamond wheel will be kept to a minimum. The wear will double if the grind time is halved and triple if the grind time is reduced to one third.
Page 8: Grinding Of Short Tungstens
GRINDING oF shORT TUNGsTENs PAGE 8 If you wish to grind short pieces of tungsten electrode which cannot be practically held by hand, a collet accessory kit is available. The multi hole tappet can be replaced with a single hole tappet to hold a pin vice.
Page 9: Use Of Teg-1000 Without Extraction System
TEG-1000 PAGE 9 WIThOUT EXTRACTION DIAGRAM Handle Wheel housing cover with perspex safety viewing shield. Motor case housing. Power cord. Foot. Dust collector (drawer). Push on switch, green, Push off switch, red. Tappet block. Tappet. Angle guide.
Page 10: Teg-1000 Safety Notice
TEG-1000 PAGE 10 sAfETY NOTICE TEG-1000 Eye protection Wear ear protection must be worn IllUsTRATED PART GUIDE Part No. Part description Diamond grinding wheel for TEG-3 and TEGS001 TEG -1000 Multi hole tappet TEGS002B 1.0, 1.6, 2.4 and 3.2mm TEGS004 Single hole tappet for 4mm collet TEGS008 Single hole tappet for 4.8mm collet...
Page 11: General Safety Warnings
GENERAl sAfETY WARNINGs PAGE 11 Read all safety warnings and all instructions. Save all warnings and instructions for future reference. motor Power: 0.37kW motor: 2850 rPm Product Life Span: 40,000 hours Net Weight: 13.7 kgs WORk AREA sAfETY 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Page 12: Personal Safety
PERsONAl sAfETY PAGE 12 1. if devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. TUNGsTEN GRINDER UsE AND CARE 1. Do not use the Tungsten Electrode Grinder if the switches do not turn it on and off.
Page 13: Safety Warnings Specific For Grinding And Abrasive Cutting-Off Operations
sAfETY WARNINGs sPECIfIC PAGE 13 fOR GRINDING AND AbRAsIvE CUTTING-Off OPERATIONs: 1. Use only the recommended replacement diamond wheel for your grinder and the perspex guard designed for the wheel. 2. Do not operate the TEG-1000 Tungsten Electrode Grinder without the perspex safety guard in place.
Page 14: Other Languages
Other lANGUAGEs in PROGREss PAGE 14 Les autres langues sont actuellement dans le progrès. Pour le moment, s’il vous plaît contacter votre Distributeur local Andere Sprachen sind momentan im Gange. Kontaktieren Sie vorläufig, bitte ihren örtlichen Verteiler Otros idiomas son actualmente en progreso. Para ahora, contacta por favor su Distribuidor local CUsTOMER sUPPORT and WORlDWIDE CARE For further information and support, please contact us at:...
Page 15: Warranty
Should you encounter a problem with your product, please notify us immediately upon receipt. Huntingdon Fusion Techniques HFT warrants this product to be ® free of defects in workmanship and material, with exceptions stated below.
Page 16 Tel +44 (0) 1554 836 836 Fax +44 (0) 1554 836 837 www.huntingdonfusion.com Email hft@huntingdonfusion.com E&oE Copyright © HFT . All rights reserved. ® This publication may not be reproduced by any means without the written permission of Huntingdon Fusion Techniques HFT ®...
