SIM900D Hardware Design
6 Mechanics
This chapter describes the mechanical dimensions of SIM900D.
6.1 Mechanical Dimensions of SIM900D

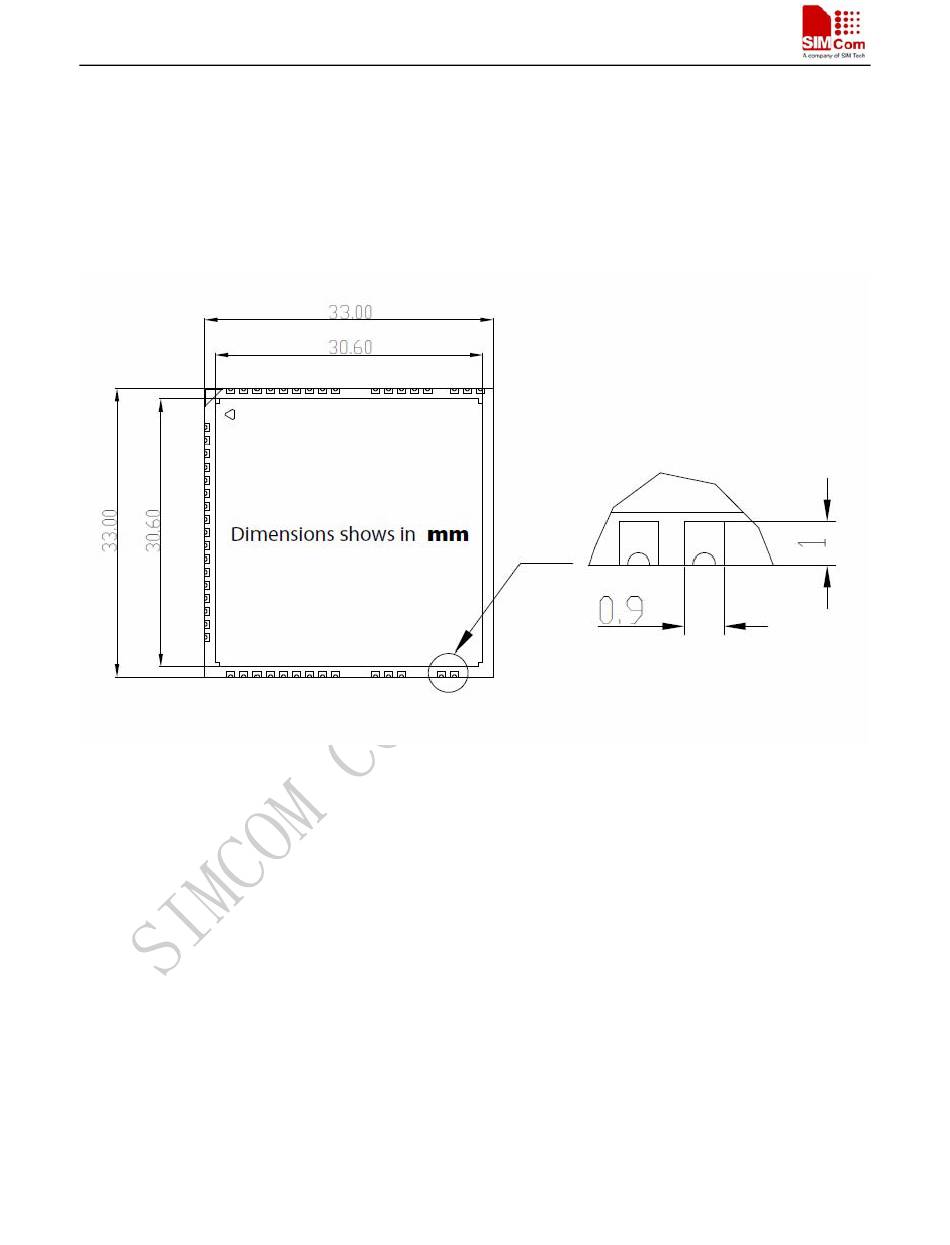

Following shows the Mechanical dimensions of SIM900D (top view, side view and bottom view).
Dimensions shown in millimeters
Figure29: SIM900D TOP view
7
SIM900D_HD_V1.02
09.04.2010
