Summary of Contents for Alasking AH-500R

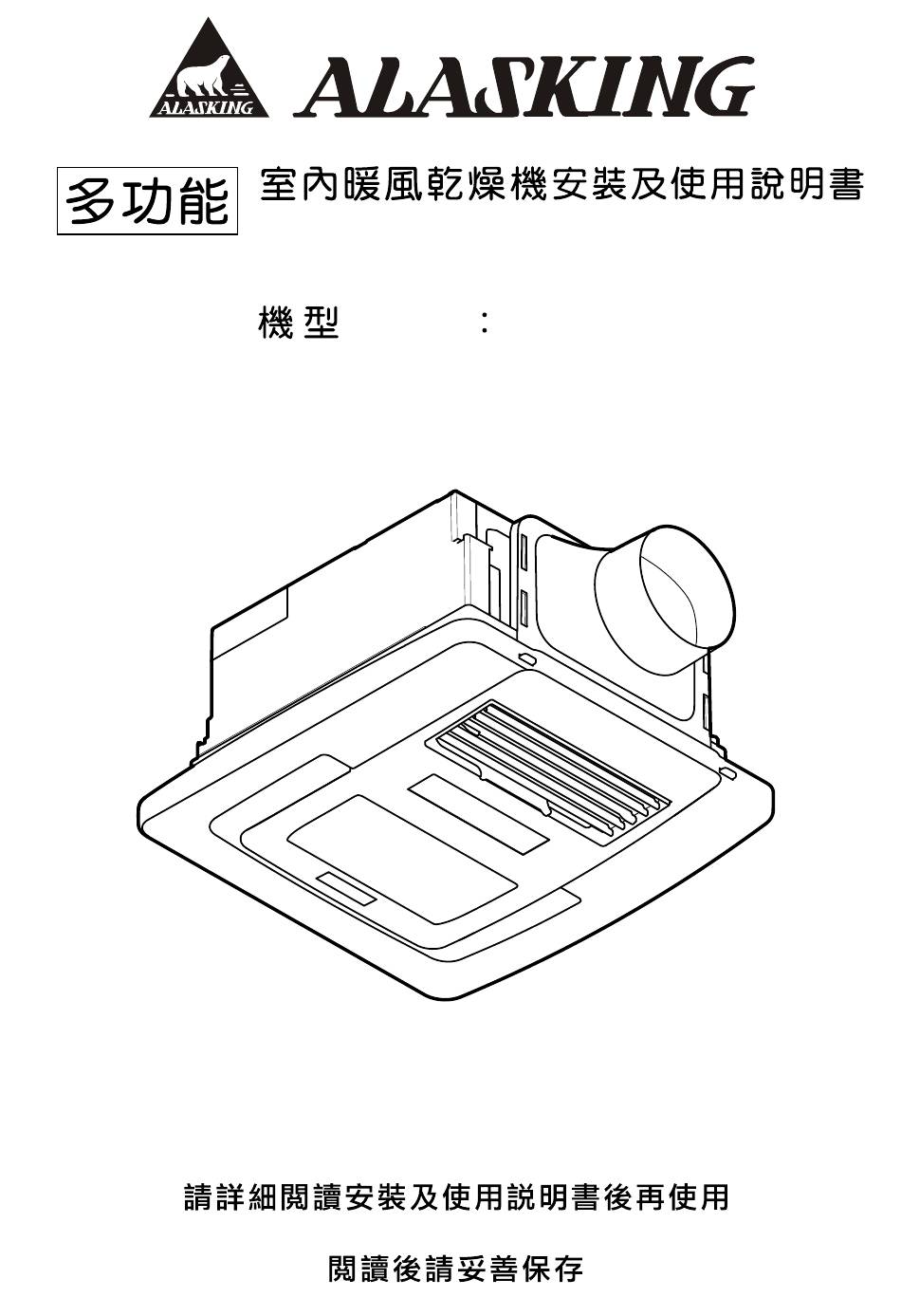

- Page 1 Thermo Ventilator Installation & Operation Manual Model AH-500R Please read the operation manual before use. Read and retain this manual for future reference.
- Page 3 Content Name of Main Parts Installation Outline Installation Safety Instructions Electrical Distribution (遙控器) Instruction(Remote Controller) (接收器) Instruction(Receiver) Maintenance and Safety Guide Breakdown Repair Specification...
-
Page 4: Name Of Main Parts
Name of Main Parts : Main Body Main Body 輸出管 Adapter 出風口 Outlet Receiver Dust Filter 外蓋 Cover Unit RF Wireless Remote Control "OFF" Button Control Button Timer 遙控器固定架 Controller holder - 1 -... -
Page 5: Installation Outline
Installation outline : Installation Schematic Diagram Adapter more than 5cm Duct Main Body 1 ~2 Inspection hole over 50cm apart from walls Tapping screws 外蓋 4 20(4pcs) Cover unit Installation method : 1.Installing the Main Body Method A. Installation with Ceiling Joist Supportive frame A-1. - Page 6 出 風 Ø 4 20(4 ) A-3. Install the main body Push the main body upward into the supportive frame by closely leaning against the adaptor and clip the position of the main body into the locating slot of adaptor. Make sure to fix the adapter with the main body tightly , and then fix the main body with four Ø4x20 tapping screws.
- Page 7 Install the duct onto the adapter , and then bind them together tightly by adhesive tape or joint material. The duct connected to outside of the room must be slanted about 1°~2°. AH-500R adhesive tape or joint material Plastic pipe...
- Page 8 .調整出風方向(四方向可調) 撥動導風片調整前後出風方向。 撥動連動板調整左右出風方向。 導風片 Air Deflector 4. To adjust the outflow direction (it can adjust for four directions: front, back, left and right) To move air deflector for adjusting the airflow direction for front and back. To move connecting plate for adjusting the airflow direction for left and right.
- Page 9 於天花板與吊頂天花板 ℃ Installation Safety Instructions: Caution .The product must be mounted on the wall that can support the weight of the product. If not, ensure th wall must be reinforced properly. .Abnormal sound and resonance may occur due to i mproper installation of the unit body.
-
Page 10: Electrical Distribution
17.It may be dangerous when the product is installed close to curtains and other combustible materials. 18.The product must be installed that switches and other controls cannot be touched by a person in the bath or shower. 19.Do not allow to install the product in shower wardrobes. -
Page 11: Remote Controller Instruction
Main Body 電器盒蓋 Electric Case 電源接線方法： (1) 卸下電器盒蓋。 要取下電線時請使用螺絲起子， (2) 剝掉電線被覆10mm。 將螺絲轉出再拉出電線即可。 (3) 將蕊線插入接頭孔，使用螺絲起子鎖入固定。 Before removing the wires, please use small screwdriver (4) 使用壓線板固定電線，並鎖上螺絲。 to press then pull out. (5) 鎖回電器盒蓋。 Wire Connection Way : (1) To unload the electric case. Earth ground (2) Strip the cover of wire for 10mm. - Page 12 1. 乾燥功能： “乾燥功能”不單可迅速有效的將浴室之濕氣完全乾燥，也可以防止霉菌滋長；亦可透過循環熱風氣流 把衣物弄乾。 啟動：按 ，鍵，紅色指示燈亮起，乾燥模式開始運轉。 定時：預設時間為4小時，可通過 改變設定時間，重覆按壓，依照 順序跳號， 時間會依據剩餘時數顯示黃色指示燈，下次啟動會依使用者習慣，自動記憶前次設定。 停止：當按 或運轉完所設時間後，紅色指示燈及黃色指示燈會熄滅。 當熱功能運轉停止後，扇葉仍會運轉約20秒，以對加熱器進行冷卻。 1.Drying Function : "Drying" mode not only can remove moisture from bathroom effectively by high speed ventilation but also can prevent the growth of mildew. Also, using this mode can dry your clothes thoroughly by hot circulated airflow in the bathroom.
- Page 13 3. 高速/低速換氣功能： “高速/低速換氣” 啟動：選擇 、 風量後，綠色指示燈亮起，換氣模式開始運轉。 定時：預設時間為2小時，可通過 改變設定時間，重覆按壓，依照 順序跳號， 時間會依據剩餘時數顯示黃色指示燈，下次啟動會依使用者習慣，自動記憶前次設定。 停止：當按 或運轉完所設時間後，綠色指示燈及黃色指示燈會熄滅，本機自動停止。 3.Ventilation(HI/LO) Function: Start with "(HI) / (LO)Ventilation" mode to exhaust uncomfortable air and odor out of the bathroom. Other than this, the continuous ventilation restricts growth of mold and mildew by removing from bathroom during bath.
- Page 14 5. 高溫/中溫暖房功能 冬天時可於入浴前10分鐘，啟動”高溫/中溫暖房”功能，先將浴室預熱及提升室溫，即可享受溫暖舒適ˋ 入浴樂趣。 啟動：選擇 、 鍵，紅色指示燈亮起，高溫/中溫暖房模式開始運轉。 定時：預設時間為0.5小時，可通過 改變設定時間，重覆按壓，依照 順序跳號， 時間會依據剩餘時間顯示黃色指示燈，下次啟動會依使用者習慣，自動記憶前次設定。 停止：當按 或運轉完所設時間後，紅色指示燈及黃色指示燈會熄滅，本機自動停止。 當熱功能運轉停止後，扇葉仍會運轉約20秒，以對加熱器進行冷卻。 5.Heat (HI) / (MED)Function: Before taking the bath, start the heating function 10 minutes ahead to warm the bathroom beforehand. This function is used in cold seasons to increase temperature of bathroom and make people feel warm as taking a bath or a shower.
- Page 15 (6) 接收器使用說明： Receiver Instruction : Function 運轉狀態 Operation of each component 用 途 預設時間 功能 Application Time Pre-Set Up 馬達 加熱器 Function Motor Heater 運轉 0.5小時 1100(W) 啟動中溫暖房/低速換氣 Operation 0.5 hour Start Heat(MED)/Ventilation (LO) 低速運轉 2小時 Operation(LO) 2 hours 設定遙控器頻率 Setting the frequency of the remote controller 功能全部停止/濾網計時賦歸...
-
Page 16: Maintenance
Remote: When you change the remote controller or the receiver, and then it has to do frequent pairs again. Operation 對頻 (1) Press for 3 seconds, and the yellow indicator light and green indicator light will be blinked OPERATE simultaneously, and after installing the battery in the remote controller (press at the same time). - Page 17 Make sure to turn off the power before maintenance. Clean the Cover unit Wash the cover unit by lukewarm water neutral detergent and rinse with clean water . To wipe cover unit when install it. Please wipe it with cloth and neutral detergent, can't leave detergent in the cover unit.
-
Page 18: Specification
(8) 故障處理： Breakdown Repair : Phenomena Check Method 是否停電 Power Off Turn on the power. 接收器指 示燈不亮 Ask registered electrical contractors to Fan can't running when the Receiver doesn't blink. repair power is on. 於遙控器重新安裝電池 遙控器指 示燈不亮 Replace the batteries in the remote Remote doesn't blink. - Page 19 270.5 336.5 336.5 14.5 Hardware Bag unit:mm Tapping screw Mechanical screw Suspension bracket Controller unit:mm Tapping screw Plastic plug Instruction manual must be passed to user. Remark 1.Installation is very important, please install the ventilator by authorized person. 2.The electric wire can not be replaced in order to avoid danger. 3.Porduct specification may subject to change without prior notice.
- Page 20 地址：香港九龍彌敦道469-471號新光商業大廈13樓 總 代 理：安力貿易有限公司 Address：13/F, Sunbeam Commercial Building, 469-471 Nathan Road, Kowloon, HK Sole Agent ：ENERGY TRADING Co.LTD. 電話 Tel：(852)2300-1210 網址 Website：www.hklpg.com.hk 維修及安裝：家居堡有限公司 地址：香港九龍彌敦道469-471號新光商業大廈12樓 Address：12/F, Sunbeam Commercial Building, 469-471 Nathan Road, Kowloon, HK Repair and Maintenance：Home ’N Kitchen 電話 Tel：(852)2667-6662 網址...
