Installing Your Digital Output Module
Introduction
Your Digital Output
Module
For each set of SPDIF Out, there
are two simultaneous outputs:
one through the coaxial
connector, the other through the
optical connector.
The Digital Output Module is a device that attaches to the Sound Blaster
digital connectors found in professional audio systems and the popular MiniDisc. The Digital Output
Module and the Sound Blaster Live! will deliver clean digital audio output in both conventional RCA
and optical formats catering to the needs of the DAT and the MiniDisc communities.
Your Digital Output Module has these jacks which allow you to attach other devices:
SPDIF Out 1 (RCA/Coaxial) jack
Connects to SPDIF-supported devices
such as a DAT, MD recorder or speakers
that have SPDIF RCA connectors.
SPDIF Out 1 (Optical) jack
Connects to SPDIF-supported devices
such as MiniDisc (MD) recorder that
have SPDIF optical connectors.
SPDIF Out 2 (RCA/Coaxial) jack
SPDIF Out 2 (Optical) jack

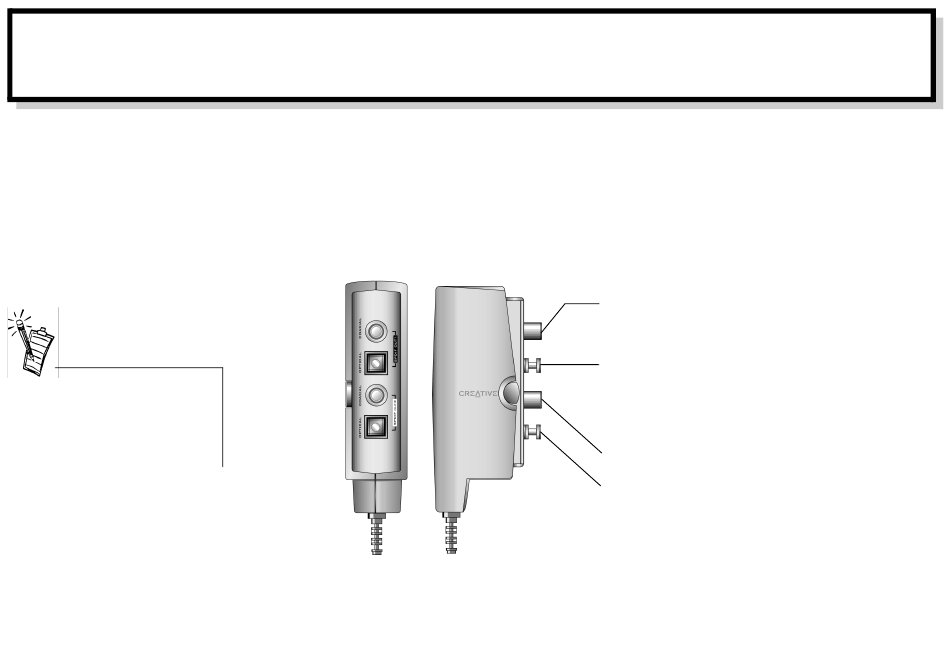

Figure 1: Jacks on the Digital Output Module.
®
™
Live!
card to provide
Advertisement
Summary of Contents for Creative Technologies CT4801
- Page 1 Installing Your Digital Output Module Introduction ® ™ The Digital Output Module is a device that attaches to the Sound Blaster Live! card to provide digital connectors found in professional audio systems and the popular MiniDisc. The Digital Output Module and the Sound Blaster Live! will deliver clean digital audio output in both conventional RCA and optical formats catering to the needs of the DAT and the MiniDisc communities.
- Page 2 Attaching the Digital Insert the Digital Output Module’s Digital Out jack (yellow) miniplug into the Digital Out jack on the Output Module metal bracket of the Sound Blaster Live! card (see Figure 2) Digital Output Module Sound Blaster See Figure 1 for details. Live! card Figure 2: Attaching the Digital Output Module.
