CRYSTAL TOUCH READER
CT5 INSTALLATION GUIDE
V1.0.1
www.civintec.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRYSTAL TOUCH CT5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Civintec CRYSTAL TOUCH CT5

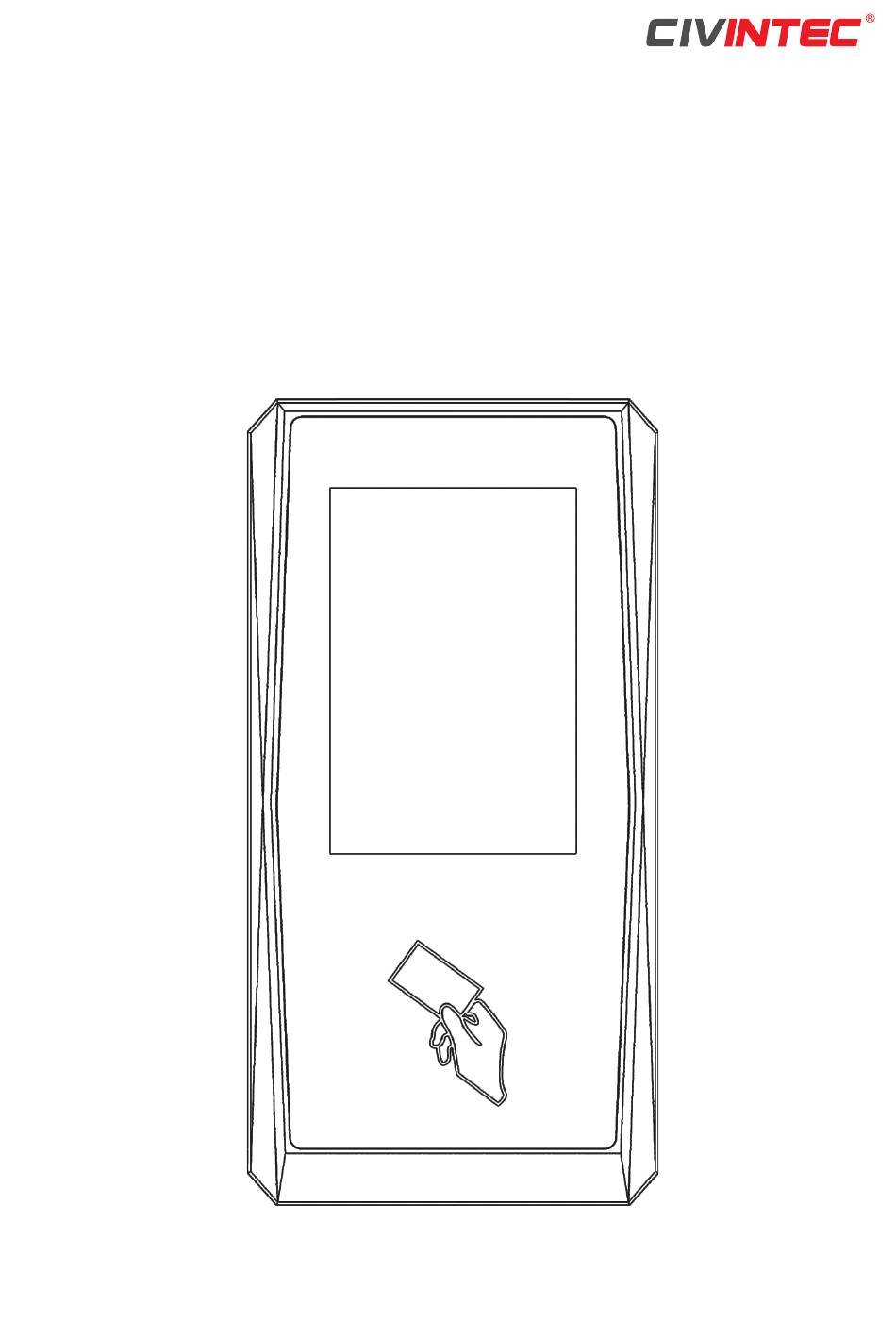

  • Page 1 CRYSTAL TOUCH READER CT5 INSTALLATION GUIDE V1.0.1 www.civintec.com...
  • Page 2 *All rights reserved *Subjects changed without notice Information furnished by CIVINTEC Global Co., Ltd. is believed to be accurate and reliable. However, no responsibility is assumed by CIVINTEC Global Co., Ltd. for its use; or for any infringement of patents or other rights of third parties which may result from its use.
  • Page 3: Reader Introduction

    Reader Introduction ① 3.5” Touch Screen Display ② Card Reading Area...
  • Page 4 ① ④ ⑦ SAM Slot Tamper alarm RJ45 TCP/IP port ② ⑤ ⑧ BLE & firmware upgrade interface PIN interfaces Buzzer ③ ⑥ Software upgrade interface Speaker...
  • Page 5 Reader model introduction CT5-MXT-X Suitable models: CT5-MT-X, CT5-MET-X...
  • Page 6: Technical Specification

    Technical Specification CRYSTAL TOUCH Display 3.5" touch screen Operation System LINUX Memory 64MB DDR2 SDRAM, 128MB SLC Nand Flash Keypad Touch PIN pad ISO-protocol 125KHz, 13.56MHz ISO14443A/B, ISO18092 NFC 125KHz Prox, 125KHz EM, 13.56MHz Mifare® Classic, Ultralight®, Contactless cards Ultralight®C, Mifare® Plus, DESFire® EV1/EV2, NFC tags (T2T, T4T) ISO7816 (T=0, T=1) 1 SAM module, more on request Secure Access Module 1x Wiegand Out (26-256bit), RS485 protocol OSDP, ABA-TK2,...
  • Page 7: Package Content

    Package content Items Picture Volume ① CT5 Reader Installation plate ② (wall mount or flush mount) ③ Tamper-resistant key ④ Screw ⑤ Screw expand tube ⑥ 8 PIN Connector ⑦ 2 PIN Connector ⑧ Fixing screw ⑨ RJ45 connector...
  • Page 8 Two kinds of installation plates for user’s selection, wall mount type or flush mount type. Wall Mount Flush Mount 18.1 14.9 Wall Mount Flush Mount...
  • Page 9 ④ Screw Ensure that the area behind the tamper switch bulb of the installation plate is flat. Make sure that the Tamper Alarm button is completely against the wall for correct tamper alarm functionality.
  • Page 10 Unscrew the fixing screw from reader and remove the installation plate from reader. Ensure that the installation plate is fixed in the correct direction, the arrows pointing upwards.
  • Page 11 ⑤ Screw expand tube X4 Wall Mount Flush Mount According to the holes parameter of installation plate, punch holes in the wall and install pipe expanding. Make sure to punch holes in strict accordance with the parameters to avoid of plate deformation and failure installation. There’re two choices to punch holes.
  • Page 12 TCP/IP Connector wires There’re two holes on installation plate, the upper hole is used for TCP/IP cable, and the second lower hole is used for connector wires. Thread the cables through holes before fixing it on the wall.
  • Page 13 ④ ④ ④ Screw Screw Screw ④ ④ Screw Screw ④ ④ ④ Screw Screw Screw TYPE 1 of Installation Hole TYPE 2 of Installation Hole When installing directly to wall or door, use the installation holes as picture describes. Make sure not to tighten the screws too hard as doing so will deform and skew the installation plate.
  • Page 14 ⑨ RJ45 Connector Non-POEPOE Power+ unused Power+ unused Power- unused Power- unused Refer to general standard for IP wire connection, connect and fix RJ45 connector to TCP/IP cable which thread through upper hole.
  • Page 15 ⑥ 8 PIN Connector Refer to CT5 reader PIN definition, connect the cables with 8Pin and fasten screws.
  • Page 16 CT5-MX -X Description Pin No. Pin Name Direction Voltage REMARK No Connected ---- ---- Tamper GPIO2 IN/OUT GPIO1 IN/OUT RS485 Send/Receive Data- IN/OUT RS485 Send/Receive Data+ IN/OUT Ground Ground 9-30V DC Power Power 9-30V Pin No. Description Pin Name Direction Voltage REMARK No Connected ----...
  • Page 17 Insert the connectors into PIN on CT5 reader. Make sure to place the connectors with the fastening screws facing towards you.
  • Page 18 BULGE ③ Tamper-resistant key 14.70mm 12.35mm wall mount flush mount Note:The bulge of wall mount and flush mount are different * The height of bulge for wall mount is 14.70mm * The height of bulge for flush mount is 12.35mm Fix tamper-resistant key into the bulgy hole on installation plate firmly and make sure the bulge of key facing towards plate...
  • Page 19 CT5 is with SAM secure access module for data encryption. In order to install the SAM into the reader open the SAM socket by unlocking and opening the lid. Then place the SAM into the socket lock it into place by closing the lid and sliding it into locked position.
  • Page 20 Step 1 Step 2 Align the reader bottom clip with Press two sides of the middle part installation plate bottom clip of reader and be careful not to perfectly, press two sides of the press Touch screen directly. bottom part of reader Step 3 Step 4 ⑦...
