GARZA 400606 Quick Programming Manual

GARZA 400606 Quick Programming Manual

Thermostat for radiant heating

Advertisement

Termostato programable diseñado para caldera de
Este termostato puede utilizarse para la calefacción radiante de agua
caliente.
ESPECIFICACIÓN
Fuente de alimentación: 2 pilas alcalinas AA de 1.5 V
Rango de ajuste de temperatura ambiente: 5°C~50°C o 41T-123T
Precisión: 0.5 C o IT
Funcionamiento de temperatura ambiente: 0°C~+50oC(32°F~122°F)
Transporte de temperatura ambiente: -10°C~+60°C(14F~140F)
Dimensiones: 115x90x32 mm

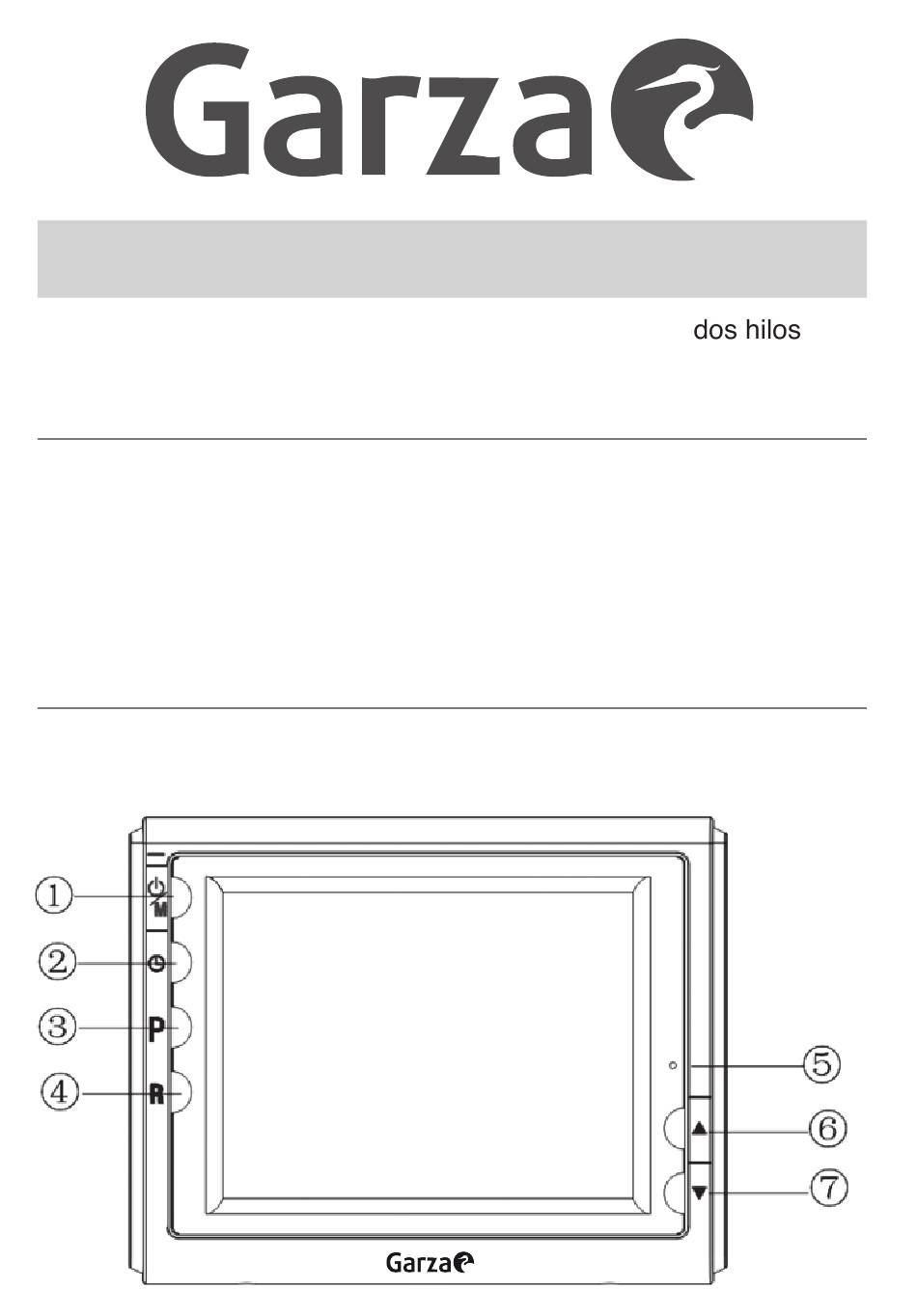

DESCRIPCIÓN DE TECLADO, PANTALLA E INTERRUPTOR
1
Termostato
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 400606 and is the answer not in the manual?

Questions and answers

Summary of Contents for GARZA 400606

  • Page 1 Termostato Termostato programable diseñado para caldera de Este termostato puede utilizarse para la calefacción radiante de agua caliente. ESPECIFICACIÓN Fuente de alimentación: 2 pilas alcalinas AA de 1.5 V Rango de ajuste de temperatura ambiente: 5°C~50°C o 41T-123T Precisión: 0.5 C o IT Funcionamiento de temperatura ambiente: 0°C~+50oC(32°F~122°F) Transporte de temperatura ambiente: -10°C~+60°C(14F~140F) Dimensiones: 115x90x32 mm...
  • Page 2 GUIA RÁPIDA DE PROGRAMACIÓN GARZA Termostatos digitales 400606 & 400607 Primer encendido: Pantalla inicial tras incluir baterias o tras pulsar botón reset (5). 1- Puesta en hora 1.1 - Pulsar botón (2): parpadeo de minutos , indicar mediante derecho inferior del aparato.
  • Page 3 2.1- (35,0) emperatura mínima (5,0) Selección grados Celsius o Fahrenheit (05) 00, 05, 15 AJUSTE HISTERESIS 5_30 PS 1 RANJAS PS 2 HORARIAS 24/12 HORAS consultar el manual completo.
  • Page 4 3- Programa PS 1 PS 1 PS 1 PS 1...
  • Page 5 3.2. Opción de Programa (Franjas Horarias) PS 2 (Ejemplo) Salir Volver a Casa 23:00 p.m. 9:00 a.m. 11:00 a.m. 18:00 p.m. Franja Horaria 1 Franja Horaria 2 PS 2 (Ejemplo) Salir Comer Salir Comida Volver a Casa 9:00 a.m. 11:00 a.m. 14:00 p.m.
  • Page 6 Instrucción de pantalla: INSTALACIÓN DEL TERMOSTATO Instale la batería...
  • Page 7 Instale la cubierta de protección Instalación en pared FUNCIONAMIENTO...
  • Page 8 Pulsar Visualización Pulsar para Paso Botones (valor predet.) seleccionar CL (O) Pulsar botón P 20ºC (68ºF) ah (35.0) Pulsar botón P 35ºC (95ºF) 5ºC (41ºF) AL (5.0) Pulsar botón P 20ºC (68ºF) FC (C) Pulsar botón P bL (05) 00/05/15 Pulsar botón P...
  • Page 9 DB (05) D5~30 Pulsar botón P PS 1 (7) 0/2/3/7 Pulsar botón P PS 2 (6) Pulsar botón P OC (24) 12/24 Pulsar botón P : Sistema de 24 horas : Sistema de 12 horas ES (OFF) On/OFF : Sin función Pulsar botón P inteligente : Función inteligente...
  • Page 10 ) Modo de anticongelación odo temporal...
  • Page 11 ) Funcionamiento de la alarma y asuntos que requieren su atención 1) La señal de advertencia de batería baja " " parpadea; 2) V isualización del mensaje ERR debido a una alarma de cortocircuito o ruptura de la temperatura ambiental (sensor de temperatura integrado);...
  • Page 12 Diagrama de cableado de terminales SERVICIO DE ASISTENCIA AL CLIENTE Si tiene alguna duda sobre el funcionamiento del termostato tras leer esta guía, póngase en contacto con el instalador o el proveedor de servicio.
  • Page 14 1.1 - 1.2 - 1.3-...
  • Page 15 2.1- (35,0) emperatura mínima (5,0) Selección grados Celsius o Fahrenheit (05) 00, 05, 15 AJUSTE HISTERESIS 5_30 PS 1 RANJAS PS 2 HORARIAS 24/12 HORAS...
  • Page 17 PS 1 PS 1 PS 1 PS 1 3.2. PS 2 a Casa 23:00 p.m. 9:00 a.m. 11:00 a.m. 18:00 p.m. Hor ria 1 Hor ria 2 PS 2 a Casa 9:00 a.m. 11:00 a.m. 14:00 p.m. 16:00 p.m. 18:00 a.m. 23:00 a.m.
  • Page 19 FUNCIONAMIENTO...
  • Page 20 Pulsar para Paso (valor predet.) seleccionar CL (O) Pulsar 20ºC (68ºF) ah (35.0) Pulsar 35ºC (95ºF) 5ºC (41ºF) AL (5.0) Pulsar 20ºC (68ºF) FC (C) Pulsar bL (05) 00/05/15 Pulsar...
  • Page 21 DB (05) D5~30 Pulsar PS 1 (7) 0/2/3/7 Pulsar PS 2 (6) Pulsar OC (24) 12/24 Pulsar : Sistema de 24 horas : Sistema de 12 horas ES (OFF) On/OFF Pulsar...
  • Page 23 " "...
  • Page 25 Thermostat for Radiant heating Programmable thermostat designed for water boiler This thermostat can be used for hot water radiant heating. SPECIFICATION Power source: 2 AA size 1.5V alkaline battery Room temperature setting range: Accuracy: Ambient temperature-operation: Ambient temperature-transport: Dimensions: 1 KEYBOARD, DISPLAY AND SWITCH DESCRIOPTION...
  • Page 26 QUICK PROGRAMMING GUIDE GARZA 400606 & 400607 digital thermostats the device. the device. on the lower right edge of the device. 1=Monday and 7=Sunday.
  • Page 27 Selection of maximum temperature limit (35,0) Selection of minimum temperature limit (5,0) Selection of degrees in Celsius or Fahrenheit (05) PS 1 PS 2 the full manual.
  • Page 28 the programming temperature programming disappears from the display and we return to point 2.1 of this manual on quick programming. PS 1 PS 1 PS 1 PS 1...
  • Page 29 PS 2 Sleep Wake Up Leave Return Home Time Slot 1 Time Slot 2 PS 2 Wake Up Leave Return Home Sleep Time Slot 1 Time Slot 2 reduce the number of days. Record once indicated with the R...
  • Page 30 Button and Functional description: Time setting button; At starting shortly press button enter button to confirm and exit; then shortly press button to confirm and exit. Program Setting button; at starting up and program running enter enter enter programming temperature; at starting up and program running state long press button mode forever;...
  • Page 31 Display instruction: INSTALL THE THERMOSTAT Install Battery...
  • Page 32 Install protection cover Wall installation OPERATION operating characteristics your system personal requirements. Shortly press butto to make sure the thermostat is in anti-freeze mode. Hold butto butto to shift to the next menu item. Use to select. To long push butto...
  • Page 33 Displayed Press Step Press buttons Descriptions select Select tempe- Press P rature display CL O Button higher or lower Select maximum Press P 20ºC 68ºF ah 35.0 room tempera- Button 35ºC 95ºF ture limitation Select minimum Press P 5ºC 41ºF AL 5.0 room tempera- Button...
  • Page 34 Program option Press P PS 1 7 0 2 3 7 Button Programming period in Press P one day option PS 2 6 Button time zones; Time scale Press P OC 24 12 24 Button Press P ES OFF On OFF Button gent function function...
  • Page 35 4. Manual Operation 1) Anti-freezing mode to activate the anti-freezing mode. temperature. The default set temperature for anti-freezing mode is the unit will activate the heating system till room temperature reach again will terminate the anti-freezing mode and return to normal operation mode. 2) Program operation and temporary hold mode Short press quit.
  • Page 36 4) Vacation Temperature hold Long press Press you can use To the end of vacation time, it will automatically return to the program is running. In the vacation mode to revert to program operation. 5) Reset operation probe such as a straightened paper clip to gently push the Rest button.
  • Page 37 1. Press button to view the 1st weekday heating period time and temperature. Each time you press button , the next heating period time and temperature will be displayed in sequence for weekday, then Saturday and Sunday program periods (you may change any time or temperature during this procedure).
  • Page 38 4) Vacation Temperature hold Long press Press you can use To the end of vacation time, it will automatically return to the program is running. In the vacation mode to revert to program operation. 5) Reset operation probe such as a straightened paper clip to gently push the Rest button.
  • Page 39 1. Press button to view the 1st weekday heating period time and temperature. Each time you press button , the next heating period time and temperature will be displayed in sequence for weekday, then Saturday and Sunday program periods (you may change any time or temperature during this procedure).
  • Page 40 Termostato Termostato programable diseñado para caldera de Este termostato puede utilizarse para la calefacción radiante de agua caliente. ESPECIFICACIÓN Fuente de alimentación: 2 pilas alcalinas AA de 1.5 V Rango de ajuste de temperatura ambiente: 5°C~50°C o 41T-123T Precisión: 0.5 C o IT Funcionamiento de temperatura ambiente: 0°C~+50oC(32°F~122°F) Transporte de temperatura ambiente: -10°C~+60°C(14F~140F) Dimensiones: 115x90x32 mm...
