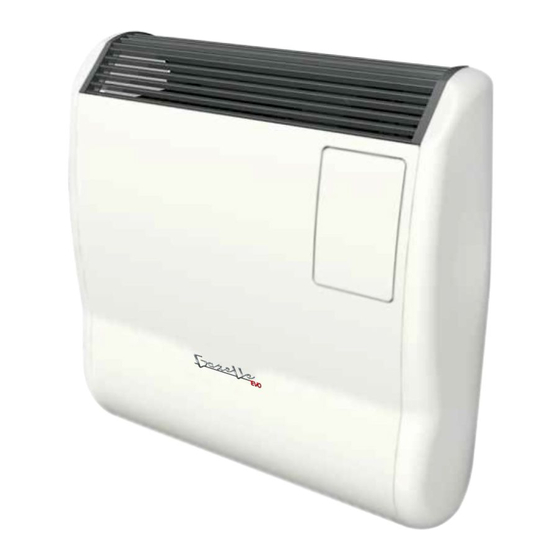

Gas convective stoves
EN
INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS
CE 0051
It is compulsory to read this manual before proceeding with the installation, use and maintenance operations.
The intended use of this gas equipment is the direct heating of the rooms in which it is installed, within residential, civil, commercial
and industrial buildings.
Any other use is forbidden, including heating of technical rooms.
Have an Authorised Service Centre fill out the inspection certificate.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gazelle EVO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fondital Gazelle EVO Series

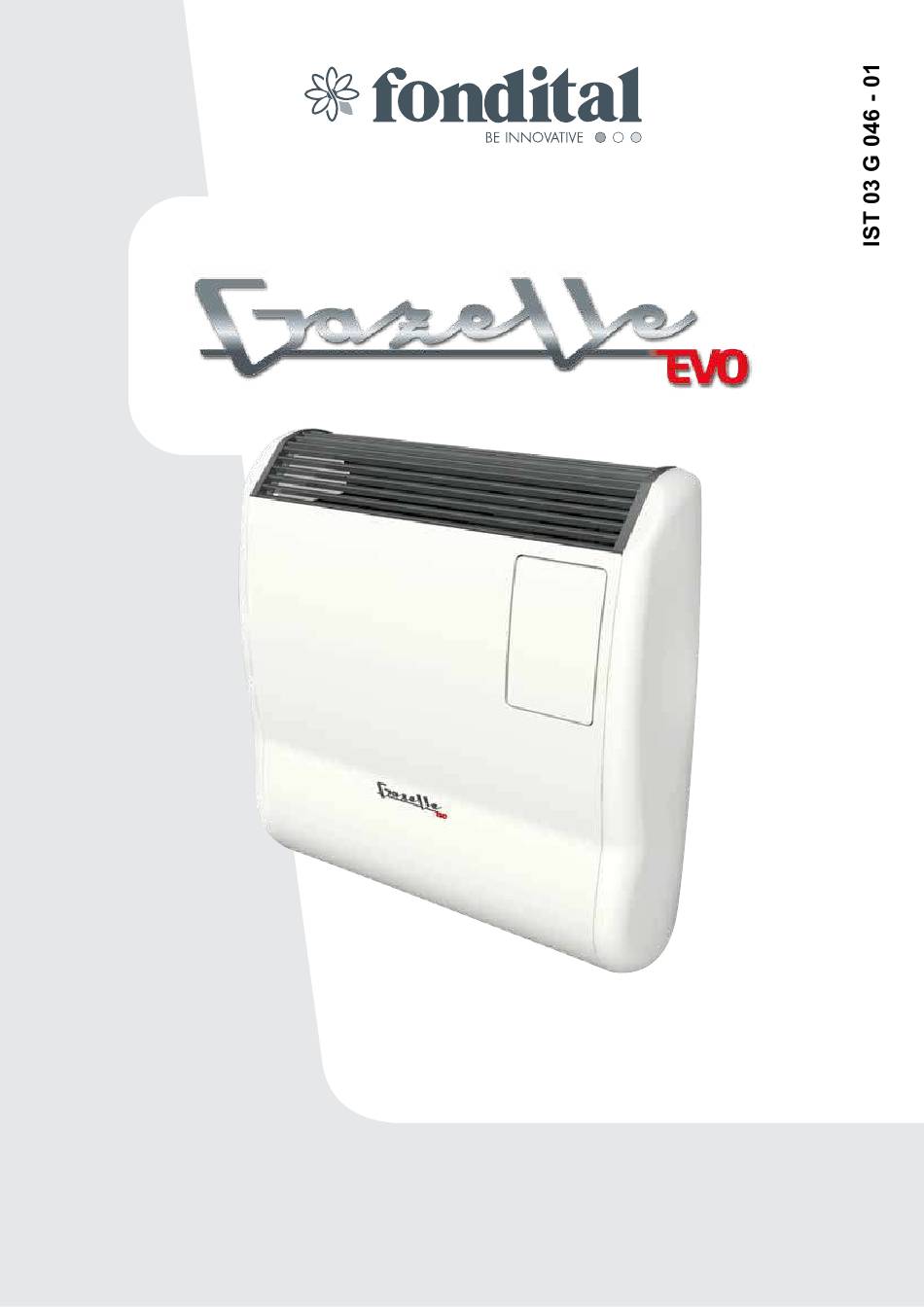

  • Page 1 Gas convective stoves INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS CE 0051 It is compulsory to read this manual before proceeding with the installation, use and maintenance operations. The intended use of this gas equipment is the direct heating of the rooms in which it is installed, within residential, civil, commercial and industrial buildings.
  • Page 2 Dear Sirs, Thank You for choosing and buying one of our products. Please read these instructions carefully in order to properly install, operate, and maintain the product. WARNING We inform users that: • Equipment shall be installed by an authorised company under the requirements set forth by the prevailing rules, in full compliance with the prevailing regulations and standards.

  • Page 3: General Notes For Installers, Maintenance Technicians, And Users

    1. GENERAL NOTES FOR INSTALLING AND MAINTENANCE TECHNICIANS, AND USERS This instruction manual is an integral and essential part of the product. It shall be supplied by the installer to the user who shall keep it carefully to consult it whenever necessary. This document shall be supplied together with the equipment in case the latter is sold or transferred to others.
  • Page 4 WARNING This equipment must be connected to a gas distribution system which complies with the existing technical standards. Check the gas system state of conservation before installing the equipment. Any connection to a gas system which does not comply with the existing technical standards is forbidden. When connecting the equipment to gas supply network, it is compulsory to install an appropriately sized gasket made from suitable material.
  • Page 5 WARNING Packaging elements (cardboard, clips, plastic bags, foam polystyrene, etc.) should not be left within the reach of children as they are potential hazard sources. WARNING To ensure equipment safe, efficient and proper operation, have qualified personnel carry out an annual maintenance. Only use original parts for all repairs to the equipment.

  • Page 6: Table Of Contents

    CONTENTS GENERAL NOTES FOR INSTALLERS, MAINTENANCE TECHNICIANS, AND USERS ............3 INSTRUCTIONS FOR USER ..............................7 2.1 Control panel..................................7 2.2 Equipment operation ................................8 2.2.1 Equipment start-up ..............................8 2.2.2 Equipment shutdown ..............................8 2.2.3 Temperature setting..............................9 2.2.4 Automatic operation ..............................9 2.2.5 Current time and date setting ...........................

  • Page 7: Instructions For User

    2. INSTRUCTIONS FOR THE USER Control panel Push on the right-hand side to open the control panel door, as shown in the figure. 3000 5000 7000 11 13 21 23 Fig. 1 Fig. 2 Mode ON/OFF Manual operation / Automatic operation Delayed switch-off function (5sec) Flue cleaning function...

  • Page 8: Equipment Operation

    Equipment operation 2.2.1 Equipment start-up Open the gas tap. Make sure that the equipment is connected to the power mains. OFF is displayed. Press key to switch equipment on in manual mode: switch-on is indicated by 2 “beeps” and the display shows: - equipment model at bottom right: 3000, 5000 or 7000 - a hand indicating manual mode at top left 3000...

  • Page 9: Temperature Setting

    2.2.3 Temperature setting The devices are equipped with an on-board temperature probe able to detect the temperature of the room where they are installed: it is possible to install a remote probe for a better reading and setting of the ambient temperature (for the installation of a remote ambient temperature probe see paragraph 4.6.

  • Page 10: Customised Programming

    2.2.6 Customised programming The equipment allows you to program a customised schedule replacing the factory default one. Programming a schedule means: - setting periods of time when equipment keeps a Comfort temperature (represented by the sun symbol - setting periods of time when equipment keeps a Reduced temperature (represented by the moon symbol Resolution is 30 minutes: every day is broken down in 48 time intervals.

  • Page 11: Keypad Locking Function

    Example Comfort Temperature : 3.5 Reduced Temperature : 2.0 Programming: . . Monday to Friday: Comfort temperature from 6:00 am to 8:00 am and from 4:00 pm to 8:00 pm Saturday and Sunday: Comfort temperature from 8:00 am to 8:00 pm - press key - turn knob and select the symbol P - press knob to confirm...

  • Page 12: Summer Ventilation Function

    2.2.8 Summer ventilation function The equipment features a summer ventilation function. This function moves the ambient air but is NOT cooling it. Activate the summer ventilation function as follows: - press key - turn the knob and select the fan symbol - press knob to confirm 3000 - turn knob to set fan speed: select a speed level from 0 (minimum) to 100 (maximum)

  • Page 13: Precautions For Use

    Precautions for use Absolutely avoid covering casing grilles with foreign objects such as curtains, linen, newspapers or other. 30 cm WARNING 30 cm Do not use the equipment to dry moist garments. Do not set moist garments against the equipment. If the mounting wall features curtains or curtaining, make sure to comply with the following precautions: •...

  • Page 14: Technical Features And Dimensions

    3. TECHNICAL CHARACTERISTICS AND SIZES Technical features Gazelle EVO is a gas convective stove with sealed chamber, forced draught and premixing, available in the following versions: Gazelle EVO 3000 from 2.72 kW of useful heat output Gazelle EVO 5000 from 4.52 kW of useful heat output Gazelle EVO 7000 from 5.88 kW of useful heat output The gas convective stove Gazelle EVO satisfies the essential requirements under:...

  • Page 15: Dimensions And Distances

    Dimensions and distances Fig. 5 MODEL 3000 5000 7000 Width A Distance between centres B Tab.1 On equipment LH and RH sides, leave a gap of about ten cm to allow enough space for casing removal and maintenance. Supporting frame for installation with pipes on interior walls.

  • Page 16: Instructions For Installer

    4. INSTRUCTIONS FOR INSTALLER This part of the manual contains the instructions for installing the gas convective stove and is addressed to authorised installers, which are the only persons authorised to carry out installation operations. WARNING Before installing the equipment, check that its technical data correspond to the requirements for its correct use in the system.

  • Page 17: Installation

    Installation Equipment packing includes a paper template: apply it on the wall and use it to drill at the proper points, complying with the minimum ground clearance. Prepare the equipment, remove the foam polystyrene protections and carefully separate the painted casing avoiding any damage. To remove the casing, you must remove the two bottom screws, one on the LH side and one on the RH side, using the spanner supplied.

  • Page 18: Straight Wall Vent

    4.2.1 Straight wall vent For instructions on how to install the straight wall vent also refer to paragraph “10. SEQUENCE FOR INSTALLING A STRAIGHT WALL VENT”. • Measure wall thickness and cut the supplied pipes to wall size plus 5 cm. •...
  • Page 19 The figures 13 A / B show a few examples: Fig. 13A Fig. 13B Fig. 12A Fig. 12B Fig. 13C To extend the vent, the splitter kit can be used with support bracket, or the pipes can be connected directly to the equipment. In this latter case, follow this procedure: •...

  • Page 20: Roof Vent

    When using the supporting brackets, with the relevant kit (accessory), it is possible to install the equipment after laying down the pipes (all information necessary for installation is attached to the kit). Here below are some examples for this application: Front view Fig.

  • Page 21: Intake And Vent Pipe Length

    4.2.4 Intake and vent pipe length The maximum allowed length of pipes depends on the flow resistance of each part installed to go from the equipment up to the intake and vent points. Overall flow resistance, calculated according to tables 4 and 5, must not exceed the “Maximum allowed length”. The calculation must consider both vent and intake ducts and should change based on the diameter of the pipes used (35 mm or 60 mm).
  • Page 22 Flow resistance when using only pipes diameter 35 mm The specified flow resistance values refer to the single component. 3000 5000 7000 Component Code Protection grille for wall terminals 6Y41309000 Single wall terminal Ø 35 mm 6YTERSDO00 Split vent adapter (semicircle / Ø 35 mm) 6YRIDSDO00 Starting elbow for split vent Ø...
  • Page 23 Flow resistance when using mixed pipes, diameter 35 mm and 60 mm The specified flow resistance values refer to the single component. 3000 5000 7000 Component Code Split vent adapter (semicircle / Ø 35 mm) 6YRIDSDO00 Starting elbow for split vent Ø 35 mm 6YCURSDO00 13.5 11.5...

  • Page 24: Connection To Gas Mains

    Connection to gas mains 41 mm Attacco gas G1/2" Gas connection 75 mm Fig. 20 Fig. 21 WARNING This convection stove must be safely connected to a gas distribution system which complies with the existing technical standards. Check with the customer whether a declaration of conformity of the gas system is available. Check system conditions.

  • Page 25: Connection To The Electrical Mains

    Connection to the electrical mains WARNING Gazelle EVO must be connected to a power supply system which complies with the existing technical standards. It is forbidden to connect the convection stove to a system lacking a differential switch to protect the stove power line. Any connection to an electrical system lacking a grounding system is forbidden.

  • Page 26: Wiring Diagram

    Wiring diagram PWM VT PWM VC Gazelle EVO 3000 Gazelle EVO 5000 Gazelle EVO 7000 - rd + bu PWM VT 230 Vac + bk 50 Hz PWM VC - wh Fig. 23A INTERNAL CONNECTIONS: Tangential fan Gas valve Centrifugal fan TAR: Remote ignition transformer Ignition electrode...

  • Page 27: Connecting A Remote Ambient Temperature Probe (Option)

    Connecting a remote ambient temperature probe (option) Equipment features an onboard temperature probe, which is able to detect the temperature of the room where it is installed. A remote ambient temperature probe can be installed (optional, supplied by the manufacturer) to obtain a better reading and setting of the ambient temperature.

  • Page 28: Operations To Change Gas Type

    Operations to change gas type WARNING Operations required to change gas type are EXCLUSIVELY reserved to qualified personnel. WARNING The procedure for calibrating the gas valve when changing the gas type also applies when simply changing the gas valve. WARNING In order to complete the procedure for changing the gas type, the following tools and equipment are required: •...

  • Page 29: Setting The Gas Type

    4.8.2 Setting the gas type After changing the nozzle, you must set the gas type: from the user interface, open the technical parameter programming page and select gas type. The parameter P00 corresponds to the gas being supplied, as follows: Parameter P00 Natural gas Propane...

  • Page 30: Combustion Analysis

    4.8.4 Combustion analysis To analyse the combustion, use a combustion gas analyser for CO and CO2, periodically calibrated in accordance with the provisions of the relevant manufacturer. After checking the offset (see paragraph 4.8.3 Checking the offset), analyse the combustion to obtain a more correct calibration. Set the equipment to flue cleaning function: •...

  • Page 31: Maintenance

    5. MAINTENANCE WARNING Equipment must be maintained by qualified personnel only, under the requirements set forth by the prevailing regulations. The user is strongly advised to have the product serviced and repaired by a Service Centre or qualified personnel, pursuant to prevailing laws.

  • Page 32: Extraordinary Maintenance

    Extraordinary maintenance Extraordinary maintenance includes changing equipment components that are worn out or broken. WARNING Strictly comply with the instructions below. Gas valve The seals between gas valve and gas pipes must be replaced and then checked for sealing. The tightening torque for gas pipe fittings must be 18 Nm.

  • Page 33: Decommissioning, Disassembly And Disposal

    6. DECOMMISSIONING, DISASSEMBLY AND DISPOSAL Warning If you decide to definitively decommission the equipment, have decommissioning, disassembly and disposal procedures carried out by qualified personnel, only. The user is not authorised to carry out such operations. Decommissioning, disassembly and disposal operations must be performed with equipment cold and disconnected from gas and power mains.

  • Page 34: Troubleshooting

    7. TROUBLESHOOTING WARNING The user must strictly comply with the relevant instructions ONLY aimed to users. The user MUST NOT follow the instructions that are specific for qualified staff or personnel. Only for qualified staff Malfunction For the user Probable cause Possible remedies Make sure the gas tap is open.
  • Page 35 Only for qualified staff Malfunction For the user Probable cause Possible remedies Contact an Authorised Equipment is off, Service Centre or The primary exchanger probe is Replace it display shows E05 qualified personnel and faulty specify the fault code Contact an Authorised Equipment is off, Service Centre or Ambient probe is faulty...

  • Page 36: Technical Specifications Tables - Gazelle Evo

    8. TECHNICAL SPECIFICATIONS TABLES - GAZELLE EVO 3000 5000 7000 MODEL Type C13, C53 C13, C53 C13, C53 Category II2H3P II2H3P II2H3P Nominal heat input (Qn) 2.90 4.90 6.40 Reduced heat input (Qr) 2.00 3.00 4.50 Nominal heat output (Pn) 2.72 4.52 5.88...
  • Page 37 η 93.7 93.7 93.7 th,nom η 94.5 94.5 94.5 th,min 0.024 0.024 0.024 0.014 0.014 0.014 0.003 0.003 0.003 0.000 0.000 0.000 pilot η A++ G Tab.10 CF: with open window detection function CF+CD: with open window detection function + remote control...
  • Page 38 η 93.5 93.5 93.5 th,nom η 94.7 94.7 94.7 th,min 0.027 0.027 0.027 0.014 0.014 0.014 0.003 0.003 0.003 0.000 0.000 0.000 pilot η A++ G Tab.11 CF: with open window detection function CF+CD: with open window detection function + remote control...
  • Page 39 η 92.2 92.2 92.2 th,nom η 94.9 94.9 94.9 th,min 0.023 0.023 0.023 0.014 0.014 0.014 0.003 0.003 0.003 0.000 0.000 0.000 pilot η A++ G Tab.12 CF: with open window detection function CF+CD: with open window detection function + remote control...
  • Page 40 η 92.4 92.4 92.4 th,nom η 95.1 95.1 95.1 th,min 0.024 0.024 0.024 0.014 0.014 0.014 0.003 0.003 0.003 0.000 0.000 0.000 pilot η A++..G Tab.13 CF: with open window detection function CF+CD: with open window detection function + remote control...
  • Page 41 η 91.8 91.8 91.8 th,nom η 94.0 94.0 94.0 th,min 0.030 0.030 0.030 0.017 0.017 0.017 0.004 0.004 0.004 0.000 0.000 0.000 pilot η A++..G Tab.14 CF: with open window detection function CF+CD: with open window detection function + remote control...
  • Page 42 η 91.7 91.7 91.7 th,nom η 93.8 93.8 93.8 th,min 0.031 0.031 0.031 0.017 0.017 0.017 0.004 0.004 0.004 0.000 0.000 0.000 pilot η A++..G Tab.15 CF: with open window detection function CF+CD: with open window detection function + remote control...

  • Page 43: Manufacturer's Declaration Of Conformity

    9. MANUFACTURER'S DECLARATION OF CONFORMITY...

  • Page 44: Sequence For Installing A Straight Wall Vent

    10. SEQUENCE FOR INSTALLING A STRAIGHT WALL VENT For installation, proceed as follows: Take equipment out of the covering: first take intake and vent pipes and the terminal Use the paper template and apply it in the precise wall posi- tion where equipment shall be installed.
  • Page 45 Measure the depth of the hole drilled on the wall for intake and vent, then cut intake and vent pipes 5 cm longer than measured hole depth.
  • Page 46 Apply the suitable seal to intake and vent pipes. Use sliding agent if necessary to help installing the two pipes to the machine.
  • Page 47 Grab the machine, insert the intake and vent pipes through the hole drilled on the wall and fasten the machine to the wall using the supplied screws. Remove machine casing as follows:...
  • Page 48 Fasten the flange to vent terminal by starting the screws in the wall, as specified in either of the two solutions below. SOLUTION A Fastening both flange and ter- minal using the supplied Fischer plug anchors “F” SOLUTION B Fastening the flange to the wall using the supplied Fischer plug anchors “F”.
  • Page 49 10. Screw the piping using two hexagonal wrenches to prevent fitting from turning. WARNING To connect the convection stove to the distribution system, only use flat seals, suitable for the purpose. 11. Carry out the electrical connections.
  • Page 50 Page left intentionally blank.
  • Page 51 Page left intentionally blank.
  • Page 52 Fondital S.p.A. 25079 VOBARNO (Brescia) Italy - Via Cerreto, 40 Tel. 0365/878.31 - Fax 0365/878.304 e mail: info@fondital.it - www.fondital.com The manufacturer reserves the right to modify its products if held necessary or useful without compromising their fundamental features.
