Summary of Contents for Volfoni ACTIVHUB CINEMA
- Page 1 ACTIVHUB CINEMA Model : VPES-01000 Document : MUV120135-B00 ActivHub_Cinema_User_Manual Compatible with EDGE1.2 glasses (VPEG-01100)
- Page 2 I. PRESENTATION 1. General presentation 2. Composition II. PRODUCT DESCRIPTION 1. IR emitter 2. Tester 3. Synchronizer III. FASTENING IV. CONNECTION & SYNCHRONIZATION WARRANTY REGULATORY STANDARDS VII. CONTACTS...
-
Page 3: General Presentation

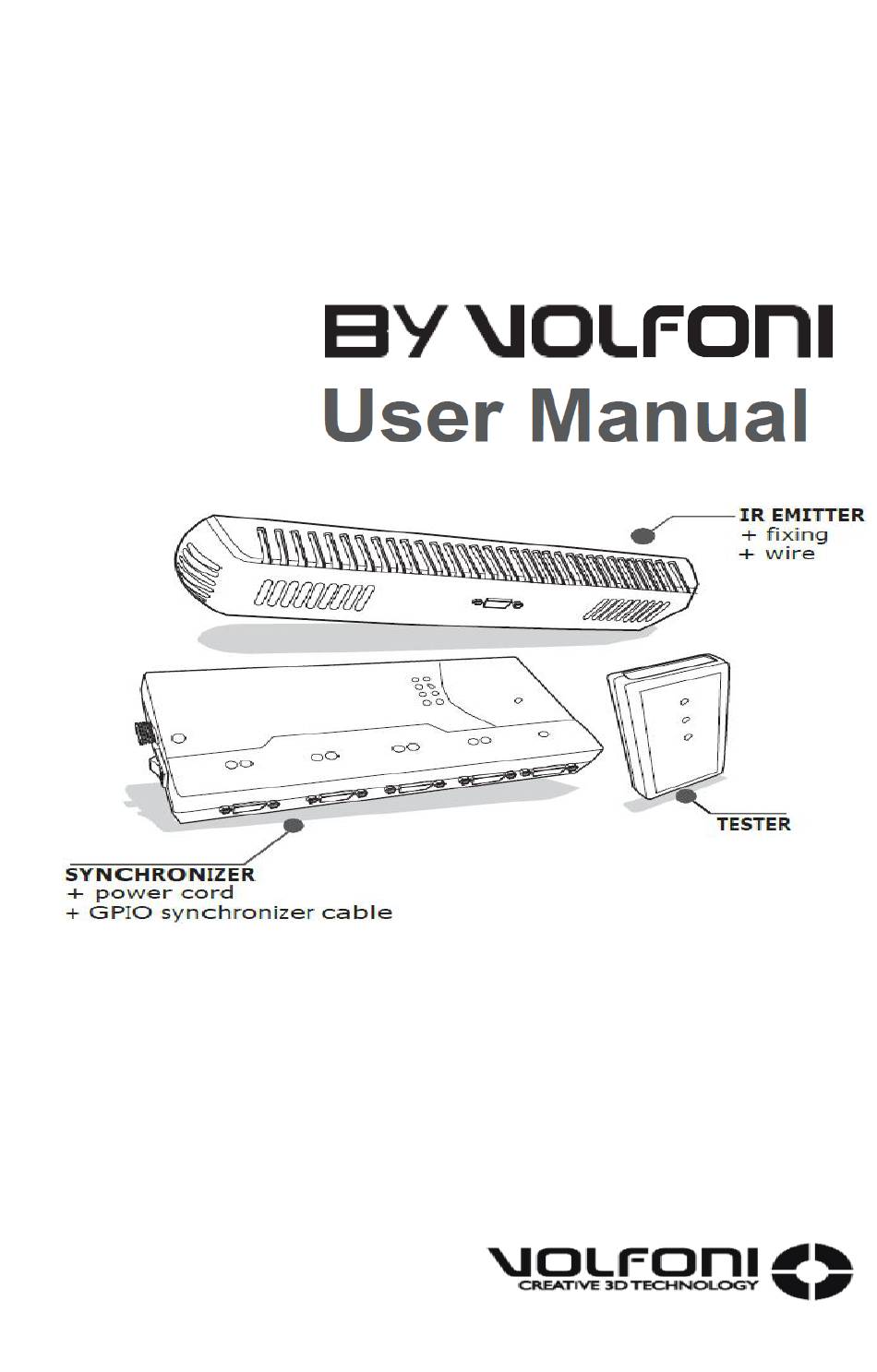

1. GENERAL PRESENTATION The ActivHub Cinema kit allows easy integration in less than 30 min with existing digital theaters using a standard screen The system is compatible with EDGE1.2 glasses provided by Volfoni. The complete system includes following parts : ... - Page 4 IR EMITTER + fixing + wire TESTER SYNCHRONIZER + power cord + GPIO synchronizer cable...
- Page 5 Before starting, please check if the following parts are included in the package. 1. IR EMITTER Long Range IR Emitter Long Range IR Emitter VAIK-0100 is a compact and powerful unit. The emitter, with many built-in infrared LEDs, allows coverage all types of theater rooms, regardless of the number of seats.
- Page 6 Laser: Max Output: 0.5mW, Wavelength: 650 nm± 10 Dimension: 361 mm x 70 mm x 44 mm WARNING : The laser pointer of this emitter emits Class IIIA laser. Please DO NOT stare into beam or view directly with optical instruments. 2.
- Page 7 3. SYNCHRONIZER Power Module Multi-function Distribution Module The multi-function Distribution Module is a unit specially designed for mid size and large digital 3D cinemas. This unit is plugged into the digital projector and receives frame synchronizing signal via GPIO (DB-37). It extends to four DB-9 emitter outputs.
-
Page 8: Product Description
II. PRODUCT DESCRIPTION LASER POINTER Laser Pointer ON/OFF LOCAL IR EMITTERS LOCAL IR EMITTERS Local IR Emitters ON/OFF SETUP FRAME SYNC Frame SYNC Setup Switch QUICK FRAME SYNC POWER EYE ROTATION Eye Rotation Switch OUTPUT TO IR EMITTERS FRAME SY NC F ROM PROJEC TOR Distribution Module Extension Port CH1,2,3,4 SYNC Port to IR Emitter Power Input Port... - Page 9 WALL FASTENER Before installing the emitter in the front of the screen, make sure you have all the needed tools and the instruction manual. This wall fixing part is provided with all the screws and wall anchors you might need. Follow the instructions to fasten this kit.
-
Page 10: Installation
III. FASTENING INSTALLATION STEP STEP2 use the wall base to drill the holes with the given bit mark each hole to drill (for wood surface only) with a pencil. STEP STEP4 Insert wall anchors tightly screw the base to the wall (For solid concrete and drywall only) STEP5 assemble the arm to the base... - Page 11 Digital Projector GPI/O(DB37-F) GPI/O Extension (DB37-M) PowerAdapter Power Adapter 24VDC/3A 24VDC/3A Distribution Module Distribution Module(Extension) DIN-3 DIN-3 Extension Cable Distribution Module Cable DB-9 IR Emitter 3 DB-9 IR Emitter 2 IR Emitter Cable DB-9 IR Emitter 1...
-
Page 12: Technical Specifications
Warning: Depending on your equipment and the room configuration, you may have to adjust these parameters. We recommend that you confine the setup of 3D parameters and color adjustments directly to integrators. For further information please visit our website www.volfoni.com, or send us an email to support@volfoni.com. -
Page 13: Warranty
V. WARRANTY The ActivHub Cinema is warrantied to the original purchaser for three years according to local legislation. Infra-red emitters and cables should be returned in original box along with original proof of purchase. Infra-red emitters which are broken or scratched are not covered. - Page 14 VII. CONTACTS VOLFONI SAS 2474, RD 6007 Le Logis de Bonneau Les Bureaux du Parc 06270 Villeneuve-Loubet France VOLFONI Inc 3450, Cahuenga Bd West. UNIT 504 Los Angeles, CA, 90068 VOLFONI Iberia Ronda Guglielmo Marconi, 4 46980 Paterna (Valencia) Spain support@volfoni.com...
