Summary of Contents for Gophert CPS Series

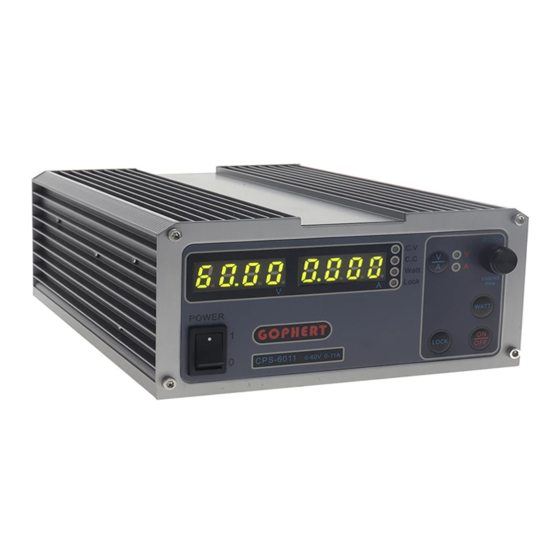

- Page 1 Compact DC Power Supply CPS Series User Manual...
-
Page 3: Safety Regulations
Safety Regulations Safety Regulations To avoid electrical shock, non-authorized person of our company is not allowed to open the cabinet. It is forbidden to use this product for life support system or any other devices with high safety requirements. We are not responsible for any direct or indirect financial damage that might occur when using the power supply. -
Page 4: Table Of Contents
Table of Contents Contents Product Features ........................3 Panel Layout ..........................4 Function and Operation ......................6 Select Operation Voltage ....................6 Set the output current ....................6 Turn on or turn off output ..................... 6 Set the output on at the AC power on ................7 Lock .......................... -
Page 5: Product Features
Product Features 1 Product Features Top performance cost ratio High power density, smallest and compact Full metal enclosure with very low EMI The microprocessor(MCU) control Using Encoder to set the voltage and current Four digital volt meter and current meter High efficiency, up to 90%. -
Page 6: Panel Layout
Function and Operation 2 Panel Layout... - Page 7 Function and Operation Shown in Name Function diagram or State Display the setting voltage or the Volt meter actual output voltage Display the setting current or the actual output current output Current meter state(OFF OVP OCP OTP) Constant voltage Turn ON/OFF Turn ON—Constant voltage state indicator Constant current...
-
Page 8: Function And Operation
Function and Operation 3 Function and Operation Select Operation Voltage Click the adjusting selective button to “V” indicator turns on, click the adjusting knob, the volt meter display the set voltage and the adjustable position highlight as fig1, the highlight will shift from right to left when user clicks the knob continually. -
Page 9: Set The Output On At The Ac Power On
Function and Operation Set the output on at the AC power on Press“ON/OFF” button for 5 seconds, ammeter highlights“dOn” for 2 seconds, the output is set to on at the AC power on. To cancel this function, press “ON/OFF” button again for 5 seconds, ammeter highlights “ dOF” for 2 seconds, The output is off at the AC power on. -
Page 10: Over Temperature Protection
Function and Operation OCP never be triggered; However if the C.C works abnormally the tracking OCP will protect the appliance which connected to the power supply safely. When OCP is triggered, MCU shut down the output and ammeter highlights “OCP” , press ON/OFF button to reset the OCP if the over current problem has been detected.
