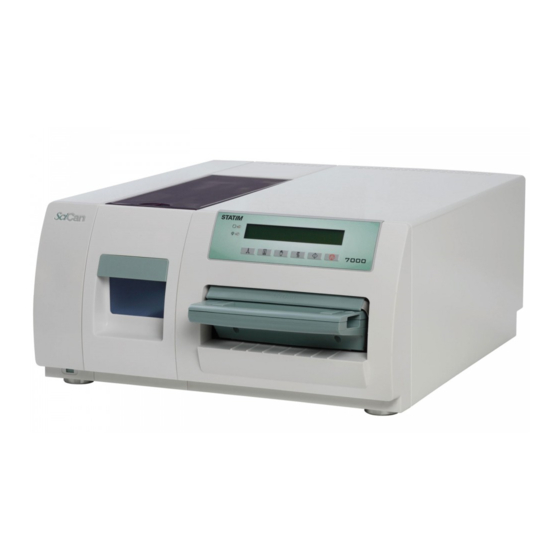

Statim 7000 Cover Removal

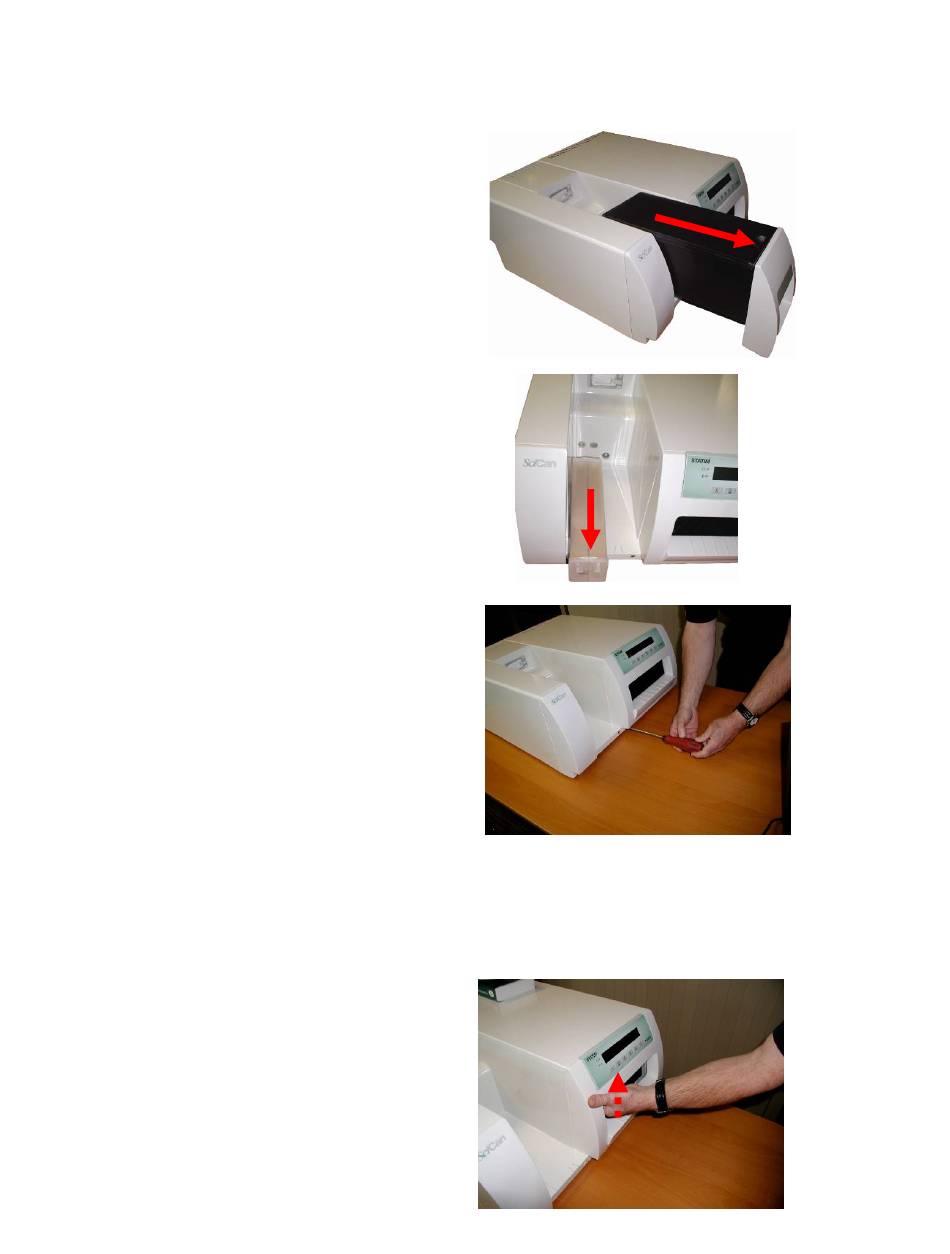

1. With the unit off, unplug the power
cord from the wall outlet and remove
the cassette and reservoir from the
unit.
2. Remove the water filter or water bypass
cartridge (if the unit is using distilled
water) from the reservoir area.
3. Remove the eight screws across the
bottom front of the unit using a Philips
screw driver.
4. Push the cover forward from the back a
little to loosen it, until it stops.
5. Detach the LCD/keypad by reaching
up inside the cover through the
armature opening to feel for a plastic
tab located directly behind the
Rubber and Plastics key.
Advertisement
Table of Contents
Summary of Contents for Statim 7000
- Page 1 Statim 7000 Cover Removal 1. With the unit off, unplug the power cord from the wall outlet and remove the cassette and reservoir from the unit. 2. Remove the water filter or water bypass cartridge (if the unit is using distilled water) from the reservoir area.
- Page 2 6. Push this tab to the left to unlock the LCD/keypad from the cover. 7. Place the LCD/keypad on top of the armature so that it is out of the way as you remove the cover. 8. Release the cover retention clip by reaching inside the cover though the LCD opening and lift up on the tap located on the left most side of the...
- Page 3 9. Push the cover all the way forward to slide it off from the front. 10. To replace the cover. Place the cover back on to the unit about 1 inch away from the back. Once the chassis hooks engage with the cover, push the cover towards the back until the back of the cover is in line with the back of the chassis...
