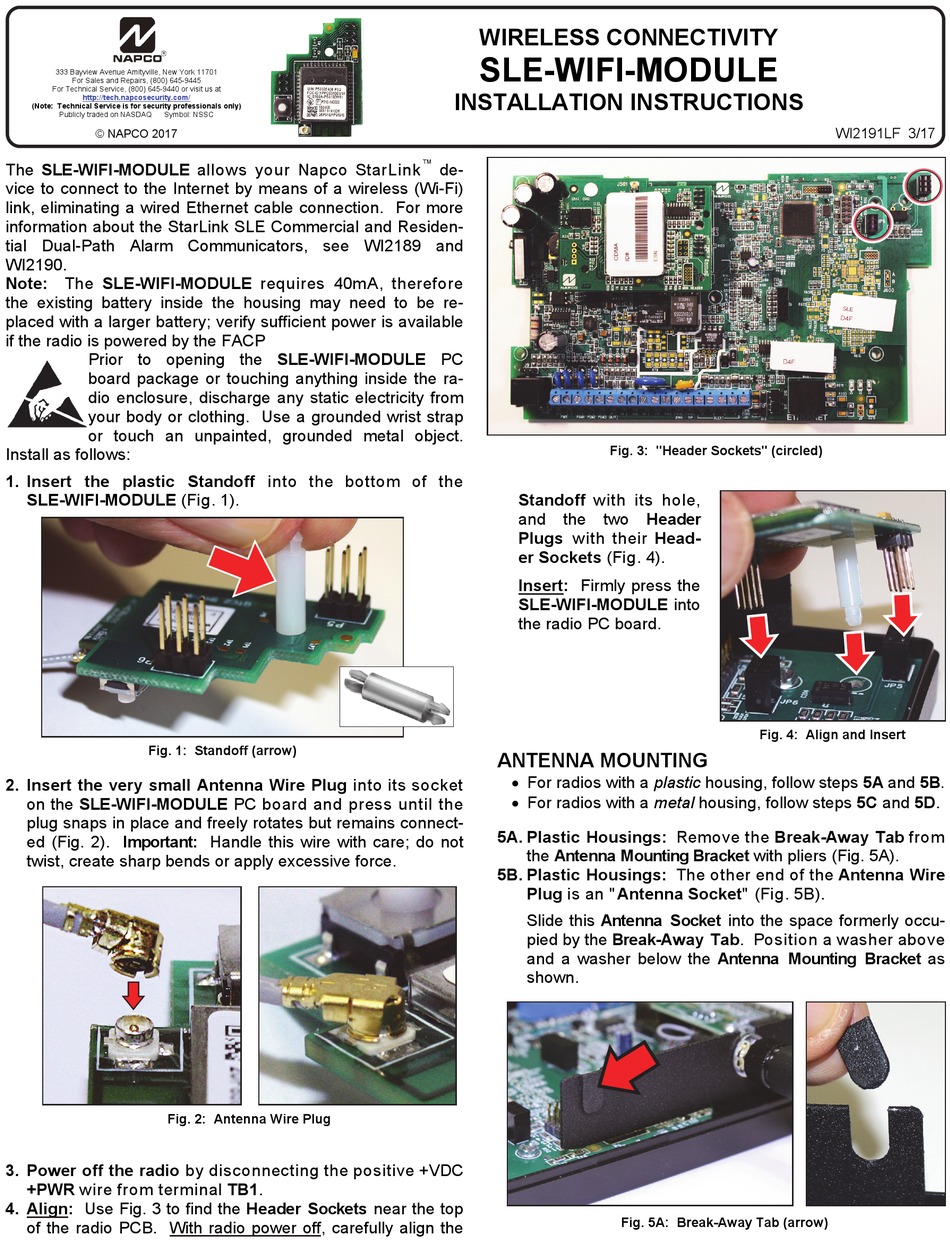

NAPCO SLE-WIFI-MODULE Installation Instructions

333 Bayview Avenue Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2017
The SLE-WIFI-MODULE allows your Napco StarLink
vice to connect to the Internet by means of a wireless (Wi-Fi)
link, eliminating a wired Ethernet cable connection. For more
information about the StarLink SLE Commercial and Residen-
tial Dual-Path Alarm Communicators, see WI2189 and
WI2190.
Note: The SLE-WIFI-MODULE requires 40mA, therefore
the existing battery inside the housing may need to be re-
placed with a larger battery; verify sufficient power is available
if the radio is powered by the FACP
Prior to opening the SLE-WIFI-MODULE PC
board package or touching anything inside the ra-
dio enclosure, discharge any static electricity from
your body or clothing. Use a grounded wrist strap
or touch an unpainted, grounded metal object.

Install as follows:

1. Insert the plastic Standoff into the bottom of the
SLE-WIFI-MODULE (Fig. 1).
Fig. 1: Standoff (arrow)
2. Insert the very small Antenna Wire Plug into its socket
on the SLE-WIFI-MODULE PC board and press until the
plug snaps in place and freely rotates but remains connect-
ed (Fig. 2). Important: Handle this wire with care; do not
twist, create sharp bends or apply excessive force.
Fig. 2: Antenna Wire Plug
3. Power off the radio by disconnecting the positive +VDC
+PWR wire from terminal TB1.
4. Align: Use Fig. 3 to find the Header Sockets near the top
of the radio PCB. With radio power off, carefully align the
WIRELESS CONNECTIVITY
SLE-WIFI-MODULE
INSTALLATION INSTRUCTIONS
™
de-
Standoff with its hole,
and the two Header
Plugs with their Head-
er Sockets (Fig. 4).
Insert: Firmly press the
SLE-WIFI-MODULE into
the radio PC board.

ANTENNA MOUNTING

 For radios with a plastic housing, follow steps 5A and 5B.
 For radios with a metal housing, follow steps 5C and 5D.
5A. Plastic Housings: Remove the Break-Away Tab from
the Antenna Mounting Bracket with pliers (Fig. 5A).
5B. Plastic Housings: The other end of the Antenna Wire
Plug is an " Antenna Socket" (Fig. 5B).
Slide this Antenna Socket into the space formerly occu-
pied by the Break-Away Tab. Position a washer above
and a washer below the Antenna Mounting Bracket as
shown.
Fig. 3: "Header Sockets" (circled)
Fig. 4: Align and Insert
Fig. 5A: Break-Away Tab (arrow)
WI2191LF 3/17
