National Cycle N930 Installation And Owner's Manual

PARTS LIST

Description
Lightbar Assembly, N930 or N930E
Connectors, Scotchlok

PREPARATION

1. Remove Headlight from Headlight Shell (Screwdriver). Set
aside.
2. Remove nuts from Headlight Shell mounting bracket, (10mm
Socket), Lift mounting screws out of lower triple clamp.
3. Remove back cover from Headlight Shell mounting bracket
(Screwdriver)
4. Unplug Turnsignal Wires.
5. Loosen clamping screws on Turnsignal mounting clamps. Pull
Turnsignal wires from Headlight Shell.
6. Remove Upper Triple Clamp, Refer to Service Manual
7. Slide Turnsignals up fork tubes and remove. Set aside, they
will not be reused.
8. Reinstall Upper Triple Clamp per Service Manual.

INSTALLATION

NOTE: An assistant will make steps 1 (A through C) much easier.
1. Mount the Light Bar Assembly:
A. Route the wires from the Light Bar assembly through
the lower triple clamp from below, and into the Headlight
Shell.
B. Reinstall the back cover plate onto the Headlight
Shell mounting bracket.
C. Hold the Light Bar assembly in place on the lower
Triple Clamp and reinstall the Headlight Shell. Tighten
the nuts manufacturer's specified torque.
2. Wire the Light Bar Assembly:
NOTE: check vertical aim of the lamps. They should
aim approximately 5° downward. If adjustment is
required see "Adjustment" page 2 of this instruction
otherwise proceed with wiring step 2.
A. Attach the Light Bar assembly wires per the following
list;
Turnsignal, Left
Turnsignal, Right
Running Light, Left
Running Light, Right
Passing Lamps
Ground
3. Reinstall the headlight and rim.
NOTE: Check local regulations for proper passing lamp opera-
tion. Some states require passing lamps be lit only with hi-beam.
NOTE: Grounding is through the frame.
Qty.
1
6
Light Bar Motorcycle
Short Red = Light Green
Short Red = Black
Short Black = Grey
Short Black = Grey
Long Blue = White(Hi Beam)
= Black/White
INSTALLATION AND OWNER'S MANUAL
N930 or N930E (European) LIGHT BAR for
NOTE: This installation to the VS1400 Intruder requires removal
and reinstallation of the upper Triple Clamp. Refer to your
Service Manual for the proper tools and procedure.
NOTE: right and left on the motorcycle are determined from the
rider's position.

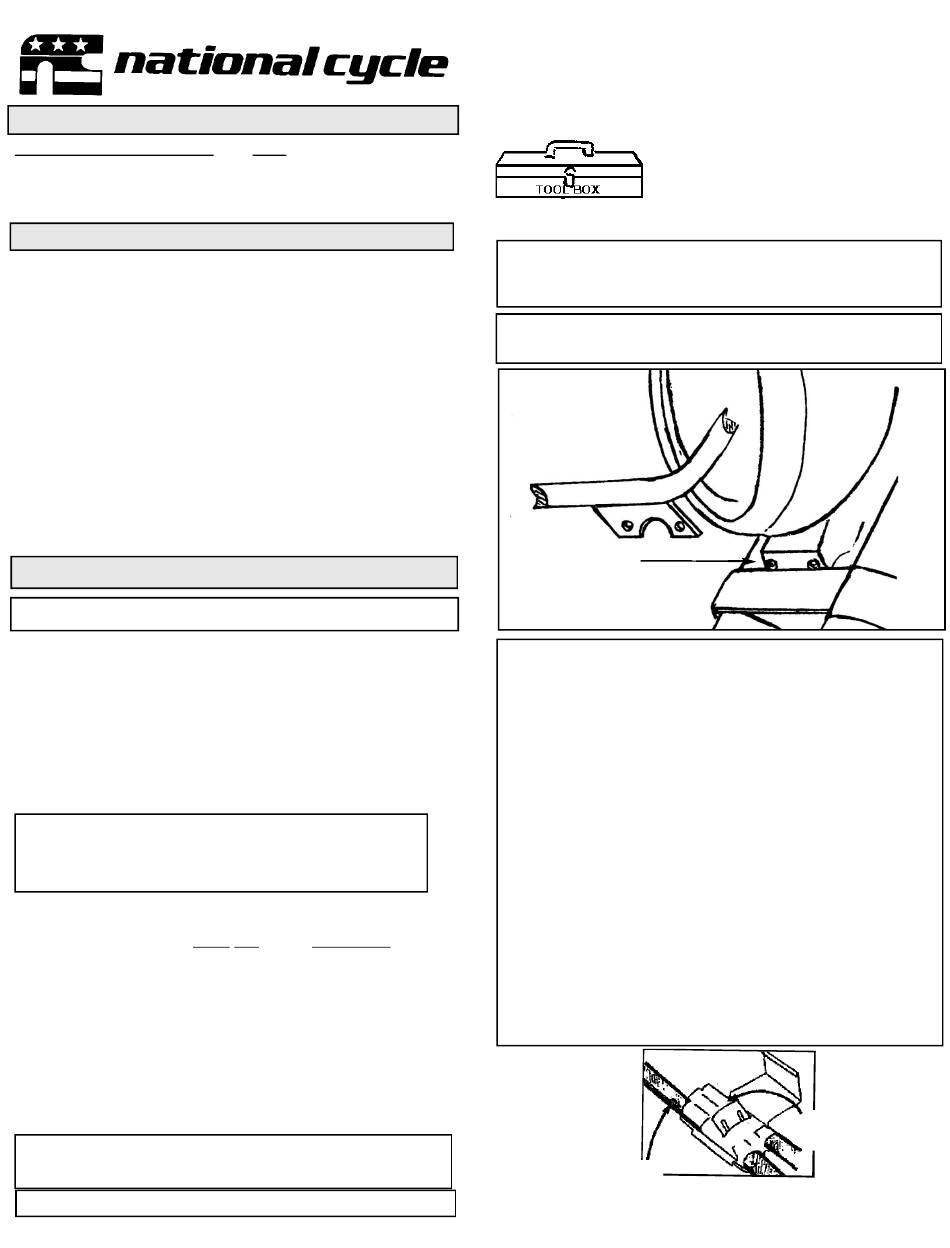

Position light bar assembly
between the lower triple
clamp and the head light
shell mounting bracket.
Note, Light Bar Wiring Helpful Hints:
The long Blue wire is the main power wire for the spotlights on
the light bar. Connect that to the main power source from the
headlight. Either the High Beam wire or the Low Beam wire.
The choice is your preference. Turn on bike and Check.
The two short RED wires are for the turn signals. One RED wire
for the Left side turn signal and one for the Right side turn signal.
Turn on bike and check.
The two short BLACK wires are for the running lights. One
BLACK wire for the Left side running light and one for the Right
side running light. Turn on bike and check.
The Light Bar attached to the front fork of the motorcycle serves
as the ground in most cases. A precautionary step to insure
proper grounding is to take one of the Black with White Tracer
Ground wires from the existing turn signals and ground that
between the Light Bar Mount and the Triple Tree Bracket.
Always start by doing one side at a time. Preferably the right
side or high side of the bike first.
Through Wire
Page 1 of 2
Suzuki® VS1400
Screwdriver, #2 Phillips
Socket, 10mm, and Ratchet Wrench
Pliers, Slip Joint, Hex Key 5mm
Plus tools required for removal of Upper Triple
Clamp
Wire From Light Bar
Insert To Stop.
10-110730-000 Rev. A 03/02
