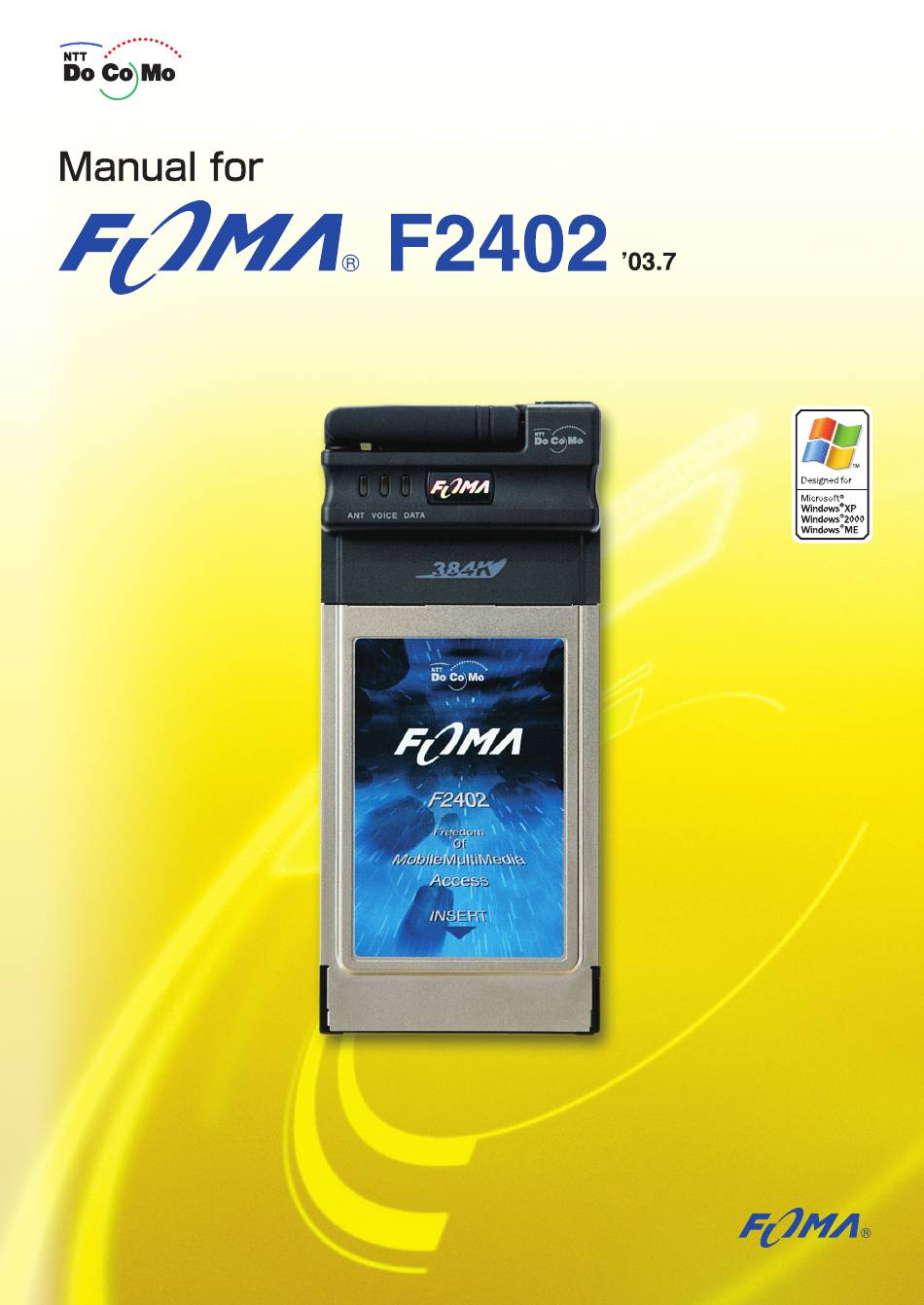

Foma F2402 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F2402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Foma F2402

Summary of Contents for Foma F2402

  • Page 2 XP Professional*. ● Because your FOMA terminal uses radio waves, it may not function in locations where it is difficult for radio waves to penetrate such as tunnels underground, passages and some buildings, in areas where radio wave signals are weak, or when outside the service area.

  • Page 3: About Registered Trademarks And Trademarks

    Company and product names mentioned in this manual are trademarks or registered trademarks of their respective holders. "FOMA" is a registered trademark of NTT DoCoMo. The "FOMA" logo is a registered trademark of NTT DoCoMo. Windows is a registered trademark of Microsoft Corporation in the US and other countries. ®...

  • Page 4: Table Of Contents

    Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Before using your FOMA terminal, or when necessary, read the following precautions to ensure safe use and handling. After reading please keep these carefully. These precautions are intended to protect you and others around you. Read and follow them carefully to avoid injury, damage to the product or damage to property.

  • Page 5: Handling The Foma Terminal, Foma Card And Foma Card Tray

    Do not throw the equipment or subject it to harsh shocks. May cause the equipment to malfunction or catch fire. Do not put the FOMA terminal, FOMA card or FOMA card tray in microwave ovens or other heating appliances or high-pressure containers.

  • Page 6: Handling The Foma Terminal

    Do not disassemble or remodel the terminal. Fire, injury, electric shock or malfunction may result. Turn OFF the PC to which the FOMA terminal is connected in areas where use is prohibited, such as in airplanes and hospitals. Use in these areas can cause medical and other electrical and electronic equipment to malfunction or fail.

  • Page 7: Handling The Foma Card

    Malfunction may result. Take care not to touch or short ICs accidentally. Data loss or malfunction may result. When storing the FOMA card, do not place it in areas of direct sunlight or high temperature/ humidity. Malfunction may result. Do not store the FOMA card in extremely dusty areas.

  • Page 8: Handling The Foma Card Tray

    Use the FOMA card tray only with devices specified by DoCoMo. Use with other devices can cause malfunction. Contact our sales outlet for the list of specified devices. When storing the FOMA card tray, do not place it in areas of direct sunlight or high temperature/humidity. Malfunction may result.

  • Page 9: Handling Mobile Phones Near Electronic Medical Equipment

    The FOMA terminal's signals may affect the operation of implanted pacemakers or defibrillators. Remove the FOMA terminal from the PC card slot in crowded trains or other public places where pacemaker or defibrillator wearers could be nearby. The FOMA terminal's signals may affect the operation of implanted pacemakers or defibrillators.

  • Page 10: Handling And Care

    • May apply excessive force to the connector, causing malfunction. Do not sit down with the FOMA terminal in a back pocket. Do not place it at the bottom of a full bag or anywhere it will encounter excessive force.
  • Page 11 Do not use excessive force to remove the card's IC portion. Do not place an excessive load on the card when inserting it into the terminal. It is normal for the FOMA card to become warm during use. You can continue using a warm card.

  • Page 12: Table Of Contents

    4 Services for the FOMA ........
  • Page 13 5 Installing the F2402 Utility ........
  • Page 14   15 Setting of starting status, automatic start/finish ............Setting of starting status .

  • Page 15: F2402'S Features

    F2402's features FOMA is the name of a DoCoMo service based on the W-CDMA format, a third-generation mobile communication system (IMT-2000) certified as a world standard format. High-speed communication High-speed communication of up to 384kbps in both upload and download is enabled.

  • Page 16: How To Use The Manual Set

    How to use the manual set There are two types of the F2402 operation manual, the "Manual for FOMA F2402 (Connection Guide)" (attached with the terminal) and the online "Manual for FOMA F2402". Contents The illustration and example of the screen depictions in this manual may differ from the actual product.

  • Page 17: Introduction

    4 Services for the FOMA ........

  • Page 18: Name And Function Of Parts

    Indicates the data communication status. Details of the indicators (→P. 30) Earphone microphone jack Used to connect an earphone microphone (optional) for voice communications using the F2402 Utility. FOMA card insert slot With the FOMA card PC card connector FOMA...

  • Page 19: Standard Components

    2 Standard components Standard components F2402 comes with the following standard components: If any of these components are missing, contact the shop where you bought the FOMA terminal. FOMA F2402 main unit FOMA F2402 case FOMA F2402 CD-ROM • F2402 communication configuration file •...

  • Page 20: Foma Card

    Insert the card to the FOMA terminal to use it. Inserting/removing the FOMA card Place the FOMA card in the FOMA card tray to insert it to the FOMA terminal. Check the direction of the FOMA card tray and insert or remove it straight. Applying excessive force may break the FOMA card or FOMA card tray.
  • Page 21 FOMA card tray unless necessary. • Take care not to force the FOMA card or FOMA card tray when inserting or removing it as doing so can damage it. Take care so as not to lose the FOMA card after removal.

  • Page 22: Foma Card Secret Codes

    Changing PIN codes The PIN code is set to "0000" at the subscribed to the FOMA. You can change this setting. If you enter the PIN code incorrectly 3 times in a row, the PIN code blocks automatically, so be sure to keep a separate note of the number you set.

  • Page 23: Services For The Foma

    Services for the FOMA Note the following when using FOMA services: FOMA charges When using FOMA, the communication charge applies based on the data amount or communication time in addition to the monthly charge. Packet communication (data amount-based charge) This communication mode applies charges based on the amount of data sent and received.
  • Page 24 Other notices When your PC operates on the battery, pay attention to the battery level. Using the FOMA terminal with a weak battery may result in unstable communication. Under the following conditions, do not set the PC in standby or hibernation, which may cause unstable operation: •...

  • Page 25: Requirements For Communication

    ISDN synchronized 64kbps communication is used. Check details when you subscribe to your Internet service provider. 64K data communication is available once the FOMA terminal is connected to your PC and the required settings are made.
  • Page 26 Introduction Packet communication The LAN you use must be connected to the FOMA network via dedicated lines. Via unconnected LANs, communication through the FOMA terminal is not available. Check with your company network administrator. Packet communication is available once the FOMA terminal is connected to your PC and the required settings are made.

  • Page 27: Voice Communication

    5 Requirements for communication Voice communication An earphone microphone and the F2402 Utility are required. FOMA Base station Network Earphone microphone connect to FOMA F2402 Videophone communication Available between terminals supporting DoCoMo's videophone. Videophone is available at a communication speed of 32K or 64K.

  • Page 28: Connecting The Foma Terminal To The Pc

    34. F2402 does not operate properly unless the communication configuration file is installed correctly. INFORMATION Do not carry the FOMA terminal while it is connected to the PC. Be sure to disconnect it • from the PC before carrying it.
  • Page 29 Double-click the card icon in the task tray on the desktop. Card icon Check that the following name is displayed. • Windows XP and 2000 Professional : FOMA F2402 Multi Function : マルチファンクション PC Card Parent • Windows Me and 98 If nothing is displayed even after a while, connection is not established properly.

  • Page 30: Removing The Foma Terminal

    Card icon Select the card to remove then click [ 停止 (Stop)]. Select the card with the following name. • Windows XP and 2000 Professional : FOMA F2402 Multi Function : マルチファンクション PC Card Parent • Windows Me and 98...
  • Page 31 • Windows Me, 98 Click [OK]. Remove the FOMA terminal from the PC. INFORMATION The FOMA terminal may have heated. Remove it by holding its both sides. • Videophone is an optional function available when supporting applications or equipment •...

  • Page 32: How To Read Status Indicators

    - : It changes with the combination of each communication status. *1: Indicates that no FOMA card is inserted, the inserted FOMA card malfunctions or the card is disabled after a wrong PUK has been input 10 times in a row.
  • Page 33 7 How to read status indicators INFORMATION The radio wave status can also be checked by the F2402 Utility. • If "LED点灯／消灯切替(Switch LED ON/OFF)" is set to "OFF" in the F2402 Utility, all setting • status indicators are OFF. (→P. 125) •...

  • Page 35: Setup

    5 Installing the F2402 Utility ........

  • Page 36: Setup For Your Foma Terminal

    Setup for your FOMA terminal Flow of setup steps for your FOMA terminal Before you can use the FOMA terminal, the following registration and configuration should be completed. Install the communication configuration file and the FOMA PC configuration software from the CD-ROM for the FOMA F2402.

  • Page 37: Checking Your Operating Environment

    1 Setup for your FOMA terminal Checking your operating environment Use the communication configuration file, FOMA PC configuration software and F2402 Utility in the following operating environments. Item System requirements PC-AT compatible computer Computer A PC card slot (Type II) is needed.

  • Page 38: Installing The Communication Configuration File

    Click [OK]. A screen is displayed for connecting the FOMA terminal. • If you connect the FOMA terminal to a PC before the screen is displayed for connecting it, a message to remove the FOMA terminal is displayed. In this case, remove the FOMA terminal from the PC once, click [OK], then continue your installation.
  • Page 39 - Another device may be installed. In this case, install again after the installation of another device currently is completed. In case of Windows 98, it cannot be used when "!" mark is indicated to the icon of "FOMA •...

  • Page 40: Checking Installed Drivers

    Setup Checking installed drivers If your PC does not recognize the FOMA terminal correctly, setup and communications is not available. <Example> Checking in Windows Me Click the [ スタート (Start)] menu → " 設定 (Settings)" → " コントロールパネ ル (Control panel)", then double-click the " システム (System)" icon.

  • Page 41: Uninstalling The Communication Configuration File

    (Multifunction adapter) *1: This port is for the F2402 Utility to control communications. COMx represents the port number for your PC. INFORMATION If the "FOMA F2402" modem is detected under a number greater than COM20 (→P. 158), • APN information cannot be obtained or written by the FOMA PC configuration software. In this case, change the COM port or communicate referring to "Setting with software other...
  • Page 42 Click [OK]. This completes uninstalling. INFORMATION If uninstalling fail, or if "FOMA F2402" is not displayed on the screen in step 2, click the [ ス • タート (Start)] menu → " ファイル名を指定して実行 (Run)", and specify "<CD-ROM drive name>:¥CARDDRV¥<your OS name>¥FJ402Uni.exe", then click [OK] to execute the procedure directly.

  • Page 43: Using The Foma Pc Configuration Software

    PC, you must complete various setup procedures. The FOMA PC configuration software allows you to easily perform the following settings. Easy setup The program guides you through the steps for "creating a dialup connection for FOMA data communication" and performs "W-TCP setup" automatically at the same time. W-TCP setup This function optimizes the settings in the PC required for "FOMA packet communication".
  • Page 44 (→P. 47) (FOMA N2001, FOMA N2002, FOMA P2401, FOMA P2002, FOMA F2611 and FOMA T2101V) The "FOMA PC configuration software" can be used on any FOMA terminal that supports data communications. STEP 2: Setup preparations Before starting the setup procedure, check: If the FOMA terminal is connected to your PC.

  • Page 45: Installing The Foma Pc Configuration Software

    3 Using the FOMA PC configuration software Installing the FOMA PC configuration software Installing the "FOMA PC configuration software" under Windows XP or 2000 Professional can only be performed by a user with the administrator privileges. Attempting to install the software by other users produces an error.
  • Page 46 Read the content of the screen then click [ はい (Yes)] if you agree to the license agreement. This is the license agreement that controls use of the "FOMA PC configuration software". Clicking [ いいえ (No)] terminates the install process.
  • Page 47 3 Using the FOMA PC configuration software Check the installation path then click [ 次へ (Next)]. To change the path, click [ 参照 (Browse)], specify a new path then click [ 次へ (Next)]. Check the name of the program folder then click [ 次へ (Next)].
  • Page 48 Setup Click [ 完了 (Done)]. When the setup is completed, the "FOMA PC configuration software" is started. This screen allows you to perform settings. (→P. 48)
  • Page 49 3 Using the FOMA PC configuration software Precautions required during installation of FOMA PC configuration software When old "W-TCP configuration software" is installed: The screen shown on the right is displayed when the old "W-TCP configuration software" is installed. Delete the old "W-TCP configuration software"...

  • Page 50: Setting Communications

    This configuration software simplifies the creation of a dialup connection for the FOMA terminal; the customer only has to select or enter response to displayed prompts. Check again that the FOMA terminal is connected to the PC correctly before performing any settings.
  • Page 51 Note that the communication charges can rapidly build up if you use packet communication to view Web pages, download file and perform other operation that involve the transfer for large amounts of data. Start the FOMA PC configuration software then click [ かんたん設定 (Easy setup)]. Startup method (→P.
  • Page 52 To use providers other than mopera (→P. 53). Click [OK]. The " 接続先（APN）設定 (Set dialup connection (APN))" is obtained from the FOMA terminal connected to the PC. Please wait. Enter a connection name then click [ 次へ (Next)]. • Enter a connection name in the " 接続名 (Connection name)" field.
  • Page 53 3 Using the FOMA PC configuration software Click [ 次へ (Next)]. The "mopera" dialup connection does not require the entry of a user name or password. For Windows Me or 98 For Windows XP or 2000 Professional • When the operating system is Windows XP or 2000 Professional, select the users that are allowed to access the connection.
  • Page 54 Setup Check the settings then click [ 完了 (Done)]. The set items are displayed in a list. Check that the settings are correct. is selected for " デスクトップにダイヤル A shortcut is automatically created when アップのショートカットを作成する (Create dialup shortcut on desktop)". Click [ 戻る...
  • Page 55 3 Using the FOMA PC configuration software Setting packet communication using other providers This method allows you to set high-speed packet communication which provides maximum speed of 384kbps. *: High-speed packet communication (→P. 49) Perform Steps 1 to 4 on In step 3, specify "...
  • Page 56 1. Click [ 追加 (Add)]. The " 接続先（APN）の追加 (Add dialup connection (APN))" screen is displayed. 2. Enter a dialup connection name (APN) supported by the FOMA packet communication of your service provider then click [OK]. The display returns to the " 接 続 先（APN）設 定 (Set dialup connection (APN))"...
  • Page 57 3 Using the FOMA PC configuration software is selected for " 最適化を行う (Optimize)", then click [ 次へ Check that (Next)]. This optimizes the "W-TCP setup" required for "packet communication". This screen is not displayed if optimization has already been performed.
  • Page 58 Enter the connection name and select modem, then click [ 次へ (Next)]. • Enter a desired connection name in the " 接続名 (Connection name)" field. The following characters (one-byte) cannot be entered: ¥/:∗?!<>|" • Check that "FOMA F2402" is set for " モデムの選択 (Modem selection)".
  • Page 59 3 Using the FOMA PC configuration software Click [ 次へ (Next)]. The mopera dialup connection does not require the entry of a user name or password. For Windows XP or 2000 Professional For Windows Me or 98 • When the operating system is Windows XP or 2000 Professional, select the users that are allowed to access the connection.
  • Page 60 • 接続名 (Connection name) : Optional The following characters (one-byte) cannot be entered: ¥/:∗?!<>|" • モデム選択 (Modem selection): FOMA F2402 • 電話番号 (Phone number) : Enter the number correctly based on the provider information. The following characters can be used.
  • Page 61 3 Using the FOMA PC configuration software Enter user name and password, then click [ 次へ (Next)]. Enter the user name and password specified by the Internet service provider or your network administrator, correctly and with care for the case.

  • Page 62: Executing The Communication

    Setup Executing the communication Start packet communication or 64K data communication to connect to a web site. Double-click the connection icon on the desktop. Data communication starts. • The dialup connection icon indicates the name created when the settings were made. The icon may vary depending on the OS.
  • Page 63 The status indicator (DATA) blinks in orange while connecting for packet communication, and it comes on in orange when a connection is established. The icon appears on the main screen of the F2402 Utility and so does the task tray. (→P. 105) •...

  • Page 64: Uninstalling The Foma Pc Configuration Software

    Setup Uninstalling the FOMA PC configuration software Uninstall preparations Perform the following two operations before uninstalling the FOMA PC configuration software. Cancel the resident setting for "W-TCP configuration Right-click software". Right-click in the task tray in the lower right corner and click " 常駐させない (Do not reside)".
  • Page 65 3 Using the FOMA PC configuration software Select the "FOMA PC 設定ソフト (FOMA PC configuration software)", then click [ 追加と削除 (Add/delete)]. Select "NTT DoCoMo FOMA PC 設定ソフト " Click here Check that you have selected the correct program for deleting then click [ はい...

  • Page 66: W-Tcp Setting

    The "W-TCP configuration software" is a "TCP parameter tuning tool" for optimizing TCP/IP transmission capacity during packet communication in the FOMA network. This software must be set up as described below to enable full use of the communication capability of the FOMA terminal.
  • Page 67 When the system has been optimized The screen shown on the right is displayed. When you cancel optimization to allow communications on terminals other than a FOMA terminal, click [ 最 適化を解 除 する (Cancel optimization)]. screen confirming restart is displayed. Exit all...
  • Page 68 • The dialup connection (APN) registered in number (cid) 1 cannot be deleted. Saving to a file To back up dialup connection (APN) settings registered in the FOMA terminal or to save dialup connection (APN) settings during editing, you can save the settings with an option under [ ファ...
  • Page 69 [ 詳細情報の設定 (Set detail info)] on the " パケット通信用ダイヤルアップの作成 (Create dialup connection for packet communication)" screen, register the required information and click [OK]. After entering the settings, click [FOMA 端末 へ 設 定 を 書 き 込む (Write settings to FOMA terminal)]. Check that you want overwriting then execute writing.

  • Page 70: Setting With Software Other Than The Foma Pc Configuration Software

    Setting with software other than the FOMA PC configuration software Making packet communication settings This section describes how to set packet communication without using the FOMA PC configuration software. This setting method requires communication software for entering AT commands. The following instructions assume use of the "HyperTerminal"...
  • Page 71 4 Setting with software other than the FOMA PC configuration software <Example> Setting dialup connections (APN) for Windows Me (Screens vary depending on the OS.) Connect the FOMA terminal to your PC. Click the [スタート(Start)] menu → "プログラム(Programs)" → "アクセサリ...
  • Page 72 Setup Enter the dialup connection (APN), then press • Enter the setting in the format "AT+CGDCONT=<cid>,"PPP","APN"". (→P. 142) <cid> :Enter any number between 1 and 10. "PPP" :Enter "PPP". "APN":Enter the name of the dialup connection (APN) in the double quotations (" "). •...
  • Page 73 4 Setting with software other than the FOMA PC configuration software When nothing is displayed even if AT command is entered ATE1 For details (→P. 139) Turning Send caller ID function ON/OFF Perform Steps 1 to 5 on Set the Send caller ID function for packet communication ON (186) / OFF (184).
  • Page 74 Setup Turning Send caller ID function ON/OFF by dialup network settings The dialup network settings can also be used to append "186" (ON) / "184" (OFF) to the dialup connection number. If "186" (ON)/"184" (OFF) is set by both the ∗DGPIR command and dialup network settings, the result is as shown below.

  • Page 75: Making Dialup Network Settings

    4 Setting with software other than the FOMA PC configuration software Making dialup network settings <Packet communication> This section describes how to set dialup connections and the TCP/IP protocol. For detailed settings information, contact your Internet service provider or the network administrator.
  • Page 76 The Internet connection screen is displayed. Select " ダイアルアップモデムを使用して接続する (Use dialup modem to connect)", then click [ 次へ (Next)]. The device selection screen is displayed. Select " モデム− FOMA F2402(COMx) (Modem: FOMA F2402 (COMx))", then click [ 次へ (Next)]. The connection name screen is displayed.
  • Page 77 4 Setting with software other than the FOMA PC configuration software Enter a desired connection name in "ISP 名 (ISP name)", then click [ 次へ (Next)]. A screen is displayed with the phone number to dial. Enter a desired connection name in "電話番号(Phone number)", then click [ 次へ...
  • Page 78 Check the setting for each item on the [ 全般 (General)] tab. • If more than one modem is connected to the PC, check "FOMA F2402" is set to under the " 接 続方 法 (Connection method)". If it is set to , switch it to .
  • Page 79 4 Setting with software other than the FOMA PC configuration software Click the [ネットワーク(Network)] tab then check the setting for each item. • Set " 呼び出すダイヤルアップサーバーの種類 (Type of dialup server to call)" to "PPP: Windows 95/98/NT4/2000,Internet". • Set only " インターネットプロトコル（TCP/IP）(Internet protocol (TCP/IP))" to under "...
  • Page 80 Setup Making dialup network settings for Windows 2000 Professional For Windows 2000 Professional, use " ネットワークの接続ウィザード (Network Connection Wizard)" to set both dialup connections (APN) and the TCP/IP protocol. Setting dialup connections (APN) <Example> Connecting to "mopera", DoCoMo's Internet connection service, using <cid>=1. Select the [ スタート...
  • Page 81 4 Setting with software other than the FOMA PC configuration software Check that " インターネットへの接続に使うモデムを選択する (Select modem to use for connection to Internet)" is set to "FOMA F2402", then click [ 次 へ (Next)]. The Internet account connection information screen is displayed.
  • Page 82 Setup Set each item on the [ 接続 (Connection)] tab as shown. Click the [ アドレス (Address)] tab then set each item as shown. Click [OK]. The display returns to the Internet account connection information screen. Click [ 次へ (Next)]. The Internet account login information screen is displayed.
  • Page 83 4 Setting with software other than the FOMA PC configuration software Enter a desired dialup connection name in " 接続名 (Connection name)", then click [ 次へ (Next)]. The Internet mail account setting screen is displayed. Select " いいえ (No)", then click [ 次へ (Next)].
  • Page 84 Check the setting for each item on the [ 全般 (General)] tab. • If more than one modem is connected to the PC, check "FOMA F2402" is set to under the " 接続の方法 (Connection method)". If it is set to , switch it to .
  • Page 85 4 Setting with software other than the FOMA PC configuration software Click the [ネットワーク(Network)] tab then check the setting for each item. • Set " 呼び出すダイヤルアップサーバーの種類 (Type of dialup server to call)" to "PPP: Windows 95/98/NT4/2000,Internet". only for " インターネットプロトコル（TCP/IP）(Internet •...
  • Page 86 Enter a desired dialup connection name in [ 接続名 (Connection name)], then click [ 次へ (Next)]. A screen for specifying the dialup connection phone number is displayed. • Check that "FOMA F2402" is set for " モデムの選択 (Modem selection)". If "FOMA F2402" is not set, set "FOMA F2402".
  • Page 87 4 Setting with software other than the FOMA PC configuration software Enter the dialup connection number then click [ 次へ (Next)]. A screen for indicating the end of the operation is displayed. • Do not enter the " 市外局番 (area code)" field.
  • Page 88 . If it is set to , switch it to • Check that "FOMA F2402" is set for " 接続方法 (Connection method)". If "FOMA F2402" is not set, set "FOMA F2402". Click the [ネットワーク(Network)] tab then check the setting for each item.
  • Page 89 4 Setting with software other than the FOMA PC configuration software Click [ セキュリティ (Security)] tab then click [OK] without entering " ユー ザー名 (User name)" or " パスワード (Password)". TCP/IP is set. • When connecting to an Internet service provider other than mopera, enter the user name and password specified by your Internet service provider or the network administrator in the "...
  • Page 90 Enter a desired dialup connection name in " 接続名 (Connection name)", then click [ 次へ (Next)]. A screen for specifying the dialup connection phone number is displayed. • Check that "FOMA F2402" is set for " モデムの選択 (Modem selection)". If "FOMA F2402" is not set, set "FOMA F2402".
  • Page 91 4 Setting with software other than the FOMA PC configuration software Enter the dialup connection phone number then click [ 次へ (Next)]. A screen for indicating the end of the operation is displayed. • Do not enter the " 市外局番 (area code)" field.
  • Page 92 . If it is set to , switch it to • Check that "FOMA F2402" is set for " 接続の方法 (Connection method)". If "FOMA F2402" is not set, set "FOMA F2402". Click the [サーバーの種類(Server type)] tab then check the setting for each item.

  • Page 93: Making Dialup Network Settings <64K Data Communication

    4 Setting with software other than the FOMA PC configuration software Making dialup network settings <64K data communication> This section describes how to set 64K data communication without using the FOMA PC configuration software. Setting dialup connections and dialup network Set connections and the TCP/IP protocol for 64K data communication.

  • Page 94: Connecting To A Dialup Connection

    Setup Connecting to a dialup connection <Example> Making dialup connections for Windows Me Connect the FOMA terminal to your PC. (→P. 26) Select the [ スタート (Start)] menu → " プログラム (Programs)" → " アクセサ リ(Accessories)" → "通信(Communication)" → "ダイヤルアップネットワー...
  • Page 95 4 Setting with software other than the FOMA PC configuration software To disconnect Just exiting the Internet browser may not disconnect. To ensure disconnection, perform the following operation. Double-click in the task tray. The connection screen is displayed. Click [ 切断 (Disconnect)].

  • Page 96: Installing The F2402 Utility

    Installing the F2402 Utility <Example> Installing the utility under Windows Me (Screens vary depending on the OS.) Insert the CD-ROM for the FOMA F2402 into your PC's CD-ROM drive. Select the [ スタート (Start)] menu → " ファイル名を指定して実行 (Run)". Specify "<CD-ROM drive name>:¥UTILITY¥setup.exe" for " 名前 (Name)", then click [OK].
  • Page 97 5 Installing the F2402 Utility Read the content on the screen. Set for "使用許諾契約の条項に同意しま す (I agree to the terms of the license agreement)" if you agree to the license agreement, then click [ 次へ (Next)]. A screen is displayed for selecting the installation path.
  • Page 98 Depending on the PC, a screen for restarting may be displayed. Follow the instructions on the screen to restart. INFORMATION If the screen for restarting the PC is not displayed after installing F2402 Utility, use F2402 • Utility after starting "F2402 Watcher" by the following operation.

  • Page 99: Uninstalling The F2402 Utility

    5 Installing the F2402 Utility Uninstalling the F2402 Utility Uninstalling the F2402 Utility cannot be performed while the utility or the F2402 Watcher (Permanent monitoring process) is starting. Be sure to terminate the utility or the Watcher before starting the uninstalling procedure.
  • Page 100 (Add/delete programs)" or " アプリケーションの追加と削除 (Add/delete applications)", insert the CD-ROM for FOMA F2402 into your PC's CD-ROM drive, and click the [ スタート (Start)] menu → " フ ァ イル 名 を指 定 して 実 行 (Run)". Specify "<CD-ROM drive name>:¥UTILITY¥setup.exe"...

  • Page 101: Videophone Communication Settings

    6 Videophone communication settings Videophone communication settings For settings for videophone communications, refer to the help of the videophone application. INFORMATION Videophone is an optional function available when supporting applications or equipment • are released.

  • Page 103: F2402 Utility Operation

    1 About F2402 Utility ........

  • Page 104: About F2402 Utility

    F2402 Utility Operation About F2402 Utility F2402 Utility is for making voice communications and performing various settings. The following features are available: Displays of radio wave status and communication status Connection of voice communications • Connection of making a call •...

  • Page 105: Displaying Main Screen

    When 自動起動/終了 (Automatic Start/Finish) is sets to "ON", connect the FOMA terminal to • a PC, and the F2402 Utility starts automatically. (→P. 131) If it is used by multiple users on Windows XP, you cannot start the F2402 Utility if any other • user uses the F2402 Utility.

  • Page 106: Finish Of F2402 Utility

    PC, and the F2402 Utility is finished automatically. (→P. 131) • When you are using Windows XP, the F2402 Utility is finished even if any other user uses the F2402 Utility. About F2402 Watcher (Permanent Monitoring Process)

  • Page 107: Checking Main Screen

    ① Refer to "Display of received signal level" in P. 107 ② : The FOMA terminal is not connected to the PC. : The FOMA card cannot use. Indicates that no FOMA card is inserted, the inserted FOMA card malfunctions or the card is disabled after a wrong PUK has been input 10 times in a row.

  • Page 108: About Display On Task Tray

    The FOMA card cannot use. Indicates that no FOMA card is inserted, the inserted FOMA card malfunctions or the card is disabled after a wrong PUK has been input 10 times in a row.

  • Page 109: Checking Radio Wave Condition

    Radio wave has not reached. Communication is not possible. (Out of service area) Received signal level can be checked with the status indicator (ANT) of the FOMA terminal. (→P. 30) Even when three antenna bars are displayed at the received signal level icon,...

  • Page 110: How To Connect/Disconnect Voice Communication

    How to connect/disconnect voice communication This section describes how to make/receive calls. INFORMATION Voice communications are not available if you subscribe to "FOMA Data Plan (data • communication-specific subscription)". On-hold during a call or response hold is not available. •...

  • Page 111: Receiving A Call

    You cannot make calls in succession to a same number without setting time. When you cannot get through, wait for a while and make another call. Click Receiving a Call Connect the earphone microphone to the FOMA terminal. Display the main screen. (→P. 103) The receive waiting status comes out.

  • Page 112: Getting Off The Line

    In case of earphone microphone with switch, you can cut off the line as well by pressing the switch for more than 1 second. Multiaccess The FOMA terminal allows you to make two communications, call (voice communication) and packet communication, at the same time. Incoming...

  • Page 113: Setting Of Phonebook

    6 Setting of phonebook Setting of phonebook This is for setting of phonebook and group Setting phonebook This section describes the procedure for setting (add, update and delete) Phonebook. Displaying of phonebook Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " 電話帳 (Phonebook)" in this order. The phonebook screen is displayed.
  • Page 114 Added data is displayed in the list of phonebook on the phonebook screen. Click [ 更新 (Update)]. The confirmation screen is displayed. Click [ はい (Yes)]. INFORMATION • Phonebook data is registered in the PC. Even if the FOMA terminal is connected to another PC, the phonebook data cannot be used.
  • Page 115 6 Setting of phonebook Updating of phonebook information Display the phonebook.(→P. 111) Select the data to be changed then click [ 編集 (Edit)]. The Edit Phonebook screen is displayed. Change necessary items then click [ 登録 (Register)]. Click [ 更新 (Update)]. The confirmation screen is displayed.
  • Page 116 F2402 Utility Operation Deletion of phonebook information Display the phonebook. (→P. 111) Select the data to be deleted then click [ 削除 (Delete)]. You can also delete multiple data by selecting them with the <Shift> key or <Ctrl> key. Click [ はい (Yes)].

  • Page 117: Setting Group

    6 Setting of phonebook Setting group You can change Group name. Also, you can set a ring tone that sounds from PC for each Group. 20 Groups are available from Group 0 to Group 19. You cannot change the earphone microphone's ring tone.

  • Page 118: Setting/Changing Of Various Features

    • Settings of number notice, other party's voice volume in earphone and ring volume in earphone cannot be changed under the following statuses. - The FOMA terminal is not connected to the PC. (green) - In case of Feature OFF Display the main screen.
  • Page 119 " 小 (Small)" to " 大 (Large)". The voice volume has been set to the third level by default. The voice volume cannot be set when the FOMA terminal is not inserted in the PC. イヤホン着信音量 (Ring volume in earphone) This is for setting ring volume in earphone at the time of receiving voice communication.

  • Page 120: Reading/Writing Phonebook Data

    F2402 Utility Operation Reading/writing phonebook data Phonebook data can be read and written in the CSV or vCard format. Phonebook data are written in the following order: • グループ No. (Group No.), グループ名 (Group Name) (in the vCard format only), 名...

  • Page 121: Writing Data

    8 Reading/writing phonebook data Writing data Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " 電話帳 (Phonebook)". Select the data to be written. You can select multiple data with the <Shift > key or the <Ctrl> key to write them at a time.

  • Page 122: Setting For Pin Code Collation

    F2402 Utility Operation Setting for PIN code collation When starting the F2402 Utility, you can set whether or not PIN code is collated. " 無し • PIN code collation is set to (No) at the subscribed to the FOMA. "...

  • Page 123: Canceling Pin Block

    If the PIN code collation is set to " 有り (Yes)", the following screen is displayed when the • FOMA terminal is connected to a PC or the functions are turned on (Orange). Enter the PIN code then click [ 照合 (Check)].
  • Page 124 PUK (PIN unblock code) (→P. 20) • While the F2402 Utility is running, do not unblock by the AT Command "+CPIN". • While PIN is blocked, the following features are not available. - Making and receiving call, and sending and receiving communication...

  • Page 125: Notifying Phone Number To The Other

    Click the [ 音声 (Voice)] tab and select any of the following from 番号通知 (the number notice): 未設定 (No setting): Please follow the setting made at the Network for the FOMA. 通知 (Notice) : Caller ID is notified (default).

  • Page 126: Checking Phone Number

    F2402 Utility Operation Checking phone number <Own number> You can check the own number of the FOMA terminal (FOMA Card). Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " 各種設定 (Various Settings)" in this order.

  • Page 127: Switching Of Status Indicators On/Off

    Click the [ その他 (Other)] tab then select LED 点灯 / 消灯切替 ( Switch LED ON/OFF). : The status indicator is turned on (default). : The status indicator is turned off. In this case, each status of the FOMA terminal comes not to be displayed. Keep this in mind. (→P. 30) Click [OK].

  • Page 128: Using Outgoing Call Record

    F2402 Utility Operation Using outgoing call record <Redial> This section describes the procedures for specifying caller IDs from redial, adding them in phonebook and deleting redial. Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " リダイヤル (Redial)" in this order.
  • Page 129 13 Using outgoing call record <Redial> INFORMATION Less than 20 redials are displayed. When more redials are added, older ones are deleted • one after another.

  • Page 130: Using Received Voice Communication

    F2402 Utility Operation Using received voice communication <Received call> This section describes the procedures for specifying caller IDs from received call, adding them in phonebook and deleting received call. Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " 着信履歴 (Received Call)" in this order.
  • Page 131 14 Using received voice communication <Received call> Click [ 閉じる (Close)]. INFORMATION • Less than 20 received calls are displayed. When more received calls are added, older ones are deleted one after another. If a call is not answered while the functions are turned ON (Orange), it is recorded as a missed call in the received call.

  • Page 132: Setting Of Starting Status, Automatic Start/Finish

    Setting of starting status, automatic start/finish Setting of starting status This is for selecting whether or not the main screen is displayed when the F2402 Utility started. Display the main screen. (→P. 103) Click the [ ファイル (File)] menu → " 各種設定 (Various Settings)" in this order.

  • Page 133: Setting Of Automatic Start/Finish

    • Watcher has not started.(→P. 104) When you use Windows XP and any other user uses the F2402 Utility, the F2402 Utility • does not start automatically even if "ON" is selected. On the other hand, it can finish automatically even when any other user uses the F2402 Utility.

  • Page 134: Using Network Service

    Group 19 of the phonebook. (→P. 133) For the detailed operating method, see "FOMA Network Services User's Guide". Since network services are provided through connection to the network service center, they cannot be operated outside the service area or in areas where it is difficult for radio waves to penetrate.

  • Page 135: Using Services From Phonebook

    16 Using network service Using network services For optional services such as Voice Mail Service, Call Forwarding Service, Nuisance Call Blocking Service and Dual Network Service out of the network services, you have to make applications for them. Subscription contract information is as follows: ○...

  • Page 137: Reference

    Reference 1 AT commands ..........2 AT commands list .

  • Page 138: At Commands

    Input mode of AT commands To operate FOMA terminal with AT commands, the PC must be in the terminal mode, too. If your communication software has the terminal window, enter the AT command in the window.

  • Page 139: Switching Between The Online Data Mode And The Online Command Mode

    Switching between the online data mode and the online command mode To switch FOMA terminal from the online data mode to the online command mode, follow the procedure below. Enter the "+++" command or the code specified in the "S2" register.
  • Page 140 Reference Select "FOMA F2402" from " 接続方法 (Connect method)" , then click [OK]. When the connection screen is displayed, click [ キャンセル (Cancel)]. Enter "AT " from the keyboard. When "OK" is displayed, you can enter AT commands. Exit from the HyperTerminal when all the necessary operation is done.

  • Page 141: At Commands List

    ATD [parameter][phone number]##134 Echo back setting ATE1 Sets whether or not FOMA terminal sends echo back for the commands sent from PC. Usually, this is set to "E1". If the PC itself has echo function, setting this to "E0" prevents characters from overlapping.
  • Page 142 Resetting FOMA terminal (Online) Resets the AT command setting values of FOMA terminal to the non-volatile memory values. If this command is entered NO CARRIER during communication, communication is disconnected (Offline)
  • Page 143 &F Resetting to the initial settings AT&F Resets FOMA terminal to the initial settings. If this command is entered during communication, communication is disconnected before resetting of values. &S Setting circuit DR (DSR) control AT&S0...
  • Page 144 <APN>*: optional "*<cid>" is the number for managing access point (APN) of packet communication to be registered in FOMA terminal. For FOMA terminal, "1 to 10" are available. "mopera.ne.jp", which is an APN to connect to mopera, is registered in "<cid>=1"by default.
  • Page 145 <Maximum bitrate DL>*: None or 384 "*<cid>" is the number for managing access point (APN) of packet communication to be registered in FOMA terminal. For FOMA terminal, "1 to 10" are available. "Maximum bitrate UL" and "Maximum bitrate DL" specify the minimum communication rate (kbps) between FOMA terminal and access points.
  • Page 146 AT+CGREG=1 registration display Sets whether or not to notify the registration status of the (Set to "Notified") network service. Whether or not the FOMA terminal is within AT+CGREG? or outside the service area can be notified. +CGREG: 1,0 When set to "AT+CGREG?", notification is made in the form of "+CGREG: <n>, <stat>".
  • Page 147 When "+CLIR?", when making a call in 64K data communication or display AT+CLIR=<n>,<m>. videophone communication. <n> 0: Setting at the subscribed to the FOMA 1: Not notified 2: Notified <m> 0: CLIR not start (always notified) 1: CLIR always start (always not notified)
  • Page 148 (one of the following code is displayed in xxxx.) Numeric Sentence display (reason) display no connection to phone (FOMA terminal is not set) SIM not inserted (FOMA card is not set) SIM wrong (Other SIM than DoCoMo is inserted) incorrect password...
  • Page 149 +CREG Setting "In/outside service area" display of 64K data AT+CREG=1 communication and videophone communication Sets whether or not to display that FOMA is within or outside (Set to "Notified") the service area. When set to "AT+CREG?", notification is AT+CREG? made in the form of "+CREG:<n>, <stat>".
  • Page 150 AT command Functions and overview Form/command example +GMR Displaying version of FOMA terminal AT+ GMR Displays the version of FOMA terminal in the form of Ver1.00 "VerX.XX". +IFC Setting control method of local flow between PC and AT+IFC=[<DCE_by_DTE>[,< FOMA terminal DTE_by_DCE>]]...
  • Page 151 3: Executing the "Z" command before the "&W" command restores the last-stored status and contents edited after that are erased. 4: Not stored in FOMA terminal with the "&W" command. Not reset with the "&F" or "Z" command either. 5: When 186 or 184 is specified with both ∗DGPIR command and dialup network setting...

  • Page 152: Reason For Disconnection

    Reference Notification Dialup network setting setting by ∗DGPIR Setting Caller ID ON/OFF (cid=1) command Not specified Notified ∗99∗∗∗1# Not notified Not notified Notified Notified Not specified Not notified (dialup network setting 184 184∗99∗∗∗1# Not notified has priority) Notified Not specified Notified (dialup network setting 186 186∗99∗∗∗1# Not notified...

  • Page 153: Register And Non-Volatile Memory

    By storing the settings in the non-volatile memory, they are memorized even if the power of PC to which the FOMA terminal is connected, or if the FOMA terminal is disconnected from the PC card slot. To restore the default settings of FOMA terminal and storing the settings in the non-volatile memory, enter as follows.

  • Page 154: Register

    If "CONNECT" cannot be sent to the PC even though the specified period of time (in seconds) has past after the FOMA terminal received the ATD input from the PC, "NO CARRIER" result code is returned and disconnection operation starts. If the value is set to "121" to "255", "OK"...
  • Page 155 Setting send sub address character ATS104=0: #(sharp) Sets stops when calling with send sub addresses. This ATS104=1: %(percent) command setting is available for 64K data communication (default) and videophone communication. ATS104=2: &(ampersand) *1: Stored in FOMA terminal with the "&W" command.

  • Page 156: Result Code

    Extended result code Numeric String display Meaning display CONNECT 1200 Connect FOMA terminal and PC at 1200bps CONNECT 2400 Connect FOMA terminal and PC at 2400bps CONNECT 4800 Connect FOMA terminal and PC at 4800bps CONNECT 9600 Connect FOMA terminal and PC at 9600bps...
  • Page 157 Numeric display sample: When ATX1 is specified • When ATX1, AT¥V0 is specified (default) It is displayed in the form of "CONNECT <rate between FOMA terminal and PC>" when connection is terminated. ATD ∗ 99 ∗∗∗ 1# String display sample: CONNECT 460800 ATD ∗...

  • Page 159: Appendix

    Appendix 1 Troubleshooting ......... . . 158 2 Specifications .

  • Page 160: Troubleshooting

    FOMA terminal, contact our service station. The FOMA terminal is not detected Stand-by, shut down or restart while the FOMA terminal is connected to PC may result in the FOMA terminal not recognized correctly. Is the FOMA terminal inserted to PC correctly? (→...
  • Page 161 FOMA terminal is set to use the echo back function, the characters overlap. Change the PC setting, or set the FOMA terminal not to use the echo back function using the "ATE" command. For the PC setting, refer to the PC's documentation.
  • Page 162 Communication is disconnected instantly. The access point may be busy. Try connecting again after a while. When using the FOMA terminal in a weak radio wave condition, try moving around the status indicator (ANT) comes on in green. The status indicator is not turned on.

  • Page 163: Specifications

    2 Specifications Specifications Supported OS ® Windows 98 (Japanese) ® Windows 98 SE (Japanese) ® Windows Me (Japanese) ® Windows 2000 Professional (Japanese) ® Windows XP Home Edition (Japanese) ® Windows XP Professional (Japanese) Communication rate Packet communication : upload/download 384kbps max. 64K data communication : upload/download 64kbps Videophone communication : upload/download 32kbps or 64kbps...

  • Page 164: Glossary

    Software going between a card and the OS when connecting a PC card. cid [Context Identifier] Registration number assigned when registering APNs to the FOMA terminal. From 1 to 10 are available for the FOMA terminal. CSV [Comma Separated Values] A file form in which data is divided by comma (,).
  • Page 165 3 Glossary IP [Internet Protocol] One of the communication protocols. Used commonly for the Internet. IP address Address to recognize network devices when conducting IP communication (IP network). Indicated with four numbers (0 to 255) divided by periods (ex. 192.168.1.1). ISDN [Integrated Services Digital Network] Integrated digital communication network.
  • Page 166 The FOMA terminals conform to W-CDMA. W-TCP TCP parameter to make the most of communication ability of TCP/IP when conducting packet communication via FOMA networks. To make the most of communication ability of the FOMA terminal, this communication setting is essential.

  • Page 167: Warranty And After Sales Service

    • Confirm the number is correct to prevent the wrong numbers. For further information, please refer to the list of service stations supplied with your FOMA terminal. If the result of inquiries indicates that a repair is required Please bring your FOMA terminal to a service station DoCoMo specifies. Confirm the business hours of the service station.
  • Page 168 Appendix In the warranty period The FOMA terminal will be repaired at no charge subject to the conditions of the warranty. Be sure to bring the written warranty when you request for a repair. The subscriber will be changed for the repair without written warranty or repairs of defects resulting from misuse, accident or neglect even during the warranty period.

  • Page 169: Index

    Index +GMI ......147 +GMM ......147 AT command +GMR .
  • Page 170 ......18 ..... . .113 FOMA card insert slot Writing data .
  • Page 171 Videophone ..... . . 99 Voice Mail Service ....132 Warranty and after sales service .
  • Page 172 -In an airplane or hospital *Be aware that patients use electronic medical equipment in many areas in hospitals. Always remove the FOMA terminal from the PC card slot while in the lobby, waiting room and other area. ■ While driving Using your FOMA terminal while driving could cause an accident.
