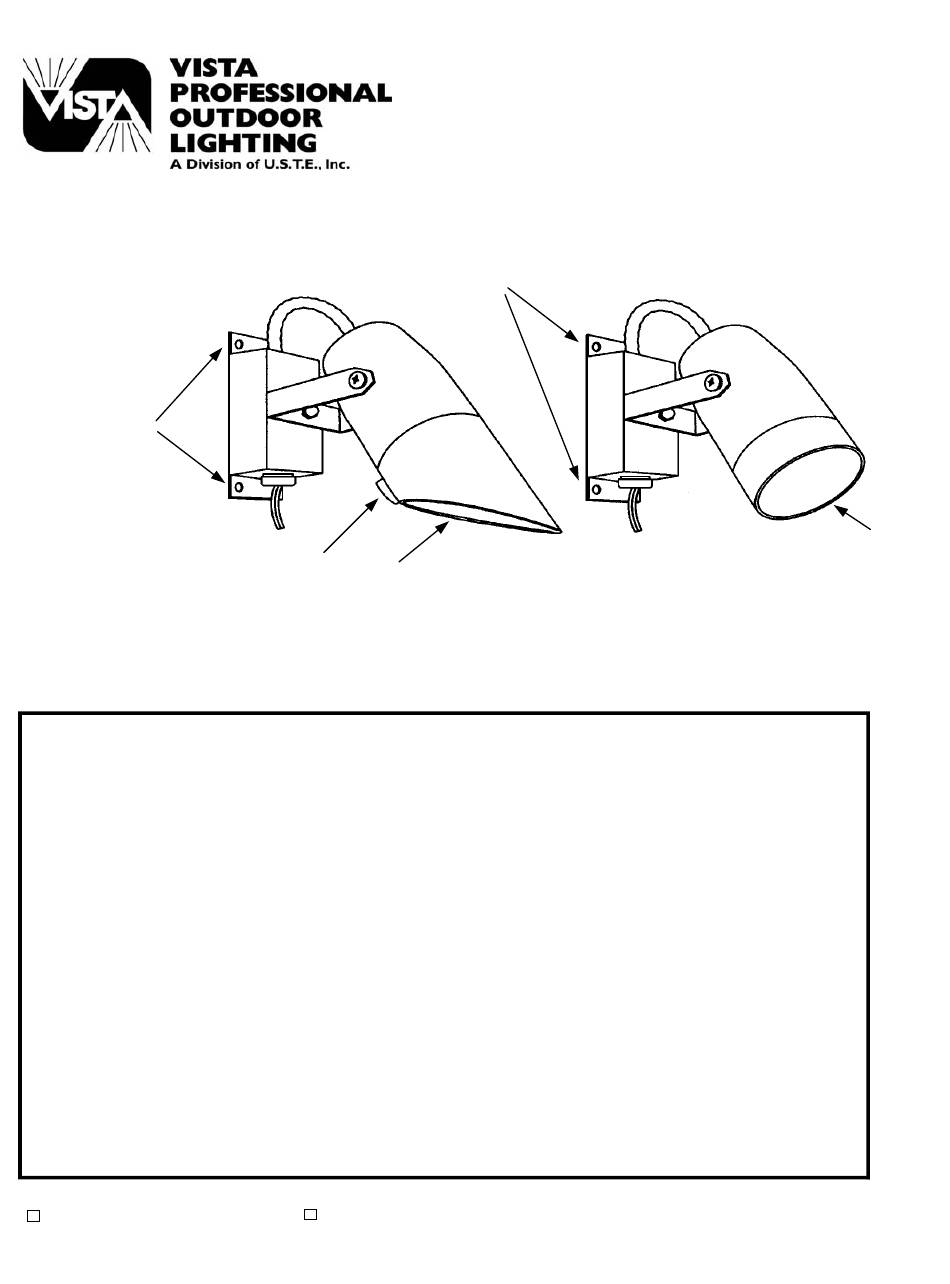

Mounting Holes
Mounting Holes
Lens
Shroud Screw
Lens
INSTALLATION INSTRUCTIONS FOR 12 VOLT SPECIALTY LIGHTS
MODEL #DL-2237/ #DS-2237
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT
EXCEED 25 AMPS, 15 VOLT MAX.
WARNING: Luminaires must be installed in accordance with the National Electrical
Code (NEC) and local codes. Failure to do so will void the warranty and may result in
serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used.
Lens and metal around lamp can become hot enough to blister hands. Particular care
should be taken not to locate luminaires where small children can reach them if high
wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A
POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN
6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED
TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION
CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
TOOLS REQUIRED FOR INSTALLATION:
Phillips head screwdriver
Wire strippers
Advertisement
Summary of Contents for U.S.T.E. VISTA DL-2237
- Page 1 Mounting Holes Mounting Holes Lens Shroud Screw Lens INSTALLATION INSTRUCTIONS FOR 12 VOLT SPECIALTY LIGHTS MODEL #DL-2237/ #DS-2237 FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAX. WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes.
- Page 2 1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service. 2. Using the wiring compartment J-Box as a template, mark mounting hole position. 3. Strip the wire leads from the main supply cable. Connect main supply cable to luminaire leads using silicone filled safety connectors (provided).
