Summary of Contents for thomann t.racks Power Conditioner 12

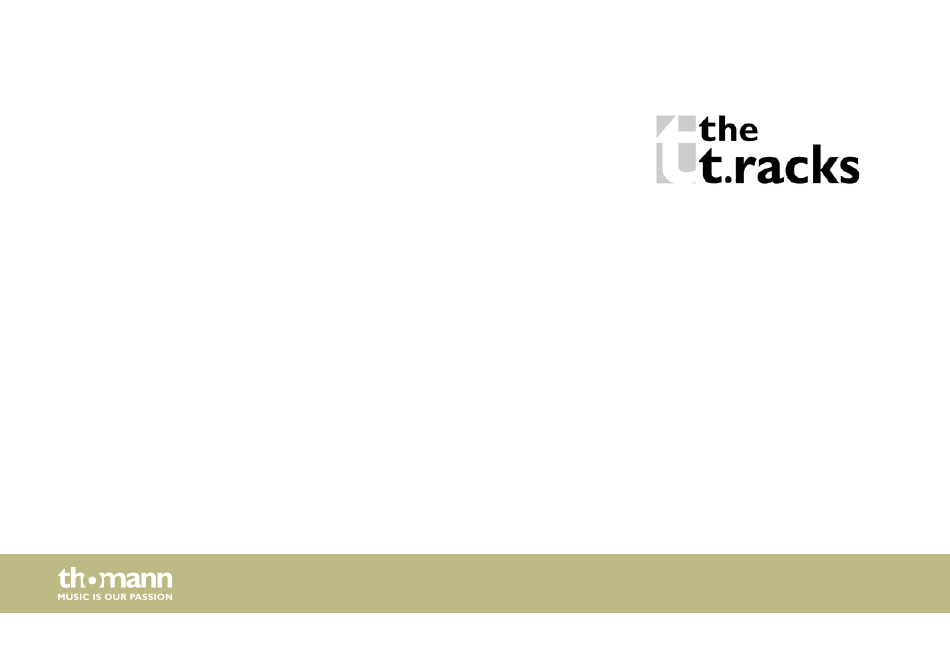

- Page 1 Power Conditioner 12 power conditioner user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.06.2019, ID: 463191...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Connections and controls........................14 Technical specifications........................19 Protecting the environment......................21 Power Conditioner 12... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. power conditioner... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is used to compensate for fluctuations in the mains voltage and for protection against overvoltage. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 10 Safety instructions DANGER! Hazardous voltage Even in standby mode, mains voltage is present on the outputs of the device and on the connected loads. Prior to any servicing work on the connected loads, disconnect the mains plugs of the respective loads from the device. Prior to any servicing work on the device, disconnect the mains plug of the device from the mains socket.
- Page 11 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 12: Power Conditioner
Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’... -
Page 13: Features
Features Features Power distributor and voltage stabilizer microprocessor controlled toroidal autoformer 1 × Power Twist socket type TR1 for mains connection 4 × protective contact socket (F-type) for the power supply of further units 4 × overload protection (10 A) of the protective contact socket Safety shutdown at 265 V Display of voltage and current values (switchable) USB interface for loading and operating mobile devices (no data exchange) -
Page 14: Connections And Controls
Connections and controls Connections and controls Front panel power conditioner... - Page 15 Connections and controls 1 Main switch 2 [USB CHARGER] USB 2.0 port for charging and operating mobile devices. This port is not usable for data transmission. 3 Display 4 [LINE VOLTAGE/CURRENT] Button for switching voltage and current value display. By default, the voltage value is displayed. Press the button to display the current value. Press the button again to display the voltage value.
- Page 16 Connections and controls Display 5 Indicator ‘PROTECTION OK’ The indicator lights up green as long as the maximum load (10 A) is not exceeded. The indicator turns off when the maximum load (10 A) is exceeded. The overload protection triggers and locks off all outputs for the power supply. 6 Voltage and current value display 7 Indicator ‘VOLTAGE RANGE’...
- Page 17 Connections and controls Rear panel Power Conditioner 12...
- Page 18 Connections and controls 9 [OUTLET 1] … [OUTLET 4] Outputs for the power supply of further units, designed as protective contact sockets (F-type) 10 [10 A] Overload protection (10 A) of the protective contact sockets If the maximum load (10 A) is exceeded, the overload protection triggers and locks off all outputs for the power supply.
-
Page 19: Technical Specifications
Technical specifications Technical specifications Input connections Voltage supply 1 × Power Twist socket (TR1-type) USB port 1 × USB 2.0 Output connections Power supply for further devices 4 × protective contact socket (F-type) Operating range 190 V – 253 V Operating supply voltage 230 V 50 Hz... - Page 20 Technical specifications Further information Total load 16 A Lamp connection Voltage display power conditioner...
-
Page 21: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 22 Notes power conditioner...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
