Instruction / Installation Sheet
Cable Trench System
Part # CT-75-2P

Parts Included:

● (3) 15 in. Stackable Enclosure Box
● (1) 15 in. Stackable Enclosure Box w/ Open End Cap
● (1) 15 in. Stackable Enclosure Box w/ knockout End Cap
● (4) 15" Gangable Solid Cover
● (1) 15" Cover w/ Cable Pass-Through

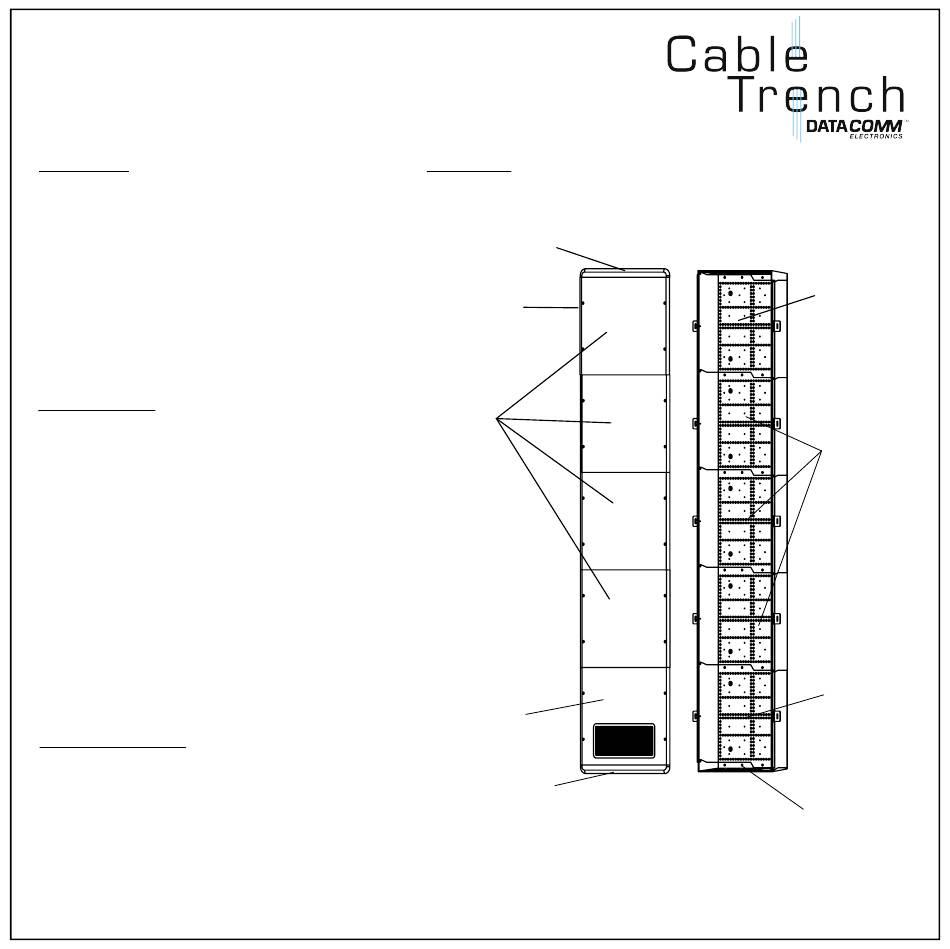

Parts Identification:

A- (3) 15 in. Stackable Enclosure Box
B- (1) 15 in. Stackable Enclosure Box w/ Open End Cap
C- (1) 15 in. Stackable Enclosure Box w/ knockout End Cap
D- (4) 15 in. Gangable Solid Cover
E- (1) 15 in. Cover w/ Cable Pass-Through
F- (2) Screw Cover End Caps
G- (20) Screw Cover Screws
H- (36) Box Screws

Installation Instructions:

1. Preparing the Wall

Cut out a space in the dry wall 75in. tall (or increments of 15in.) x 15 in wide.

2. Placing the Bottom Box

Place the Stackable Enclosure Box w/ knockout End Cap (C) between studs where the cables are intended to exit the trench.

3. Installing the Bottom Box

Secure the two tabs to the studs using Metal Wood screws (not included) and a Phillips head Screwdriver.

Tools Needed:

● Phillips Head Screwdriver
● (10) Metal Wood Screws
F
G
D
E
F
Page 1 of 2
DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.DataCommElectronics.com
B
A
C
H
06/19/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cable Trench System CT-75-2P and is the answer not in the manual?

Questions and answers

Summary of Contents for DataComm Cable Trench System CT-75-2P

  • Page 1 Instruction / Installation Sheet Cable Trench System Part # CT-75-2P Parts Included: Tools Needed: DataComm Electronics, Inc. 6349 Peachtree Street ● (3) 15 in. Stackable Enclosure Box ● Phillips Head Screwdriver Norcross, GA 30071-1725 888.223.7977 ● (1) 15 in. Stackable Enclosure Box w/ Open End Cap ●...
  • Page 2 4. Stack and Install Next Box Slide the Stackable Enclosure Box (A) onto the Stackable Enclosure Box w/ knockout End Cap (C). Secure the Boxes together using six included Box Screws (H) with a Phillips head screwdriver. 5. Installing Next Two Boxes Repeat step 3 for the remaining two back boxes.
