Summary of Contents for SYR SefeTech Connect

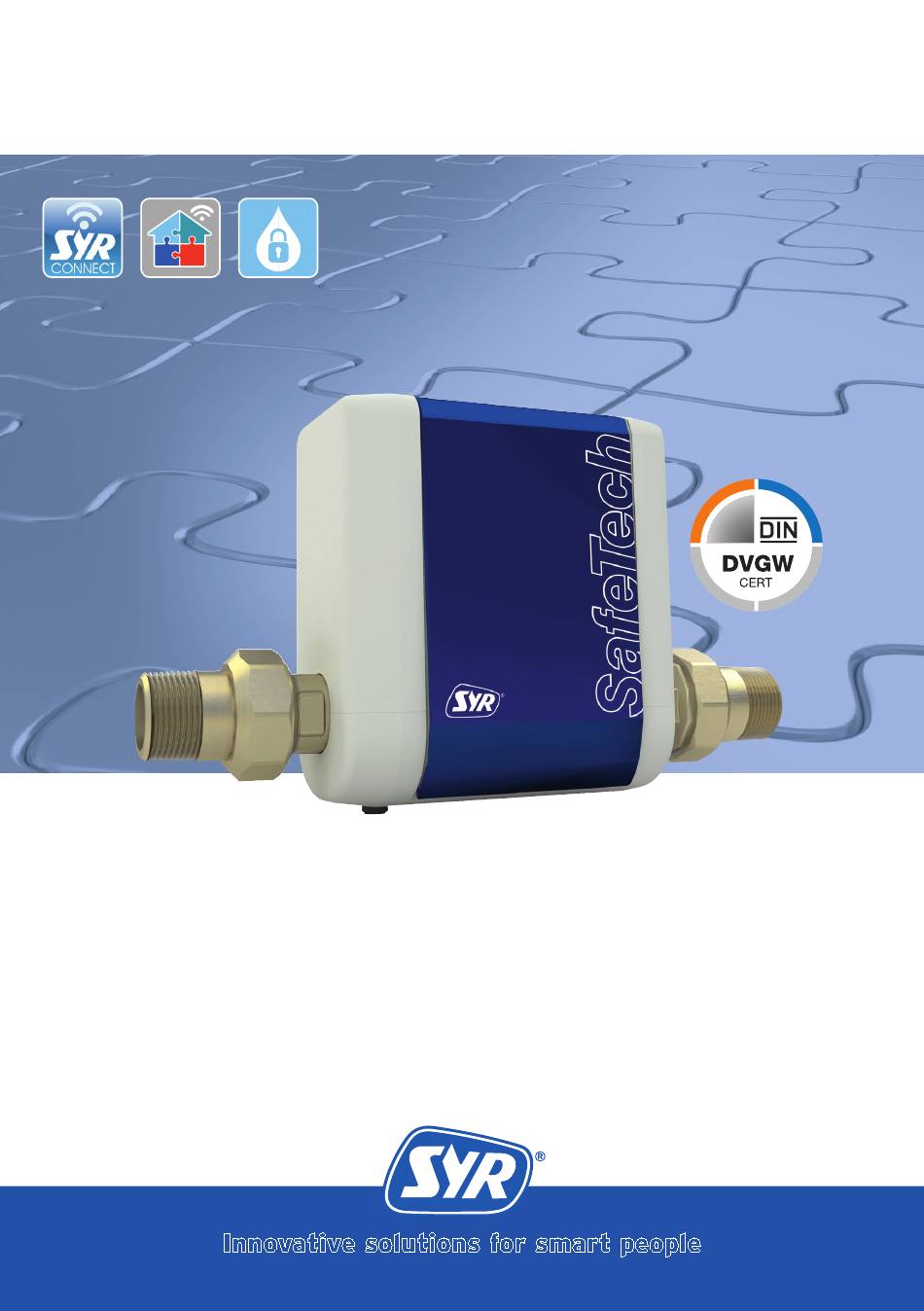

- Page 1 W E K E E P S M A R T T H I N G S S I M P L E . Operation and Maintenance SafeTech Connect Leakage Detector Innovative solutions for smart people...
-
Page 2: Table Of Contents
Installation and initial setup..................10 Safety instructions on installation and initial setup ..............Installation ............................. Operation and settings ....................13 Operation and settings via the SYR App ..................Displays and actions directly on the device ................7.3. Connection of several Connect devices .................. -
Page 3: General
1.1 Indications regarding the instructions for use The instructions for use are to help you handle your SYR SafeTech Connect Leakage Detector in a safe and effi cient manner. They form part of the scope of supply and have to be readily available at all times. -
Page 4: Copyright / Standards / Warranty
These documents must not be copied nor may they be made available to third parties, in particular competitors, without the express consent of SYR. Please note that the SYR SafeTech Connect Leakage Detector is patent protection. The following European and national standards have been applied for the development and design of the SafeTech Connect Leakage Detector: •... -
Page 5: Safety
Due to the nature of the system, there cannot be a 100% guarantee that no water damage will occur. The SYR SafeTech Connect Leakage Detector is intended for use in cold water systems. Any other use or use beyond the intended use is considered unintended use. -
Page 6: Maintenance And Repair Work
3. Installation instructions The SYR SafeTech Connect Leakage Detector operates on an ISM band of 2.4 GHz. Please make sure that the installation is not next to devices with the same channel assignment (e.g. wireless LAN devices, HF components etc.). -
Page 7: Design And Function
Electronic unit 9V battery Emergency unlocking key Mains adapter Screw connections (2x) Smart start instructions Operation and maintenance 4.2 Optional accessories The system’s functionalities can be extended with the following accessories: • SYR SafeFloor Connect radio-controlled fl oor sensor (2422.00.200) -
Page 8: Design
In addition, the device determines water hardness and indicates it in three stages. The SYR SafeTech Connect Leakage Detector can connect to the SYR App via its AccessPoint. In case of an active Internet connection, the SafeTech Connect transmits the measured values from the drin- king water installation, e.g. -
Page 9: Transport And Storage
5. Transport and storage 5.1 Transport The device is completely pre-mounted when delivered. It weighs approximately 1,275 g. Attention! Improper transport may damage the device! The packaging serves as protection during transport. • Do not install the device if the packaging is severely damaged. •... -
Page 10: Installation And Initial Setup
6.1 Safety instructions for installation and initial setup Only authorized, qualifi ed and specially trained personnel with the corresponding know-how shall install and commission the SYR SafeTech Connect Leakage Detector. Observe the general safety instructions for drinking water installations, such as the following: •... -
Page 11: Installation
Flush the pipes before installation. To be safe in case of a defect, you should install a drinking water fi lter according to DIN 1988 (e.g. SYR DRUFI+) downstream of the SafeTech Connect Leakage Detector. Point of entry installation SafeTech Connect Drinking water fi... - Page 12 • Insert the battery. • Plug in the mains adapter to ensure power supply. The device is now ready to use! Operation and Maintenance SafeTech Connect Leakage...
-
Page 13: Operation And Settings
7. Operation and settings 7.1. Operation and settings via the SYR App It’s easy to set your SYR SafeTech Connect Leakage Detector via the SYR App on your smartphone or tablet. Simply install the current SYR App on your smartphone or tablet. You can also use your computer (http://syrconnect.de) and follow the user instructions. - Page 14 To make sure that the parents have suffi cient water, too, they create a new profi le with the corresponding parameters. SYR tip: Refer to the smart self-learning phase of the SafeTech Connect to determine the optimum safety levels for your new profi le.
- Page 15 — mostly in case of pipe bursts: the SafeTech Connect Leakage Detector will immediately shut off the pipe system. SYR tip: Install an additional radio-controlled fl oor sensor SafeFloor in cri- tical places. This will determine local water leaks, regardless of the selected settings.
-
Page 16: Displays And Actions Directly On The Device
7.2. Displays and actions directly on the device The user interface of the SafeTech Connect Leakage Detector includes a 4-line LCD display, one LED for the status indicator and one touch switch. LCD-display Touch switch 7.1.1. LED displays LED-display Green LED lights up Active leakage protection General fault... -
Page 17: Connection Of Several Connect Devices
SafeTech Connect Leakage Detector. To connect the devices, they have to be registered via SYR CONNECT and be online. The SafeTech Connect Leakage Detector acts as the master, i.e. the SafeTech Connect activates the connection to the radio-controlled fl... -
Page 18: Emergency Unlocking Function
8. Emergency unlocking function 8.1 Emergency unlocking function Thanks to the emergency unlocking function, the SafeTech Connect Leakage Detector can be manually unlocked, for instance in case of power failure or a missing or low battery. The access to the emergency unlocking function is underneath the control unit. No cables have to be removed! •... - Page 19 • Remove the emergency unlocking key, the battery and the battery compartment. • Pull the casing upwards and tip it sideways.
- Page 20 • Remove the clamp that connects the body of the SafeTech Connect Leakage Detector with the motor unit and place the motor unit next to it, sideways (without removing the cables), thus opening access to the shut-off valve. • Insert the emergency unlocking key from the top and turn it until water starts to fl ow. Operation and Maintenance SafeTech Connect Leakage...
- Page 21 • Once you have drawn water, turn the shut-off valve by using the key until it is closed again and the water ceases to fl ow. Re-assemble the device in reverse order.
-
Page 22: Components And Spare Parts
9. Components and spare parts Cover Battery compartment Shell Motor unit Pressure sensor Conductivity cartridge Inlet strainer Components and spare parts DC mounting socket (no illustration) 2422.00.905 Pressure sensor with cable 2422.00.902 Conductivity cartridge 2422.00.901 Reed switch (no illustration) 2422.00.903 Inlet strainer, complete 2422.00.900 Temperature sensor (no illustration) -
Page 23: Maintenance
(replace if necessary). Re-assemble in reverse order. Slowly re-open drinking water supply. We recommend annual servicing intervals with our SYR service technicians or a certifi ed spe- cialist for SYR leakage protection. Please make use of our service contract! - Page 24 Press the button on the device to open the shut-off valve. It is possible to perform this action via the SYR App or in the web application (http://syr-connect.de). Suspected leak: The maximum admissible time has been ex-...
- Page 25 Press the button on the device to open the shut-off valve. It is possible to perform this action via the SYR App or in the web application (http://syr-connect.de). Floor sensor leakage A leak has been detected on the fl oor Please eliminate the leakage sensor.
-
Page 26: Specifi Cations
12. Specifi cations SafeTech Connect Leakage Detector Unit Battery 1 x 9V Block (6LR61) Buffer battery (on circuit 1 x CR 2032 board) IP Code IPX3 Standard wireless protocol WiFi 2,4 GHz Max. operating pressure Max. ambient temperature °C 10 ... 60 Operating temperature °C 10 ... -
Page 27: Dimensions
13. Dimensions Nominal size DN 20 DN 25 DN 32 ¾“ 1“ 1¼“ 118,8 mm 118,8 mm 118,8 mm 39 mm 39 mm 39 mm 265,2 mm 261,2 mm 285,2 mm 191,2 mm 191,2 mm 191,2 mm 79,5 mm 79,5 mm 79,5 mm... - Page 28 Leakage Detector and the radio-controlled fl oor sensor SafeFloor Con- nect: Simply scan the QR code to your right or go to the SYR YouTube channel. Hans Sasserath GmbH & Co. KG • Mühlenstr. 62 • D-41352 Korschenbroich • Tel. +49 2161 6105-0 • info@syr.de • www.syr.de...
