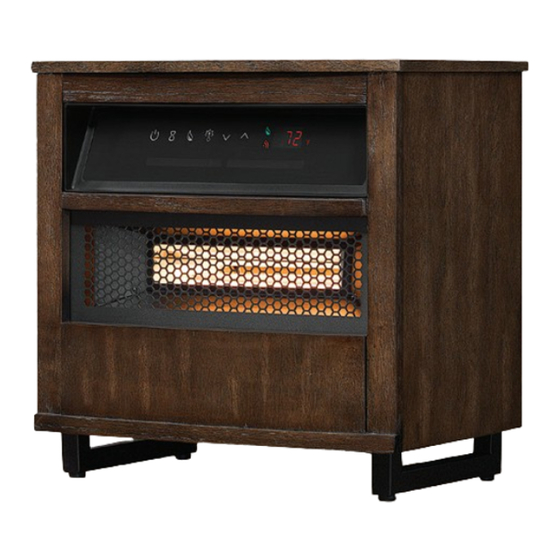

- Page 1 INFRARED HALOGEN T H E S A F E S T A N D M O S T A DVA N C E D H E AT I N G T E C H N O LO GY AVA I L A B L E SMART HEATER Model # 13QH8017-H394...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 3 13. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or for U.S.A. installations, follow local codes and the National Electrical Code, ANSI/NFPA NO.70. 14.
-
Page 4: Getting Started
GETTING STARTED 1. The serial number is located on the back of the heater. The serial number is necessary for product warranty registration and customer service. MOVABLE HEATER/ MEUBLE CHAUFFANT/ Model Number CALENTADOR DE MUEBLES 13QI071ARA 120V ~, 1500W, 60Hz Twin-Star International, Inc. - Page 5 REGISTER YOUR NEW PURCHASE online! Thank you for purchasing our product. Please take a moment to visit tsicustomerservice.com to register your new purchase: tsicustomerservice.com Customer Service Portal Twin-Star Customer Service online resource to Order Parts, Product Registration, and to request Product and General Information Login DON’T FORGET TO REGISTER YOUR PRODUCT...
- Page 6 HARDWARE [x2] [x4] Ø4x6mm Ø4x10mm [x2] [x1] Remote Control B066...
-
Page 7: Installation Instruction
INSTALLATION INSTRUCTION [x2] B066... - Page 8 INSTALLATION INSTRUCTION [x1] Repeat steps 1 and 2 for the other leg installation. B066...
- Page 9 OPERATION INSTRUCTIONS Display Control Panel ECO Mode Power Temperature Timer Heater Boost The heater can be operated by either the remote control or the control panel. B066...
- Page 10 FUNCTION ICON DESCRIPTION POWER The power button supplies power to all of the functions of the heater. The power button will put the heater in a standby mode. This will turn off all functions at once but will hold the settings in the memory.
- Page 11 TIMER Press TIMER button will turn on or off timer settings. There are 10 timer settings and OFF that can be selected. OFF(00), 30min, 1Hour, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H. Double-digit minute settings, such as 30, look like: A single-digit with an “H”...
- Page 12 This product is equipped with a Safer Plug ® ; an advanced SAFER PLUG ® safety device that helps detect electrical fires caused from faulty outlets. Overloading of outlets, adapters and surge protectors may cause overheating, damage, and increase risk of fires. Safer Plug ®...
- Page 13 The Infragen Smart Heater is equiped with app control that SmartStar™ App allows the corresponding Smart Star app on compatible iOs or Android devices to work with the heater. The Smart Star app works as a remote control for the heater. The Smart Star app also allows advanced scheduling to be easily setup.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Root Cause Corrective Action Unplug the heater, remove the back panel of the heater and check that The thermostat the thermostat is plugged into the Display shows “ ” sensor is broken or main circuit board. If this does not disconnected. - Page 15 Problem Root Cause Corrective Action Normal operation. Heater will contin- ue to run for several minutes before Cool down cycle shutting down. Times will vary based on temperatures. During this time cool air will blow. Perform a master reset; turn off and unplug unit.
-
Page 16: Care And Maintenance
Problem Root Cause Corrective Action Defective control Buttons do not work. Replace control panel circuit board. panel circuit board. Control panel does not Defective control Replace control panel circuit board. illuminate. panel circuit board. No batteries or Change the remote batteries. battery power. -
Page 17: Replacement Parts
REPLACEMENT PARTS Part Part Name Part Number Control Panel Circuit Board Y16-S175-P32 Main Circuit Board Y16-S175-P15 LEG-8017 Remote Control P139 EXPLODED VIEW B066... -
Page 18: Fcc/Ic Information
FCC/IC INFORMATION WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 19: Battery Replacement
BATTERY REPLACEMENT NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon zinc), or rechargable (nicad, ni-mh, etc.) batteries. CAUTION: Do not ingest batteries. NOTE: Battery disposal Please always dispose of batteries at a suitable recycling point. •... -
Page 20: Years Limited Warranty
3-YEARS LIMITED WARRANTY The manufacturer warrants that your new Electric Heater is free from manufacturing and material defects for a period of three years from date of puchase, subject to the following conditions and limitations. 1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. - Page 21 INFRARED HALOGEN Customer Service: tsicustomerservice.com 1.866.661.1218 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. © 2019, Twin-Star International, Inc. Delray Beach, FL 33445 Made in China 13QI071ARA REV.02 B066...
