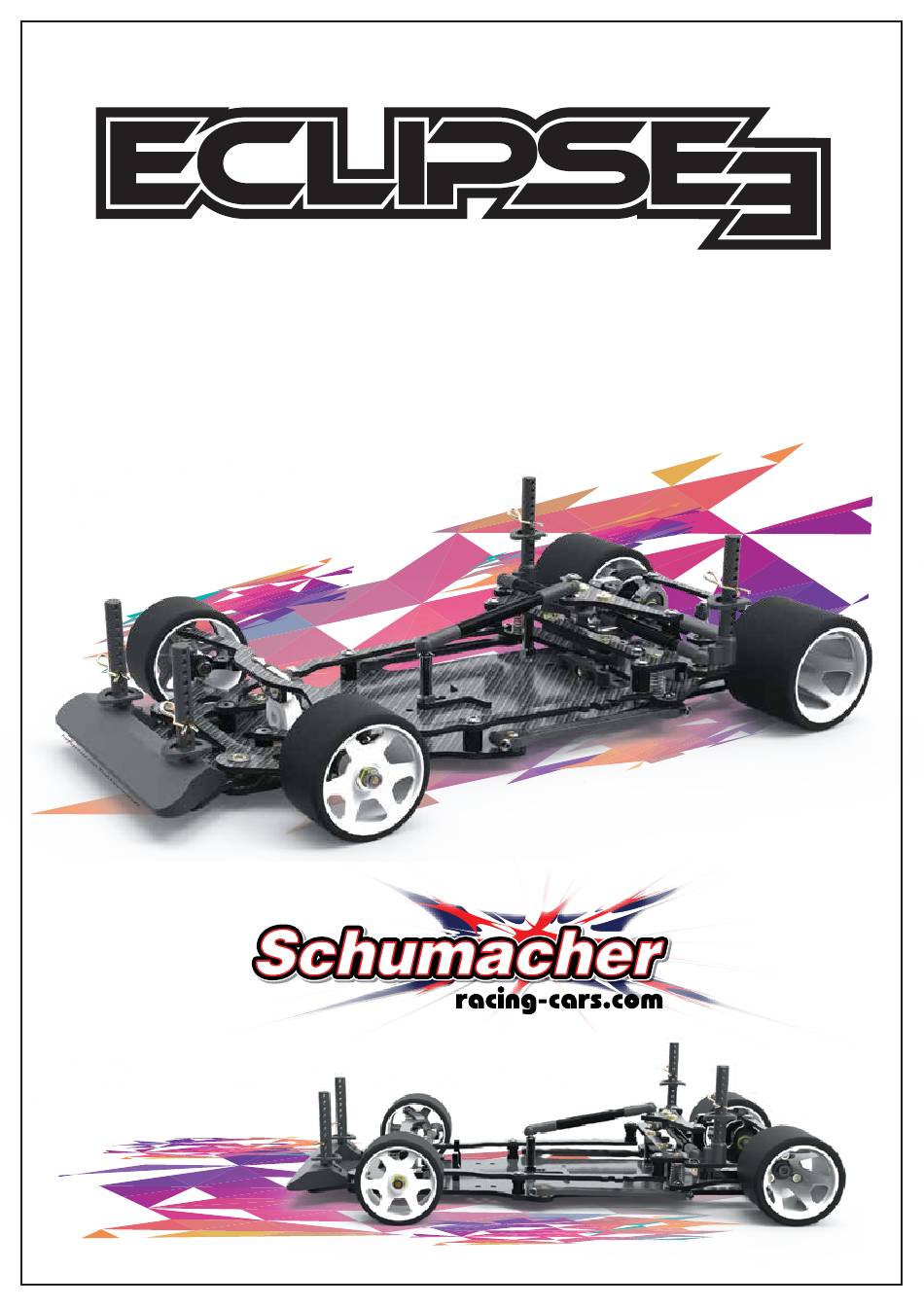

1 / 1 2 t h P R O L M P C H A S S I S
Instruction Manual
S1542
ISS1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Eclipse and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schumacher Racing Eclipse

Summary of Contents for Schumacher Racing Eclipse

  • Page 1 1 / 1 2 t h P R O L M P C H A S S I S Instruction Manual S1542 ISS1...
  • Page 2 CR266 40w CR275 80w Transmitter and Receiver 1 / 1 2 t h P R O L M P C H A S S I S Schumacher Racing stocks and distributes the following manufacturers products and full product listings are...

  • Page 3: Table Of Contents

    STEP 1 1 / 1 2 t h P R O L M P C H A S S I S M3 Nut M3 x 25 M3 x 8 M3 x 6 STEP 2 Leave loose for now (adjusted later). Ball Stud Ultra Short M2.5 x 8 M3 x 8...
  • Page 4 STEP 3A 1 / 1 2 t h P R O L M P C H A S S I S M3 x 12 Note the orientation Note the orientation Note the orientation of the inserts. of the inserts. of the inserts. M3 x 6 M3 Washer M3 x 4...

  • Page 5: Step 4

    STEP 4 1 / 1 2 t h P R O L M P C H A S S I S M3 x 8 Patched Ball Stud Short M3 x 8 3.5mm STEP 5 M2.5 x 8 3.00mm Adjust all five M2.5 screws to give minimum clearance with no drag.

  • Page 6: M3 X 8

    STEP 6A 1 / 1 2 t h P R O L M P C H A S S I S Ball Stud Ultra Short M3 Thread Insert M3 x 6 Patched M3 x 6 STEP 6B M3 x 8 PAGE 5...

  • Page 7: M3 X 6

    STEP 7 1 / 1 2 t h P R O L M P C H A S S I S M3 x 6 M3 x 6 These topdecks adjust the chassis flex characteristics. For lower grip tracks, more flexibility is preferable. For higer grip tracks, less flexibility is preferable.
  • Page 8 STEP 8A 1 / 1 2 t h P R O L M P C H A S S I S Make two side dampers with the short sockets. Make the centre damper with the long sockets. M3 x 14 Use the included spanner to tighten sockets.
  • Page 9 STEP 9 1 / 1 2 t h P R O L M P C H A S S I S DO NOT put anything into any of these holes while assembling. King Pin damage may be caused. M3 x 6 STEP 10 Ball Stud Ultra Short...
  • Page 10 STEP 12 1 / 1 2 t h P R O L M P C H A S S I S Adjusting the spacers under the Spacer B beam sets ride height and caster. 2mm Silver Ride Spacer A Height Spacer Ride Height and Caster Chart Tire Size (mm) Ride Height (mm) Caster Spacer A (mm) Spacer B (mm) 39.5...
  • Page 11 STEP 14 Apply a thin layer of silicone grease covering this face. 1 / 1 2 t h P R O L M P C H A S S I S M3 Nyloc NOTE x 12 Correct disk ø1/8” spring assembly. Disc spring 3.25 x 7.9 x 0.5 NOTE...
  • Page 12 STEP 16 1 / 1 2 t h P R O L M P C H A S S I S Black 2.0 mm M3 x 10 M3 x 10 Csk Washer Connect up your radio gear and set the servo to neutral before tting the servo saver assembly as shown.
  • Page 13 STEP 17B 1 / 1 2 t h P R O L M P C H A S S I S For Sanwa SRG-HR and PGS-HR we suggest the use of Speed Secret The Servo may now be secured U7680 - Sanwa Servo Spacer. centrally.
  • Page 14 STEP 18A 1 / 1 2 t h P R O L M P C H A S S I S M3 x 10 M3 x 10 PAGE 13...
  • Page 15 STEP 18B 1 / 1 2 t h P R O L M P C H A S S I S Body Washers Select the correct body washer to ne tune the bodyshell height. Each incremental change is 1.2mm. 1 Dot 2 Dot 3 Dot Medium...
  • Page 16 Pinion Gear 64DP 20T (7075 Hard) U7932 King Pin - Eclipse 3 CR6421 Pinion Gear 64DP 21T (7075 Hard) U7934 C/F - Camber Strap 1.0 Deg (Kit) - Eclipse 3 CR6422 Pinion Gear 64DP 22T (7075 Hard) U7938 Chassis Post 8mm - Eclipse 3 CR6423...
  • Page 17 GT12 Power Plant-PACE ESC/SP 13.5/1S Lipo U7919 Alloy Pivot Block - Atom 2 CR249 Futaba Servo Wires Black U7935 C/F - Camber Strap 1.5 Deg - Eclipse 3 CR250 JR Servo Wires Black U7936 Titanium King Pin - Eclipse 3 (pr) CR251...
  • Page 18 Spares 3 Transmitters and Receivers 1 / 1 2 t h P R O L M P C H A S S I S CR277 CODE 2.4G FHSS Steerwheel Radio TxRx CR278 CODE 2.4G FHSS - Rx Only KO21005 KO KR-211FH 2.4GHz FHSS Receiver KO21008 KO KR-241FH 2.4GHz FHSS Brushless Accessories...
  • Page 19 Spares 4 Tools 1 / 1 2 t h P R O L M P C H A S S I S CR044 CORE RC - Curved Body Scissors CR045 CORE RC - Straight Body Scissors CR103 Magnetic Parts Tray - Black CR148 CORE RC - Polybutler Pit Box;...
  • Page 20 STEP 19 1 / 1 2 t h P R O L M P C H A S S I S M3 Nyloc Black Alloy 1/8”x 5/16” Flanged Wheels and Tyres not included in the kit. Adjust the nut for minimum end oat.
  • Page 21 STEP 20 1 / 1 2 t h P R O L M P C H A S S I S Black 1.0 mm Servo Tape x 6 M3 x 10 Speed Control, Receiver, LiPo, Motor and Transponder are NOT included in the kit. LiPo O Ring PAGE 20...

  • Page 22: Final Assembly

    Final Assembly 1 / 1 2 t h P R O L M P C H A S S I S PAGE 21...
  • Page 23 Track Settings 1 / 1 2 t h P R O L M P C H A S S I S Ride Height Ride Height In general always run the car as low as possible, without the chassis grounding out. A good starting point with foam tyres is 3.5mm.
  • Page 24 A good range is between 15,000cSt and 50,000cSt LiPo Position The Eclipse 3 has four LiPo positions. A more forward LiPo will make the car easier to drive. A more rearward LiPo will make the car more aggressive and provide more steering.
  • Page 25 Track Settings 1 / 1 2 t h P R O L M P C H A S S I S Roll Centre Adjustment (Speed Secret ) When using the alloy speed secret pivot parts (U7918 and U7919) the roll centre can be adjusted by adding or removing spacers from below the alloy pivot mount and alloy pivot block.
  • Page 26 Track Settings Track Settings Track Settings 1 / 1 2 t h P R O L M P C H A S S I S Front Toe Toe-out Toe-in Parallel front wheels or a slight Toe-out (up to 1 degree per side) is our suggested setting range.
  • Page 27 U7918 - Alloy Pivot Mount - Atom 2 U3582 - Precision Balance Pivot Set CR721 - 1/12 Carbon Spool Axle + Clamp U7935 - C/F Camber Strap 1.5 Deg - Eclipse 3 U4811 - 1/8 Silicone Nitride Ball (pk12) U4812 - Ceramic Bearing 1/8x5/16x9/64 Flanged (pr)
