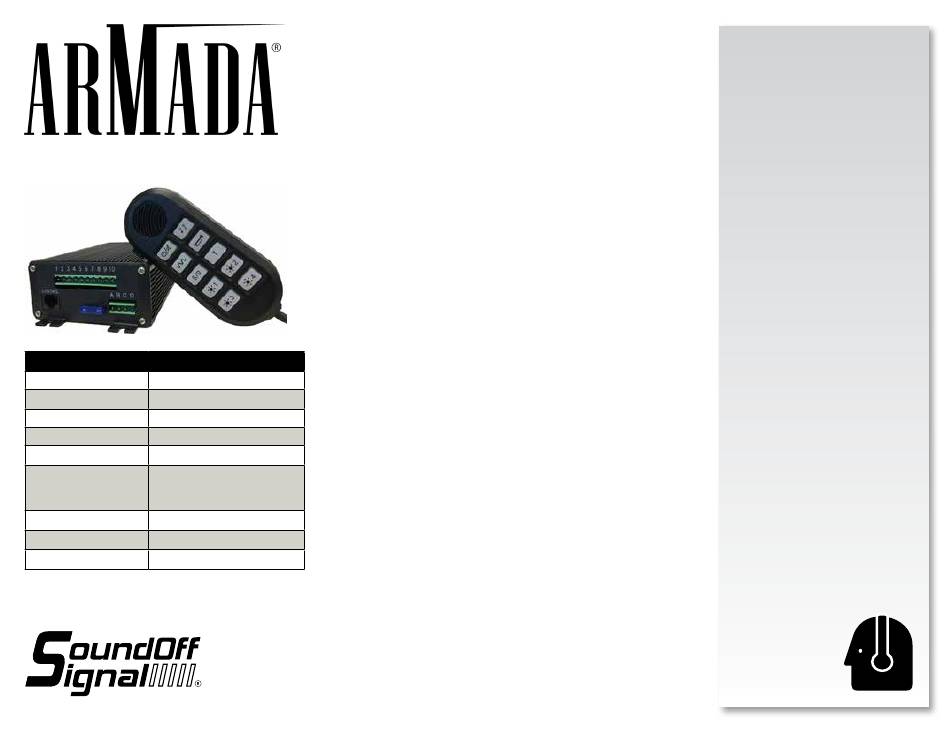

DE2-EAMSSA400

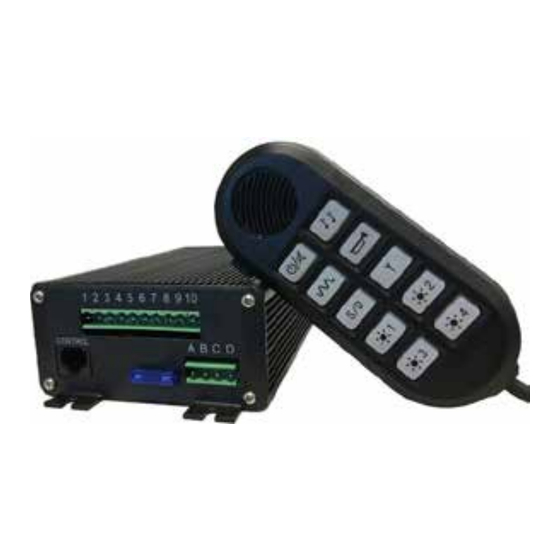

A400 SIREN
TECHNICAL SPECIFICATIONS
Input Voltage:
Operating Current (Day): 11 Amps@13.6Vdc (100W SPKR)
Operating Current (Night):
2 Amps@13.6Vdc (100W SPKR)
Operating Temperature:
-30°C to +65°C
Standby Current:
Less than 130mA
Dimensions
Handheld controller:
1.2" x 2" x 4.9"
Amplifier:
1.9" x 4" x 6"
Weight Siren (approx):
Weight Controller (approx):
Light Control:
(4 levels) Each level - 10A Max.
1.800.338.7337 / www.soundoffsignal.com
10-16Vdc
2.2lbs.
0.4lbs.
General Description of Function:
A400 siren has single sound track with a
maximum output power of 100W. It has Air
Horn, Audio Input and Park Kill functions. There
are 4 light control switches that can drive
warning lights of 10A current. A400 siren has
two short tones (AIR HORN and MANUAL) and
6 long tones (WAIL, YELP, HI-LO, Hyper-Yelp,
Hyper-LO, WHOOP).
Standard Features:
1. Primary Tones: WAIL,YELP, HI-LO, Hyper-Yelp,
Hyper-LO, WHOOP, Air Horn, MANUAL
2. Vehicle Light Control Buttons-4 Levels
3. PA with Built-In Noise Cancelling Microphone
4. Radio rebroadcast
5. Stand-By
6. Park Kill
7. Horn Ring Transfer
8. Day mode/Night mode
DE2-EAMSAA400 0319 Pg. 1
