Global-Systems GSN-430A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GPS navigator
GSN-430A
1
Create PDF
files without this message by purchasing novaPDF printer (http://www.novapdf.com)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSN-430A and is the answer not in the manual?

Questions and answers

Summary of Contents for Global-Systems GSN-430A

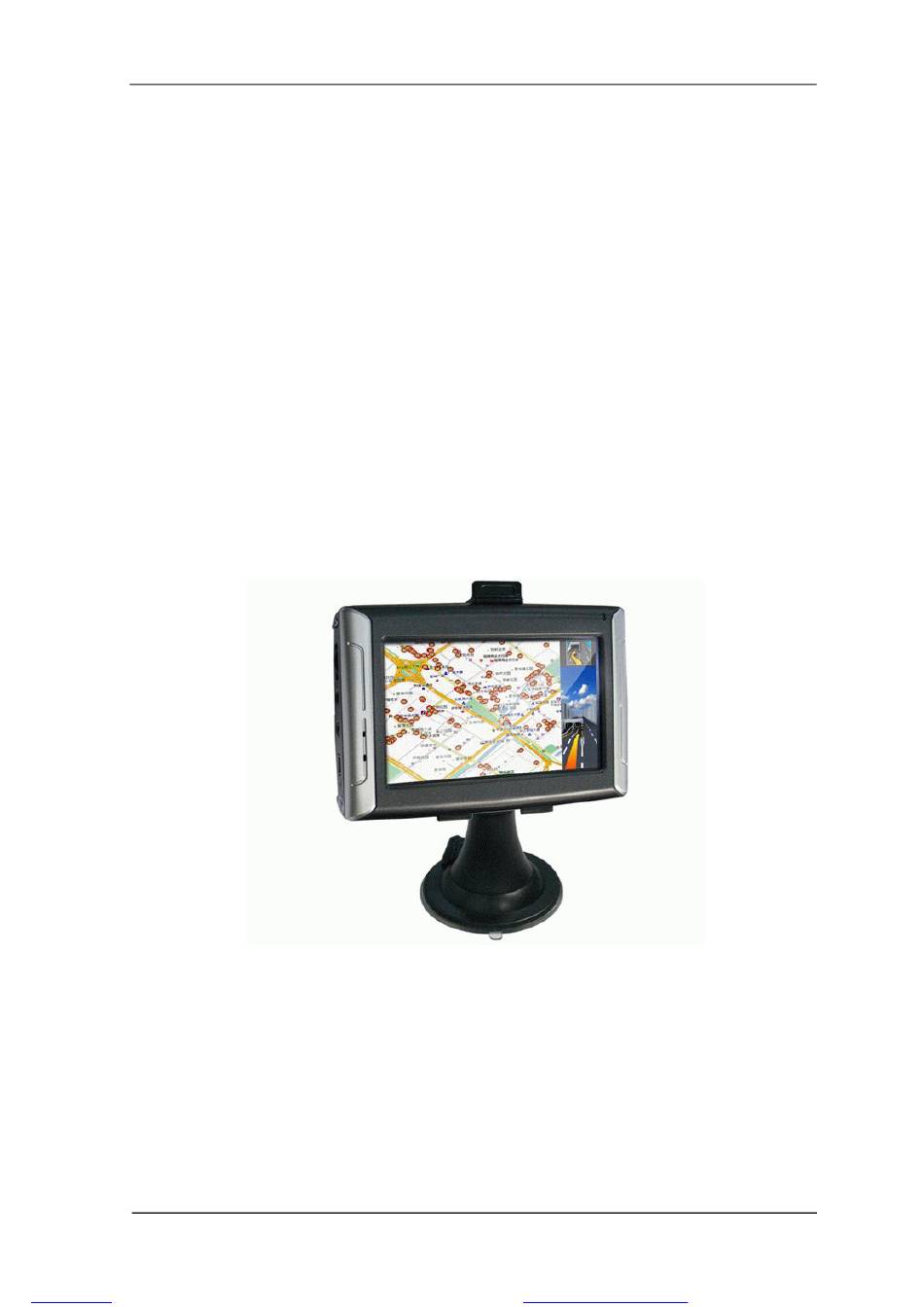

  • Page 1 GPS navigator GSN-430A Create PDF files without this message by purchasing novaPDF printer (http://www.novapdf.com)

  • Page 2: Table Of Contents

    Table of Contents Preface Cautions GPS Packing List Product Description Product Specifications GPS Appearance and Function Description Operation Instructions 7.1 Turn-on/Turn-off 7.2Settings function 7.2.1Touch Panel Calibration 7.2.2 GPS Monitor Interface Operation 7.2.3Language Setup Interface Operation 7.2.4Brightness Setup Interface Operation 7.2.5Volume Adjustment Operation 7.2.6Power Setup Operation 7.2.7Time Setup Operation 7.2.8System Information...

  • Page 3: Preface

    10 FAQ Preface Thanks for purchasing our GPS navigator! As integrated high-performance reception chip and high-sensitivity antenna, this product is turned out to be a formidable GPS navigator! No matter you are in a business trip or traveling around, no matter you are climbing mountains or undergoing a adventure in the wild, this product is definitely your best companion, providing information for you to know where you are at any time and facilitating your outing.
  • Page 4 and do plunge it into the socket completely. 10. Never charge the battery in a neither extreme cold nor hot place, which could damage the battery. 11. Keep this product which is being charged out of the reach of children. 12.

  • Page 5: Gps Packing List

    expected duration; diversion proposal, the driver has to find the proposed route for the election. 26 TMC selection function whether there is a need to understand the local DGPS data load wave FM broadcasting services, if not so can not use the function in normally. 27 Acknowledge if the map has including TMC function while you select to TMC, if not so can not use the function in normally.

  • Page 6: Product Description

    Components Quantity GPS Navigator SD Card Handwriting Pen Onboard Antenna （ optional） Charger Onboard Charger Onboard Holder Earphone USB Cable Lithium Battery User’s Manual CDROM Warranty Card AV-IN Cable TMC(Optional） Product Description  4.3-inch 24bits High-definition Screen at 480*272  Double Channel Earpieces Jack, 2W Build-in Hi-Fi Speaker ...
  • Page 7 weight 236g Working Temperature -10℃ ~ +60℃ Storage Temperature -20℃ ~ +70℃ Working Humidity 45% ~ 80%RH Storage Humidity 30% ~ 90%RH System Parameters Main Frequency 400MHZ Main Chip Type SAMSUNG S3C2440A-40-43 64MB-1G(option) Memory 128MB~4GB Expansion Card Navigation Software SD card Storage Medium WINCE 4.2 \5.0NET Operating System...

  • Page 8: Gps Appearance And Function Description

    Recapture Time 0.1s on Average Hot Startup Time Less than 3s Warm Startup Time 38s on Average Cold Startup Time Less than 100 s Maximum Positioning Height 18,000m Maximum Speed Rate 515m/s Acceleration < 4g Build-in Antenna Type Build-in Active Ceramic Antenna Build-in Antenna Gain 27dB Build-in Antenna Voltage...
  • Page 9 Symbol Description Symbol Description “Power” Button Hold for at least 3 seconds to switch on or Menu Button press to log into the Hibernation mode or wake up the System SD Card Slot Keypad Lock Switch DC Socket Volume Tuner Stereo Earpieces Jack AV-IN Mini USB Port...

  • Page 10: Operation Instructions

    Instruction of Indicator Red indicator means the battery is in recharging, while green indicator means recharging is completed Keys  “MENU”: in any menu such as navigation, music, video, photo, Bluetooth, press MENU to return to the main menu.  Keep press “POWER” for 3 seconds to turn on or off the navigator; press “POWER” for a short time to enter into or wake up from the “SLEEP”...

  • Page 11: Settings Function

    Then press the same button again, the normal operation mode resumes within 1 second. Hold the button “Power” for more than 3 seconds when the power is on, the system shuts down and the indictor goes off simultaneously as shown in the following picture. 7.2 Settings function Plunge the output connector from the Automobile Cigarette Lighter (or other 12V DC adapter) into the DC jack and the navigator displays the LOGO and startup schematic...

  • Page 12: Gps Monitor Interface Operation

    In the setup interface, click the icon to log into the interface of Touch Panel Calibration as shown in the following picture. Continue to press the Central Cursor as shown on the screen till the Calibration Cursor moves to the upper left corner automatically and then the lower left corner, lower right corner and upper right corner in sequence.
  • Page 13 shown below: 4. Click the icon on the right to log into the interface of Satellite Number & Signal Reception Status as shown below: 5. Click the icon on the right to log into the interface of Altitude, Longitude & Time as shown below.

  • Page 14: 3Language Setup Interface Operation

    7.2.3 Language Setup Interface Operation In the setup interface, click the icon to log into the interface of Language Setup as shown below. The GPS support 18 languages（English , German，French，Spanish，Dutch，Hungarian，Czech， Danish，Norwegian，Swedish，Portuguese，Italian，Japanese，Finnish，Romanian，Hellenic，Russian， ） Select the desired language and then click the icon to return to the interface of System Poland Setup.

  • Page 15: 6Power Setup Operation

    Under this interface, users are allowed to adjust the volume, enable or disable the speaker and the tone while pressing any button or the touch panel. Click the icon to return to the interface of Setup. 7.2.6 Power Setup Operation. In the setup interface, click the icon to log into the interface of Power Management as shown below:...

  • Page 16: 8System Information

    7.2.8 System Information As for the interface of Setup, please refer to the following picture. Click the icon to log in the following interface. Click the icon to log in the following interface. Initial Setup: Restore the system into the initial status; File Reparation: Repair files stored in the flash memory 7.2.9 Interface Style Setup In the setup interface, click the icon...
  • Page 17 Select your desired style and then click the icon to return to the interface of Setup. 7.2.10 AV-IN SETUP Click enter , as shown in the figure below ： Click to set the Video Input as below： The function is applied most in the play-back of some audio & video such as DVD, digital TV, AD machine, rearview mirror etc, and there are 4 options for user to select: 1，...
  • Page 18 Mode: it means that the display is a vertical mirror of the input video, as shown in the following. Mode: it means that the display is a horizontal mirror of the input video, as shown in the following. Mode: it means that the display is a horizontal rotate-mirror of the input video and the mode is applied to the rearview mirror of a vehicle, as shown in the following.

  • Page 19: Music Player Interface Operation

    There is a option of “Navigation auto run at power on”. Select it and the Navigation can auto-run at power on. Click the icon to enter the SD folder and select the path of map software. Locate the navigation software according to the storage directory and click the icon quit and return to the interface of Programs as shown below.
  • Page 20 Select audio file to be played back and then click the icon or double-click the file to return to the interface of Music Player as shown in the following picture. Click the icon to select all the files as shown in the following picture. Click the icon to return to the interface of Music Player.

  • Page 21: Video Player Interface Operation

    Click the icon or double-click the file to start playback. Function Description for other Icons Click the icon to pause Click the icon to select next track. Click the icon to select previous track. Click the icon to repeat. Click the icon to play at random.
  • Page 22 Click the icon to select the storage directory of video files and log into the following interface. Select the desired video file and click the icon or double-click the file to play back the selected video files as shown in the following picture. Or click the icon to select all the files as shown below: Click the icon...
  • Page 23 Click the icon to add more video files and then the icon to return to the interface of Video Player. Click the icon or double-click the file to start playback as shown below. Click the icon to enlarge the screen to the full size as shown below: Function Description for other Icons Click the icon to silence the speaker.

  • Page 24: Image Browser Interface Description

    Click the icon to quit the interface of Video Player Click the icon to adjust volume and the “Playback Progress Bar” to set up the speed of playback. 7.5 Image Browser Interface Description As for the interface of Programs, please refer to the following picture Click the icon to log into the main interface of Image Browser as shown below: Click“...

  • Page 25: Bluetooth Hand-Free Operation Description

    Function Description for other Icons Click the icon to enlarge the screen to the full size. Click the icon to move to the previous image. Click the icon to move to the next image. Click the icon to enter the Image Slide mode. Click the icon to zoom out.
  • Page 26 Click to enter the setting menu of Bluetooth Configure whether to remain the Bluetooth pair established last time in the non-Bluetooth interface. To configure whether to answer all the coming calls automatically Click the icon to log into the Code Input status as shown below: Input PIN code and press “...
  • Page 27 To make a partnership, user need use a cell phone with blue tooth function to search the GPS navigator. Please refer to the cell-phone manual for more details of Bluetooth function on cell. When the cell searched a GPS Bluetooth device, it demands input the latter’s password. The default password is 1234 and device name is GPS.
  • Page 28 Disconnect with all selected devices. Delete all Bluetooth devices. Click the icon in the Bluetooth mode to log into the Dial & Communication Setup. Please refer to the following Dial interface. Back Button Answer Button Redail Button Call Recording Button Process of Getting-through Hang up Volume Adjustment...

  • Page 29: Usb Synchronization Software Installation And Operation Description

    Telephone Number of Call-out Communication Duration Hang-up and Increase & Decrease Volume As for the status of Communication (the mobile phone is connected with this product), please refer to the following picture. Telephone Number of Incoming Call Hang-up Button and Receiving Button NOTE: The Bluetooth device is only for the hands-free Bluetooth telephone, and does not support the Bluetooth data transmitting and other functions.

  • Page 30: Notes

    system, InstMsiA.exe should be installed; and the Windows 2000, InstMsiW.exe. 8.4 NOTES 1. All the operations described here are based on the WINDOWS XP SP2 OS. For other WINDOWS systems please operate according to the corresponding requirements; 2 If a USB connection is applied for the synchronization software, the USB driver program for portable devices should be installed;...
  • Page 31 Select a new installation directory by pressing the button . If unnecessary to change the installation directory, press the button to continue and log into the following interface. Press the button to continue as shown below: Press the button to continue as shown below: When completing the installation, a Create PDF files without this message by purchasing novaPDF printer (http://www.novapdf.com)
  • Page 32 short-cut icon of this software just like appears on the desktop. On desktop , Click the “My Computer” ， In My Computer, the icon can be found. It’s mean the Synchronization Software install success. 8.6 Synchronization Software Installation and use 1．Turn on the GPS and connect with PC, then a icon “found new Hardware Wizard”...
  • Page 33 4. Waiting for the drive copy, show as below: There will come out dialog box when copy the drive，show as below，Click “Continue Anyway”. Finish the copy，the install is succeed； Create PDF files without this message by purchasing novaPDF printer (http://www.novapdf.com)
  • Page 34 6. Check the drive whether working, click “My computer” on desktop ， then find “System Restore” ,“hardware”，“Device Manager”， show as below： 7. If “Anchor USB EZ-Link Cable” can be found in Device Manager, that means GPS drive install and connect succeed ； Create PDF files without this message by purchasing novaPDF printer (http://www.novapdf.com)
  • Page 35 8.7 Handle the synchronization software： 1. When there is no connection with GPS navigation, the synchronization software show “not connected” and a icon appear in the Synchronization window； 2. When GPS succeed connect with the computer, GPS will show as below: 3.In the meanwhile the connect process of computer synchronization software show as below, the icon of will turn green and circumgyrate ；...
  • Page 36 4.After succeed connect will come out show as below： Select “Yes”, you can synchronize information between your GPS and computer, select “No, you will be as a guest in next time. 5. When the connection is succeeded, the following interface comes out afterwards. 6.

  • Page 37: Operation Of Video Conversion Tool

    7. Handle the SD card: “Mobile Device” have the files are as below，the“Storage Card” file is the content of the SD card， Note：Storage Card is the extend memory (such as SD/MMC card) Double click Storage Card，can view the photo as below： “MOVIE ” folder save the movie file “MUSIC”folder save the music file,“PHOTO”folder is save the photo file.

  • Page 38: Running Environment

    of reference. To convert films in other formats, you may download other software which may bring some copyright issues or entanglements, which are out of our company‘s responsibility. 9.2 Running Environment Hardware Platform: PC with PIII or plus Software Platform: Microsoft Windows 2000/2003/XP 9.3 NOTES 1.
  • Page 39 Click Click Click the on desktop and open the tool of video converter. Create PDF files without this message by purchasing novaPDF printer (http://www.novapdf.com)
  • Page 40 Double click then show as below: ： Select the destination where the converted files need to be saved Click set the save path Set the conversion quality: high, normal and low Full screen, 4:3 and 16:9 three options ： Set the Start time of source video fragment ：...
  • Page 41 Click to start converting. When finished, the file will be saved in the appointed folder. Copy the file in a SD card and insert into GPS navigator, then the file can play in GPS navigator. 10. FAQ 1. What role does the electrical map play in the navigator? A.
  • Page 42 A： The result of the position and the route calculated by the navigator are only for your reference, and you shall pay attention to the local code and the traffic symbols in driving. 7. How about the precision of the navigator? A: The precision of the GPS, which comes from the satellite position technique of the USA army, is completely in the influence of the precision of USA’s GPS satellite signal.
