Installation Guide
Tools & materials required for each application
All Applications
• Mitre saw with a non-ferrous
metal cutting blade
• Drill
• Phillips #2 bit
• Phillips #2 screwdriver
• Slot-head screwdriver
• Level
• Socket or wrench set
• Measuring tape
• Pencil
Fasteners included with each fence component
Rail & Picket Kit
5/8" Self-drilling screw
Hard Surface Post
Concrete anchor
Concrete screw
Soft Surfaces
• Post hole digger
• Shovel
• Concrete mixing
equipment
• Concrete trowel
• Dry premixed concrete (per post):
Climate with frost heave - 200 lb.*
Climate without frost heave - 100 lb.*
*Quantities are estimated. Always check your
local codes for post hole size and depth.
Rail Kit for Glass Panel
5/8" Self-drilling screw
3/4" Self-drilling screw
Connector bolt
Canadian Version
Canadian Version
Hard Surfaces
• Hammer drill
• Masonry bits:
7/32", 5/16"
• Hammer
1" Self-drilling screw
5/8" Self-tapping screw
1" Self-drilling screw
Hinge bolt
LED Application
• Drill bits for metal:
1/4", 1/2", 5/8"
• Hole saw for metal: 1"
• Small round metal file
• Scissors
Pool Gate
Yard Gate
Advertisement
Summary of Contents for Peak AQUATINE PLUS

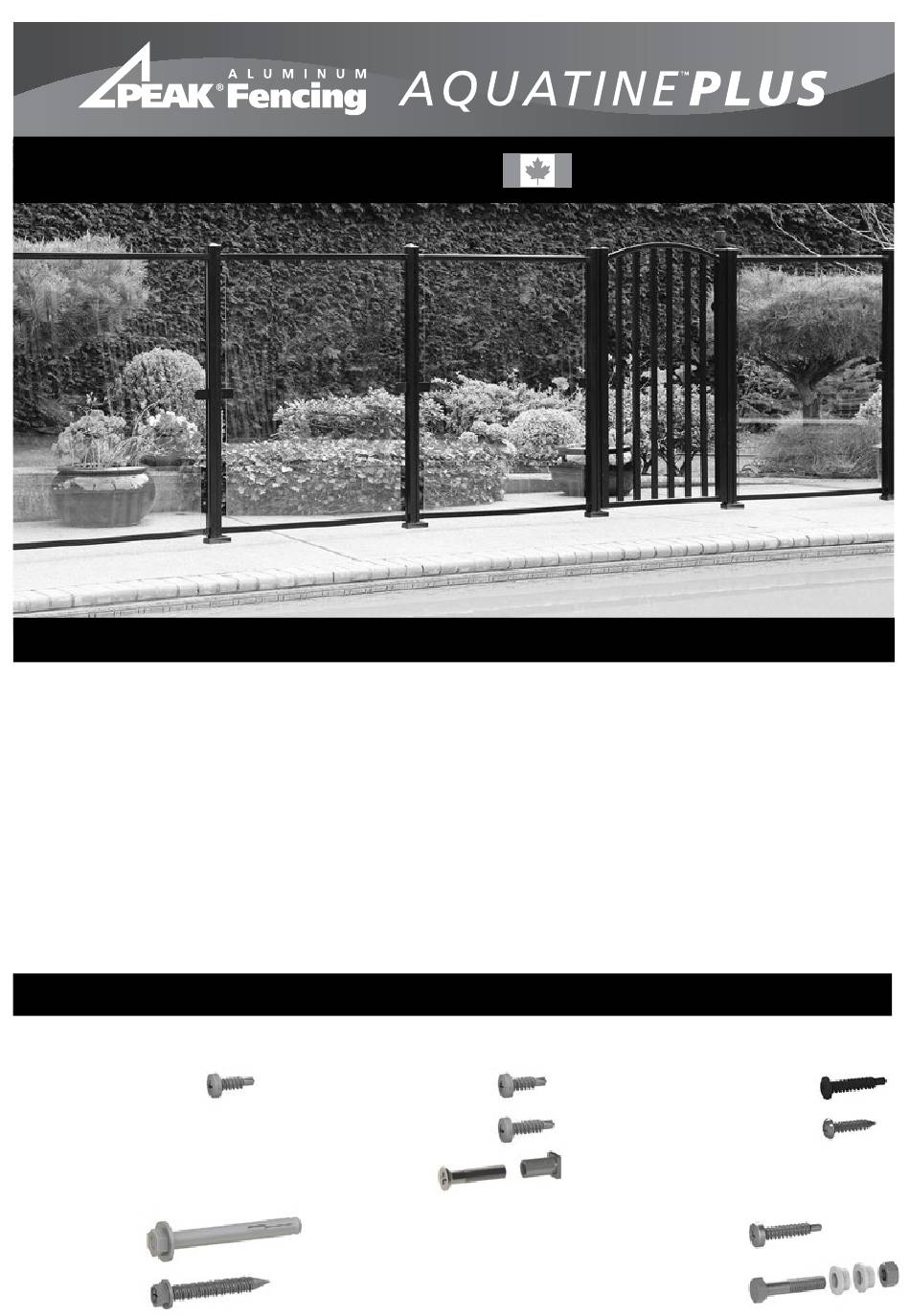

- Page 1 Installation Guide Canadian Version Canadian Version Tools & materials required for each application Hard Surfaces All Applications Soft Surfaces LED Application • Post hole digger • Hammer drill • Drill bits for metal: • Mitre saw with a non-ferrous metal cutting blade 1/4", 1/2", 5/8“...
- Page 2 Dear Customer, We’d like to take a moment to say “thank you and congratulations” for choosing our products. At Peak® your satisfaction is very important to us. That is why we • Maximum post spacing: work very hard to provide you with products of exceptional quality, value, and 6' 2 "...
- Page 3 PICKET FENCE INSTALLATION (soft surface) ra il le n g th If required, cut the rails to This symbol indicates important information fit between the brackets. rail length If you plan to cut the rails Measure and mark the position of all posts and Second post First post before assembling the...
- Page 4 PICKET FENCE INSTALLATION (hard surface) A: Install a top bracket on each end of the top rail and This symbol indicates important information fasten in place with 5/8" self-drilling screws (provided). B: Slide the bottom rail support into the bottom Measure and mark the position of all posts and ensure rail and move it to the center (do not fasten yet).
- Page 5 GLASS FENCE INSTALLATION (hard surface only) WARNING A: Measure and mark the position for the Always use two people to handle glass panels. Always lift a glass panel by its sides. top brackets on both posts. Tempered glass is extremely fragile – do not bump the edges. Always use protective gear including eyewear and gloves when handling glass panels.
- Page 6 LED INSTALLATION For a standard top bracket: READ AND FOLLOW ALL WARNINGS AND SAFETY INSTRUCTIONS INCLUDED INSIDE THE LED A: Once the location of each top bracket has WARNING STARTER KIT CARTON. RISK OF INJURY, ELECTRICAL SHOCK AND FIRE. CONSULT A QUALIFIED been determined, mark the position of the ELECTRICIAN FOR CORRECT WIRING AND SUPPLY OF ELECTRICITY.
- Page 7 POOL GATE INSTALLATION IMPORTANT: Always understand and comply with your local building codes for access gate requirements: • Height, clearances, and openings • Swing direction from the pool or spa • Distance between the tops of horizontal members • Self-closing •...
- Page 8 YARD GATE INSTALLATION WARNING Do not use for pool or spa applications. 4 2 " The opening between the fence posts must be 42". For Aquatine™ PLUS fence posts: Use 1" self-drilling screws (provided) for these steps: A: Align the bottom of the gate with the bottom of the fence, then fasten each U-bracket to the fence post.
