VE-1200 and VE-2400 Series of VirtualEdge
PART #
1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. INSTALLATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. CUSTOMER & TECHNICAL SERVICES
5. WARRANTY & REPAIRS
6. SPECIFICATIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This practice describes Westell's VirtualEdget Connectivity
Panels, models VE-1200, VE-1212, VE-2400, VE-2424,
VE-2424BNC, and VE-2424SC, shown in Figure 1.
- NOTE -
Hereafter, the Westellr VirtualEdge Connectivity Panels may be
commonly referred to as the panel." The specific model num-
bers will be used where differences apply.
1.2
Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. Revision C of this practice adds models
VE-2424BNC and VE-2424SC. Revision B added Part 3,
Figure 5, and Figure 6, and updated Paragraph 1.5 and Table 2.
1.3
Product Purpose and Description
The VirtualEdge (VE) connectivity panels are 12-position or
24-position interface panels that are used by the Telco to termi-
nate any 10Base-T, 100Base-T, fiber, or COAX services (or a
combination thereof, or any other services) typically at the CPE
point of demarcation. The service terminated is determined by
the coupler type selected to occupy any one or all of the 12 or 24
positions. The 24-position VE-2424BNC panels come equipped
with BNC couplers (for DS3 services), the 24-position
VE-2424SC panels come equipped with SC couplers (for fiber
services), and the 12-position VE-1212 and 24-position
VE-2424 panels come equipped with CAT 5e couplers for
Ethernet services. The 12-position VE-1200 and 24-position
VE-2400 panels are empty, allowing a variety of individual ter-
minations to be installed in one panel, as needed by the
application or customer. Westell offers a variety of couplers and
cables as orderable options for terminating other services (see
Table 2). A circuit or position designation strip, numbered 1-12
or 1-24, depending on the model ordered, allows installers to
mark the physical position of the circuits terminated at the front
panel. The strip's magnetic backing allows the installer to easily
remove or position the strip when marking or erasing circuit
numbers during an installation.
ECopyright 2007 Westell, Inc. All rights reserved.
Westellr is a registered trademark and VirtualEdget is a trademark of Westell, Inc.
PAGE #
1
2
5
. . . . . . . . .
5
. . . . . . . . . . . . . . . . . . . . . . .
5
6
t
Connectivity Panels

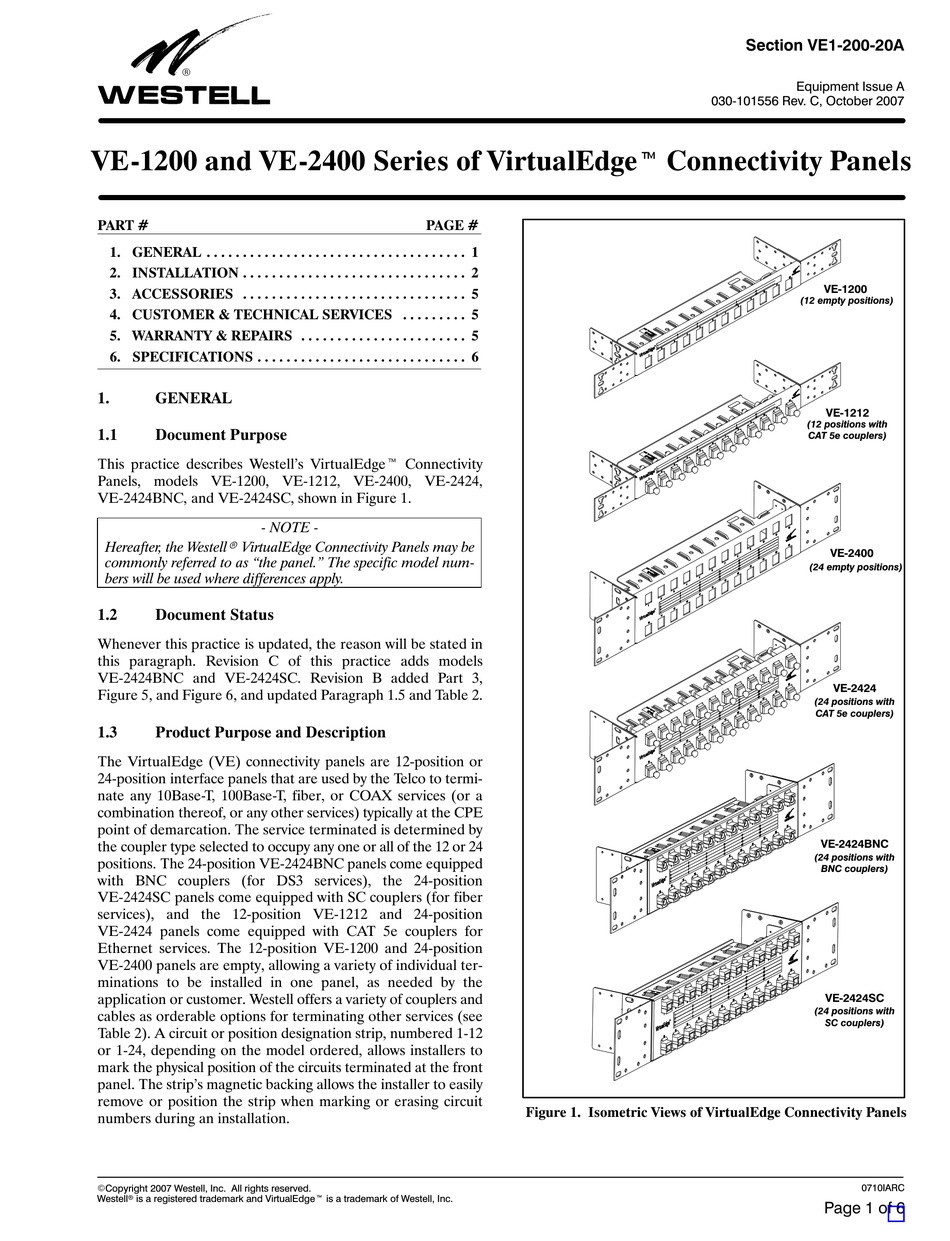

Figure 1. Isometric Views of VirtualEdge Connectivity Panels
Section VE1-200-20A
Equipment Issue A
030-101556 Rev. C, October 2007
VE-1200
(12 empty positions)
VE-1212
(12 positions with
CAT 5e couplers)
VE-2400
(24 empty positions)
VE-2424
(24 positions with
CAT 5e couplers)
VE-2424BNC
(24 positions with
BNC couplers)
VE-2424SC
(24 positions with
SC couplers)
0710IARC
Page 1 of 6
