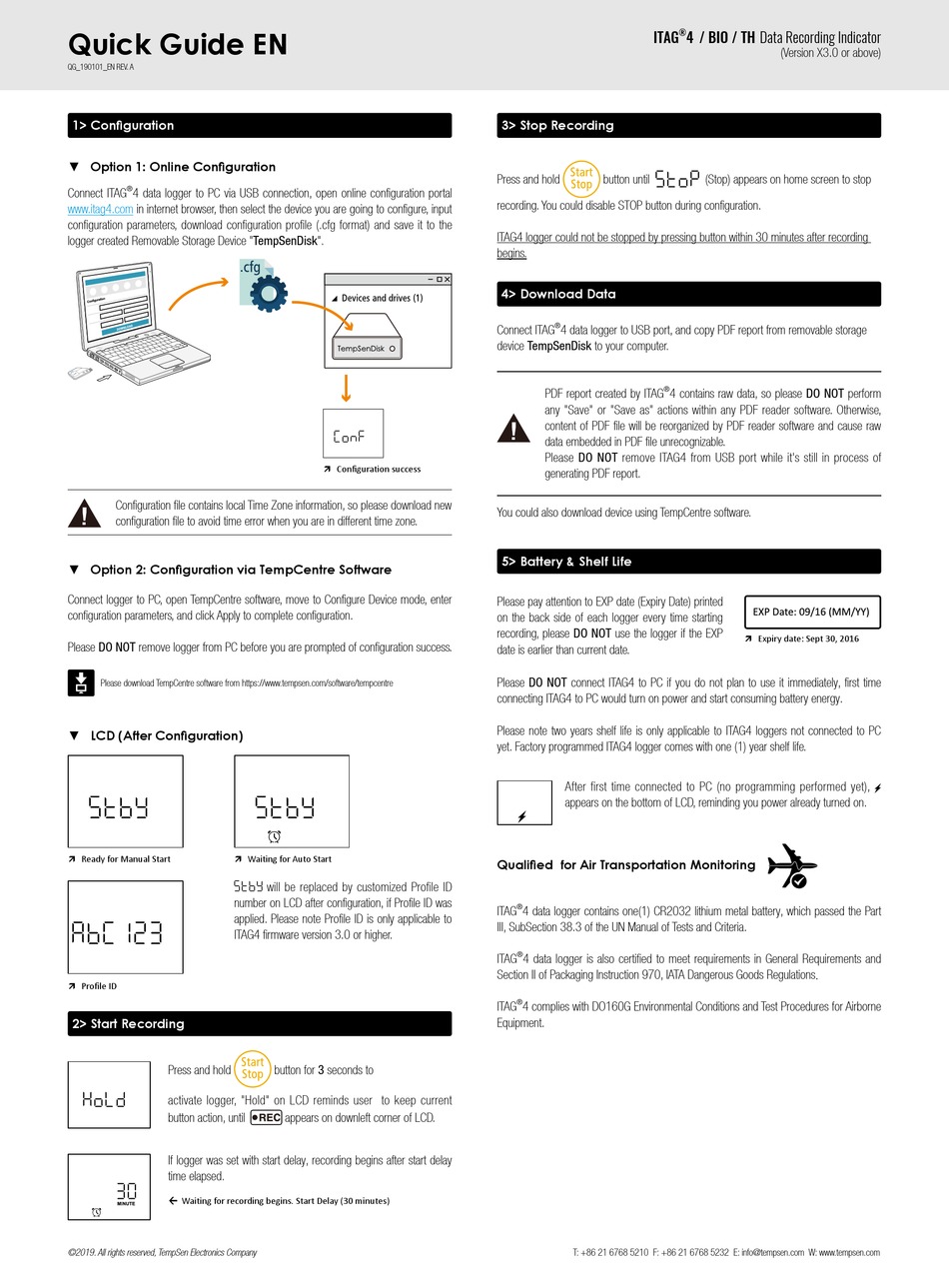

TempSen ITAG4 BIO Quick Manual

Quick Guide EN
QG_190101_EN REV. A
1> Configuration
▼ Option 1: Online Configuration
®
Connect ITAG 4 data logger to PC via USB connection, open online configuration portal
www.itag4.com in internet browser, then select the device you are going to configure, input
configuration parameters, download configuration profile (.cfg format) and save it to the
logger created Removable Storage Device "TempSenDisk".
Configuration file contains local Time Zone information, so please download new
configuration file to avoid time error when you are in different time zone.
▼ Option 2: Configuration via TempCentre Software
Connect logger to PC, open TempCentre software, move to Configure Device mode, enter
configuration parameters, and click Apply to complete configuration.
Please DO NOT remove logger from PC before you are prompted of configuration success.
Please download TempCentre software from https://www.tempsen.com/software/tempcentre
▼ LCD (After Configuration)
À Ready for Manual Start À Waiting for Auto Start
number on LCD after configuration, if Profile ID was
applied. Please note Profile ID is only applicable to
ITAG4 firmware version 3.0 or higher.
À Profile ID
2> Start Recording
Press and hold
activate logger, "Hold" on LCD reminds user to keep current
button action, until
If logger was set with start delay, recording begins after start delay
time elapsed.
» Waiting for recording begins. Start Delay (30 minutes)
©2019. All rights reserved, TempSen Electronics Company
À Configuration success
will be replaced by customized Profile ID
button for 3 seconds to
appears on downleft corner of LCD.
ITAG
3> Stop Recording
Press and hold button until
recording. You could disable STOP button during configuration.
ITAG4 logger could not be stopped by pressing button within 30 minutes after recording
begins.
4> Download Data
®
Connect ITAG 4 data logger to USB port, and copy PDF report from removable storage
device TempSenDisk to your computer.
®
PDF report created by ITAG 4 contains raw data, so please DO NOT perform
any "Save" or "Save as" actions within any PDF reader software. Otherwise,
content of PDF file will be reorganized by PDF reader software and cause raw
data embedded in PDF file unrecognizable.
Please DO NOT remove ITAG4 from USB port while it's still in process of
generating PDF report.
You could also download device using TempCentre software.
5> Battery & Shelf Life
Please pay attention to EXP date (Expiry Date) printed
on the back side of each logger every time starting
recording, please DO NOT use the logger if the EXP
date is earlier than current date.
Please DO NOT connect ITAG4 to PC if you do not plan to use it immediately, first time
connecting ITAG4 to PC would turn on power and start consuming battery energy.
Please note two years shelf life is only applicable to ITAG4 loggers not connected to PC
yet. Factory programmed ITAG4 logger comes with one (1) year shelf life.
After first time connected to PC (no programming performed yet),
appears on the bottom of LCD, reminding you power already turned on.
Qualified for Air Transportation Monitoring
®
ITAG 4 data logger contains one(1) CR2032 lithium metal battery, which passed the Part
III, SubSection 38.3 of the UN Manual of Tests and Criteria.
®
ITAG 4 data logger is also certified to meet requirements in General Requirements and
Section II of Packaging Instruction 970, IATA Dangerous Goods Regulations.
®
ITAG 4 complies with DO160G Environmental Conditions and Test Procedures for Airborne
Equipment.
