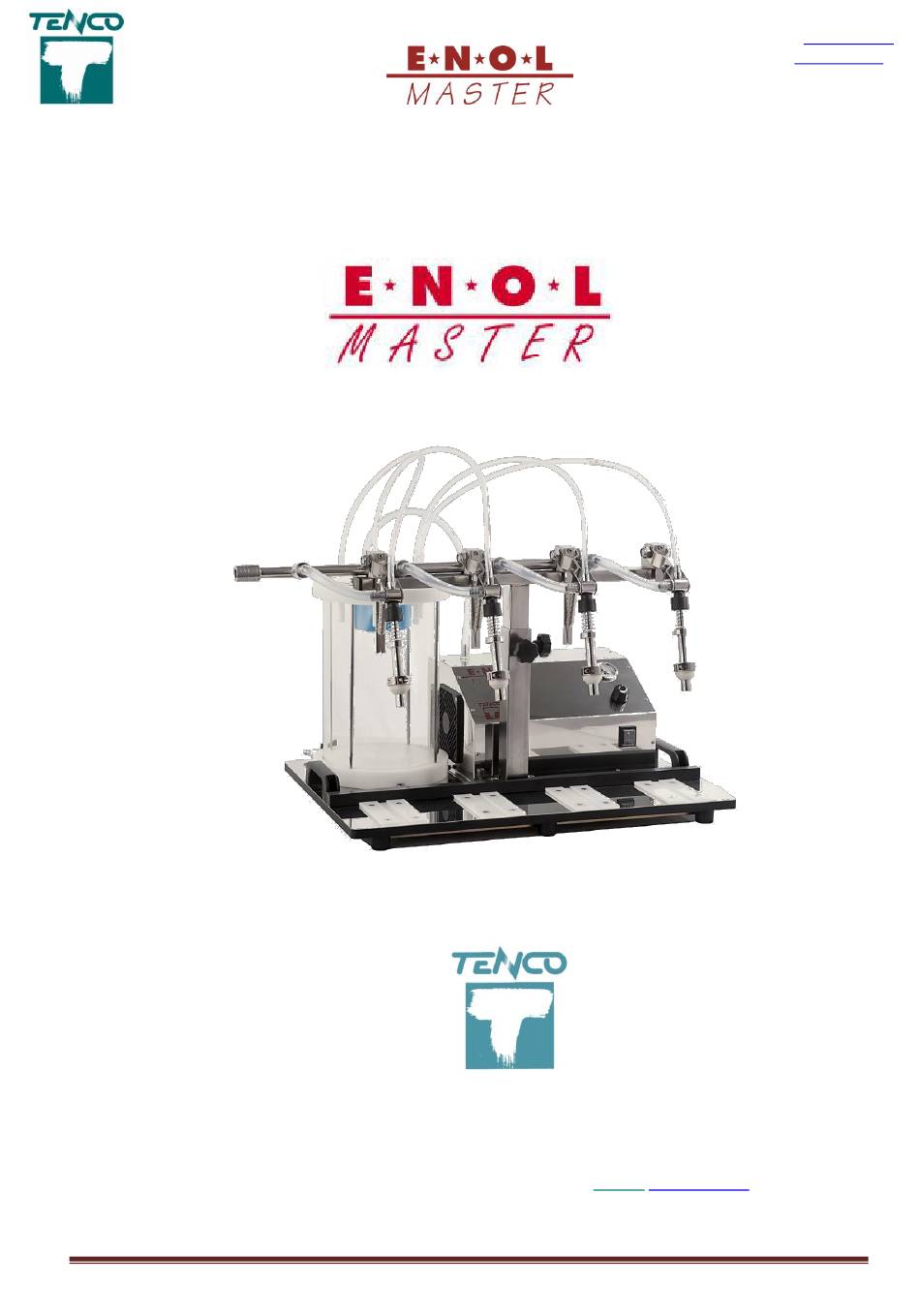

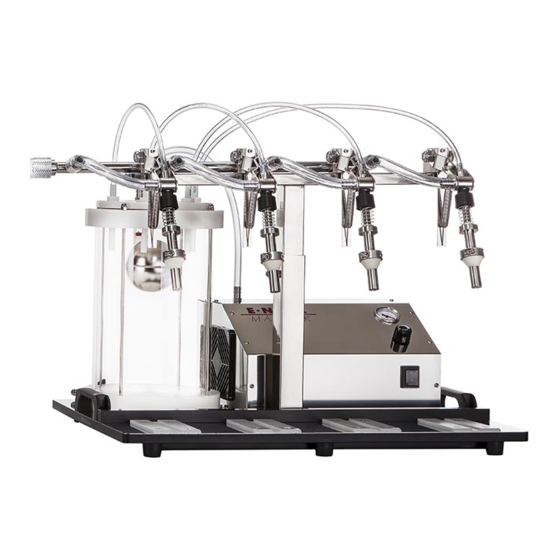

FOUR NOZZLES VACUUM FILLING MACHINE
TECHNICAL HANDBOOK
16030 Avegno (GE) – ITALY
Tel. +39 0185 79556 – Fax +39 0185 79412 –
PNEUMATIC
T e n c o - S. r. l.
Via Arbora, 1
E-mail:
Tel. +39 0185 79556
E.mail
info@tenco.it
Web
www.tenco.it
info@tenco.it
Pag. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enolmaster and is the answer not in the manual?

Questions and answers

Related Manuals for Tenco Enolmaster

Summary of Contents for Tenco Enolmaster

  • Page 1 Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) TECHNICAL HANDBOOK PNEUMATIC T e n c o - S. r. l. Via Arbora, 1 16030 Avegno (GE) – ITALY Tel.

  • Page 2: Table Of Contents

    CHAPTER 2 - INSTALLATION AND DIRECTIONS FOR USE ......... 5 CHAPTER 3 – CLEANING AND MAINTENANCE............7 CHAPTER 4 - DIAGNOSTICS ................. 7 POSSIBLE TROUBLES WHILE ENOLMASTER IS RUNNING ....... 7 TROUBLESHOOTING ................8 CHAPTER 5 – REFERENCE STANDARDS ..............9 CHAPTER 6 - WARRANTY ..................

  • Page 3: Ec Declaration Of Conformity

    Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) DICHIARAZIONE DI CONFORMITA’ EC DECLARATION OF COMFORMITY Noi / We Tenco s.r.l.-Unipersonale VIA ARBORA, 1 - 16030 AVEGNO (GE) - ITALY dichiariamo sotto la ns.

  • Page 4: Chapter 1 - General Directions And Instructions

    In case the machine is used with the filter, please request TANDEM PROFESSIONAL (equipped with pyrex filter holder). Also, if Enolmaster is employed to fill sugary liquors or products like balsamic vinegar, the air filtering unit must be employed to avoid damage to the machine vacuum pump; this accessory is not part of the standard supply and, if necessary, it must be ordered directly from the manufacturer.

  • Page 5: Chapter 2 - Installation And Directions For Use

    11. Filling speed may be adjusted by turning the vacuum knob (fig. 8). When using Enolmaster to fill thick fluids (oil, liquors, a.s.o.) turn the knob to the maximum position. On the other side, when filling sparkling beverages: wine, beer, a.s.o., turn the knob to minimum.
  • Page 6 Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) KNOB GASKET SUCTION PIPE L=2m BOWL COVER FLOAT Fig.1 Fig.3 Fig.2 LEVER PNEUMATIC QUICK SLIDE VALVE CONNECTION KNOB Fig.5 Fig.6 Fig.4...

  • Page 7: Chapter 3 - Cleaning And Maintenance

    The recovery tank can be washed with water alone or, in case of edible oil bottling, with dishwashing liquid. When handling different products, kits supplied by Tenco s.r.l. (Oil kit, Jar kit, Tomato kit, ecc.) are recommended. To replace the nozzles, rotate the “T” handle by half turn and remove the “U” pin (fig. 9). Open the two plastic elements of the lever and disconnect the entire assembly fron the rod.

  • Page 8: Troubleshooting

    Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) TROUBLESHOOTING Troubles Causes Solutions Engine doesn’t start 1) Lack of compressed air 1) check 2) Slide valve switched OFF 2) check...

  • Page 9: Chapter 5 - Reference Standards

    Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) CHAPTER 5 – REFERENCE STANDARDS Statutory Regulations European Directive on Electromagnetical Compatibility n° 2004/108/CE Law n° 791, dd. 18/10/1977 - Transposition of the Community Directive (DB) (73/23/EEC) on electrical equipment safety assurance.

  • Page 10: Vacuum

    Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) MIGNON SET - INSTALLATION “T” ROD MINIATURE BOTTLES STAND COLUMN KNOB 1. Loosen the column knobs. 2. Pull out the “T” rod.
  • Page 11 Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) ENOLMASTER BASE 700-0007-000 Rev.0 Pag. 11...
  • Page 12 (GE) VESSEL COVER ENOLMASTER VESSEL This manual is the property of TENCO s.r.l.. - Via Arbora 1 - 16030 Avegno (GE) Italy. Reproduction or disclosure to third party of the content of this document is forbidden. All rights are reserved.
  • Page 13 Tenco Srl Tel. +39 0185 79556 FOUR NOZZLES VACUUM FILLING MACHINE Via Arbora 1 E.mail info@tenco.it 16036 Avegno www.tenco.it (GE) 700-0007-000 Rev.0 Pag. 13...
