Blue Tree BT-6800 Quick Start Manual

OVERVIEW
The BlueTree 6800 series modems are rugged 3G wireless modems built to
provide simple and reliable communication over the HSDPA/HSUPA or EDGE
cellular data network.

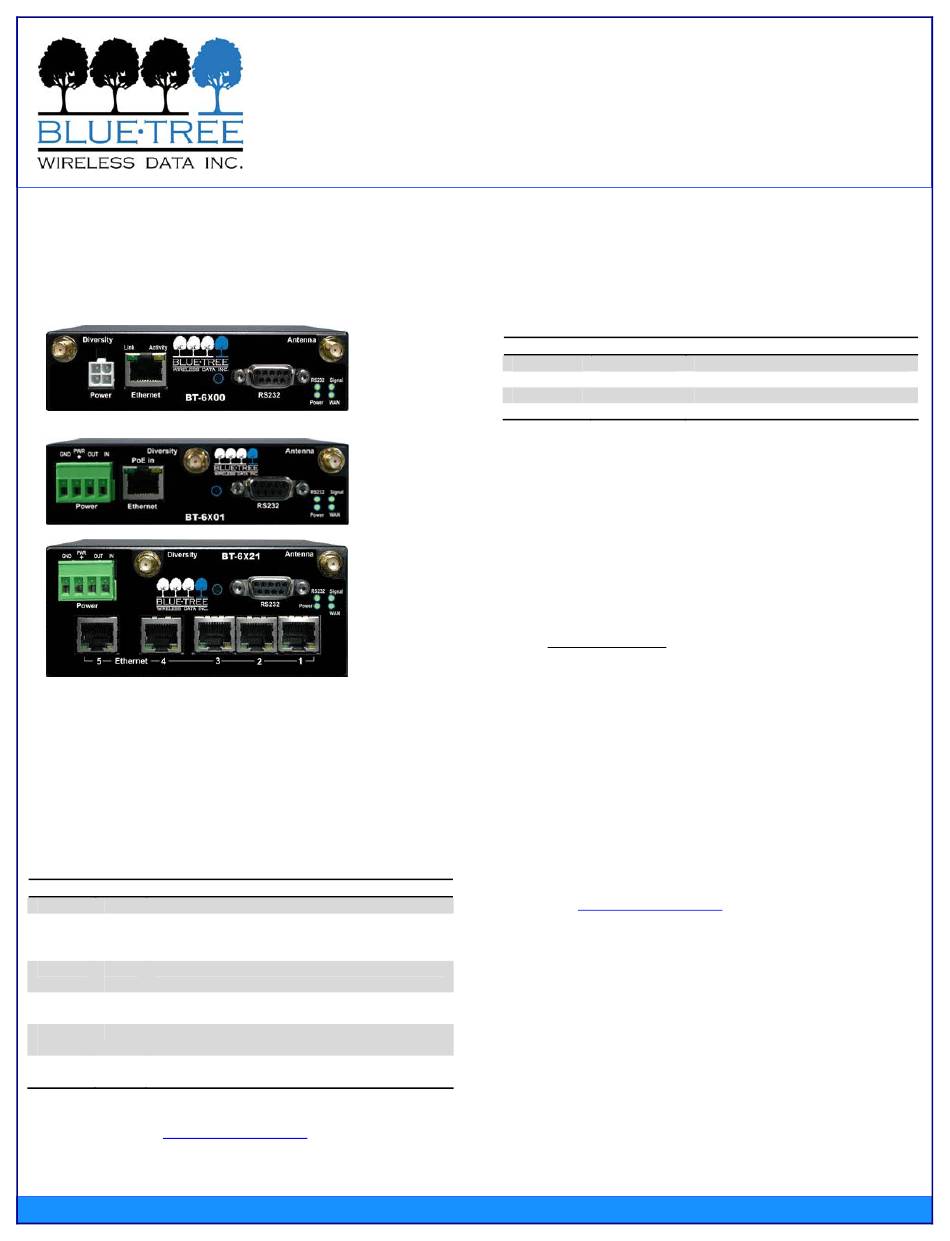

This guide covers initial configuration of the following models:
FEATURES
•
HSDPA/HSUPA with fallback to EDGE/GPRS
•
Diversity antenna
•
Ethernet, Serial, and USB
•
Reliable Always‐on cellular link
•
Rugged industrial design
•
Remote diagnostics, configuration and updates
•
5‐port Ethernet switch on BT‐6821
•
Power over Ethernet on BT‐6801EB
LED INDICATORS
LED State Description
Power ON Power is applied to the modem
Signal ON Excellent signal strength
FLASH Flashes faster as signal is stronger
OFF Very weak or no signal (less than ‐100 dBm)
WAN ON Wireless link established, but no data activity
FLASH Data transmitted/received on wireless network
RS‐232 ON Link established with serial device but no data activity
FLASH Data transmitted/received with attached serial device
Ethernet ON Link established with Ethernet device
Link
Ethernet FLASH Data transmitted/received with attached Ethernet
Activity device
ADDITIONAL INFORMATION
Visit our support site at www.bluetreewireless.com to access the Modem
User's Guide for an in‐depth overview of the modem's features and
capabilities, as well as configuration help and troubleshooting. Also available
for download are BlueVue software updates and modem firmware updates
POWER
There are 3 methods to provide power to the modem:
1. 4‐pin Molex connector – available on BT‐6x00
2. 4‐pin screw terminal – available on BT‐6xx1/EB
3. Side mounted 2.5mm barrel connectors – available on all models
The modem requires a power source between 8 and 30 VDC to operate:
Label
GND
BT‐6800
PWR +
IN
OUT
ANTENNA
An antenna with an SMA connector should be connected to the modem. This
BT‐6801
antenna should meet the following specifications:
BT‐6801EB
* Antennas can be purchased as accessories from your sales contact.
DATA INTERFACES
1. Ethernet: 10/100 Mbps Auto‐sensing Female RJ45 port
2. USB: Side mounted USB 2.0 Type B Female
BT‐6821
3. Serial: RS‐232 9 pin DCE Female
SUPPORT CONTACT INFO
Visit the Support section of the BlueTree website to download product
manuals, BlueVue software updates and modem firmware updates.
Toll‐free
Phone
Hours
Email
Website
Fax
WARRANTY
BlueTree Wireless Data Inc. warrants its wireless modems against all defects
in materials and workmanship for a period of one (1) year from the date of
purchase. The sole responsibility of BlueTree Wireless Data Inc. under this
warranty is limited to either repair or, at the option of BlueTree Wireless Data
Inc., replacement of the cellular modem. There are no expressed or implied
warranties, including those of fitness for a particular purpose or
merchantability, which extend beyond the face hereof. BlueTree Wireless
Data Inc. is not liable for any incidental or consequential damages arising
from the use, misuse, or installation of the BlueTree cellular modem. This
warranty does not apply if the serial number label has been removed, or if the
cellular modem has been subjected to physical abuse, improper installation,
or modification. The unit is automatically registered for warranty at the date
it is purchased and/or shipped.
QUICK START GUIDE
BT‐6800 CELLULAR MODEMS
Color Description
Black Ground
Red Power 8 to 30 VDC (500mA@12VDC)
White Digital input
Green Digital output
•
Dual‐band 800 & 1900 MHz
•
Nominal 50 ohm impedance
•
Voltage Standing Wave Ratio (VSWR) less then 2.5:1
Default Serial Settings:
Speed: 115200 bps
Data bits: 8
Parity: None
Stop Bits: 1
Flow Control: Hardware
(877) 422‐9110 option 2
(514) 422‐9110 option 2
8:30am – 5:00pm Eastern Time
techsupport@bluetreewireless.com
www.bluetreewireless.com
(514) 422‐3338
