Field of application:

The devices are suited only for distributing radio and television signals in the
house! If a device is used for other purposes, no warranty is given!

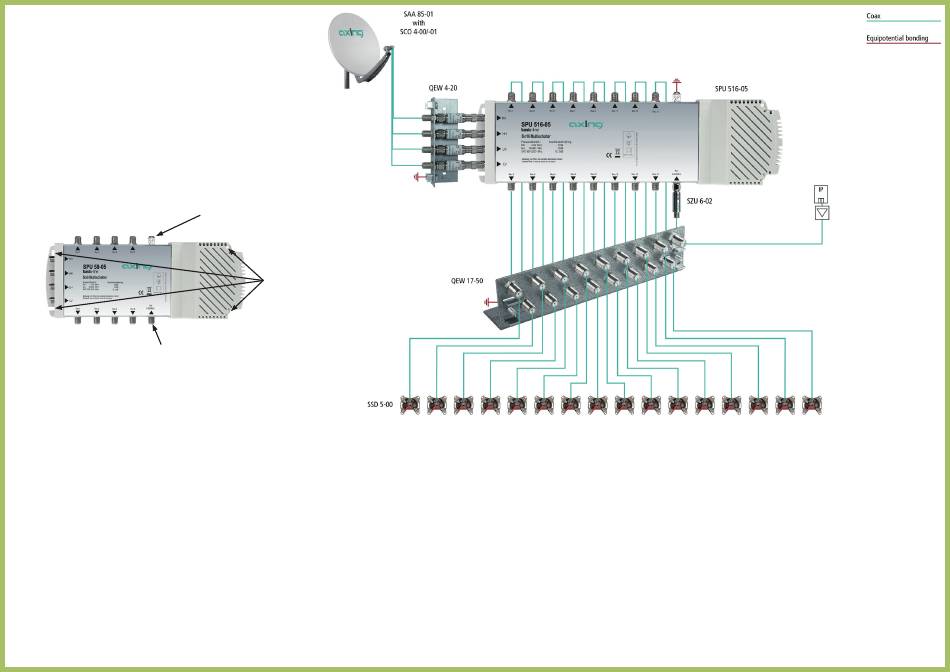

The picture shows an application example for distribution of 4 SAT IF polariza-
tion levels including terrestrial signals (e.g FM radio).

Equipotential bonding and Mounting:

To avoid dangerous power surges (e.g. risk of fire and danger of life) the
devices must be connected to the equipotential bonding according to EN
60728-11.
 Use the equipotential bonding connection at the device (1).
 To connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. QEW earthing angles at the inputs and outputs of the
device.
 Use the mounting screws included in the delivery and the mounting holes
of the device (2).
Subscriber ports
SAT
inputs
Subscriber ports
TERR. input

RF-Installation:

 Connect the SAT inputs of the multiswitch to the LNBs of your SAT
reception antenna. Connect the output signals of a CATV amplifier to the
terrestrial input.
 Connect the subscriber ports of the multiswitch to the antenna sockets
used. Use highly shielded coaxial cables with F connectors. Suited cables
and plugs can be found in the current AXING catalogue or at www.axing.
com.
1
2
