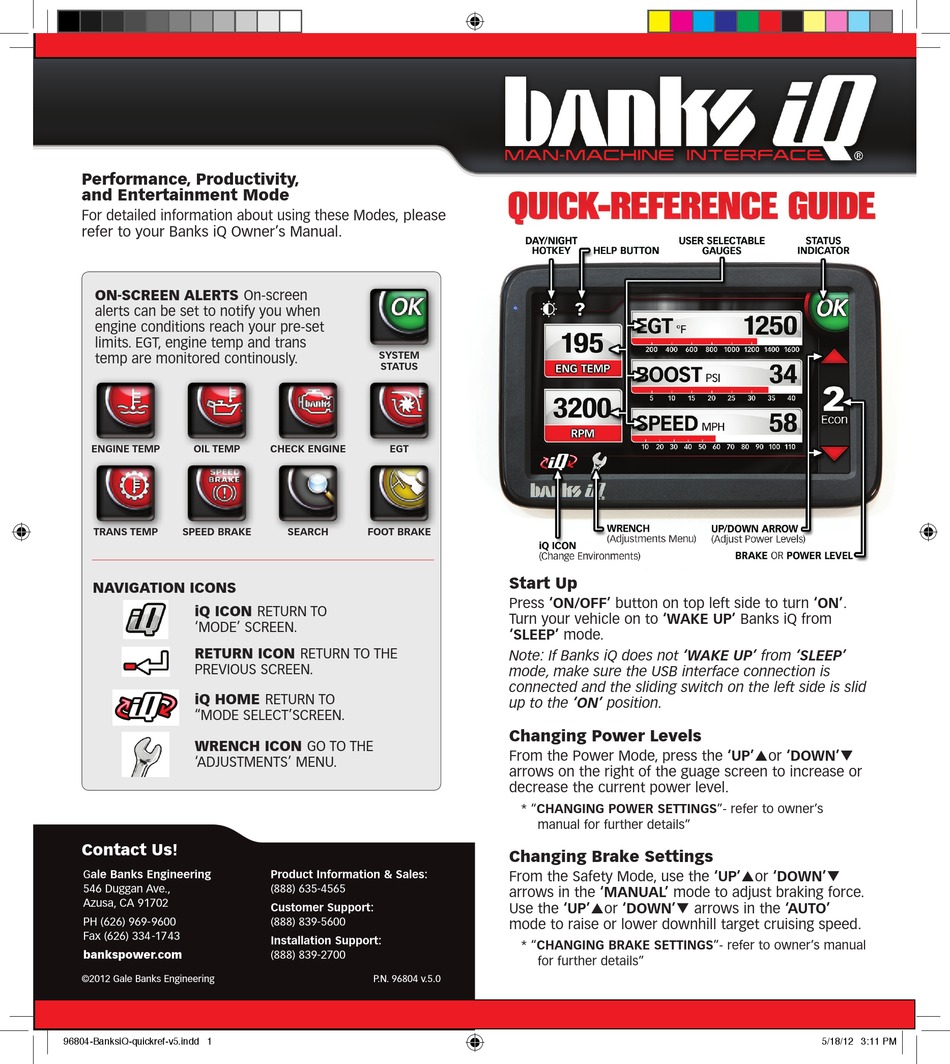

Gale Banks banks iQ Quick Reference Manual

Performance, Productivity,
and Entertainment Mode
For detailed information about using these Modes, please
refer to your Banks iQ Owner's Manual.
ON-SCREEN ALERTS On-screen
alerts can be set to notify you when
engine conditions reach your pre-set
limits. EGT, engine temp and trans
temp are monitored continously.
ENGINE TEMP OIL TEMP
TRANS TEMP SPEED BRAKE
NAVIGATION ICONS
iQ ICON RETURN TO
'MODE' SCREEN.
RETURN ICON RETURN TO THE
PREVIOUS SCREEN.
iQ HOME RETURN TO
"MODE SELECT'SCREEN.
WRENCH ICON GO TO THE
'ADJUSTMENTS' MENU.
Contact Us!
Gale Banks Engineering
546 Duggan Ave.,
Azusa, CA 91702
PH (626) 969-9600
Fax (626) 334-1743
bankspower.com
©2012 Gale Banks Engineering
96804-BanksiQ-quickref-v5.indd 1
SYSTEM
STATUS
CHECK ENGINE EGT
SEARCH FOOT BRAKE
Product Information & Sales:
(888) 635-4565
Customer Support:
(888) 839-5600
Installation Support:
(888) 839-2700
P.N. 96804 v.5.0
Start Up
Press 'ON/OFF' button on top left side to turn 'ON'.
Turn your vehicle on to 'WAKE UP' Banks iQ from
'SLEEP' mode.
Note: If Banks iQ does not 'WAKE UP' from 'SLEEP'
mode, make sure the USB interface connection is
connected and the sliding switch on the left side is slid
up to the 'ON' position.
Changing Power Levels
From the Power Mode, press the 'UP'por 'DOWN'q
arrows on the right of the guage screen to increase or
decrease the current power level.
* "CHANGING POWER SETTINGS"- refer to owner's
manual for further details"
Changing Brake Settings
From the Safety Mode, use the 'UP'por 'DOWN'q
arrows in the 'MANUAL' mode to adjust braking force.
Use the 'UP'por 'DOWN'q arrows in the 'AUTO'
mode to raise or lower downhill target cruising speed.
* "CHANGING BRAKE SETTINGS"- refer to owner's manual
for further details"
