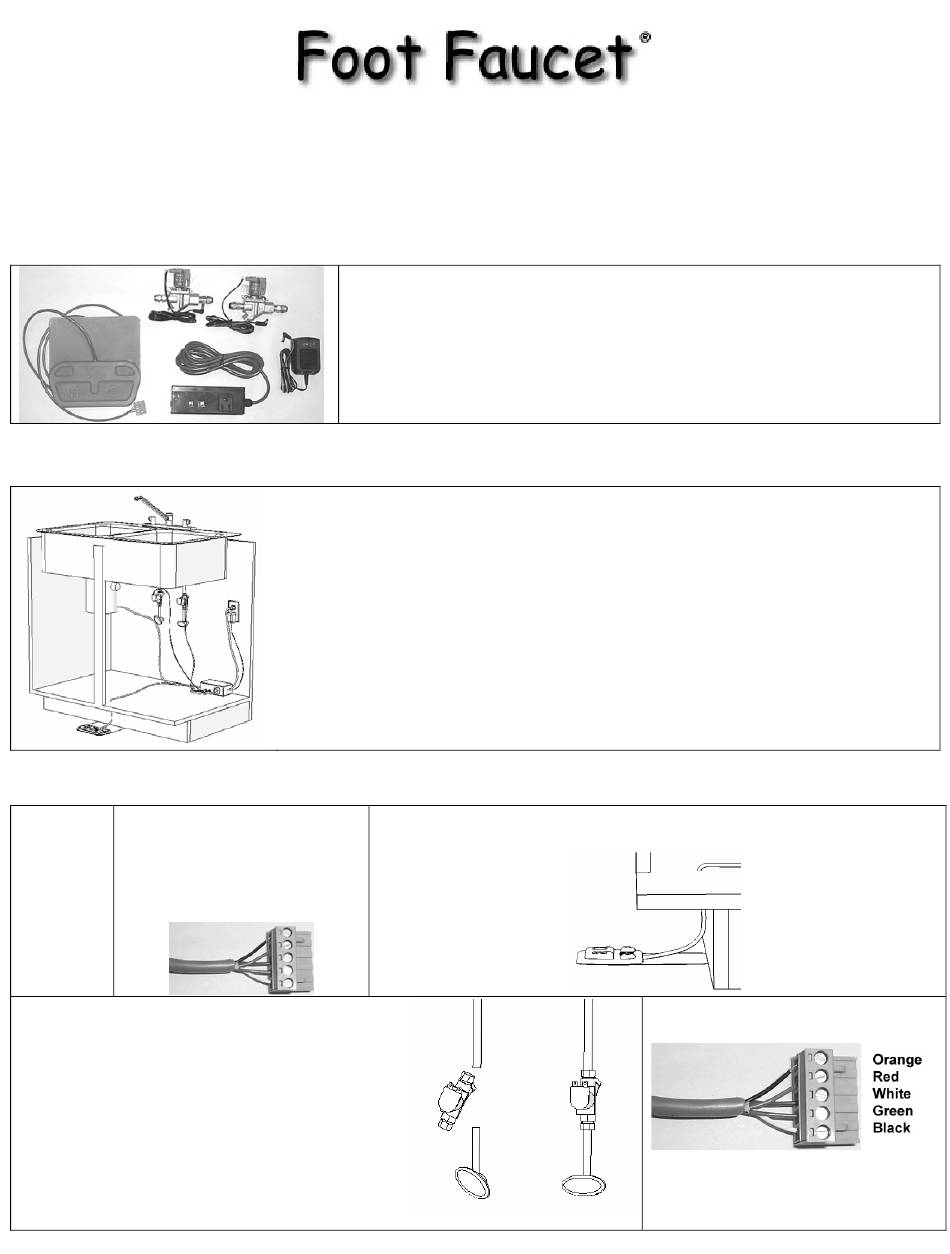

Pressure Products Foot Faucet Quick Start Manual

Pressure Products
Made By:
Thank You for choosing a Foot Faucet. Please read instructions completely before starting to install the Foot
Faucet. The Foot Faucet is intended to be installed by a qualified person to ensure proper water and electrical
connections.
1. TURN 2. Remove the control cable
OFF connector so that the cable
WATER can fit through the hole to be
SUPPLY drilled in step 3.
VALVES.
4. Cut out a 3.25" section from each water
supply tube and place Foot Faucet valves in-
line. Be sure valve is pointing the correct
direction. The arrow on the valve should
point in the direction of water flow (the end
with the electrical connectors points toward
the sink). If you have something other than
3/8" plastic or chromed tubing, you may have
to get some adaptive fittings from your local
hardware store.
- 513 N Link Lane - Fort Collins, Co. 80524 - 970-416-7351
Foot Faucet Kit
Your Foot Faucet kit includes;
• 1- set of foot pedals
• 2- valves with 3/8" compression fittings
• 1- control box
• 1- 12VDC power supply
Overview of Foot Faucet
This is a picture of a typical installation of the Foot Faucet system. TURN OFF
WATER SUPPLY VALVES. Drill a ¼" hole in the floor of the cabinet for the
control cable, then cut out a 3.25" section of each water supply tube and place
the Foot Faucet valves in-line (valve must point correct direction). That's all
there is to it!
The components are plugged into the control box and the water valves are
turned back on.
The Foot Faucet gets power from the outlet for the garbage disposal, so in
order to make the Foot Faucet work, turn on your garbage disposal wall switch
then turn on the water faucets to full blast, then step on the pedals. Leave the
wall switch and knobs (lever) for hot and cold water in "on" positions.
Detailed Instructions for Foot Faucet Installation
3. Measure the depth of the toe space in the cabinet and drill a ¼"
hole in the floor of the cabinet just less than the toe space depth.
5. Re-connect control cable plug.
__
3.25"
__
