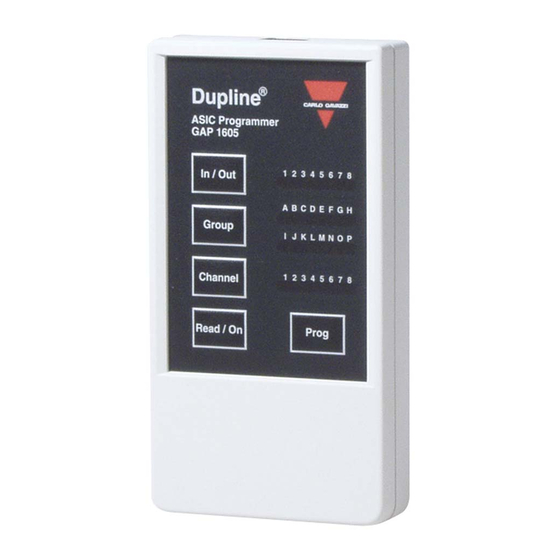

Type GAP 1605, Programming Unit

Product Description

Programming unit for Dupline
ASIC-based modules G..(..) ....
Provides means of reading and
programming
of
channel
codes. Coding of I/O's as
Type Selection
Supply
Internal battery

Product Specifications

Output
Connection
Display
Type
Size
Keyboard
No. of keys
Cable
Connectors
Length
Specifications are subject to change without notice
Gross Automation (877) 268-3700 · www.carlogavazzisales.com · sales@grossautomation.com
either 2, 4 and 8 successive
channels or
individually for
each I/O. Unused inputs/out-
puts can be defined as non-
coded.
Ordering no.
GAP 1605
6/6 modular socket
4 x 8 dots
LED
1.8 mm
Tactile keys
5
GAP 1605 to Dupline system
2 x 6/6 modular plugs
75 cm
• Portable programming unit
• Individual coding of every input or output
• Group coding of an entire module
• Reading of codes
• Editing of channel codes
• On/off-line coding of Dupline modules type G ....
• LED display 4 x 8 LEDs
• 5-key tactile keyboard
• Battery powered
• Easy-to-handle plug-type connection
• Automatic power saving mode

Ordering Key

Type:
Dupline ASIC Programmer
Type no.

Supply Specifications

Power supply
Battery type
Rated operational power
Stand-by
Operating
Battery lifetime

General Specifications

Environment
Degree of protection
Pollution degree
Operating temperature
Storage temperature
Humidity (non-condensing)
Mechanical resistance
Shock
Vibration
Material
Weight
GAP 1605
9 V Alkaline
400 mAH
IEC 6F22
< 25 µA
< 22 mA
Typ. 1 year
IP 40
3 (IEC 664)
0 to +50°C (+32 to +122°F)
-20 to +60°C (-4 to +140°F)
20 to 80% RH
15 G (11 ms)
2 G (6 to 55 Hz)
ABS, grey
225 g
1
