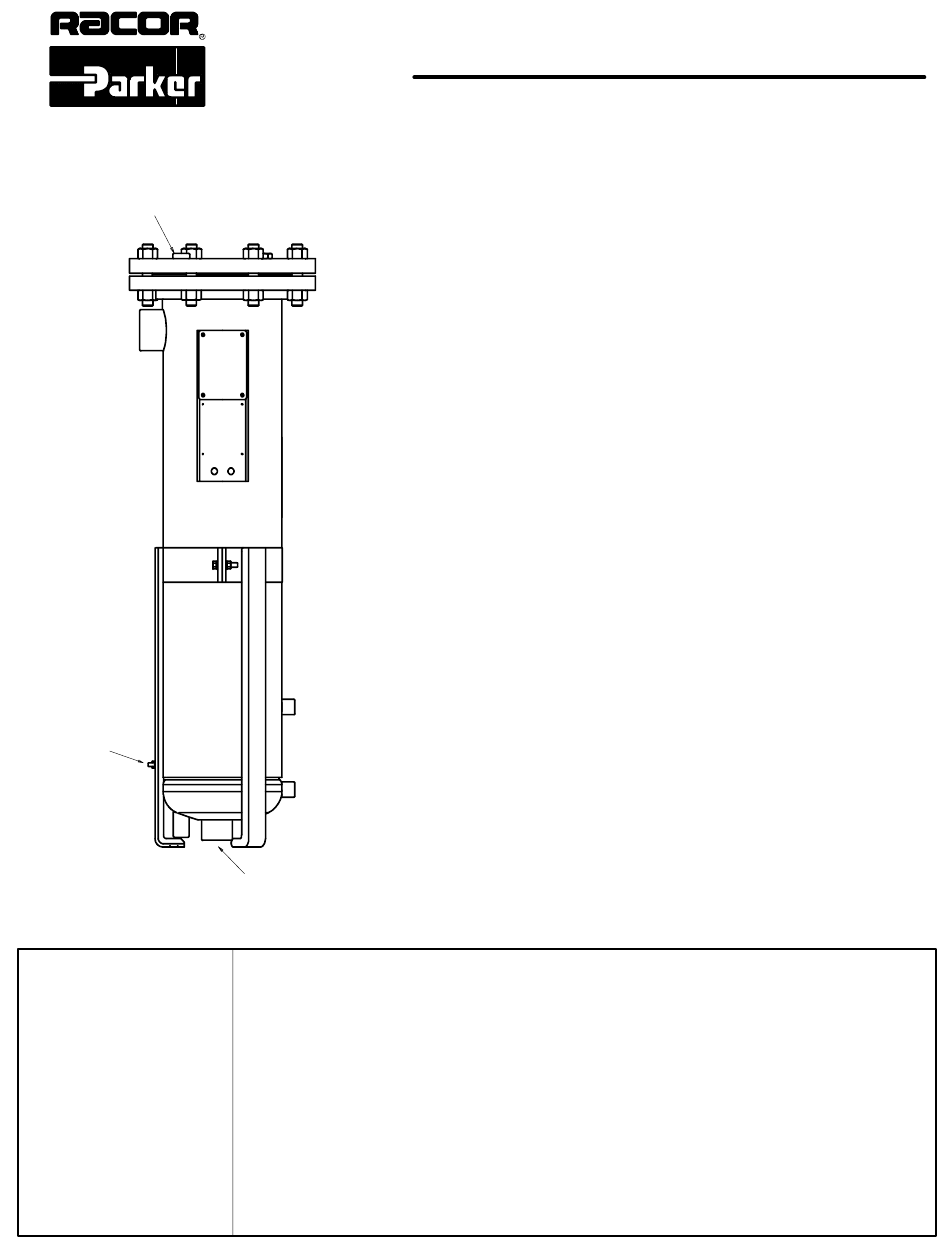

RACOR BVFS Series Manual

Filtration
Air vent: 3/4" NPT
2" NPT PORT
Adjustable
Support Legs
Grounding
Stud
Model
BVFS- 2
Shown
SPECIFICATIONS
Inlet / Outlet Ports,
Flow Rate, maximum
Design Press. / Temp.
Max. Allowable Working
Pressure
Replacement Elements
Overhead space required
for element change: in./mm
Height in./mm
Diameter in./mm
Weight: dry/wet lbs.
/kgs.
High Water
Level
Low Water
Level
2" NPT PORT
BVFS- 1
2" NPT
50 GPM / 189.3 LPM
245 PSI @ 250_F
17 bar @ 121_C
245 PSI / 17 bar
16 / 406
39 / 991
13.5 / 343
150 / 200
68 / 91

Product Information

BVFS Series Filter Vessels
Racor BVFS Series Filter vessels are designed to filter liquid and solid
contaminants from jet fuel, kerosene, diesel fuel, gasoline, aviation gas
and other hydrocarbon based liquids.
These filter vessels utilize proven Racor and Parker Hannifin technology
and may be used as coalescers, pre--filters or dehydrators by changing
internal components, flow direction and using optional filter cartridges
(factory configured). Water removing elements or silicone impregnated
pre--filters may also be used with these vessels. Filtration capabilities
down to 0.5 microns and less than 5 ppm water in fuels are obtainable.
Filter vessels feature single, double or triple length cartridges to meet
customer flow and filtration requirements. Elements may also be
stacked to meet customer needs. Maximum flow rates of 50, 100 or 150
gallons per minute are possible, depending upon fluids or filter
cartridges. Additionally, higher flows are possible by multiplexing
(factory configured).
The vessel is fabricated from carbon steel with an exterior primer coating
of Gavlon suede gray and the interior is epoxy coated which meets
MIL--C--4556E.
Accessories include differential pressure gauges, air eliminator, manual
or automatic drain valves and water sight gauges.
Vessels also feature adjustable legs for mounting ease.
Mounting Location
The BVFS Series are permanently installed units designed for pressure
applications up to 245 PSI at 250_F.
Install the unit in a location which provides accessibility, protection from
heat or flames and accidental impacts. Always adhere to applicable
local piping regulations or codes. Use the maximum line size possible
and avoid reducers and elbows. (A shut--off valve is required prior to the
inlet fitting).
BVFS- 2
2" NPT
100 GPM / 378.5 LPM
245 PSI @ 250_F
17 bar @ 121_C
245 PSI / 17 bar
See element chart on back page
32 / 813
51 / 1295
13.5 / 343
170 / 250
77 / 113
BVFS- 3
2" NPT
150 GPM / 568 LPM
245 PSI @ 250_F
17 bar @ 121_C
245 PSI / 17 bar
47 / 1194
65 / 1651
13.5 / 343
190 / 300
86 / 136
