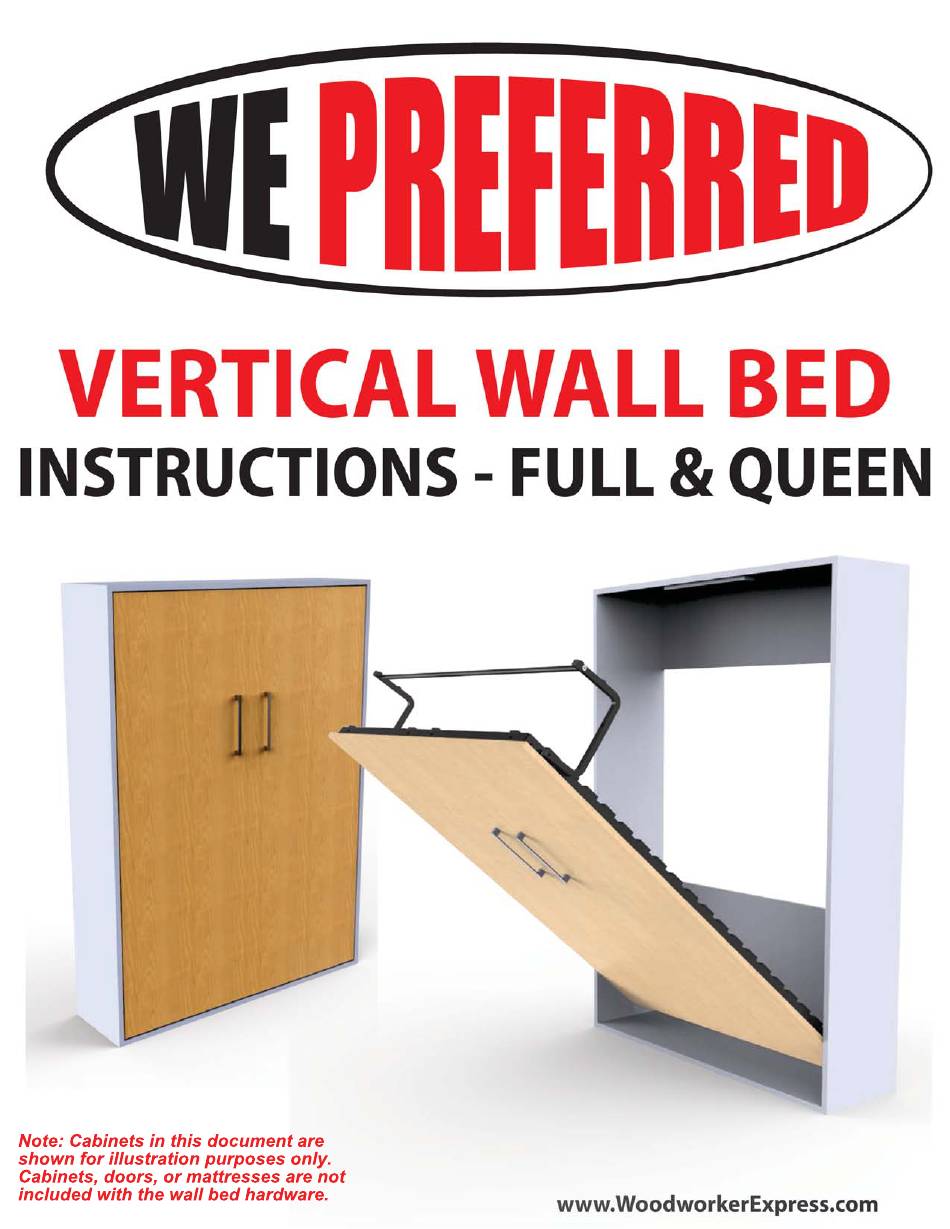

Summary of Contents for WE PREFERRED Full Vertical Wall Bed
- Page 2 Installation Instructions Hardware Flat Bars Pistons (non locking) Full: 90kg, Queen: 110kg Mattress Supports Mounting Plates (left and right) Saddle locking plates Brackets to attach wall bed to wall Door brackets Legs (left and right) Tube (for attaching legs) Slats Slat caps Wrench Allen key #4...
- Page 3 Temporary stoppers Note: WE Preferred offers a 5 year limited warranty on slat bases used in the wall bed as well as the mechanisms. The warranty covers the replacement of parts with manufacturing defects and/or breakage caused by regular use. It does not cover damages caused by poor installation or misuse of the product.
-
Page 4: Conversion Table
Installation Instructions Conversion Table Inside Measurements Width Depth Height Full 1454mm / 57-1/4” 368mm / 14-1/2” 2006mm 79” Queen 1606mm / 63-1/4” 368mm / 14-1/2” 2137mm 84-1/8” Outside Measurements Width Depth Height Full 1492mm / 58-3/4” 406mm / 16” 2044mm 80-1/2”... - Page 5 Installation Instructions Drilling Guide The holes should be 3/8” (9mm) in diameter and 1/2” (13mm) deep for the threaded inserts. 176mm 6 15 " Front Back 79mm " 240mm " Bottom *All measurements are for 19mm (3/4”) board. www.WoodworkerExpress.com...
-
Page 6: Installing The Mounting Brackets
Installation Instructions Step Installing The Mounting Brackets Right side Wood Left side O + N Bottom Step Assembling The Cabinet See conversion guide for suggested cabinet dimensions. www.WoodworkerExpress.com... -
Page 7: Securing To The Wall
Installation Instructions Step Securing To The Wall *Needs to be secured into atleast two wood or metal studs. Nylon wall anchors are NOT recommended. *Professional installation recommended. Step Assembling The Frame - Attach the flat bar A to the frame with V. - Attach the two half frames with W www.WoodworkerExpress.com... - Page 8 Installation Instructions Step Attaching The Pistons To The Frame AA = Secure the longer metal ends of the pistons to the frame. This end → Step Installing The Frame Onto The Mounting Brackets www.WoodworkerExpress.com...
-
Page 9: Installing The Legs
Installation Instructions Step Installing The Pistons To The Cabinet Tilt the frame inside past the cabinet edge to mount the pistons on the mounting brackets through the opening between the slats. AA = Step Installing The Legs Install the temporary stoppers BB onto the top corners of the bed cabinet. BB = Secure the legs to the bed frame. -
Page 10: Installing The Doors
Installation Instructions 102mm 102mm Step Installing The Door Brackets 4” 4” The door brackets must point downward. Install the door brackets in alignment with the 256mm support bars on the bed frame. 10-1/16” Measurements (right) are for the placement of this hole along the doors. 714mm 28-1/8”... - Page 11 Installation Instructions Step Installing The Doors 10.2 Attach the doors to the frame while putting weight on the frame to keep the bed open. We recommend to have someone else sit on the frame during this step. For this step x2 x 20 Step Installing The Permanent Stopper...
- Page 12 Installation Instructions Step Installing The Slats Place a cap on both ends of the slats. Insert the slats into their designated holes along the frame. Step Installing The Mattress Supports Insert the mattress supports into the designated holes on the bed frame. www.WoodworkerExpress.com...
- Page 13 Installation Instructions Using The Wall Bed Pivot the leg towards the inside of the unit. The wall bed is assembled and shown in Make sure leg is fully retracted. lowered position. Pull up gently to close. The leg serves as a mattress retaining system. The pistons insure that the door closes properly and remains closed.
