Instructions for Trimless kit
These instructions must be read in conjunction with the main installation guide, the conversion work below

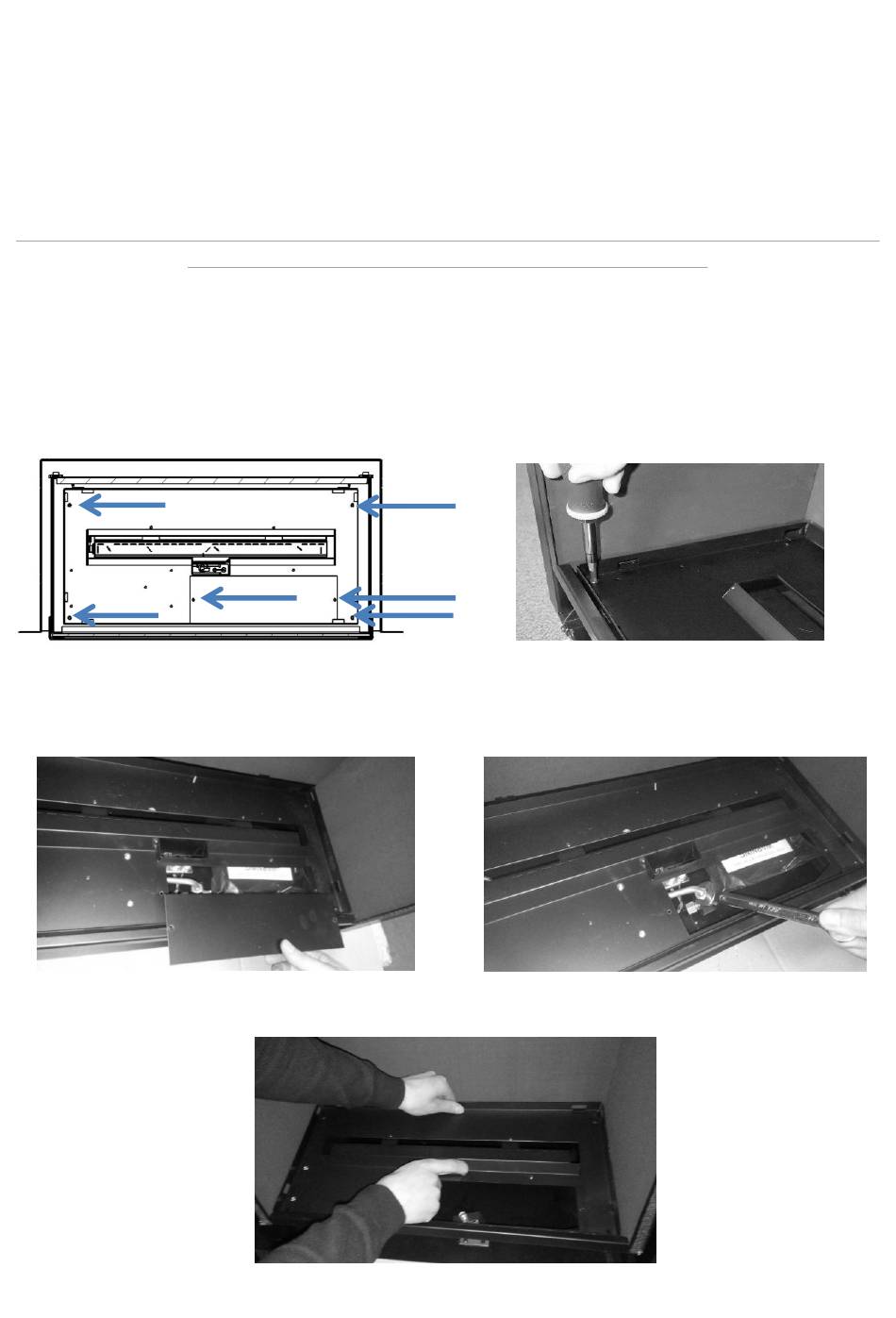

Remove the burner tray from the fire box by the following steps shown below:
Fig 1. Carefully lift the ceramic base
boards to reveal the burner screws
Fig 3. Remove access panel
Fig 5. Carefully remove the burner tray by lifting the back of tray first
.
Apex Cirrus
should be carried out prior to installing the firebox into position.
Fig 2. Remove 6 - 8 screws
Fig 4. Disconnect gas supply pipe from the restictor valve
1
