Vola 6x6, Vola 600 & Vola860

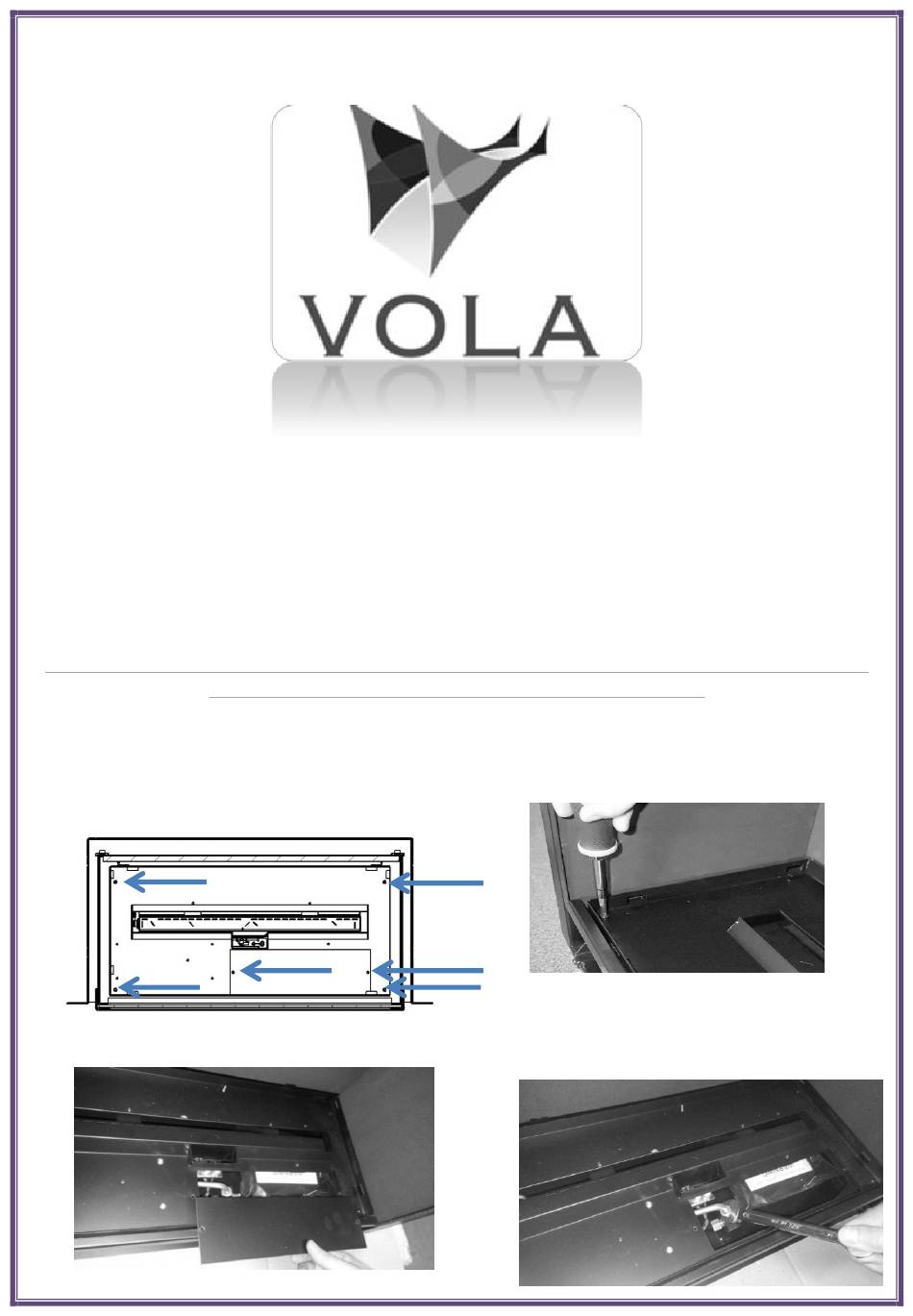

Instructions for Frameless kit
These instructions must be read in conjunction with the main installation guide, the conversion work below
should be carried out prior to installing the firebox into position.
Remove the burner tray from the fire box by the following steps shown below:
Fig 1. Carefully lift the ceramic base boards
Fig 2. Remove 6 - 8 screws
to reveal the burner screws
Fig 3. Remove access panel
Fig 4. Disconnect gas supply pipe from the restictor valve
1
Advertisement
Table of Contents
Related Manuals for Vola 6x6
Summary of Contents for Vola 6x6
- Page 1 Vola 6x6, Vola 600 & Vola860 Instructions for Frameless kit These instructions must be read in conjunction with the main installation guide, the conversion work below should be carried out prior to installing the firebox into position. Remove the burner tray from the fire box by the following steps shown below: Fig 1.
- Page 2 Fig 5. Carefully remove the burner tray by lifting the back of tray first . You are required to reposition the isolation bracket for the frameless version Burner tray showing standard bracket Burner tray with framless bracket option 1. Remove bracket and retain the screws 2.
- Page 3 Now fit the remote control valve key operating mechanism and power supply as follows: 1. Place the screws into the holes of the key mechanism and fix to the bracket on the remote control valve If using a back panel with this installation ensure the keys fit above the panel as shown in Fig 2 Fig 1 Fig 2 The power supply cord should be routed into the fire box along with the gas supply to keep the cable hidden,...
- Page 4 Press to Decrease flame To Increase Flame Power Button The key mechanism will now give you manual control of the remote valve as shown above The keys have a small movement of approx 1mm. Re fit the burner tray and fix in place the sub frame as shown below, care must be taken to get this into the correct position as you can see in Fig 3 the bottom area of the subframe sits level to line up the manual control mechanism and the heat outlet at the top has a clear area see Fig 4.
- Page 5 Fig 4 When using the appliance in conjuntion with a fireplace suite, you can use either non combustable slips like stone granite or marble, or a sirocco metal back panel, please see www.siroccofires.com for further details on the metal back panel. Main Firebox Front fascia panel always ensure that the fascia is fitted in the correct position as in...
-
Page 6: Site Requirements
SITE REQUIREMENTS If you are plastering the appliance in then you will need to remove the plaster from the wall around the fire enough to be able to fix a sheet of master board or non- combustible board over the fire box when in place to be able to be plastered to a finish ready to be decorated, you can surface fix if you wish to use non-combustable slips such as granite, stone or marble, around the appliance. - Page 7 Opening Requirements Width 610-645mm / 875-895mm (860) 455-470mm (600) 615-630mm (6x6) Height 460-470mm (860) 340mm minimum Depth 300mm minimum (860) From Floor 300-Minimum It is recomended that with the opening created prior to securing the firebox into position that all gas supply...
