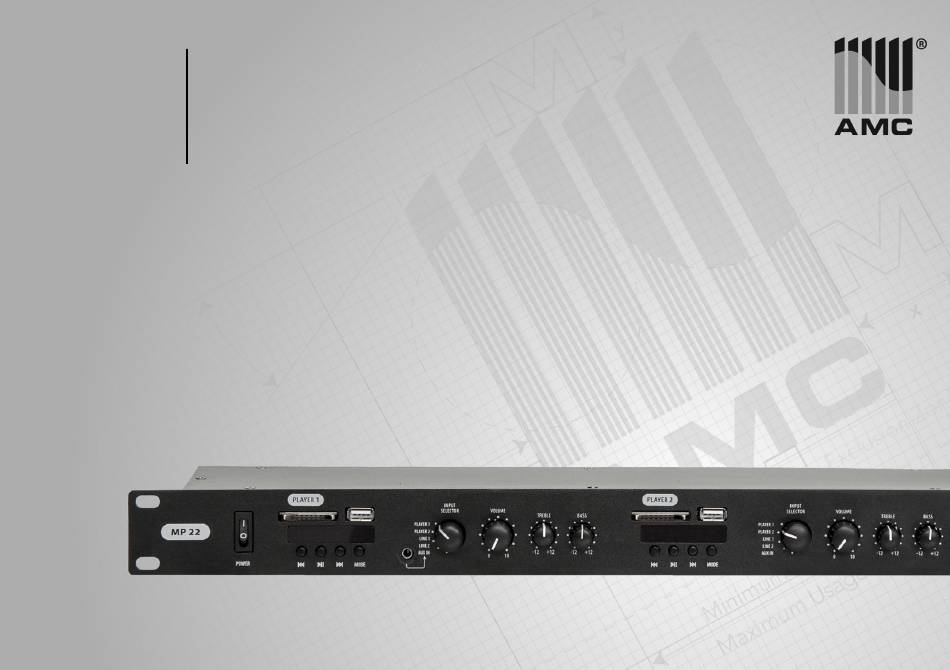

- Page 1 User MP 22 Manual Media Player...
-
Page 2: Safety Instructions
The product should be located away from heat sources such as radiators, heat vents, or other devices that produce heat. The product should be connected to a power supply that is described in the operating instructions or are marked on the product. USER MANUAL MP 22 Media Player... -
Page 3: Table Of Contents
Table of contents Before you start Introduction ..............................2 Features ................................2 Operation Front panel ................................3 Rear panel................................3 Remote control ...............................4 Front panel operation ..........................5 Rear panel operation ..........................6 Media player operation..........................7 Specifications General specifications ..........................8 USER MANUAL MP 22 Media Player... -
Page 4: Before You Start
Before you start MP 22 is a double media player for two zone audio installations. It features compressed audio playback, Bluetooth, FM radio and two zone paging capabilities with the addition of AMC TALK Z2 microphone desk stand. It is a flexible media player for places that constantly use multiple audio sources and need to switch them easily between two zones. -
Page 5: Operation
7. Stereo RCA Line 1 & Line 2 inputs 8. Media player 1 stereo RCA output link 9. Output 1 stereo balanced Phoenix outputs 10. FM antenna connector 11. Voltage selector 12. Mains power connector USER MANUAL MP 22 Media Player... -
Page 6: Remote Control
1. Media player mute | 2. Media player power ON / OFF | 3. Numeric keypad 4. Media player mode select 5. Store | 6. Play / pause 7. Repeat, Equalizer and Scan buttons 8. Track skip buttons 9. Media player volume 10. Media player selector USER MANUAL MP 22 Media Player... -
Page 7: Front Panel Operation
Turn the knob clockwise to Start or pause player. raise tone level +12 dB; turn counter-clockwise to lower tone level by -12 dB. TRACK SKIP BUTTONS Short press of track skip buttons will change currently playing track to previous or next track. Long press will adjust media player volume. MODE Change media player source between SD / USB / FM radio / Bluetooth. USER MANUAL MP 22 Media Player... -
Page 8: Rear Panel Operation
Stereo RCA connectors provide direct output from media player. Microphone is muted in both zones OUTPUT CONNECTORS Balanced Phoenix connectors for connecting MP 22 to amplifier. LINE INPUTS Stereo RCA connectors for external sound sources. Microphone is muted in zone 2 FM ANTENNA FM radio antenna connector. -
Page 9: Media Player Operation
Next time MP 22 will automatically connect to your device when Bluetooth buttons on the remote to navigate between stored station presets. mode is selected. You may still need to select "AMC Player 1" or "AMC Player 2" Digital keypad also can be used to navigate stored presets. -
Page 10: General Specifications
Bluetooth antenna: internal, working distance > 10 m The specifications are correct at the time of printing this manual. For improvement purposes, all specifications for this unit, including design and appearance, are subject to change without prior notice. USER MANUAL MP 22 Media Player...
