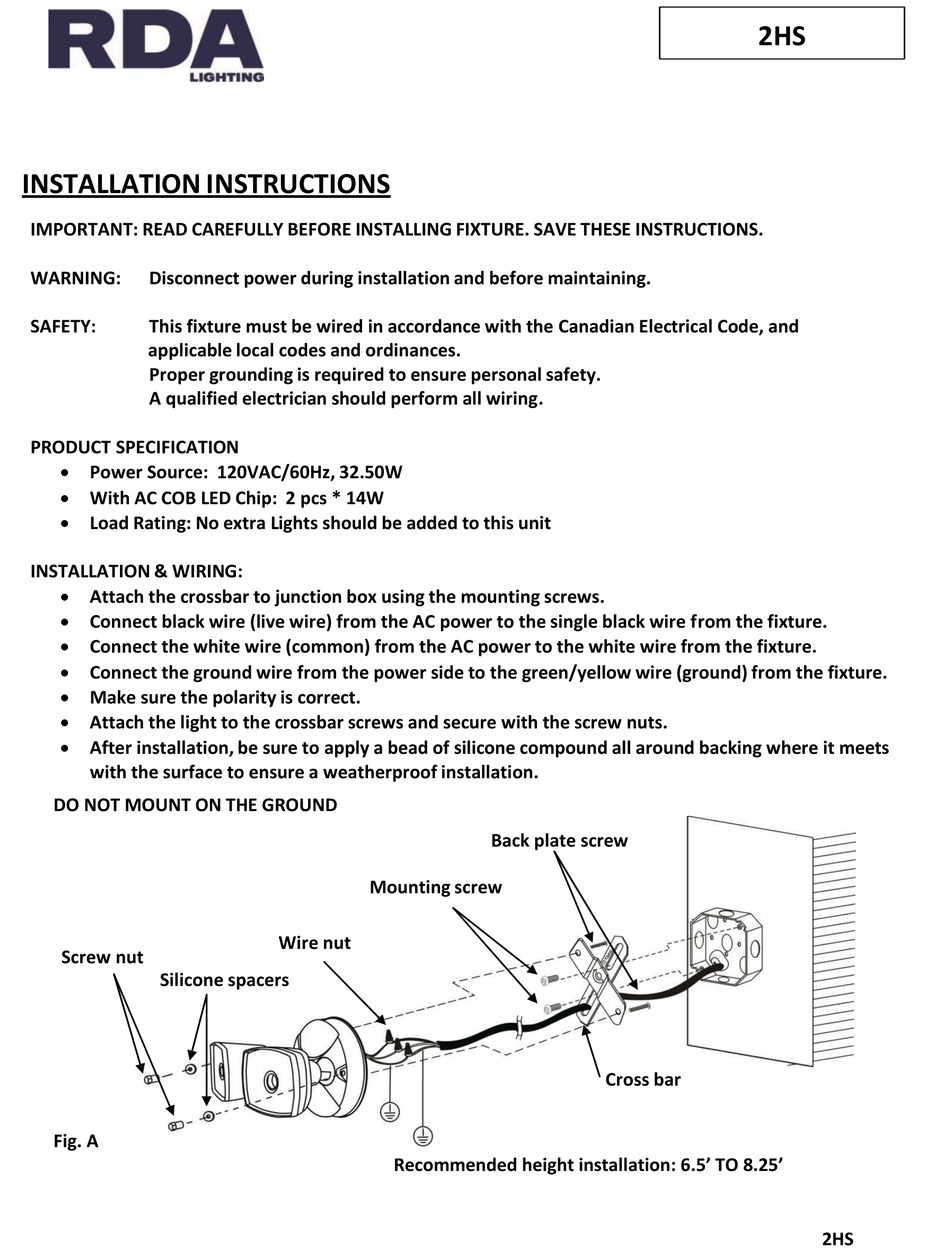

RDA LIGHTING 2HS Installation Instructions

INSTALLATION INSTRUCTIONS
IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE. SAVE THESE INSTRUCTIONS.
WARNING: Disconnect power during installation and before maintaining.
SAFETY: This fixture must be wired in accordance with the Canadian Electrical Code, and
applicable local codes and ordinances.
Proper grounding is required to ensure personal safety.
A qualified electrician should perform all wiring.

PRODUCT SPECIFICATION

 Power Source: 120VAC/60Hz, 32.50W
 With AC COB LED Chip: 2 pcs * 14W
 Load Rating: No extra Lights should be added to this unit
INSTALLATION & WIRING:
 Attach the crossbar to junction box using the mounting screws.
 Connect black wire (live wire) from the AC power to the single black wire from the fixture.
 Connect the white wire (common) from the AC power to the white wire from the fixture.
 Connect the ground wire from the power side to the green/yellow wire (ground) from the fixture.
 Make sure the polarity is correct.
 Attach the light to the crossbar screws and secure with the screw nuts.
 After installation, be sure to apply a bead of silicone compound all around backing where it meets
with the surface to ensure a weatherproof installation.
DO NOT MOUNT ON THE GROUND
Screw nut
Silicone spacers
Fig. A
Mounting screw
Wire nut
Recommended height installation: 6.5' TO 8.25'
Back plate screw
Cross bar
2HS
2HS
