Summary of Contents for MAIOR Levante
- Page 1 Maior Levante Instruction Manual Rev 1.0 - 05/2019 Eurotecno srl Via Proventa 120/1 - 48018 Faenza (RA) - Italy | Tel. +39 0546 646821 | info@maiormover.it...
- Page 2 ADDRESS: MAIOR - EUROTECNO SRL ADDRESS: Via Proventa, 120/1 48018 Faenza (RA) - Italy Tel. +39 0546 646821 DOCUMENT TYPE: Instruction Manual PRODUCT: Levante YEAR OF CONSTRUCTION: 2019 CONFORMITY ':...
-
Page 3: Warnings
Any damage to the machine or property derived from the infringement of the provisions contained herein or direct or indirect tampering of any Maior component, will make the warranty invalid. For each of all communication inherent to the machine, please always quote the serial number on the... -
Page 4: Table Of Contents
Summary Warnings ................................3 Product ............................... 5 1.1. Intended uses ............................ 5 1.2. package ............................. 6 1.2.1. Package Contents ........................6 1.3. Machine description ........................... 6 1.3.1. Components and knots ......................6 1.3.2. Identification of the machine ...................... 7 1.3.3. Dimensions and technical data .................... -
Page 5: Product

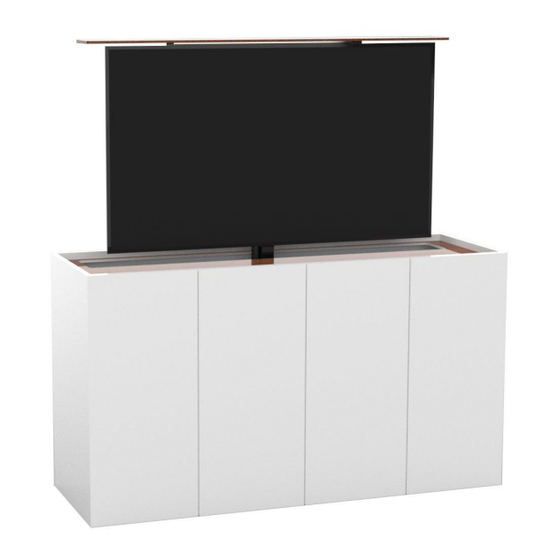

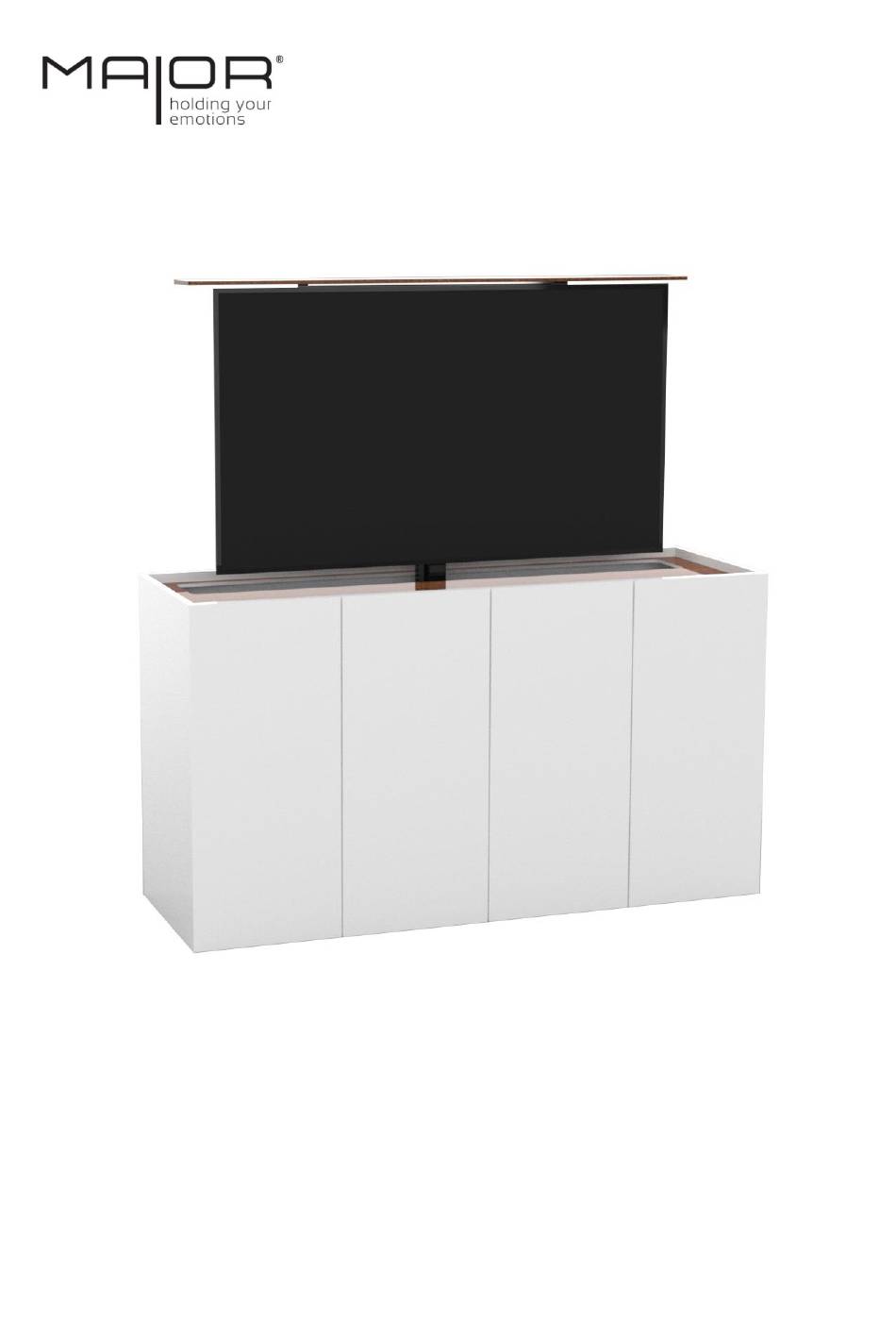

1. Product 1.1. Intended uses The equipment, called Maior Levante, is a lifting device for moving vertically a monitor or a television. The purpose of the machine is to hide the TV, showing it only when desired. The machine has to be installed within an article of furniture made specifically for the television that you are going to mount. -
Page 6: Package
1.2. Package The machine is attached to a pallet, packed in a wooden crate. The case is then further wrapped in a nylon film. The equipment must be transported using means having capacity suitable for the weight to be supported. During transport the equipment must be protected with waterproof material to prevent seepage and water deposits on electrical components. -
Page 7: Identification Of The Machine
In line are some of the cables already in place, in order to cover the most common needs. Coaxial cable 75 Ohm Antenna High Speed HDMI Cable DVD, Blu-Ray, decoders Cat.6 UTP Ethernet cable Smart TV, data, home automation for electric power cable of the television The supply of cables may not correspond to that listed above in the case when ordering both a different configuration was requested. -
Page 8: Dimensions And Technical Data
1.3.3. Dimensions and technical data Figure 3: Dimensions The adjustable support of the cover ⑤ panel allows an adjustment in the vertical direction, independent of the column, 60mm Template LEVANTE dimensional data Minimum height [mm] 842.5 Height [mm] 1901.5 Depth [mm]... -
Page 9: Linak Actuator Dl12Xl
1.3.4. Linak Actuator DL12XL Features: • Max. Thrust: 600 N • Max. Speed: 38 mm / s • Max bending moment: M max = 100 Nm dynamic • Piezo ™: Anti-collision sensor • PVC-Free ™ • Silent movement use: • Duty cycle: 5% •... -
Page 10: Power Cable Compatible (Eu Version)
• PVC-Free ™ • Power consumption in standby mode only 0.1W, ZERO ™ technology use: • Duty cycle: max. 10% ~ 6 minutes per hour or 2 minutes continuous use at full load • CBD6S 300W is approved in accordance with standards EN 60335-1, EN 13849-1 and UL 962 Figure 6: Unit CDB6S 1.3.7. -
Page 11: Assembly Instructions
2.2. Installation The installation of Maior Levante is closely linked to the work of the artisan who will carry out the cabinet that contains the machine. The cabinet can be thought to be dedicated to only one slot of the TV as well as provided with doors, drawers, shelves. -
Page 12: Installation Steps
Figure 8: Mobile Example 2.2.2. installation Steps 1. Locate, using the template provided, the exact position that the machine will be within the finished piece of furniture. 2. Install the threaded inserts (for M6 metric screws) in correspondence with the holes 6 on the template. - Page 13 fasten the motor cable connector to the control unit. (Plug 1) Fix the cables to the inner walls of the machine compartment so that they do not interfere in the movement of the machine elements. 6. Testing the correct operation of the machine by acting on the remote control or on the control box. Make sure, before you do, that there are no persons or property which could be harmed.
- Page 14 Proceed as follows: 1. Place the cover panel on adjustable support ⑤. 2. Insert screws (not supplied) into the 4 slots with development from right to left (slots-X) and tighten loosely. 3. Adjust the left and right panel until it is centered with respect to the profiled seat on the plane. 4.
-
Page 15: Operation, Use, Maintenance And Disposal
EUROTECNO SRL accepts no responsibility for property damage and / or injury caused by failure to comply with these instructions. 3.2. commands Maior Levante can be controlled in two ways: Through panel By means of a home automation system. The machine interfaces with panel and home automation system via the contacts clean. -
Page 16: Remote Control Optional
3.3. Remote control optional In addition to the standard commands, also there is provided a remote control. The radio control is to be understood as an optional command in that it is a control method suitable for the machine only for environments with no radio interference. -
Page 17: Malfunction
3.5. Malfunction If the machine may function incorrectly, see the following table. SITUATION CAUSE PROCEDURE The machine is not connected to Check the proper connection of the control the electrical network. unit to the mains. motor cables Check the correct connection of the motor The car does not connected properly. -
Page 18: Maintenance
The reset procedure can be performed through any of the above commands. 3.7. Maintenance The Maior Levante does not require any kind of routine or additional maintenance. 3.8. Demolition and disposal For the demolition and disposal of the machine: Remove the equipment. -
Page 19: Attached Documentation
4. Attached documentation 4.1. EC Declaration of Conformity Each machine is attached its own CE compliance documentation. Check the lamp among the documents annexed.
