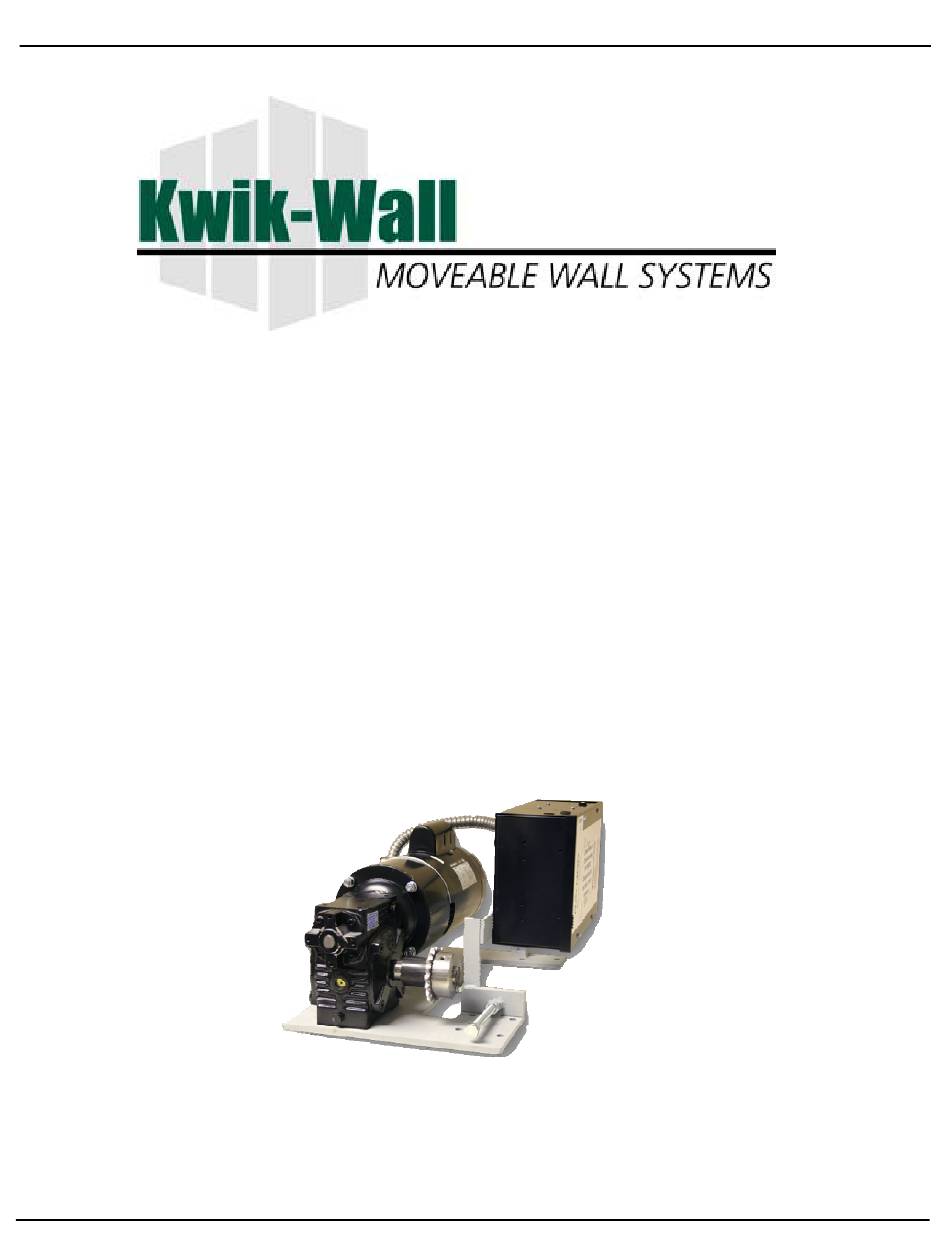

- Page 1 Model 3050 Installation Instructions Model 3050 Electric Wall Installation Procedure Effective December 2018 KWIK-WALL COMPANY Operable Wall Systems...
- Page 2 Lead sprocket should reside approx middle of slot. Temporarily set limit switches at location noted on shop drawing. See instructions on page 9 for Model 3050 Half Panel Interlock Limit Switch Installation Instruction. Note service location of ceiling dropouts on both ends of wall. See drawings for recommended size.
- Page 3 Repeat for all panels. Attaching chain to lead trolley: See page 5 “Model 3050 Installation Instructions for Extend & Retract limit switch Positions. This also covers chain location and lead trolley attachment.
- Page 4 Model 3050 Installation Instructions Install # 40 chain: Pull wall and operate manually. Return wall to stack. Test limit switches prior to installing chain to insure that they are wired correct. Make sure limit switch for extend shuts down extend function and limit switch for retract function shuts down the retract function.
- Page 5 Reset the fault bottom on the Guardian Box and test with wall running. Wall should stop operation if sensor has been activated. Model 3050 Installation Instructions for Extend & Retract Limit Switch Positions Setting the “Extend & Retract Limit Switch”...
- Page 6 Model 3050 Installation Instructions 3. Place a mark on the “Retract” limit switch lever arm at the point where the “Trip Pin” makes contact. (See Illustration #1). 4. All of the panels should be in the STACKED position. Make sure the panels are stacked as tight as possible.
- Page 7 Model 3050 Installation Instructions New Attachment Method 7. Remove the 10" [254 mm] escapement sections of track. Pull the “Lead” panel out into the 10" [254 mm] escapement area. Remember to put a spacer under the lead panel before the carrier is disengaged from the track.
- Page 8 Model 3050 Installation Instructions Dimension "D" Centerline of track. Illustration #4 "Extend" "Retract" Limit Switch. Limit Switch. Dimension "E" Illustration #5 10. From the mark on the “Retract” limit switch measure back to the “Extend” limit switch. This is Dimension “E”. (See Illustration #5).
-
Page 9: Installation Instructions
Model 3050 Installation Instructions Model 3050 Half Panel Inter-Lock Limit Switch Installation Instructions. Introduction: The half panel inter-lock limit switch is used to prevent the operable wall system from being “Retracted” before panels #1-3 are partially opened (folded). The inter-lock switch should only be installed on operable walls that contain the Manual Closure system. - Page 10 Model 3050 Installation Instructions Step 4.) Place the aluminum inter-lock limit switch bracket over the two (2) steel 1/2” flat washers and secure the bracket to the track using 3/8” x 1/12” socket flat head machine screws supplied. Use a 7/32” hex-key...
- Page 11 Model 3050 Installation Instructions Note: Make sure the operable wall panels are fully extended across the opening and panels # 1—3 are completely flattened out before proceeding. If this is a track only installation and the panels will be shipped at a later date DO NOT install the limit switch unit the panels have arrived.
- Page 12 Model 3050 Installation Instructions Step 8.) The final step is to wire the Half Panel Inter-Lock Limit Switch into the system. Please refer to the wiring diagram included with shipment for this part of the installation. Wire Hook Removal Note: Each panel except the Lead and Half Panel shall contain a “Floating Carrier”.
- Page 13 Model 3050 Installation Instructions Kwik-Wall 3 Phase Hydraulic Units Caution for electrician wiring unit: While wiring the voltage supply, you must determine the correct directional rotation of the motor in relationship to the pump. Motor spins when Key in 3 gang box is turned to the on position.
- Page 14 Model 3050 Installation Instructions Automatic Half Panel Pivot Closure KWIK-WALL COMPANY Operable Wall Systems...
- Page 15 Model 3050 Installation Instructions Electric wall trouble shoot - Electric Wall does not move one direction or both. Warning: Make certain that wall is not in a position where slight movements of wall could cause damage to wall / track components or items in the path!
- Page 16 Model 3050 Installation Instructions VERTICAL DETAIL STANDARD SPEED REDUCER DRIVE KWIK-WALL COMPANY Operable Wall Systems...
- Page 17 Model 3050 Installation Instructions VERTICAL DETAIL OPTIONAL HYDRAULIC DRIVE KWIK-WALL COMPANY Operable Wall Systems...
- Page 18 Model 3050 Installation Instructions Horizontal Details KWIK-WALL COMPANY Operable Wall Systems...
- Page 19 Model 3050 Installation Instructions This page intentionally left blank KWIK-WALL COMPANY Operable Wall Systems...
- Page 20 Model 3050 Installation Instructions Operable, Moveable Glass and Accordion Wall Systems 1010 East Edward Street Springfield, IL 62703 Phone: 217-522-5553 Fax: 217-522-1170 Website: ww.kwik-wall.com E-Mail: kwinfo@kwik-wall.com Distributed By: KWIK-WALL COMPANY Operable Wall Systems...
