HomEvap Direct Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

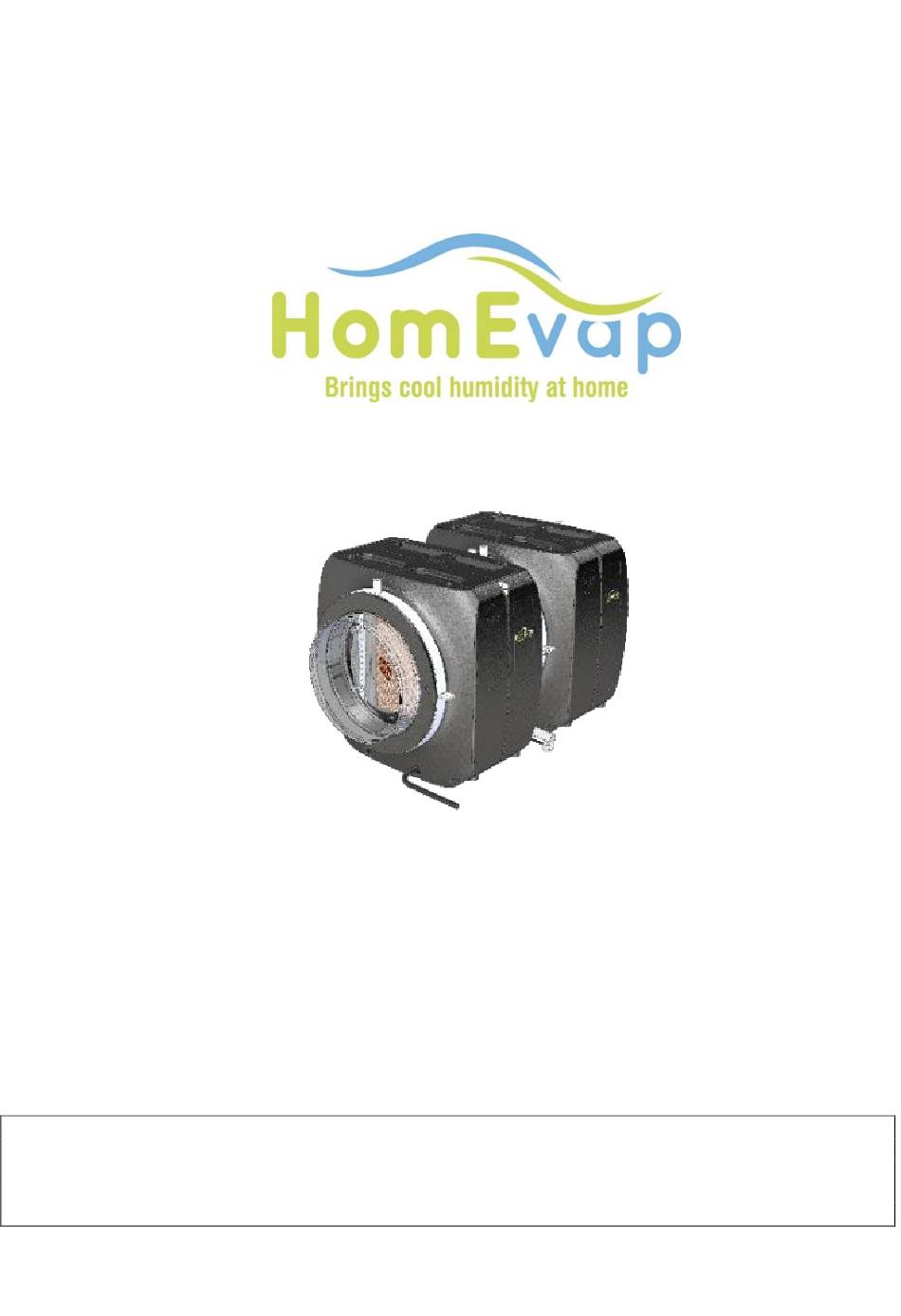

Installation Manual
Type : HomEvap Direct
KEEP WITH THE PRODUCT
This product may be used by children aged 8 years and over, persons with reduced mental capacity,
physical limitations or lack or experience and knowledge if they are supervised or have been instructed in
the use the product safely and are aware of the possible hazards. Children should not play with the
product.
Cleaning and maintenance by the user may not be carried out by children without supervision.
Country origin: NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Direct and is the answer not in the manual?

Questions and answers

Summary of Contents for HomEvap Direct

  • Page 1 Installation Manual Type : HomEvap Direct KEEP WITH THE PRODUCT This product may be used by children aged 8 years and over, persons with reduced mental capacity, physical limitations or lack or experience and knowledge if they are supervised or have been instructed in the use the product safely and are aware of the possible hazards.

  • Page 2: Table Of Contents

    The available information has been compiled with every possible care, but HomEvap BV cannot be held liable for any errors in the information or for the consequences of this. HomEvap BV cannot be held liable for damage arising from work carried out by third parties.

  • Page 3: Safety Regulations

    Safety measures taken • The Direct is constructed in such way that it is not possible to come into contact with moving or live parts during normal use and without specific actions. •...

  • Page 4: Delivery

    Section 2 – Delivery Check the packaging on receipt and before opening for visible damage. Damage must be reported to HomEvap in writing within 48 hours after delivery. Scope of supply The Direct consists of: 2 EPP housings fitted with 2 round connections of R200 mm.

  • Page 5: Operation

    The Direct is placed - out of sight - above the door of, for example, your meter cupboard, storage room or attic. The humidified and cooled air is blown in through a grid Principle of operation The HomEvap Direct is an adiabatic air cooler and humidifier.

  • Page 6: Use

    Section 4 – Use Application The HomEvap Direct can be used anywhere as long as the unit is connected to a water supply, drain and power. Description of components The main components of the HomEvap Direct are: The casing The Direct consists of two enclosures of EPP (expanded polypropylene) with a round channel connection of 200mm on both sides.

  • Page 7: Technical Specifications

    Section 5 – Technical specifications 5.1 Technical specifications HomEvap Direct Dimensions LxWxH 258 x 344 x 335 mm 2x Maximum humidifying- 4 liter capacity Maximum cooling- 1950 watt capacity Electricity use 20 VA Maximum water usage 5 liter per uur...

  • Page 8: Illustrations

    5.2 Illustration...

  • Page 9: Setup

    Physical suspension 1. Determine the location of the Direct in the home. For optimum efficiency the Direct should be installed in a place where the exiting air can easily flow through the house. E.g. hall, attic in staircase, closet in kitchen or storage room to large living room.

  • Page 10: Order Of Use

    6.2 Order in use: Open the water supply tap and check for leaks on water supply. Check again after 1 hour. 1) Insert the plug of HomEvap Direct into the socket. 2) Open the water supply tap. 3) Insert the plug into the socket. The service light goes on / off for 5 seconds, which means that a test is automatically performed.
  • Page 11 1= Humidifier 2= Fanbox...

  • Page 12: Faults

    Section 7 – Faults When the control in the unit detects a fault, this is displayed at the bottom of the product by the alarm symbol (bell) by means of an LED. To reset the alarm the product must be briefly disconnected from the power supply by removing the plug from the socket and then replacing this in the socket after 10 seconds.

  • Page 13: Maintenance

    Section 8 – Maintenance The humidifier is equipped with a removable cassette in which a matrix and LegioSafe filter are fitted. The matrix cannot be cleaned. The humidifier cassette must be replaced at least every year to guarantee safe and healthy humidification.

  • Page 14: Wiring Diagram

    Section 9 – Wiring diagram TB2 10V...

  • Page 15: Service

    Section 10 – Service When ordering components in addition to the product code the serial number (if present) and the name of the component must be stated. 10.1 Service products Product description Product code Humidifier cassette HECASH Humidifier air heater HEPTC Humidifier water valve HEVDW12EA...

  • Page 16: Warranty Provisions

    As a result of its warranty obligations, HomEvap shall only be obliged to repair or replace goods or components supplied by it for its account, at the discretion of HomEvap, if the product is installed in the country of first purchase.

  • Page 17: Liability

    The liability of HomEvap shall be limited to a maximum of the amount for which HomEvap has covered liability by insurance. If HomEvap’s insurer does not make a payment in any case or the damage is not covered by the insurance, the 12.4 liability of HomEvap shall be limited to the invoice value of the relevant agreement.
