Summary of Contents for HENAN HANWEI ELECTRONICS BX616

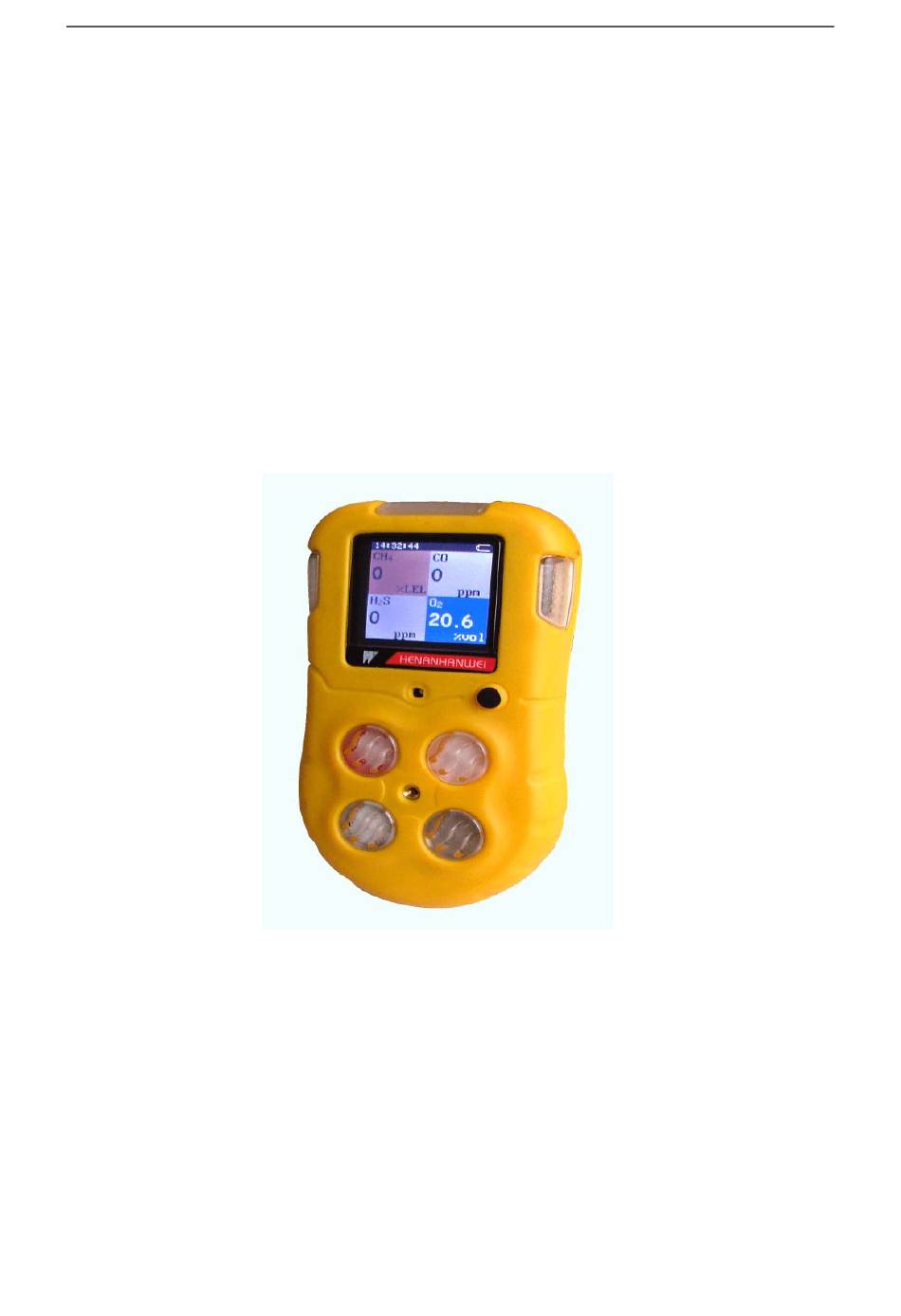

- Page 1 BX616 Portable Multi-gas Detector Using Manual BX616 Portable Multi-gas Detector Using Manual...
- Page 2 BX616 Portable Multi-gas Detector Using Manual 1. Brief Introduction BX616 portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’...

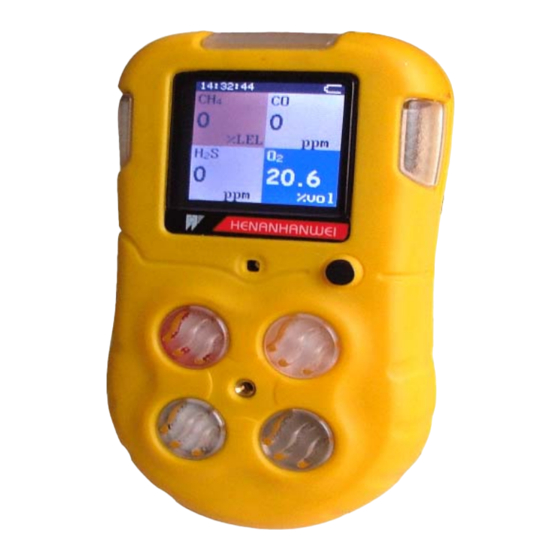

- Page 3 BX616 Portable Multi-gas Detector Using Manual 4.1 Appearance Name Name Alarm light Hang ring hole LCD screen Buckle Alligator clip Buzzer Power on/off button Label Calibration hole Charging/Communication port Detection window 4.2 Indication information Function Function Time TWA or STEL alert...
- Page 4 BX616 Portable Multi-gas Detector Using Manual 5. Operation instruction 5.1 Turn on Press the button for 1s and then release it. After the buzzer gives short sound once, the detector is turned on. On the screen, it displays in turns “Welcome”, “Warm up”, “Self test”, “High alarm”, “Low alarm”, “STEL”, “TWA”.
- Page 5 BX616 Portable Multi-gas Detector Using Manual Name Gas input hole Calibration map Screwing nut 6. Data upload Connect the detector to computer through the data cable (Min USB terminal connects to the interface on the bottom of the detector, and DB9 terminal connects to COM port of computer).
- Page 6 BX616 Portable Multi-gas Detector Using Manual Inaccurate indication Sensor is overdue Please contact the manufacturer or dealer to replace the gas senor Uncalibrated for long time Please calibrate it in time Fault indication of time Battery voltage is used up...
