Summary of Contents for Sanitaire RS72

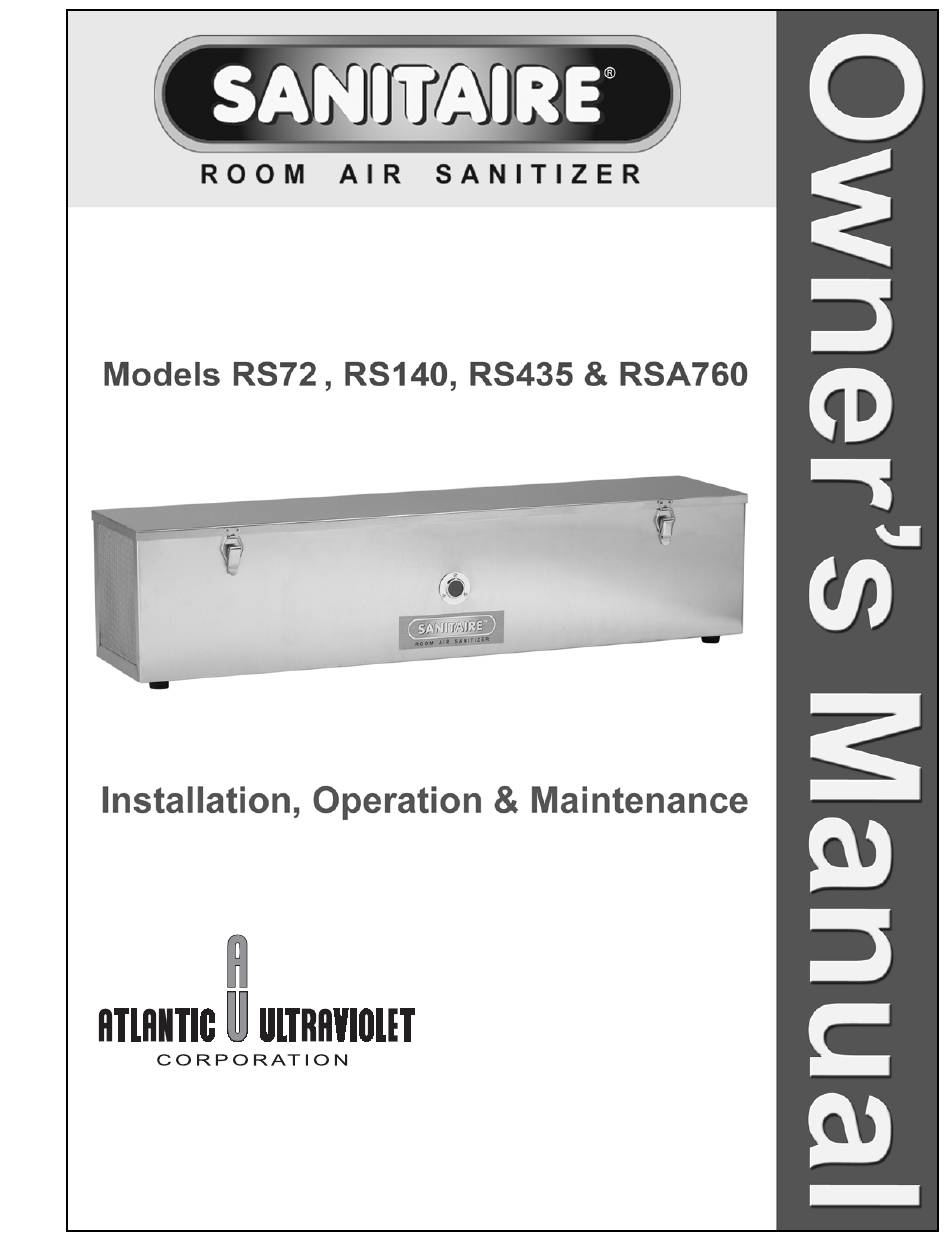

- Page 1 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: ultraviolet.com Document No. 98-1181A2 • Revised June 2007 • ©2005-2007 Atlantic Ultraviolet Corporation...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS..............................3 SAFETY INSTRUCTIONS ............................3 PRODUCT APPLICATION ............................4 .............................4 RINCIPLE OF PERATION ................................5 ONSTRUCTION .................................5 IMITATIONS UNPACKING ...................................6 INSTALLATION ................................6 .................................6 LACEMENT ..............................7 IMENSIONAL .................................7 EQUIRED OOLS ..............................8 NSTRUCTIONS ................................8 TANDARD ..........................8-9 TANDARD OUNTING .............................10 ECHNICAL SSISTANCE .............................10 PTIONAL CCESSORIES... -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application
RINCIPLE OF PERATION ® Sanitaire design has been carefully conceived to provide germicidal ultraviolet exposure for air disinfec- tion. The dosage, as it applies to ultraviolet disinfection, is a function of time, and the intensity, of ultraviolet radiation, to which the air is exposed. The exposure time, in seconds, is the total time it takes the air to move through the ultravi- olet field, produced by the germicidal lamp(s). -
Page 5: Construction
An interlock safety switch. The interlock switch interrupts power to the sanitizer, when the access cover is removed from the lamp/exposure chamber. • Molded rubber feet, for use on tabletops, shelves, etc. and standard wall mounting brackets (Models RS72, RS140 ® Sanitaire and RS435 only). -
Page 6: Unpacking
Carefully inspect all packing materials to prevent the loss of accessories, mounting hardware, spare parts or instructions. Do not discard packing materials until sanitizer is assembled and check out is complete. ® Sanitaire Model RS72 includes: ® Sanitaire Model RS140 includes: •... -
Page 7: Dimensional Data
IMENSIONAL Figure 2 - Dimensional Data EQUIRED OOLS • Pencil • If wall mounting, support hardware appropriate for the • Tape measure wall construction • Spirit level • Soft, clean, lint-free cloth • Power drill with drill bits and drivers •... -
Page 8: Setup Instructions
OUNTING ® The Sanitaire Model Room Air Sanitizer, Models RS72, RS140, and RS435 include a set of standard wall mounting ® brackets. The brackets allow the Sanitaire to be mounted to a wall, or other vertical surface, in either the vertical or horizontal position. - Page 9 120VAC electrical outlet within 6-feet of the desired placement area. Locate and mark the centers of mounting holes in accordance with the appropriate Figure. Figure 4 - RS72 & RS140 Bolt Hole Location Figure 5 - RS435 Bolt Hole Location Following manufacturer's instructions, prepare wall for mounting hardware installation.
-
Page 10: Technical Assistance
Lamp Operation Indicator: Monitors individual lamp operation, in any location up to 25 feet from the ® Sanitaire Room Air Sanitizer. Extension cables are also available. Elapsed Time Indicator: A non-resettable display of the operating hours. Useful for scheduling and recording maintenance and lamp replacement. -
Page 11: Air Intake Filter Cleaning
ILTER LEANING ® Sanitaire Sanitizers are fitted with permanent, washable, electrostatic air filter(s), which function dry; DO NOT apply oil, or adhesive sprays to the filter(s). In most applications, regular vacuuming will maintain peak performance; periodically flushing filter(s) with clean water is recommended whenever vacuuming fails to restore a clean appearance. -
Page 12: Germicidal Lamp Cleaning Or Replacement
5. When all lamps have been removed, cleaned and safely set aside, remove any loose dust or dirt from the interior of the sanitizer with a soft dry cloth, or vacuum. ® Sanitaire The reflector of the is constructed from specular aluminum, a highly reflective mirror like material, used to maximize ultraviolet intensity. -
Page 13: Troubleshooting
: Always disconnect power to the unit, before performing any service. Use personal protection equipment, such as gloves; long sleeves with no gaps between cuffs ® Sanitaire and gloves, and ultraviolet resistant face shield, if troubleshooting • IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Table 2 - Technical Specifications Model No: RS72 RS140 RS435 RSA760 Blower Capacity: (Cubic Feet per Minute) Nominal Unit Capacity : (Cubic Feet per Minute) Max Treatment Capacity: (Cubic Feet per Hour) 3,240 6,300 19,575 22,800 Max Room Size @ 3 Air Changes/Hour: (Cubic Feet) - Page 15 REPLACEMENT PARTS ® Sanitaire Figure 6- Replacement Parts List for Model RS72 & RS140 ® Sanitaire Figure 7- Replacement Parts List for Model RS435 & RSA760...
-
Page 16: User Assistance
For your convenience, record the following information below. The model and serial number can be found on ® a label located on the Sanitaire Room Air Sanitizers. Keep this manual, along with proof of purchase, handy when contacting our offices.
