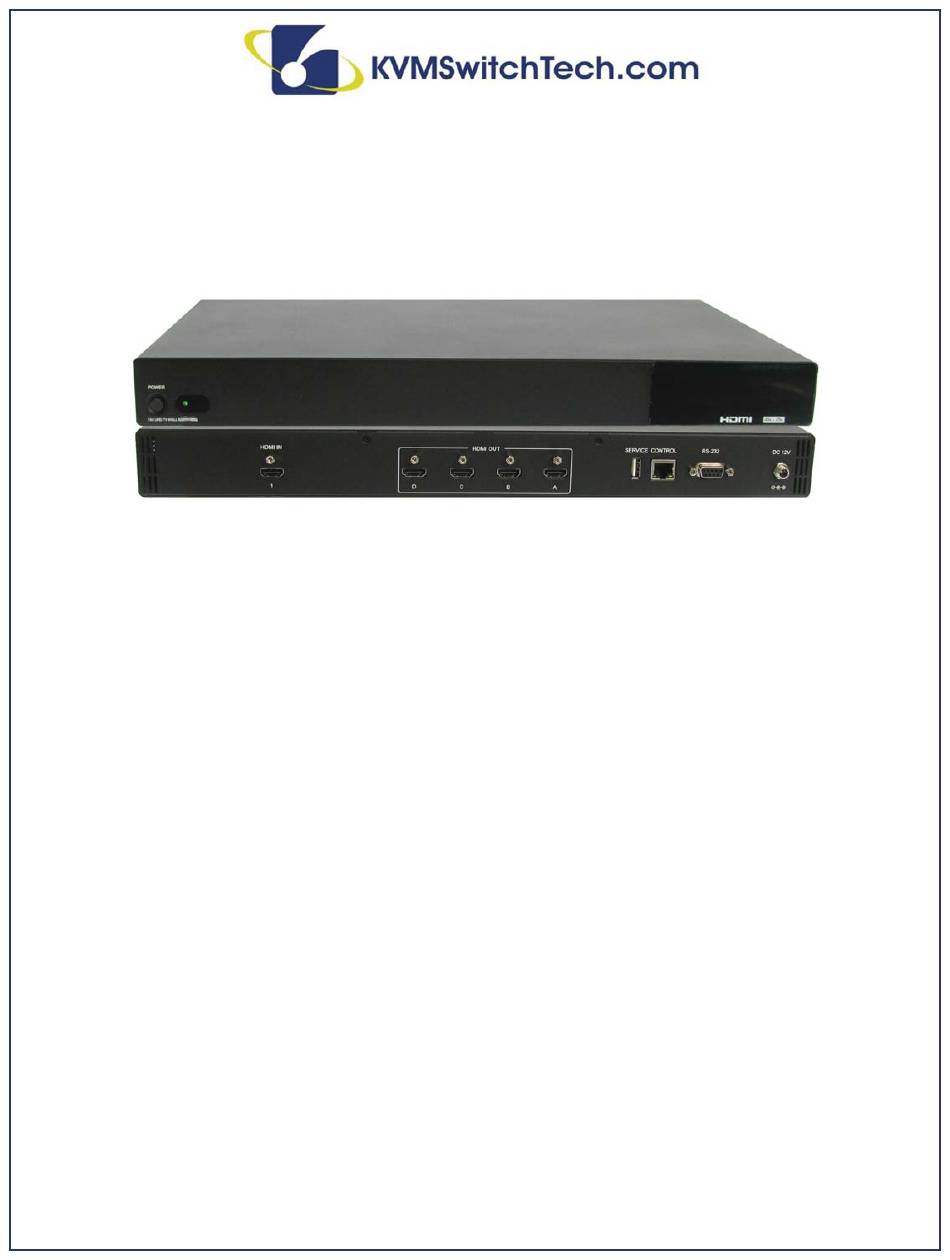

- Page 1 VW-HDMI-4K 1x4 HDMI 4K Video Wall Splitter (Cascadable) 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. 7R UHGXFH WKH ULVN RI ¿UH GR QRW VSLOO ZDWHU RU RWKHU OLTXLGV LQWR RU RQ WKH XQLW RU RSHUDWH WKH XQLW ZKLOH VWDQGLQJ LQ OLTXLG Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
‡ 'R QRW DOORZ DQ\WKLQJ WR UHVW RQ WKH SRZHU FDEOLQJ RU DOORZ DQ\ weight to be placed upon it or any person walk on it. The VW-HDMI-4K 1x4 UHD TV Wall allows a HDMI 4K2K input ‡ 7R SURWHFW WKH XQLW IURP RYHUKHDWLQJ GR QRW EORFN DQ\ YHQWV RU... -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES ‡ HDMI with 4K2K supported, HDCP and DVI compliant ‡ Output source signal to (4) displays as a full image with adjustable Bezel correction ‡ Supports Input PC resolutions from VGA~WUXGA and HDTV from 480i~1080p and 4K2K@24/25/30Hz ‡... -
Page 5: Front & Back Panels
7KLV VORW LV IRU ¿UPZDUH XSGDWH XVH RQO\ Works with the power button. CONTROL: Connects to an active network for Telnet control. Controlled with the “VW-HDMI-4K” application for multi-device control. RS-232: Connects from a PC/Laptop with D-Sub 9pin cables for RS-232 command control over the device. -
Page 6: Rs-232 & Telnet Commands
RS-232 & Telnet Commands RS-232 Protocols INPUT TIMING SUPPORTED REMOTE CONTROLLER (PC) Baud Rate: 115200bps 'H¿QLWLRQ 'H¿QLWLRQ Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER HELP(?) Shows Command List NONE HELP(?) N Shows Command Description... - Page 7 RS-232 & TELNET COMMANDS RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER ROSDD Requests Current OSD Display State NONE SOSDD N1 Sets OSD Display to Enable/Disable N1=0 (OFF), 1 (ON) ROSDH Requests Current OSD Horizontal Position NONE SOSDH N1 Sets OSD Horizontal Position to N1 N1=0~20 (5) ROSDV Requests Current OSD Vertical Position...
- Page 8 RS-232 & TELNET COMMANDS RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER RMUTE Requests Current Mute NONE SMUTE N1 Sets Mute Audio N1=0 (Unmute), 1 (Mute) RPOW Requests Current Power State NONE SPOW N1 Sets the Unit Power On/Off N1=0 (Off), 1 (On) RVER Requests Version NONE...
-
Page 9: Telnet Control
Telnet Control Telnet Control To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” LQ WKH VHDUFK ¿HOG then press ENTER. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” then press ENTER. -
Page 10: Pc Application Control
PC Application Control Visit A-NeuVideo.com to download the software application for the VW-HDMI-4K and execute it to control the Video Wall system. Note: Before installing, remove any former versions that are existing. Once the application is installed successfully, click and open the “Video Wall Set”. - Page 11 PC Application Control PC Application Control Connect Interface CONNECT: Click “Connect” to link the unit. DISCONNECT: Click “Disconnect” to terminate the link. MAC: Click on “MAC” with the arrow down button to show all the TV Wall units and select the nominated unit/MAC for connection.
- Page 12 PC Application Control PC Application Control TV W all Setup (1) FAST TV WALL SETTING: TV Wall’s fast setting. Click on hot keys to preset the TV Wall setup. TV W all Setup (2) MANUAL SETUP: Manually setup the TV wall’s settings by rows and columns from 1~15 and click “Send”...
- Page 13 PC Application Control PC Application Control I/O Setup OUTPUT RESOLUTION & OSD MENU ADJUSTMENT: All settings under I/O Setup can be done with a single TV Wall unit or units with a single click on “ALL IP”. Parameters and default values are as stated in the RS- 232 description parameters.
-
Page 14: Supported Resolutions
SUPPORTED RESOLUTIONS Supported Resolutions INPUT RESOLUTION OUTPUT RESOLUTION 640x480@60/72/75/85 640x480 1280x768@60/75 480p@60 (720x480) 1024x768@60/70/75/85 576p@50 (720x576) 1280x1024@60/75 800x600 848x480 800x600@56/60/72/75/85 480p@60 1024x768 576p@50 720p@50 (1280x720) 480i@60 720p@60 (1280x720) 576i@50 1280x768 720p@50/60 1280x800 1080i@50/60 1280x960 1080p@24/50/60 1280x1024 848x480@60 1360x768 852x480@60 1366x768 854x480@60 1400x1050 1024x852@60... - Page 15 SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 3840x2160 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) 800x600 848x480 1024x768 720p50 (1280x720) 720p60 (1280x720) 1280x768 1280x800 1280x960 1280x1024 1360x768 1366x768 1400x1050 1440x900 1600x900 (RB) 1600x1200 1680x1050 1080p@50 1080p@60 1920x1200 (RB) 2048x1152 (RB) 1080i@50 1080i@60 1080p@24...
- Page 16 SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 4096x2160 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) 800x600 848x480 1024x768 720p50 (1280x720) 720p60 (1280x720) 1280x768 1280x800 1280x960 1280x1024 1360x768 1366x768 1400x1050 1440x900 1600x900 (RB) 1600x1200 1680x1050 1080p@50 1080p@60 1920x1200 (RB) 2048x1152 (RB) 1080i@50 1080i@60 1080p@24...
- Page 17 SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 2048x1080/2048x1152 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) 800x600 848x480 1024x768 720p50 (1280x720) 720p60 (1280x720) 1280x768 1280x800 1280x960 1280x1024 1360x768 1366x768 1400x1050 1440x900 1600x900 (RB) 1600x1200 1680x1050 1080p@50 1080p@60 1920x1200 (RB) 2048x1152 (RB) 1080i@50 1080i@60 1080p@24...
-
Page 18: Connection & Installation
CONNECTION & INSTALLATION... - Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
