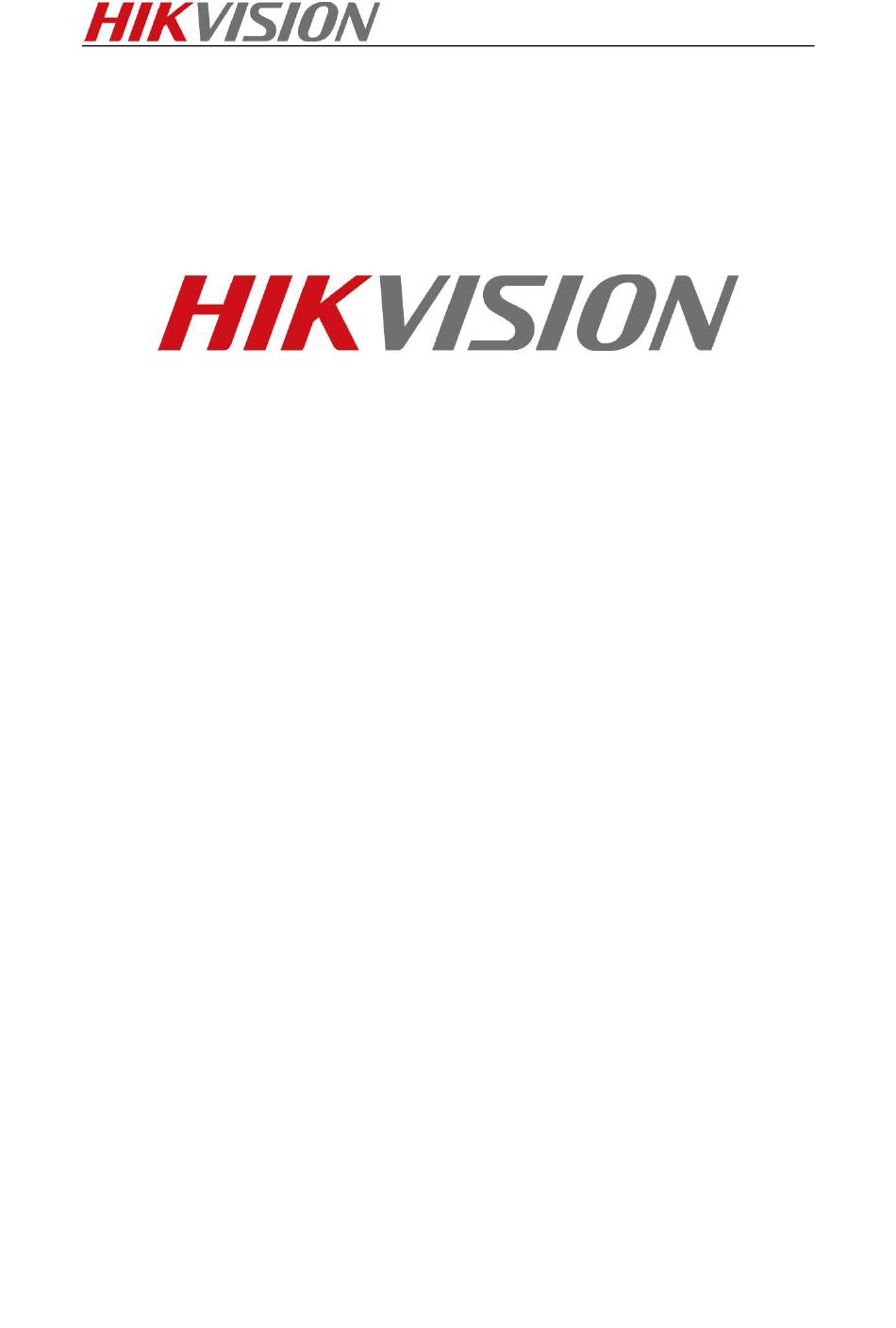

- Page 1 Technical Specification DS-6700 Series Video & Audio Encoder Technical Specification ©2006 – 2013 by HIKVISION. All rights reserved.
- Page 2 Technical Specification Notices The information in this documentation is subject to change without notice and does not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data that may appear in this documentation. The product(s) described in this documentation are furnished subject to a license and may only be used in accordance with the terms and conditions of such license.
- Page 3 Technical Specification Overview Developed on the basis of the latest encoding technology, DS-6700 Series Audio/Video Encoder Server allows the analog signal to be digitized and then stored in hard disk or transmitted via network, capable of encoding at up to WD1(PAL: 960×576, NTSC: 960×480) or 4CIF resolution.
- Page 4 Technical Specification Order Models DS-6701HFI, DS-6704HFI, DS-6708HFI, DS-6716HFI; DS-6701HWI, DS-6704HWI, DS-6708HWI, DS-6716HWI; DS-6701HFI-SATA, DS-6704HFI-SATA, DS-6708HFI-SATA, DS-6716HFI-SATA; DS-6701HWI-SATA, DS-6704HWI-SATA, DS-6708HWI-SATA, DS-6716HWI-SATA; Note: 1. No HDD is provided by default. 2. The manufacturer recommended HDD should be used for the device. ©2006 –...
- Page 5 Technical Specification Functions & Performances Encoding H.264/MPEG4/MPEG2/MJPEG encoding standards. Support encoding video at up to 4CIF resolution for DS-6700HFI (-SATA) models and up to WD1 resolution for DS-6700HWI (-SATA) models. Dual stream encoding. Either compound streams encoding or video stream encoding selectable; audio and video synchronization during compound streams encoding.
-
Page 6: Ptz Control
Technical Specification image and SSL encryption. Remote JPEG image capturing with user-defined image resolution and quality. PTZ Control Support Multiple PTZ Protocols Different channels can be configured with protocol type, RS-485 address, baud rate, data bit, stop bit, even & odd parity, stream control method, etc.; and remote configuration of presets, patrols and patterns. -
Page 7: Front Panel
Technical Specification Panels & Interfaces DS-6701HFI/HWI Front Panel: ① POWER LED Indicator ② VIDEO IN ③ LINE IN/AUDIO IN ④ AUDIO OUT ⑤ microSD interface ⑥ RESET Rear Panel: ① ALARM IN/ALARM OUT ② LAN (10M/100Mbps adaptive Ethernet interface, PoE) ③... -
Page 8: Rear Panel
Technical Specification DS-6704HFI/HWI Front Panel: ① POWER LED Indicator ② LINE IN ③ AUDIO OUT ④ VIDEO IN ⑤ AUDIO IN Rear Panel: ① ALARM IN ② ALARM OUT ③ RS-232 Serial Interface ④ RS-485 Serial Interface ⑤ RESET ⑥ microSD interface ⑦... - Page 9 Technical Specification DS-6708HFI/HWI (-SATA) Note: DS-6701/6704 HFI-SATA and DS-6701/6704 HWI-SATA models provide 1/4 video input and 1/4 audio input interfaces on the rear panel. ① VIDEO IN ② LINE IN ③ AUDIO OUT ④ AUDIO IN ⑤ LAN (10M/100M/1000Mbps adaptive Ethernet interface) ⑥...
-
Page 10: Specifications
Technical Specification Specifications DS-6700HFI: Model DS-6701HFI DS-6704HFI DS-6708HFI DS-6716HFI Video H.264/MPEG4/MPEG2/MJPEG Compression 1-ch 4-ch 8-ch 16-ch Video input BNC (1.0 Vp-p, 75 Ω) Audio G.711u Compression Video/ 1-ch 4-ch 8-ch 16-ch Audio input 1-ch, 3.5mm interface (2.0 Audio Input Vp-p, 1 kΩ) Line input interface (2.0 Vp-p, 1 kΩ) (LINE IN) 1-ch, 3.5mm interface (2.0... - Page 11 Technical Specification DS-6700HFI-SATA: Model DS-6701HFI-SATA DS-6704HFI-SATA DS-6708HFI-SATA DS-6716HFI-SATA Video H.264/MPEG4/MPEG2/MJPEG Compression 1-ch 4-ch 8-ch 16-ch Video input BNC (1.0 Vp-p, 75 Ω) Video/ Audio Audio G.711u Compression input 1-ch 4-ch 8-ch 16-ch Audio input Line input interface (2.0 Vp-p, 1 kΩ) Two-way audio 1-ch, 3.5mm interface (2.0 Vp-p, 1 kΩ) input...
- Page 12 Technical Specification DS-6700HWI: Model DS-6701HWI DS-6704HWI DS-6708HWI DS-6716HWI Video H.264/MPEG4/MPEG2/MJPEG Compression 1-ch 4-ch 8-ch 16-ch Video input BNC (1.0 Vp-p, 75 Ω) Audio Video/ G.711u Compression Audio 1-ch 4-ch 8-ch 16-ch input 1-ch, 3.5mm interface Audio Input (2.0 Vp-p, 1 kΩ) Line input interface (2.0 Vp-p, 1 kΩ) (LINE IN) 1-ch, 3.5mm interface...
- Page 13 Technical Specification DS-6700HFI-SATA: Model DS-6701HWI-SATA DS-6704HWI-SATA DS-6708HWI-SATA DS-6716HWI-SATA Video H.264/MPEG4/MPEG2/MJPEG Compression 1-ch 4-ch 8-ch 16-ch Video input BNC (1.0 Vp-p, 75 Ω) Video/ Audio Audio G.711u Compression input 1-ch 4-ch 8-ch 16-ch Audio input Line input interface (2.0 Vp-p, 1 kΩ) Two-way audio 1-ch, 3.5mm interface (2.0 Vp-p, 1 kΩ) input...
