SIEB & MEYER

Power Supply Unit

PS10

Hardware Description

Article number 02173XX

P-TD-0000410.2

2016-05-02

Table of Contents

Need help?

Do you have a question about the PS10 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIEB & MEYER PS10

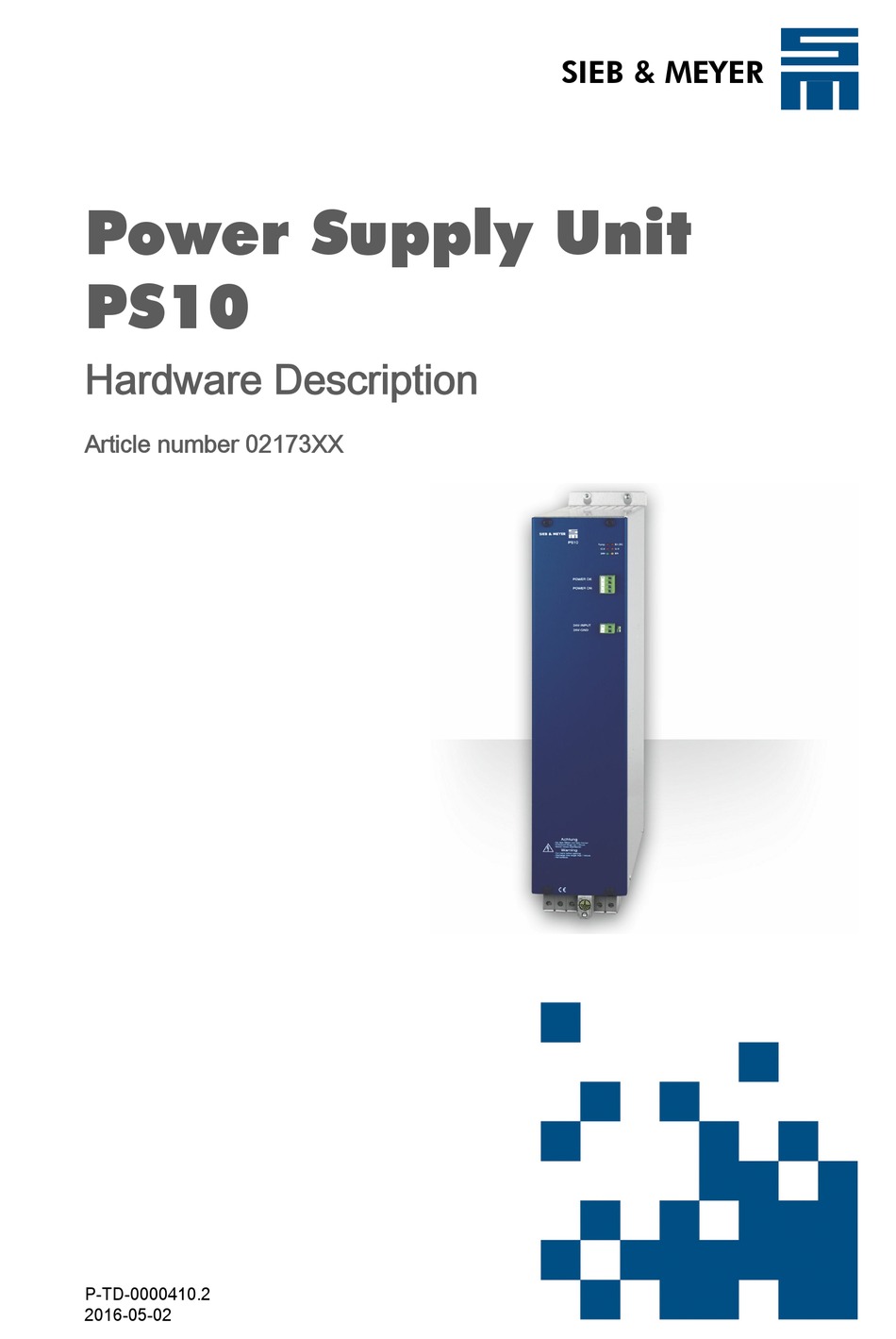

Page 1: Power Supply Unit
SIEB & MEYER Power Supply Unit PS10 Hardware Description Article number 02173XX P-TD-0000410.2 2016-05-02...
Page 2 Fairfield, OH 45014 Kwei-Shan Hsiang 333 Tao-Yuan Hsien Phone: +1 513 563 0860 Taiwan Fax: +1 513 563 7576 Phone: +886 3 311 5560 info@sieb-meyerusa.com Fax: +886 3 322 1224 http://www.sieb-meyer.com smasia@ms42.hinet.net http://www.sieb-meyer.com Power Supply Unit PS10 - Hardware Description...
Page 3: Table Of Contents
Chapter Overview About this Manual General Information Safety Instructions Unit Assembly Complying EMC Functional Description Power supply unit PS10 Connector Pin Assignment LED Status Display Integration in Drive Systems Initial Operation Maintenance Appendix Index Power Supply Unit PS10 - Hardware Description...
Page 4: Chapter Overview
Chapter Overview Power Supply Unit PS10 - Hardware Description...
Page 5 Initial Operation ............... 10.1 General Information Regarding the Wiring ..........10.1.1 Mains Connection ....................10.1.2 Cable Requirements ..................... 10.2 Tips for a Trouble-free Operation .............. 10.3 Connection ....................Maintenance ..............11.1 Fuses ......................Power Supply Unit PS10 - Hardware Description...
Page 6 Content Appendix ................. 12.A Manufacturers ................... 12.A.1 Connectors of the Series PS10 ................12.A.2 EPCOS Line Filters ....................12.A.3 Phoenix Contact ....................Index ................Power Supply Unit PS10 - Hardware Description...
Page 7: About This Manual
Indicates a hazardous situation which, if not avoided, may result in property damage. Risk symbols Risk symbol Description General hazardous situation Risk of injury due to electric shock Risk of injury due to hot surfaces Power Supply Unit PS10 - Hardware Description...
Page 8: Illustration Of General Notices
All term definitions are to find in the glossary of the manual. In the PDF file a mouse click on a highlighted term jumps directly to the according definition. Technical Symbols Symbol Description LED indicator: LED on LED indicator: LED off LED indicator: LED flashes Power Supply Unit PS10 - Hardware Description...
Page 9: General Information
General Information General Information This manual describes the power supply units of the series PS10. These devices are used to supply drive modules of the series FC71/FC72 and SD2 with voltage. This manual provides information on: ▶ Safety instructions and application advice ▶...
Page 10 General Information Power Supply Unit PS10 - Hardware Description...
Page 11: Safety Instructions
Consider the relevant notes in the manual. WARNING Risk of injuries and material damage due to illegal modifications Only change the settings of the device after having contacted SIEB & MEYER. Power Supply Unit PS10 - Hardware Description...
Page 12: Appropriate Use
(installation of heating/air condi‐ tioning systems etc.): ▶ The storage area must be clean (dust-free, if possible), dry and well-ventilated. ▶ Storage in the open is not permitted. Power Supply Unit PS10 - Hardware Description...
Page 13: Installation
The admissible relative humidity is between 5 % and 85 % (no bedewing). ▶ The admissible ambient temperature during operation is +5 °C to +40 °C (+41 °F to +104 °F). Extreme and sudden changes of the temperature should be prevented. Power Supply Unit PS10 - Hardware Description...
Page 14: Electrical Connection
After turning off the unit hazardous voltages may still exist for up to 3 minutes in the power supply (due to capacitors). ➮ Never connect capacitive loads to the output phases of the servo amplifiers and frequency converters. Power Supply Unit PS10 - Hardware Description...
Page 15: Operation
During the operation of an installation with open doors or removed covers, persons may seriously be injured by moving machine parts. Keep the doors closed during the operation and do not remove covers. Power Supply Unit PS10 - Hardware Description...
Page 16: Maintenance
SIEB & MEYER and the customer. NOTICE Due diligence of the machine manufacturer A first programming carried out by SIEB & MEYER does not release the machine manufacturer from his duty to check the programmed values for correctness. Power Supply Unit PS10 - Hardware Description...
Page 17: Unit Assembly Complying Emc
Availability: ▶ hard copy version directly from SIEB & MEYER ▶ PDF file on CD-ROM directly from SIEB & MEYER ▶ PDF file in the internet under www.sieb-meyer.com Power Supply Unit PS10 - Hardware Description...
Page 18 Unit Assembly Complying EMC Power Supply Unit PS10 - Hardware Description...
Page 19: Functional Description
The power supply units of series PS10 were developed especially for the SIEB & MEYER frequency converters of the series FC71/FC72. Design and power grading are perfectly coordinated. In addition, the PS10 power supply units are used with the drive amplifiers of the series SD2.
Page 20 Functional Description Power Supply Unit PS10 - Hardware Description...
Page 21: Power Supply Unit Ps10
Power supply unit PS10 Power supply unit PS10 Fig. 1: Device view PS10 Power Supply Unit PS10 - Hardware Description...
Page 22: Dimensions
The device is convection ventilated. If the circulation of air is restricted, the device could overheat and possibly become damaged. When you install the device, make sure that the air inlets and outlets are kept free and the air circulation is not obstructed by other devices. Power Supply Unit PS10 - Hardware Description...
Page 23 Power supply unit PS10 Fig. 3: Dimensions of the mounting holes The mounting holes are suitable for M5 and M6 bolts. Module width [mm] Width [mm] Device variant PS10/13 PS10/30 PS10/55 PS10/100 PS10/150 Power Supply Unit PS10 - Hardware Description...
Page 24: Technical Data
At rated power (S1) To ensure sufficient air supply, a free space of at least 150 mm must be provided below the module (inlet of the air) and above the module (outlet of the air). Power Supply Unit PS10 - Hardware Description...
Page 25: Ballast Resistor
Power supply unit PS10 Ballast Resistor All power supply units of the series PS10 come with internal ballast resistors. These resistors are required when energy is fed back into the drive (and then into the power supply unit) during deceleration.
Page 26 Example: Pn =10 kW, Pr = 250 W, tb = 4 s (at rated current), tp = 90 s, η = 0.9 = 10 kW × 0.9 = 9 kW Pb = 9 kW / 2 × 4 s / (4 s + 90 s) = 191.5 W Condition Pr > Pb fulfilled. Power Supply Unit PS10 - Hardware Description...
Page 27 Pb = 9 kW / 2 × 2 s / 94 s + 9 kW × 2 s / 94 s = 287 W Condition Pr > Pb is not fulfilled. Possible Solution: Extended interruption time (tp) and/or deceleration time. Power Supply Unit PS10 - Hardware Description...
Page 28 Power supply unit PS10 Power Supply Unit PS10 - Hardware Description...
Page 29: Connector Pin Assignment
= 11 mA at 24 V The following applies to the relay contacts: 1 A / 24 V Specification of terminal connections ▶ Conductor cross-section solid/stranded: 0.2 – 2.5 mm² ▶ Tightening torque: 0.5 – 0.6 Nm Power Supply Unit PS10 - Hardware Description...
Page 30: Schematic Diagram For Power On
Specification of terminal connections ▶ Conductor cross-section solid/stranded: 0.2 – 2.5 mm² ▶ Tightening torque: 0.5 – 0.6 Nm Main Power Supply L1, L2, L3 These power terminals serve for connecting the mains phases. Power Supply Unit PS10 - Hardware Description...
Page 31: Dc Link Connection +600, −600
PS10/55 UW 25/S 25 – 35 4 – 4.5 PS10/100 HDFK 95-F-VP 50 – 95 50 – 95 15 – 20 PS10/150 HDFK 95-F-VP 70 – 95 70 – 95 15 – 20 Power Supply Unit PS10 - Hardware Description...
Page 32 Connector Pin Assignment Power Supply Unit PS10 - Hardware Description...
Page 33: Led Status Display
At least for a short time the mains voltage was detected. too low. Green The 24 V operating voltage is – supplied. Yellow The preloading process was – successful and the power supply unit signals POWER OK . Power Supply Unit PS10 - Hardware Description...
Page 34 LED Status Display Power Supply Unit PS10 - Hardware Description...
Page 35: Integration In Drive Systems
There are no additional filters integrated into the power supply units of series PS10. In most of the industrial installations, either no additional filtering is neces‐ sary or filters are already integrated (e.g. a common main filter for all components of the switch cabinet).
Page 36 Connection example PS10 and FC71 Power Supply Unit PS10 - Hardware Description...
Page 37 Connection example PS10 and FC72 Power Supply Unit PS10 - Hardware Description...
Page 38 Connection example PS10 and SD2 Power Supply Unit PS10 - Hardware Description...
Page 39: Accessories
Power supply status POWER ON of e.g. PLC — Consider that an SD2 in connection with a PS10 does not receive the same error evaluation of the power supply unit as with a PS2. Accessories SIEB & MEYER can help you to find suppliers for the required peripheral devices as well as deliver appropriate products on demand.
Page 40 Power Supply Unit PS10 - Hardware Description...
Page 41: Initial Operation
They must be wired separately from motor cables. ▶ The cable shields must be connected to the connector shell inside of the connec‐ tors. In the switch cabinet they should be connected to a ground bus. Power Supply Unit PS10 - Hardware Description...
Page 42 ISO and AWG/MCM values are shown in the following table. Standardized cross-sections of round conductors: ISO cross-section [mm²] AWG/MCM Value Equivalent cross-section [mm²] 0.205 – 0.324 0.519 0.75 0.82 – – Power Supply Unit PS10 - Hardware Description...
Page 43: Tips For A Trouble-Free Operation
Connection Before starting the connection works, ensure that the power supply unit is mounted firmly and securely. In particular, consider the following points during wiring the device according to the different connection possibilities: Power Supply Unit PS10 - Hardware Description...
Page 44 TEMP. , ERR. DC. , O.V. or U.V. is on not finished successfully, one of the red LEDs signaling an error message. If an error is indicated, please recheck all connections. Also refer to chapter 8 "LED Status Display", page Power Supply Unit PS10 - Hardware Description...
Page 45: Maintenance
Maintenance Maintenance 11.1 Fuses All power supply units of the series PS10 are equipped with meltable fuses. In order to check or replace these fuses, the front panel must be removed. DANGER High voltages in the DC link Before working at the device you must disconnect all dangerous voltages from the device.
Page 46 Maintenance Power Supply Unit PS10 - Hardware Description...
Page 47 520 / 300 V 16 A 15 mA 35063103 B84143A0050R105 520 / 300 V 50 A 15 mA 35063106 B84143A0090R105 520 / 300 V 90 A 18 mA 12.A.3 Phoenix Contact 12.A http://www.phoenixcontact.com Power Supply Unit PS10 - Hardware Description...
Page 48 Appendix Order key for Phoenix connectors Labeled connectors can be ordered at SIEB & MEYER. 12.A Power Supply Unit PS10 - Hardware Description...
Page 49 Connection exampleFC71 Connection exampleFC72 Connection exampleSD2 Connector kit SD2 connection example DC link Technical data Device view Dimensions Drive combinations Wiring instructions Error messages FC71 connection example FC72 connection example Fuses Initial operation Power Supply Unit PS10 - Hardware Description...
