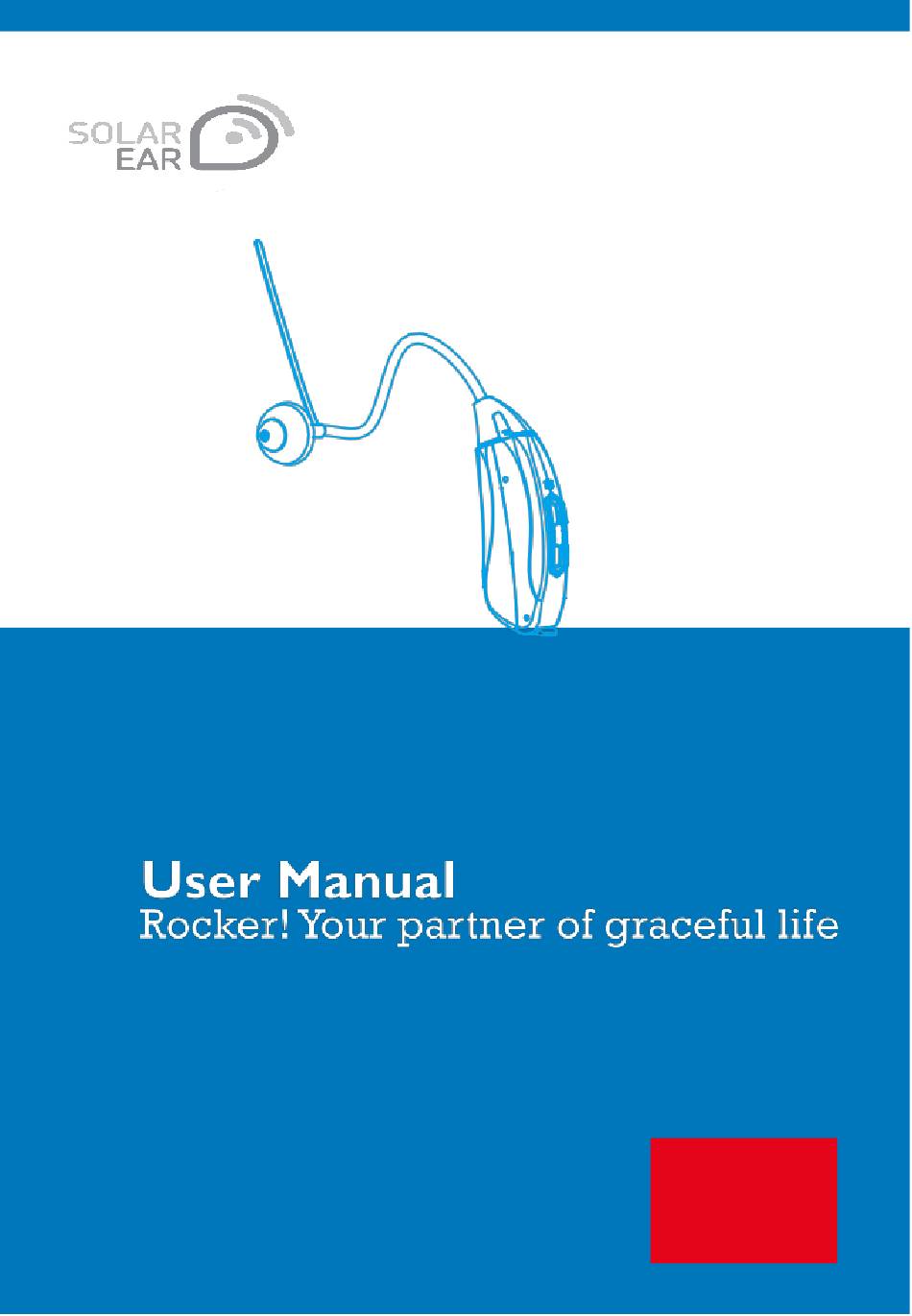

- Page 1 Rocker 206D...
-
Page 3: Table Of Contents
Contents Preface Features Preparation Operation ON and OFF How to wear your hearing instrument Rocker switch Replacing the battery Maintenance Cleaning & changing tube Cleaning the instrument Low battery warning Battery caring Troubleshooting Guide Appendix Technical information Working Condition FDA information... -
Page 4: Preface
It is used to help hearing impaired people improve hearing ability by compensating for the hearing loss. Scope This user manual only applies to Rocker 206D hearing aid device. Precautions For patients with middle ear infection, it’s suggested not to wear hearing instrument until cured or follow the doctor’s advice. -
Page 5: Features
1. Sound tube 2. Mi crophone 3. Rocker s w i tch 4. B a ttery door 5. Dome 6. R e tention l ock... -
Page 6: Preparation
1x Cleaning wire 1x 12mm closed dome 1x 15mm closed dome The ROCKER 206D uses a 312A battery. Please use the correct size of battery. To upload a battery, position the battery with the positive (+) side up and insert it into the battery compartment section of the battery door. - Page 7 Dome Attach the dome Push the dome over the grooves on the tube to mount it. Atta ch the s ound tube To connect the sound tube with hearing aid, just plugs onto the adaptor. Note:Your hearing aid is supplied with two tubes. RED lettering is for right ear.
-
Page 8: Operation
ON and OFF TO TURN ON - Gently open the battery door, insert battery and close the door. The device is equipped with power-on delay function, so it needs a few seconds to get started. TO TURN OFF - Simply open the battery door completely. Please store the instrument in safe and dry place. - Page 9 Note: If swelling or redness occurs, discontinue using and visit your hearing professional.
-
Page 10: Switch
Rocker Switch The rocker switch s erves as a vol ume control as well as a memory s witch. Volum e Control Pres s the upper part of the s witch to i ncrease the vol ume. Pres s the lower part to decrease the volume. Memo ry Switch Pres s and hold either part of the switch for 3 s econds to change the current program. - Page 11 Rocker 206D is pre-seted with 3 programs. When the hearing instrument is turned on, it will automatically be in program 1. Press the upper/lower half of the switch for 3 seconds, and the current listening program will change to another. The number of beeps corresponds to the program.
-
Page 12: Replacing The Battery
Replacing the battery 1. Switch off the hearing instrument by opening the battery door. 2. Remove the old battery. 3. Remove the protective foil from the new battery. 4. Insert the new battery, be sure that the plus (+) is facing up. 5. -
Page 13: Cleaning & Changing Tube
Cleaning & Changing Tube Cleaning Use a soft cloth to wipe the instrument after use to remove any particles or moisture. The Cleaning Tool is used to remove debris / wax from the sound tubing and domes. Changing 1. To remove tube gently rotate the sound tube holding the instrument firmly. -
Page 14: Cleaning The Instrument
Cleaning the instrument Ear wax is one of the main causes of hearing aids problems. Filter and other devices are used for preventing wax from entering the instrument. It’s suggested cleaning ear wax in the morning before you insert the instrument to your ear. Clean your instrument with a soft, dry cloth and a small brush. -
Page 15: Low Battery Warning
Low battery warning When you hear two short beeps, it means that the battery is running out. Intermittent warning exists until you replace the battery. The sound quality may be influenced after the first warning, this is normal and can be remedied by inserting a fresh battery in the hearing instrument. -
Page 16: Troubleshooting Guide
Clean the instrument, remov e and clean the dome Adjust the rocker v olume control... - Page 17 Help with whistling Whistling is common for small amplifiers and is known as 'feedback' . It is caused by amplified sound from the hearing aid getting back to the microphone and being re-amplified. Choose a suitable earpiece is very important for better fitting. The following tips will help reduce the occurrence of feedback whistle: 1.
-
Page 18: Technical Information
Technical data Peak Rocker 206D Technical Data OSPL 90(dB SPL) HFA OSPL 90(dB SPL) Reference test Gain(dB) HFA full on Gain(dB) THD @ 500Hz(%) THD @ 800Hz(%) THD @ 1600Hz(%) EQ Input Noise(dB) Battery Current(mA) Frequency Range (Hz) IEC 60118-7/2005 ANSI 3 . - Page 19 WWW.solarear.org solarear@solarear.com.br...
- Page 20 Special statement: > A hearing aid will not restore normal hearing and will not prevent or improve a hearing impairment resulting from organic conditions. > In most cases infrequent use of a hearing aid does not permit a user to attain full benefit from it. >...
-
Page 21: Fda Information
FDA information Warning to Hearing Aid Dispensers A hearing aid dispenser should advise a prospective hearing aid user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing aid if the hearing aid dispenser determines through inquiry, actual observation, or review of any other available information concerning the prospective user, that the prospective user has any of the following conditions:... -
Page 22: Important Notice For Prospective Hearing Aid Users
Important Notice for Prospective Hearing Aid Users Good health practice requires that a person with a hearing loss have a medical evaluation by a licensed physician (preferably a physician who specializes in diseases of the ear) before purchasing a hearing aid. Licensed physicians who specialize in diseases of the ear are often referred to as otolaryngologists, otologists or otorhinolaryngologists. -
Page 23: Children With Hearing Loss
The exercise of such a waiver is not in your best health interest and its use is strongly discouraged. Children with hearing loss In addition to seeing a physician for a medical evaluation, a child with a hearing loss should be directed to an audiologist for evaluation and rehabilitation since hearing loss may cause problems in language development and the educational and social growth of a child. - Page 24 E- mail: solarear@solarear.com.br www.solarear.org Version: A/0...
